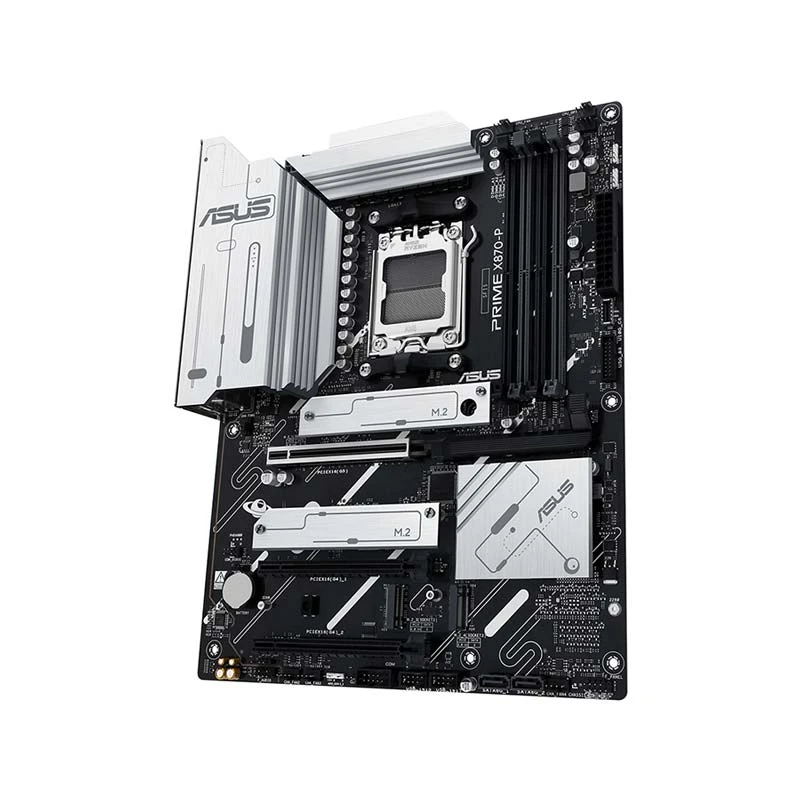

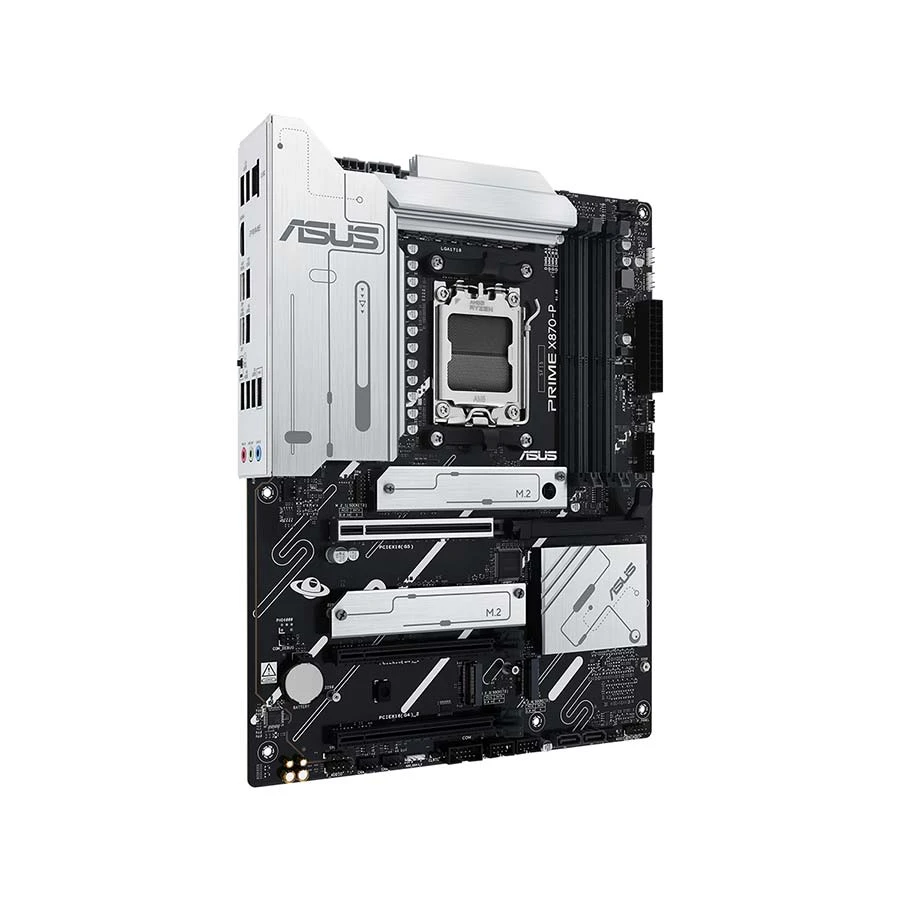

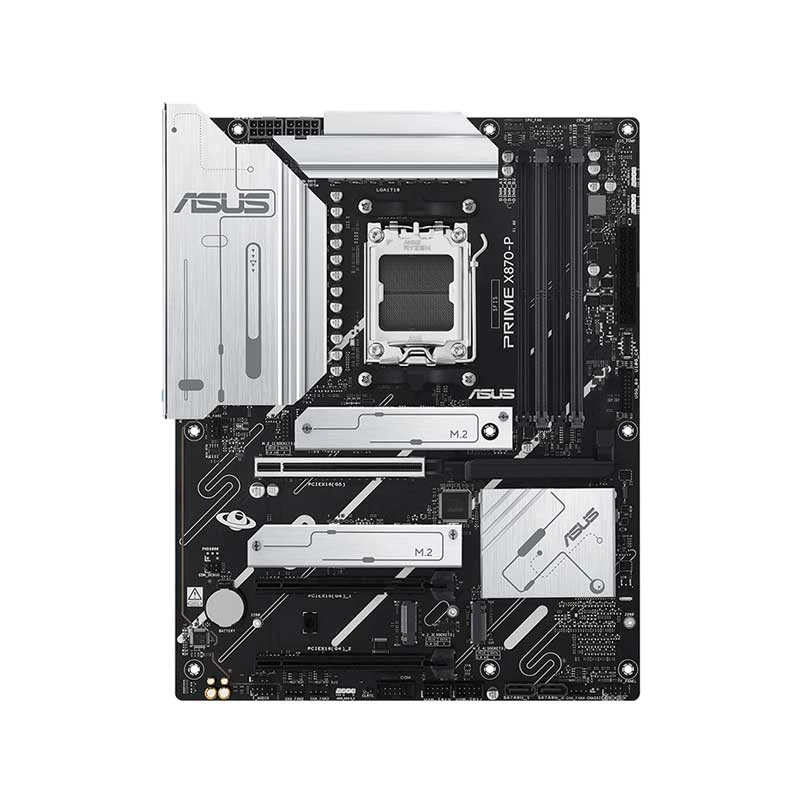

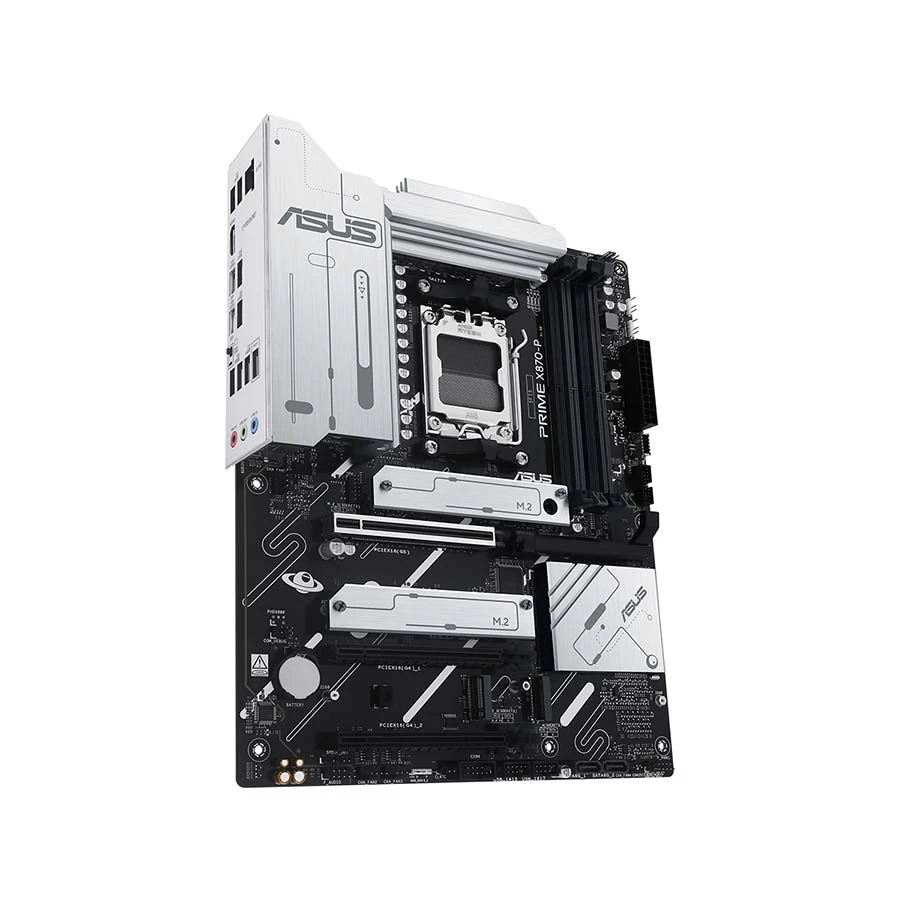

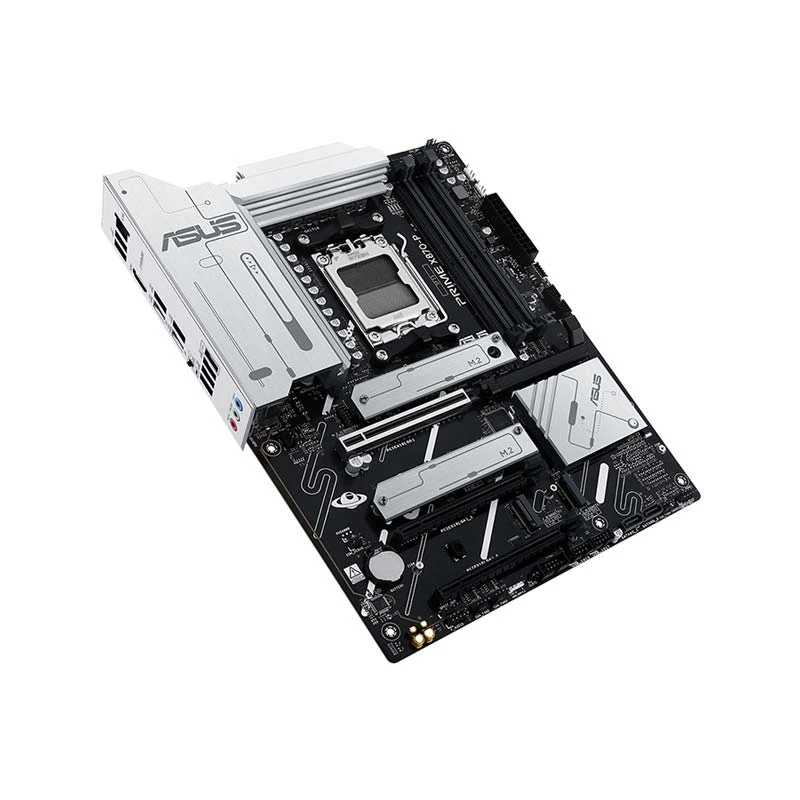

Asus PRIME X870-P-CSM DDR5 AMD Motherboard #PRIME X870-P-CSM

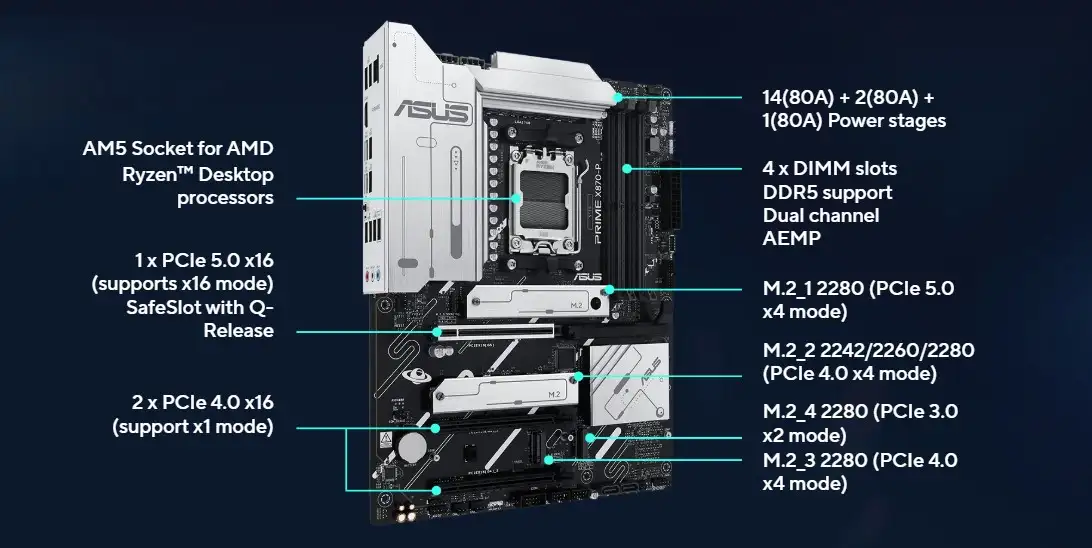

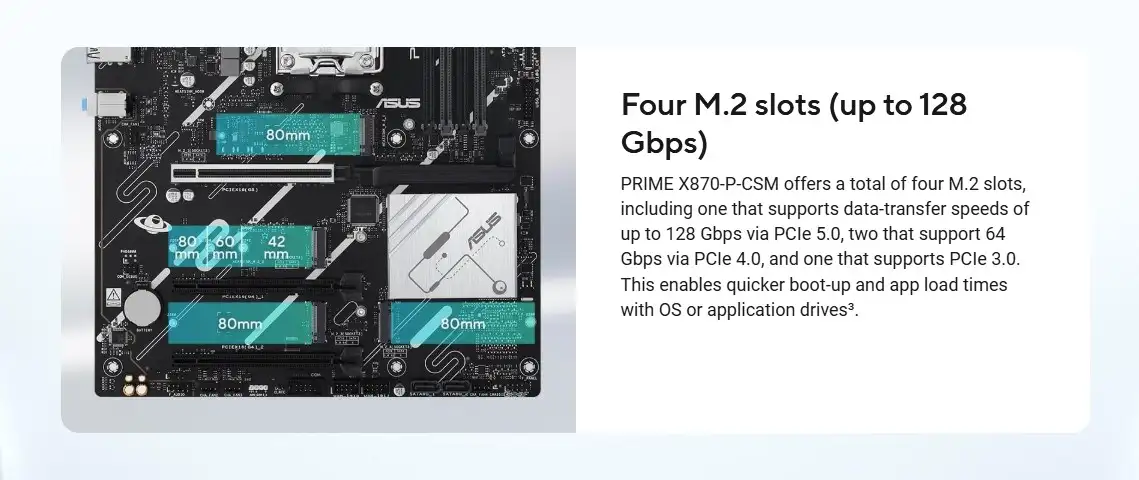

4 x M.2 4 x M.2 ((1 x M.2, type 2280 (supports PCIe 5.0 x4 mode), (1 x M.2, type 2242/2260/2280 (supports PCIe 4.0 x4 mode), (1 x M.2, type 2280 (supports PCIe 4.0 x4 mode), (1 x M.2, type 2280 (supports PCIe 3.0 x2 mode))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
2 x PCIe 4.0 x16 (support x1 mode), 1 x PCIe 5.0 x16 (supports x16 mode) SafeSlot with Q-Release
Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Realtek 2.5Gb Ethernet
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps
WiFi
No
Bluetooth
No
Ports
USB Port

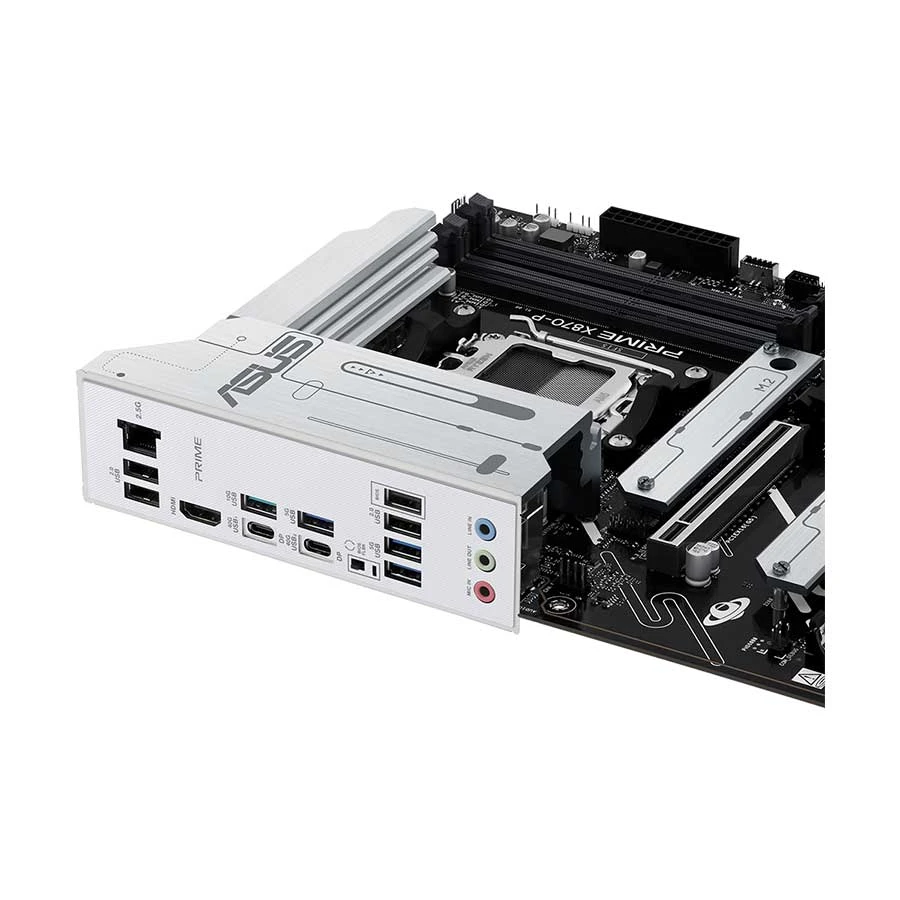

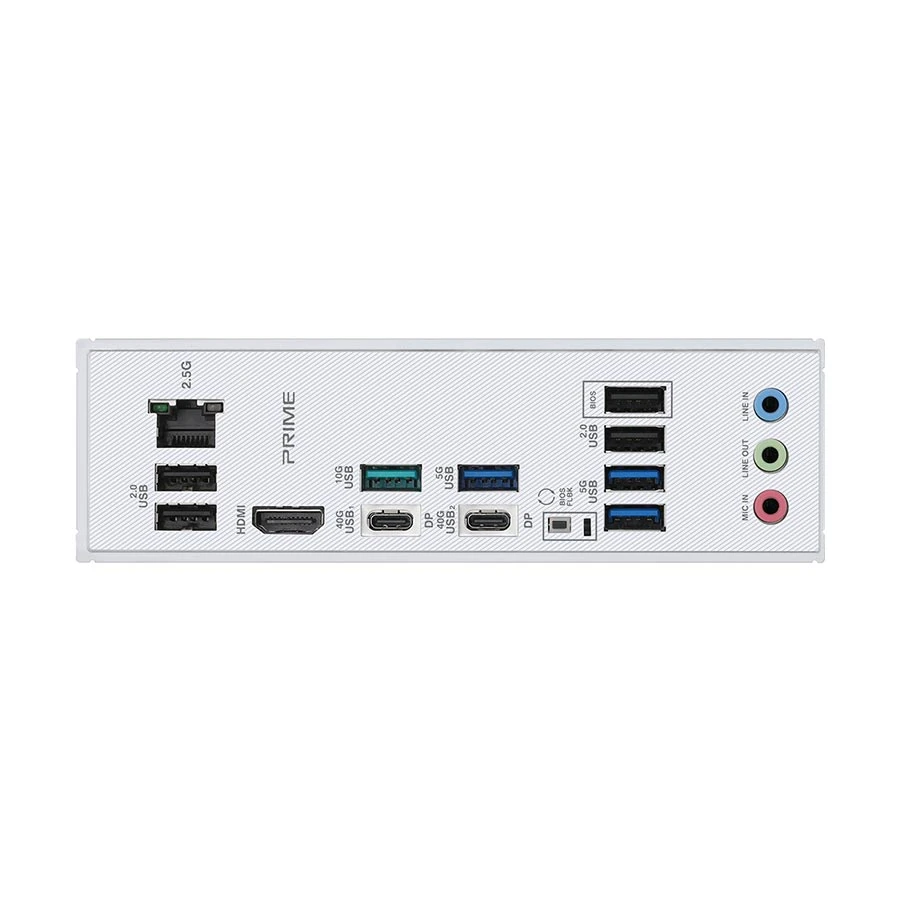

2 x USB4 (40Gbps) ports (2 x USB Type-C), 1 x USB 10Gbps port (1 x Type-A), 3 x USB 5Gbps ports (3 x Type-A), 4 x USB 2.0 ports (4 x Type-A)
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
SATA Port
2
Thunderbolt
No
TPM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0/ 1/ 5/ 10
RGB Support
RGB
RGB Sync
Aura Sync
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
256 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11, Windows 10
Compatible Products
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Warranty
Warranty Details
3 Year Replacement
Additional Info
Feature

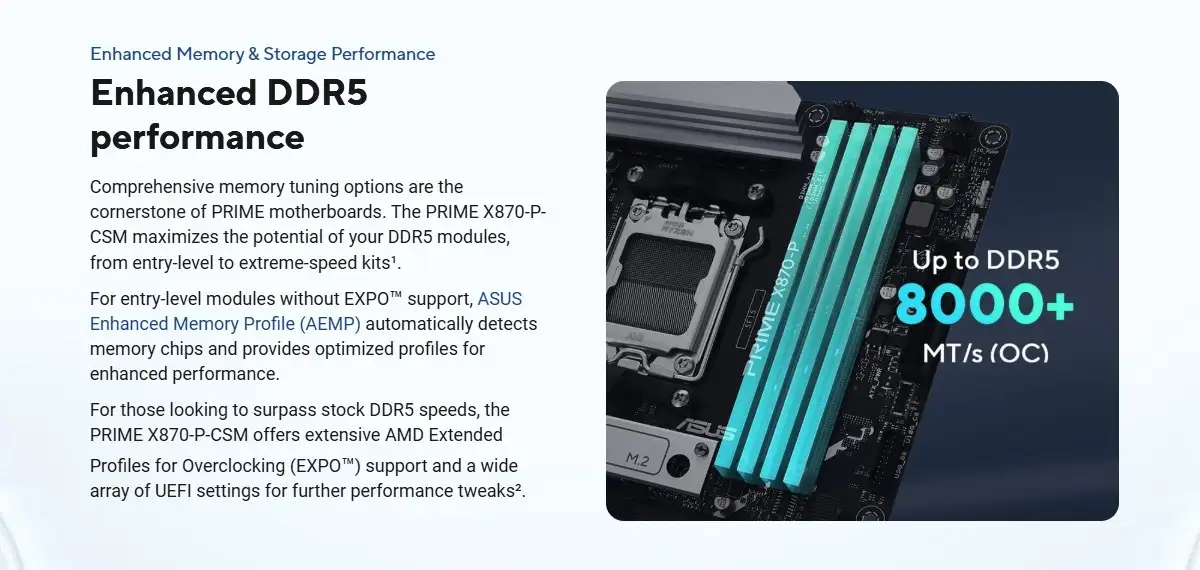

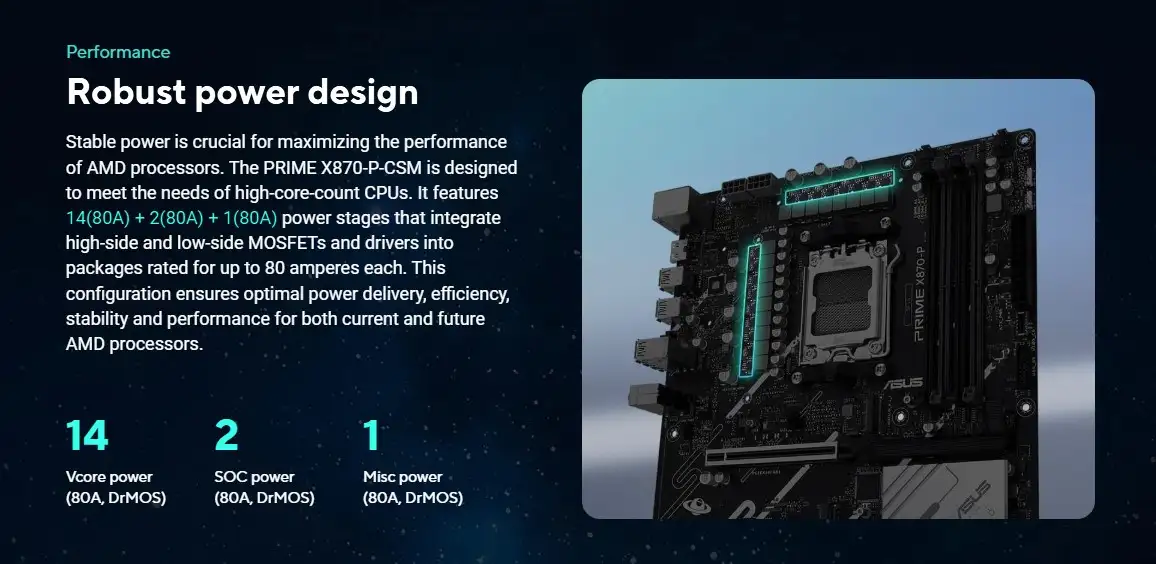

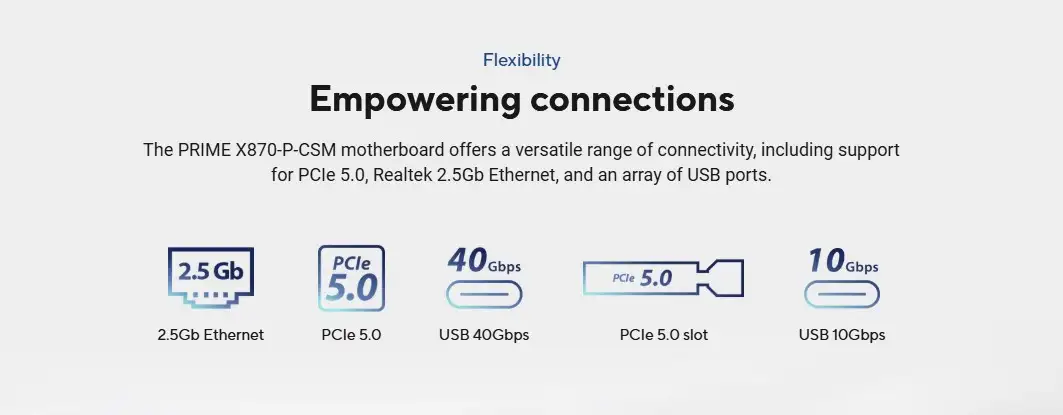

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Its designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. ASUS Control Center Express, Robust power design, Enhanced DDR5 performance, Four M.2 slots (up to 128 Gbps), Cooler by design, Smart Cooling precision, Empowering connections.
Others
Manageability: WOL by PME, PXE, Accessories: Cables: 2 x SATA 6Gb/s cables, Miscellaneous: 1 x M.2 rubber package, 2 x Screw packages for M.2 SSD, Documentation: 1 x ACC Express Activation Key Card, 1 x Quick start guide, Remote Management Features: IT Management software supported, ASUS Control Center Express(ACCE), Features: ASUS Exclusive Software, UEFI BIOS, ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync, Internal I/O Connectors: Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, Power Related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors, Storage Related: 4 x M.2 slots (Key M), 2 x SATA 6Gb/s ports, USB: 1 x USB 10Gbps connector (supports USB Type-C), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin System Panel header.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
