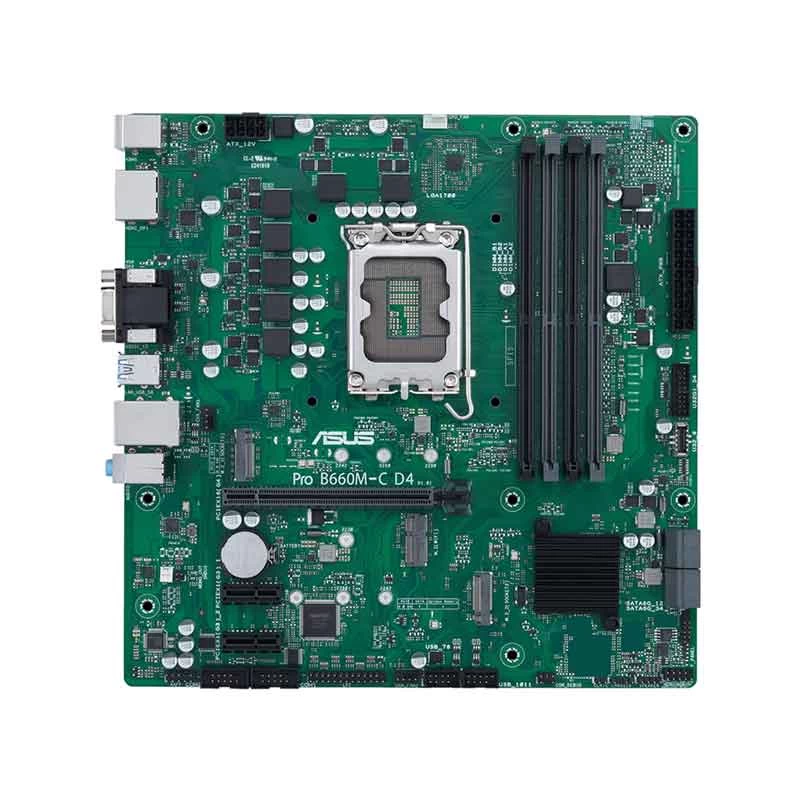

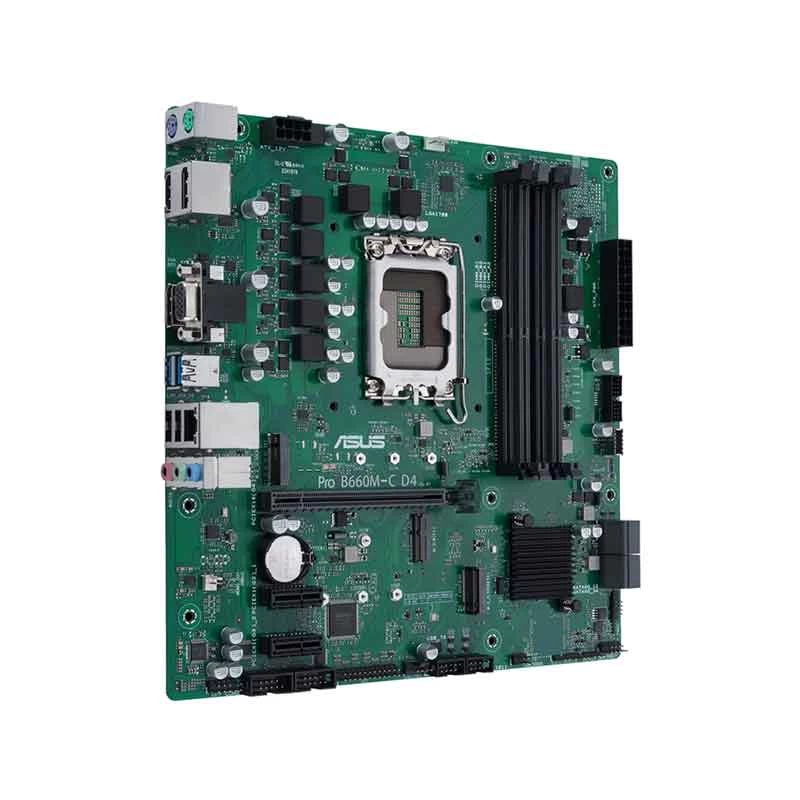

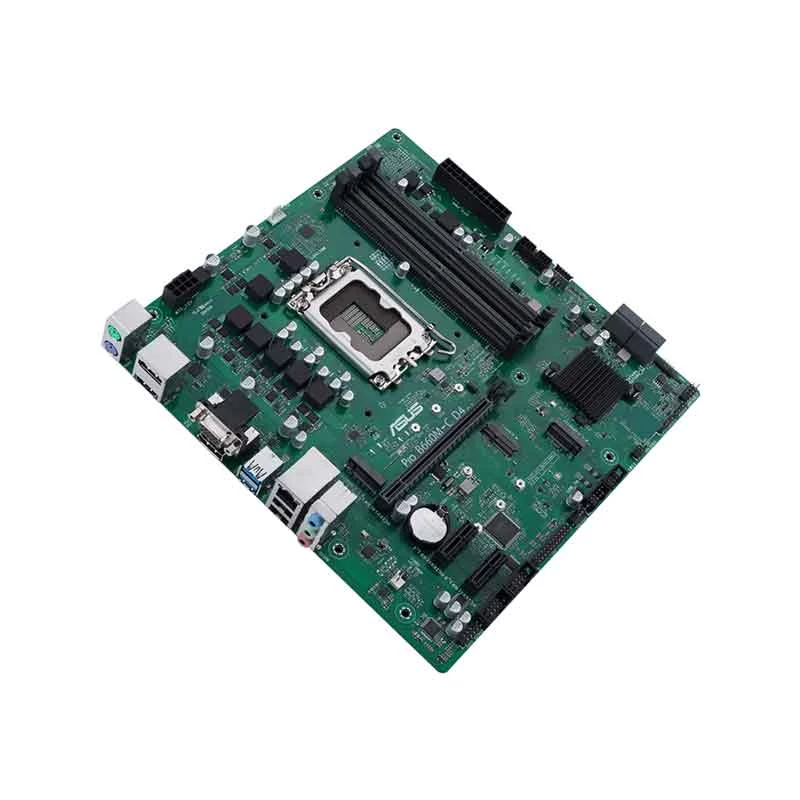

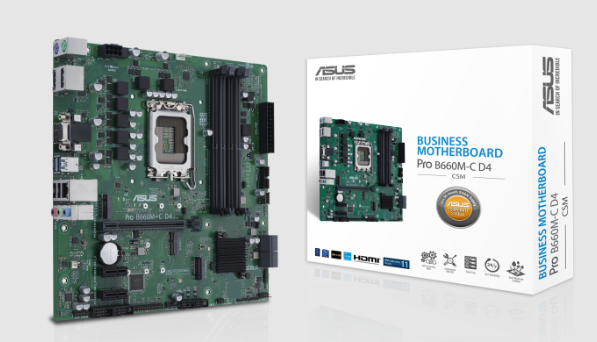

Asus Pro B660M-C D4-CSM DDR4 12th/13th Gen Intel LGA1700 Socket Motherboard
Product Id: 02.01.006.416
Brand
Asus
Quick Overview
- Chipset - Intel B660
- Sockets Supported - LGA1700
- Supported CPU - Intel Core, Pentium Gold and Celeron Processors
- Generation - 12th/13th
- Memory Slot - 4
- Memory Max. - 128GB
- Back-Connect Design - No
Brand
Asus
Model
Asus Pro B660M-C D4-CSM
Chipset
Intel B660
Sockets Supported
LGA1700
Built-in Processor
No
Generation
12th/13th
Back-Connect Design
No
Memory Type
DDR4
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
Yes
Graphics
Integrated
Graphics Chipset
Integrated With Processor
M.2/SSD Expansion Slot
2
WiFi
No
Bluetooth
No
Form Factor
Micro-ATX
Supported Operating System
Windows 11/ 10
Body Color
Green
Warranty Details
3 Years Replacement Warranty
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus Pro B660M-C D4-CSM Motherboard In Bangladesh
Micro-ATX B660 business motherboard with enhanced security, reliability, manageability and serviceability
- Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance

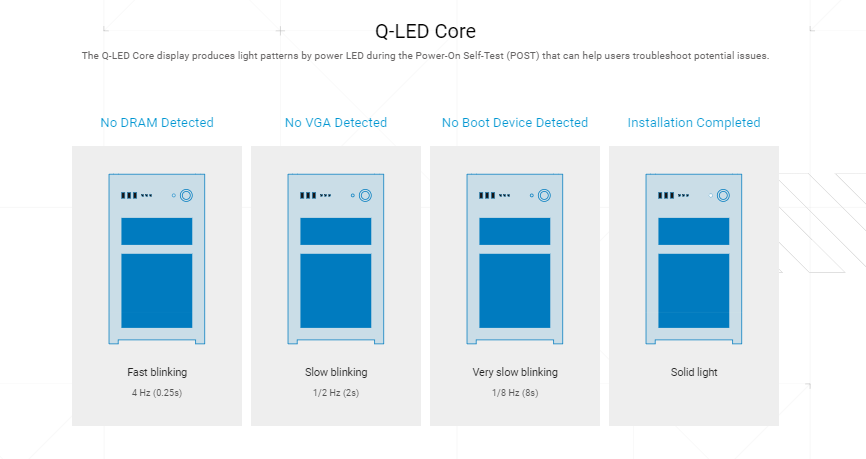

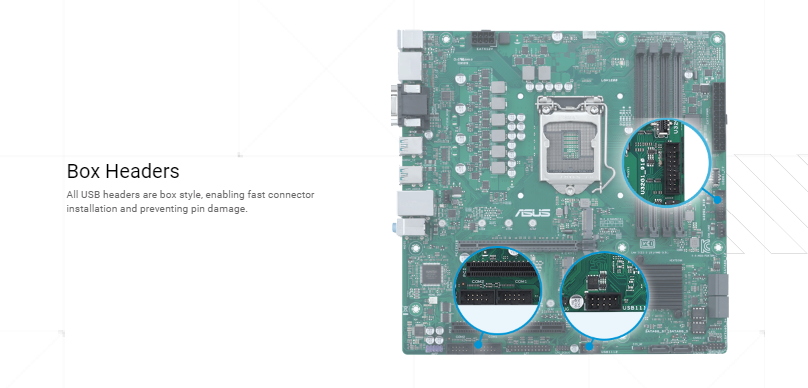

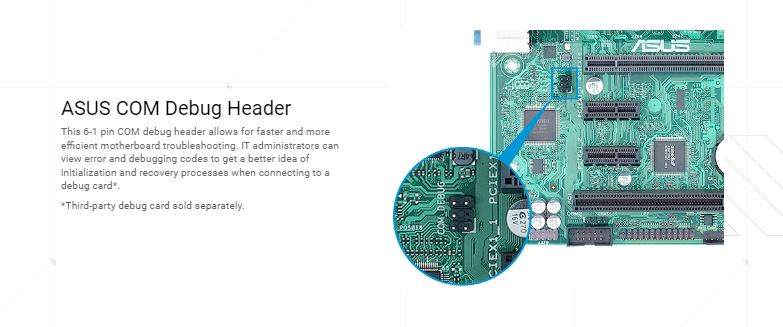

- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization.
Internationally Certified Business Motherboard
ASUS Business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and
environmental organizations, ASUS Business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.

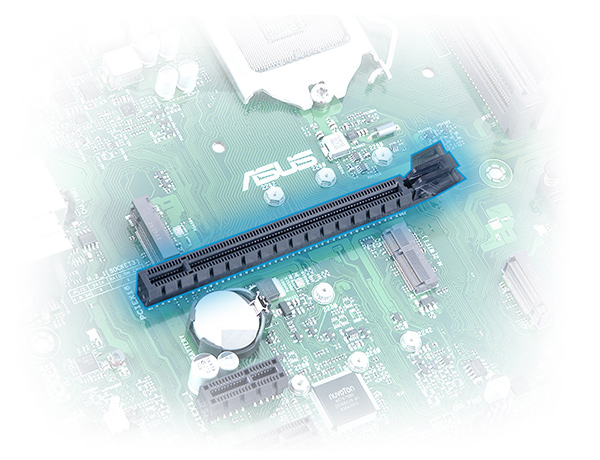

PCIe 4.0
This business motherboard is specially designed for 12th Gen Intel® Core™ processors and offer PCIe® 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it’s needed.
ASUS SHIELD
Enhances system security from bottom to top
ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.
Trusted Platform Module(TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.
Certified NIST SP 800-147
ASUS Business motherboard is certified by the national computer security standards.
ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.
ASUS RELIANT
Ensures consistent performance with the finest components and rigorous reliability testing

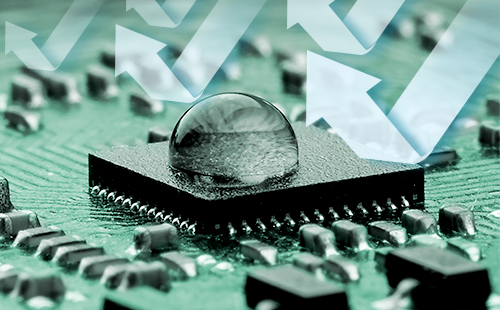

Anti-moisture Coating
Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.

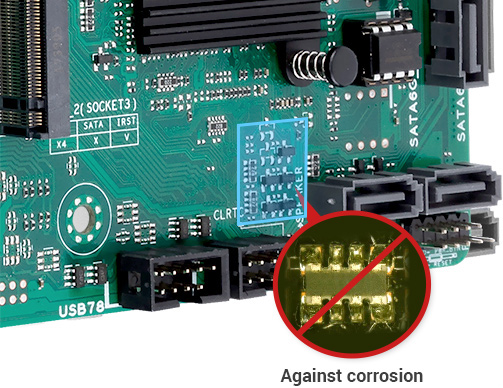

Anti-sulfur Resistors
Considering the long-term reliability of the commercial product, the ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by being constructed in a high-grade ceramic body (aluminum oxide). With anti-sulfur resistors, the ASUS Business motherboard can be operated under harsh environments.

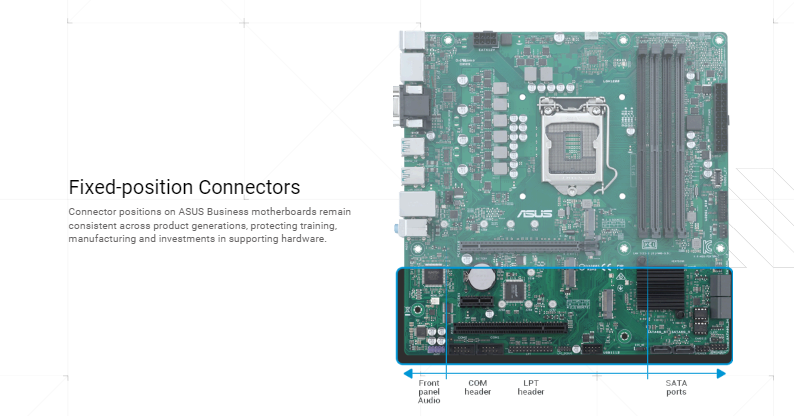

ASUS SERVICEABILITY
Facilitate the assembly process and enable efficient troubleshooting
What is the price of Asus Pro B660M-C D4-CSM Motherboard In Bangladesh?
The price of Asus Pro B660M-C D4-CSM Motherboard starts from 16,900 . The price may vary due to your customization and product availability. You can buy Asus Pro B660M-C D4-CSM Motherboard from our website or visit our showrooms nearby.
