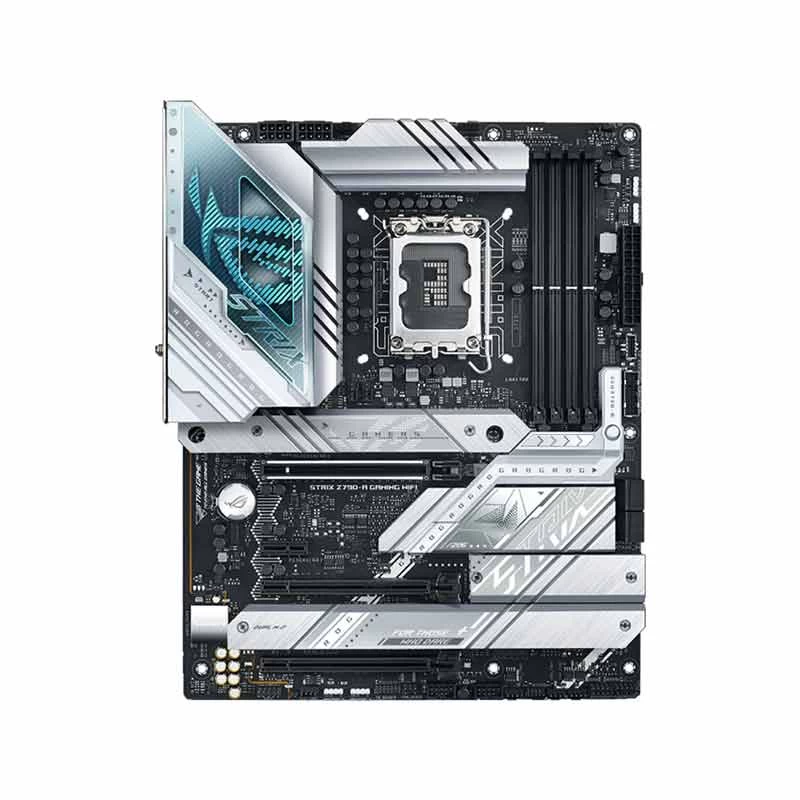

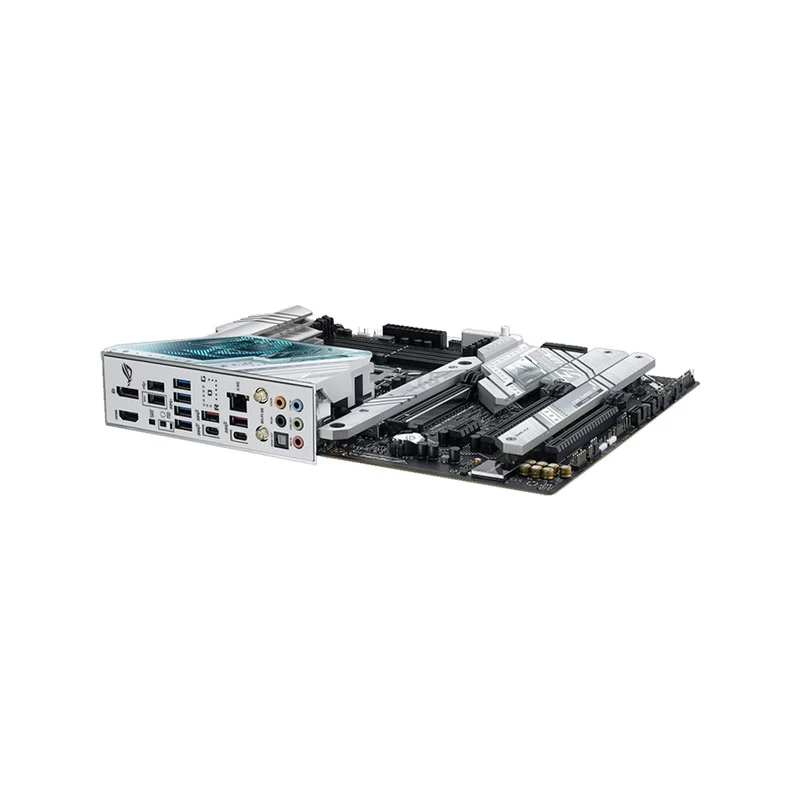

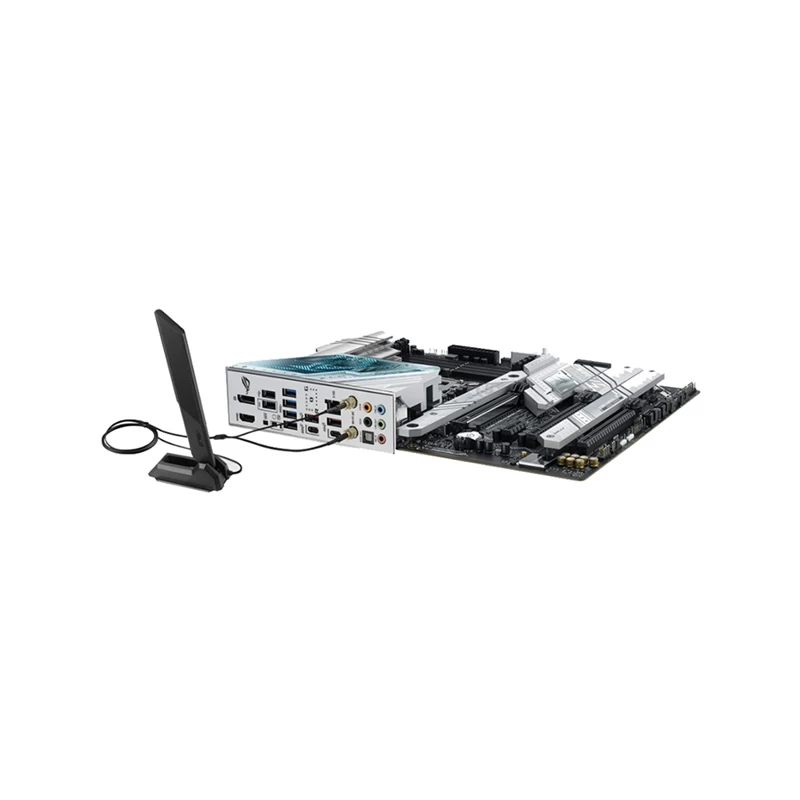

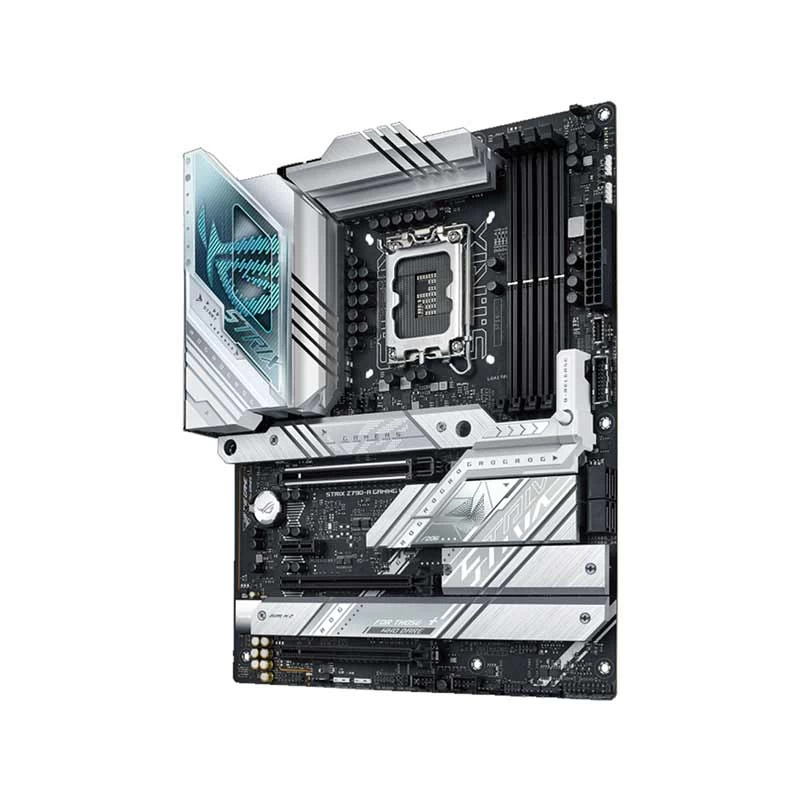

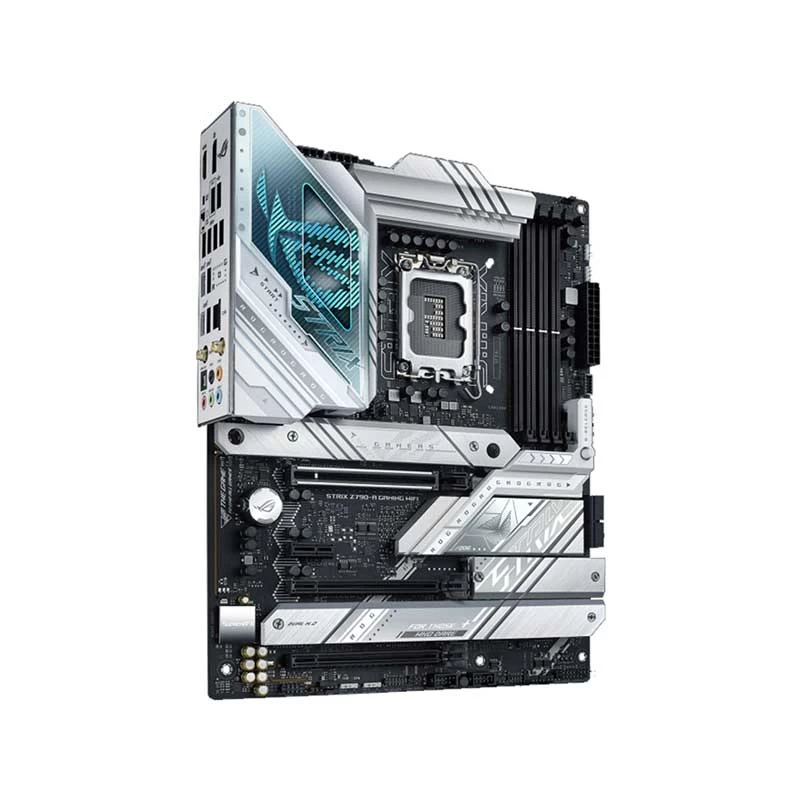

Asus ROG STRIX Z790-A GAMING (Wi-Fi 6E) DDR5 Motherboard
Product Id: 02.01.006.462
Brand
Asus
Quick Overview
- Chipset - Intel Z790
- Sockets Supported - LGA1700
- Supported CPU - 12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors
- Generation - 12th/13th/14th
- Memory Slot - 4
- Memory Max. - 192GB
General
Brand
Asus
Model
Asus ROG STRIX Z790-A GAMING (Wi-Fi 6E)
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel Z790
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors
Generation
12th/13th/14th
Memory Support
Memory Type
DDR5
Memory MHz
7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory
Memory Channel
Dual
Memory Slot
4
Memory Slot (Additional Info)
4 x DIMM
Memory Max.
192GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
4
M.2/SSD Expansion Slot Details
4 x M.2 slots (1 slot (Key M) type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode, 1 slot (Key M) type 2242/2260/2280 supports PCIe 4.0 x4 mode, 1 slot (Key M) type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode, 1 slot (Key M) type 2242/2260/2280 supports PCIe 4.0 x4 & SATA modes)
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 slot, 2 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot
Audio & Video
Audio Chipset
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Intel 2.5Gb Ethernet
LAN Speed (Mbps)
10/100/1000/2500 Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band
Bluetooth
Bluetooth 5.3
Ports
USB Port
1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
2 x SATA
Thunderbolt
1
TPM Port
No
COM Port
No
Technical Info
DirectX Support
No
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0/1/5/10
RGB Support
RGB
RGB Sync
Aura Sync
RGB Connector
1 x Aura RGB header
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
256 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 10 / 11
Compatible Products
LGA1700 Socket 12th, 13th Gen & 14th Gen Intel Processor
Warranty
Warranty Details
3 Years Replacement Warranty
Additional Info
Others
Internal I/O Connectors: (1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header)
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus ROG STRIX Z790-A GAMING (Wi-Fi 6E) Motherboard In Bangladesh
ROG STRIX Z790-A GAMING WIFI
Well-versed in style, performance, cooling, and connectivity, the DDR5 variant of the ROG Strix Z790-A exudes the same balance as its D4 brethren, but after taking a master class in memory. A robust VRM topped with stout silver heatsinks comfortably articulates power for the latest Intel® 14th Gen, 13th Gen & 12th Gen Core processors, while PCIe 5.0, WiFi 6E, and high-speed USB flesh out the board's fluency across a variety of disciplines. And a vast collection of tuning options and utilities derived from its ROG heritage are the icing on top.
 1_1703312075.png)

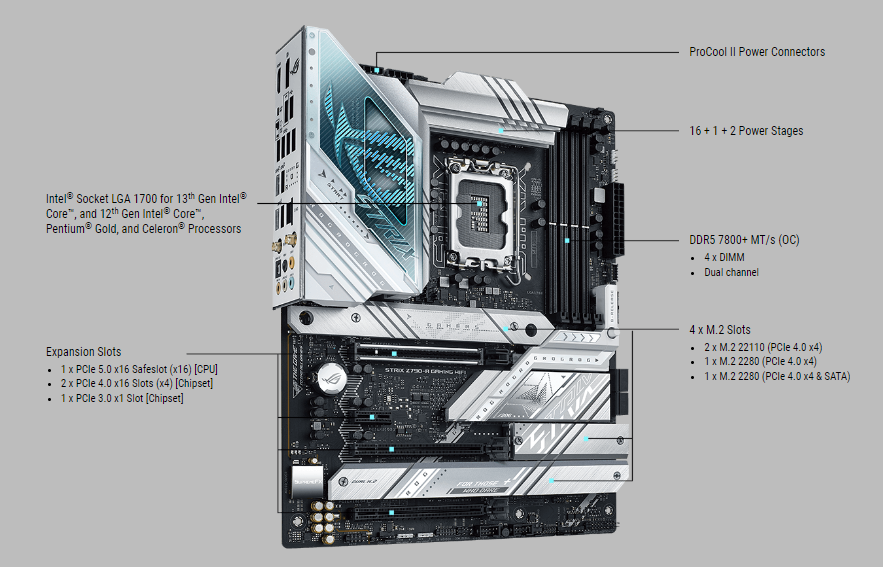

PERFORMANCE
 2_1703312044.png)
COOLING
 3_1703312044.png)

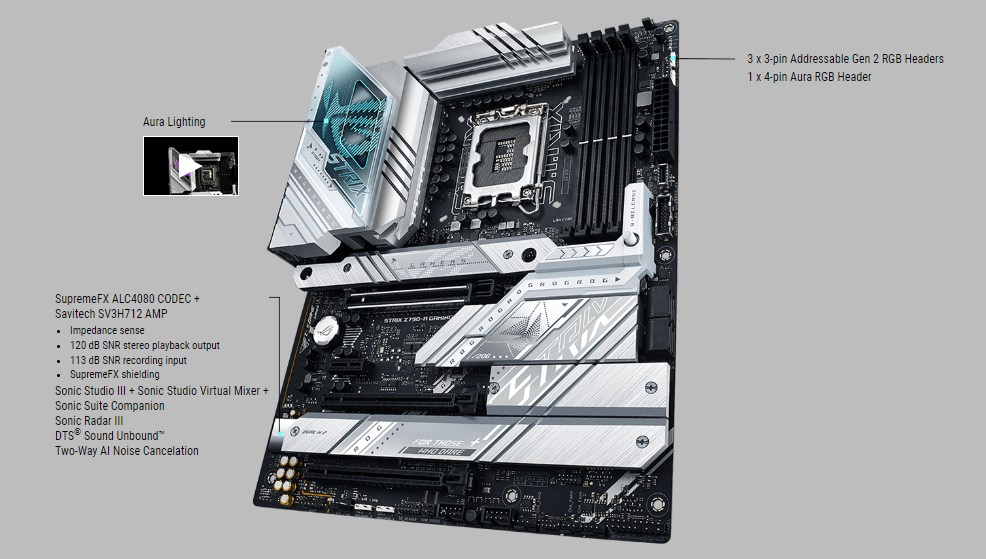

GAMING IMMERSION
 4_1703312044.png)

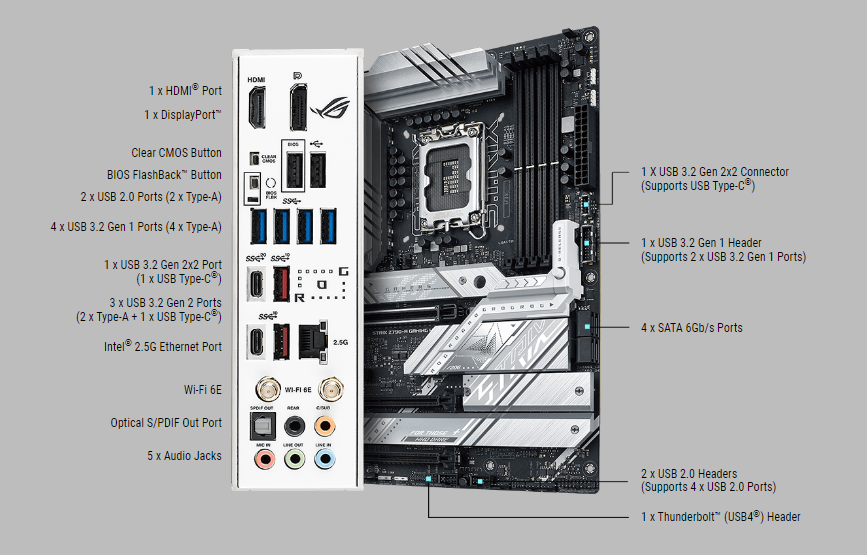

CONNECTIVITY
 5_1703312044.png)
LEADING CONNECTIVITY
Next-gen connectivity and low-latency networking are hallmarks of the ROG ecosystem, and the Strix Z790-A delivers both of them in full. Joining them is an advanced audio solution for immersive sound so you can pick out the slightest cues and nuances.

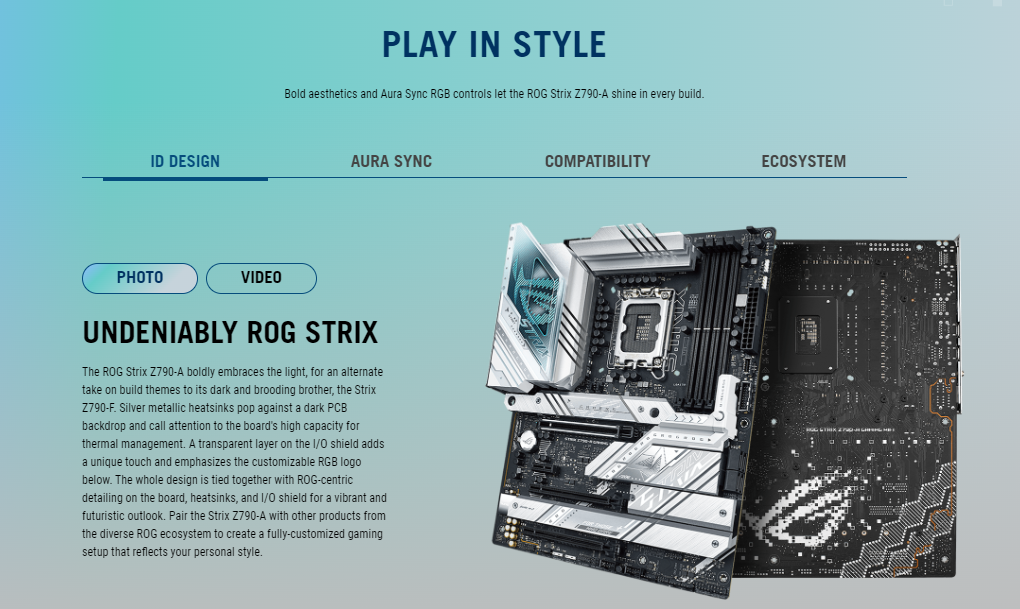

UNDENIABLY ROG STRIX
The ROG Strix Z790-A boldly embraces the light, for an alternate take on build themes to its dark and brooding brother, the Strix Z790-F. Silver metallic heatsinks pop against a dark PCB backdrop and call attention to the board's high capacity for thermal management. A transparent layer on the I/O shield adds a unique touch and emphasizes the customizable RGB logo below. The whole design is tied together with ROG-centric detailing on the board, heatsinks, and I/O shield for a vibrant and futuristic outlook. Pair the Strix Z790-A with other products from the diverse ROG ecosystem to create a fully-customized gaming setup that reflects your personal style.

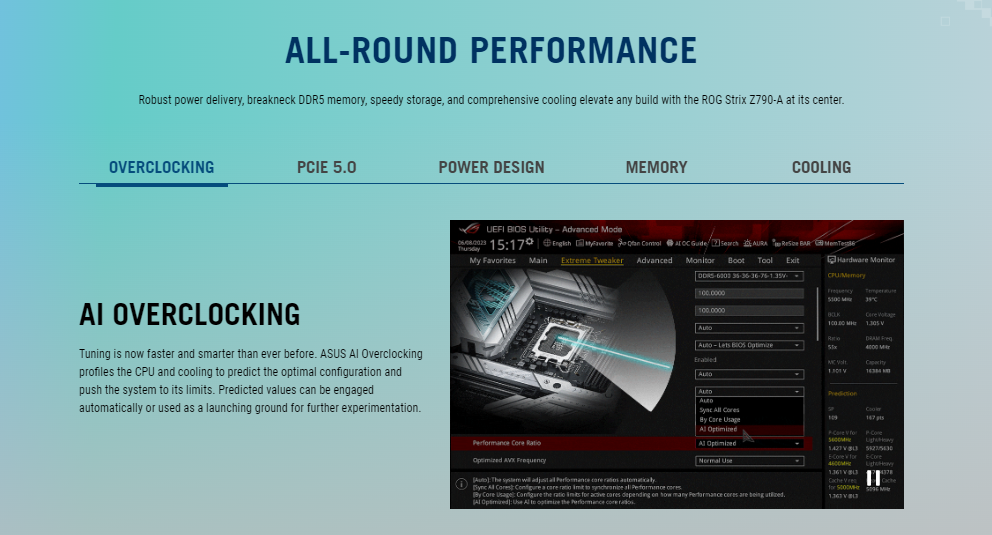

_1703312044.png)
 6_1703312044.png)
 7_1703312044.png)
What is the price of Asus ROG STRIX Z790-A GAMING (Wi-Fi 6E) Motherboard In Bangladesh?
The price of Asus ROG STRIX Z790-A GAMING (Wi-Fi 6E) Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Asus ROG STRIX Z790-A GAMING (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
QUESTION & ANSWER
Customer Questions
Q:
ai motherbord ki ARGB and RGB both asa ???
By prottay
A:
প্রিয় গ্রাহক, Asus ROG STRIX Z790-A GAMING (Wi-Fi 6E) DDR5 Motherboard টিতে RGB সাপোর্ট করবে এবং RGB Sync করতে পারবেন Aura Sync এর মাধ্যমে, ধন্যবাদ!
By Ryans Computers Ltd. , 15 Feb 2024
Q:
Stock kobe ashbe?
By Tahmid
A:
প্রিয় গ্রাহক, এই প্রোডাক্ট টি বর্তমানে স্টক এ নেই, যখন ই স্টক এ আসবে পণ্যের বিবরণ, স্টক এবং প্রাইস আপডেট করে দেওয়া হবে, অনুগ্রহ করে আমাদের অফিসিয়াল ওয়েবসাইট এ চোখ রাখুন, ধন্যবাদ !
By Ryans Computers Ltd. , 14 Aug 2023
Q:
DDR4 hobe eta
By Tahmid
A:
প্রিয় গ্রাহক, এই প্রোডাক্ট টি বর্তমানে স্টক এ নেই, যখন ই স্টক এ আসবে পণ্যের বিবরণ, স্টক এবং প্রাইস আপডেট করে দেওয়া হবে, অনুগ্রহ করে আমাদের অফিসিয়াল ওয়েবসাইট এ চোখ রাখুন, ধন্যবাদ !
By Ryans Computers Ltd. , 23 Jul 2023
