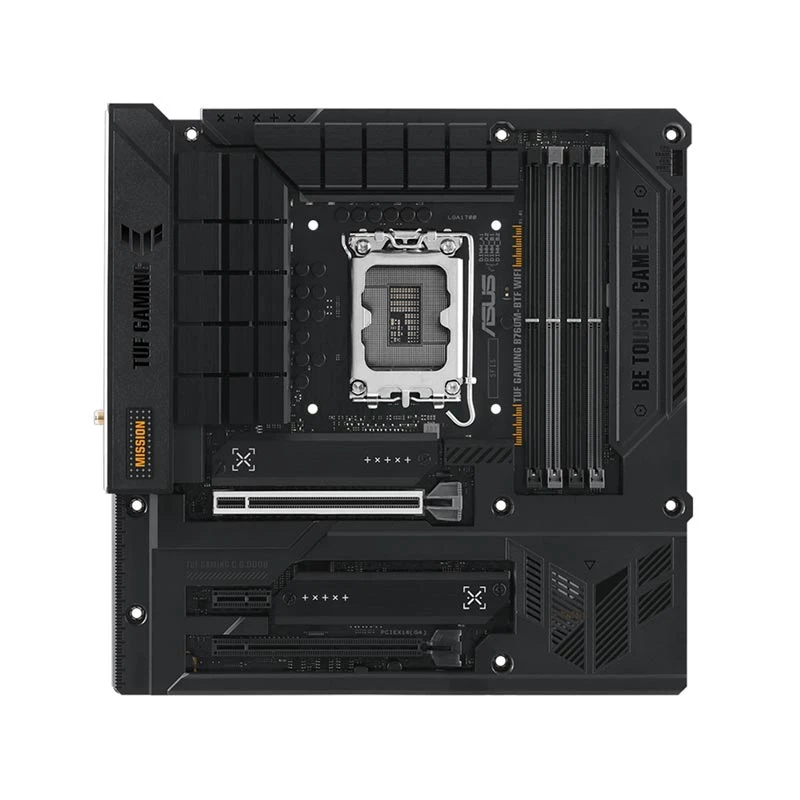

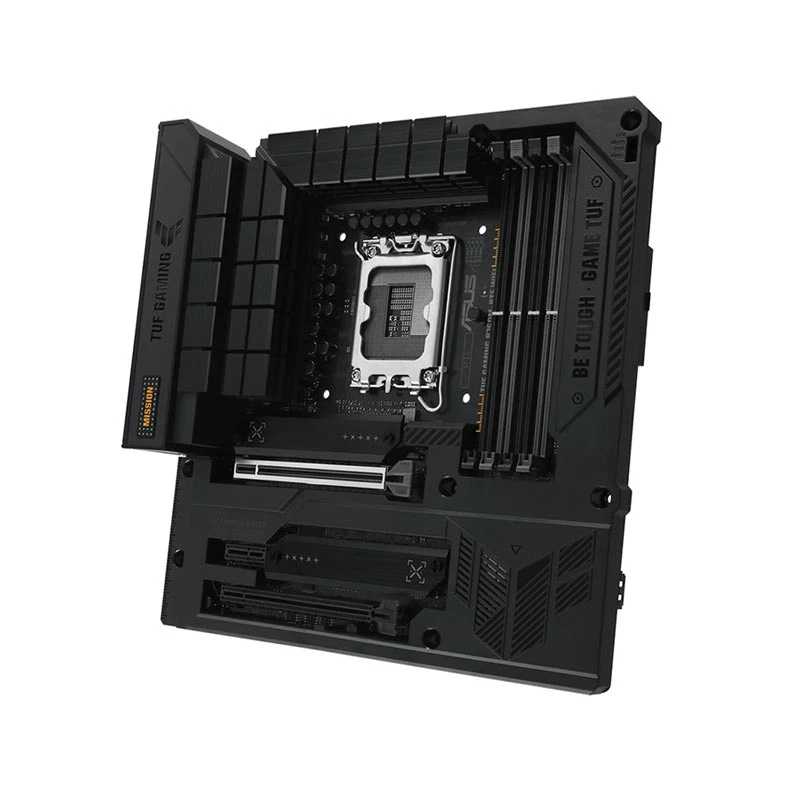

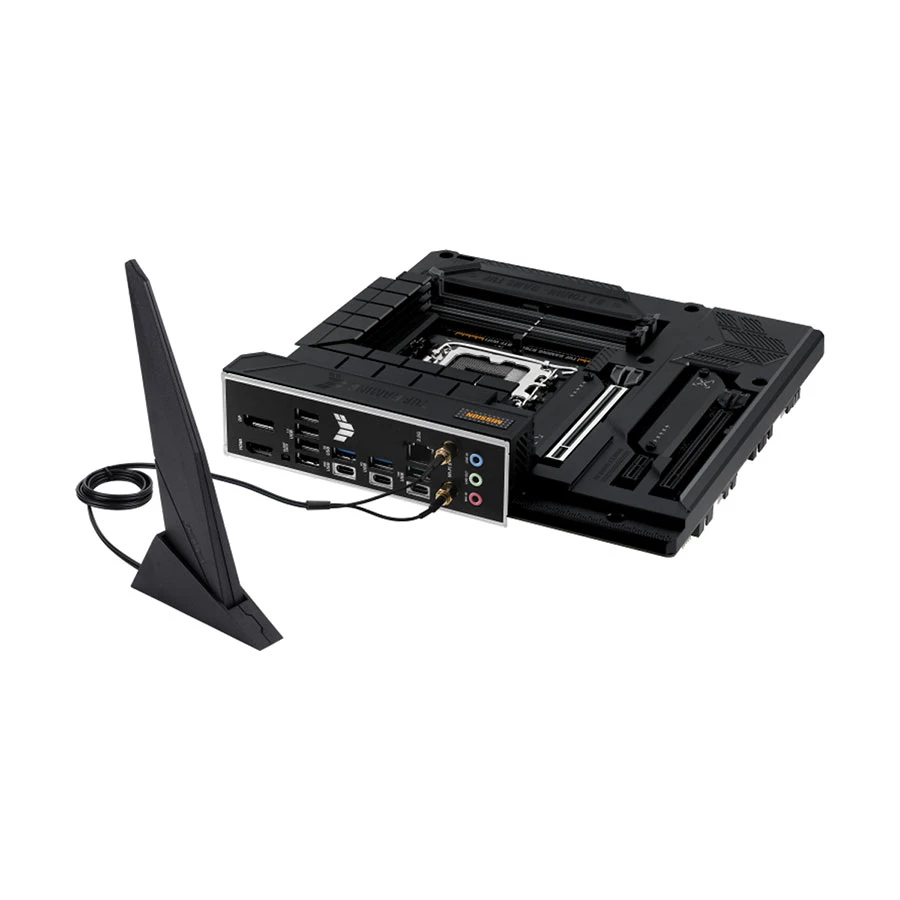

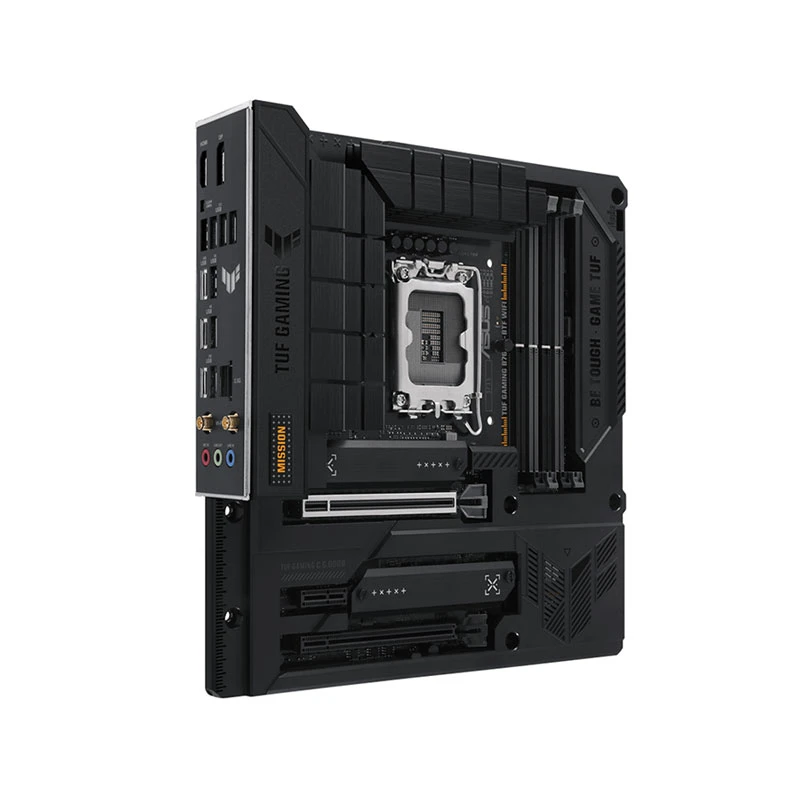

Asus TUF GAMING B760M-BTF (Wi-Fi 6) DDR5 Intel Motherboard
Product Id: 02.01.006.478
Brand
Asus
Quick Overview
- Chipset - Intel B760
- Sockets Supported - LGA1700
- Supported CPU - 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Generation - 12th/13th
- Memory Slot - 4
- Memory Max. - 192GB
- Back-Connect Design - Yes
Brand
Asus
Model
Asus TUF GAMING B760M-BTF (Wi-Fi 6)
Chipset
Intel B760
Sockets Supported
LGA1700
Built-in Processor
No
Generation
12th/13th
Back-Connect Design
Yes
Memory Type
DDR5
Memory Slot
4
Memory Max.
192GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
Integrated With Processor
M.2/SSD Expansion Slot
3
WiFi
Yes
Bluetooth
Bluetooth 5.2
Form Factor
Micro-ATX
Supported Operating System
Windows 11, 10
Body Color
Black
Warranty Details
3 Year Replacement
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus TUF GAMING B760M-BTF (Wi-Fi 6) Motherboard In Bangladesh
 1_1702449728.webp)

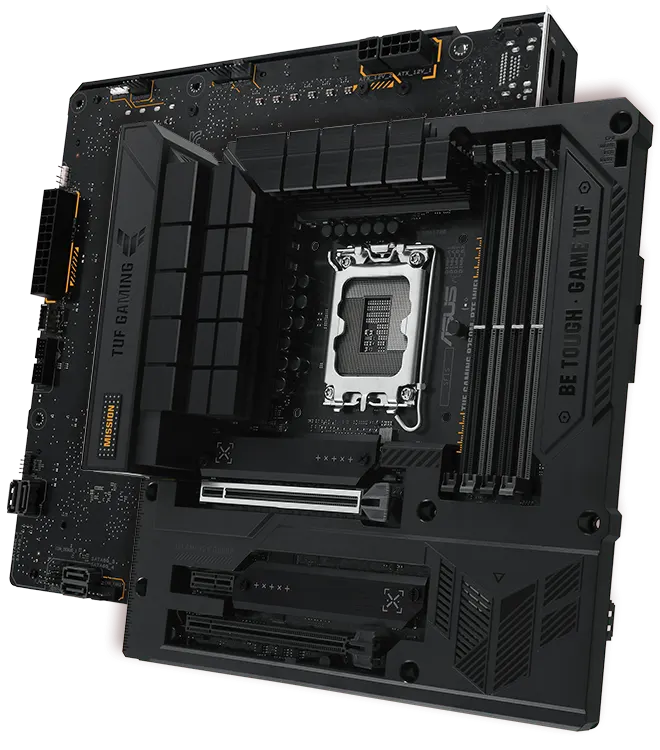

TUF GAMING B760M-BTF WIFI
The TUF GAMING B760M-BTF WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the BTF series hides its connectors on the underside of the motherboard for clean cable management and a minimalist build appearance.
This motherboard is engineered with military-grade components, an upgraded power solution and a comprehensive cooling system so that it can go beyond expectations with rock-solid performance and marathon gaming.
 2_1702449728.jpg)

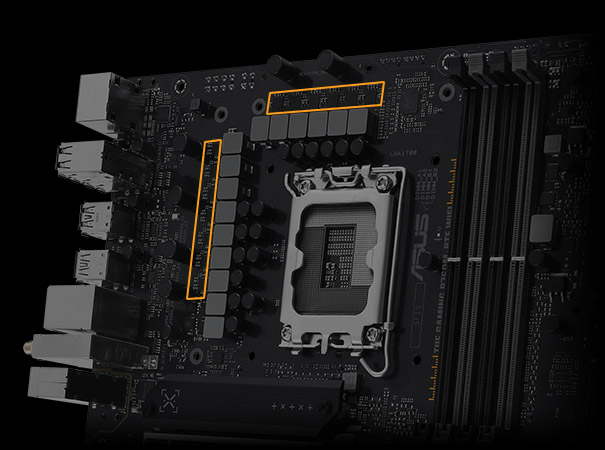

12(50A)+1(60A)+1 Power Stages
12(50A)+1(60A)+1 power stages combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.
 3_1702449728.jpg)

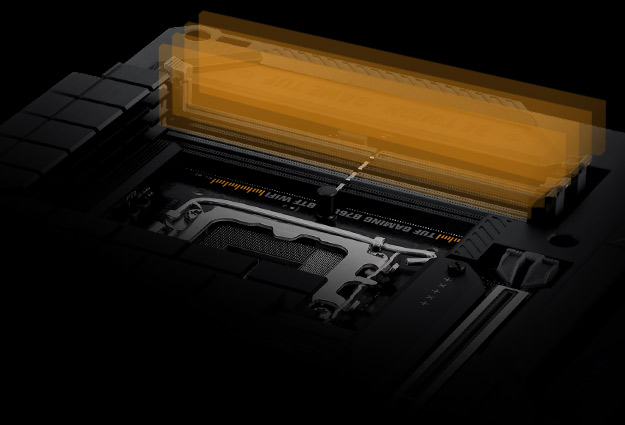

Unleash DDR5 With AEMP II
ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.
Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.
 4_1702449728.jpg)

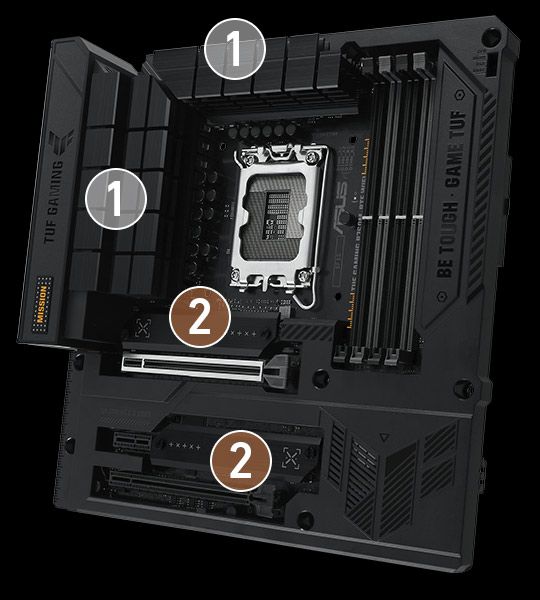

Cooler By Design
1. Enlarged VRM Heatsink
The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.
2. Optimized M.2 Heatsink Design
The two topside M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.
 5_1702449728.jpg)
PCIe 4.0 Support
The two PCIe 4.0 M.2 slots on the topside and one PCIe 4.0 M.2 slot on the underside support up to three 2280 devices and the data-transfer speeds are up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
 6_1702449753.jpg)

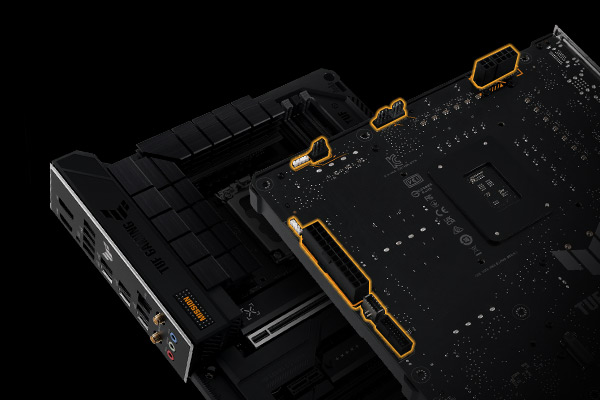

Optimized Cable Management
The hidden-connector design can be ideal for a first-time builder, because it allows easier cable management and also enhances a build’s appearance by presenting neat and clean internals. 7_1702449753.jpg)

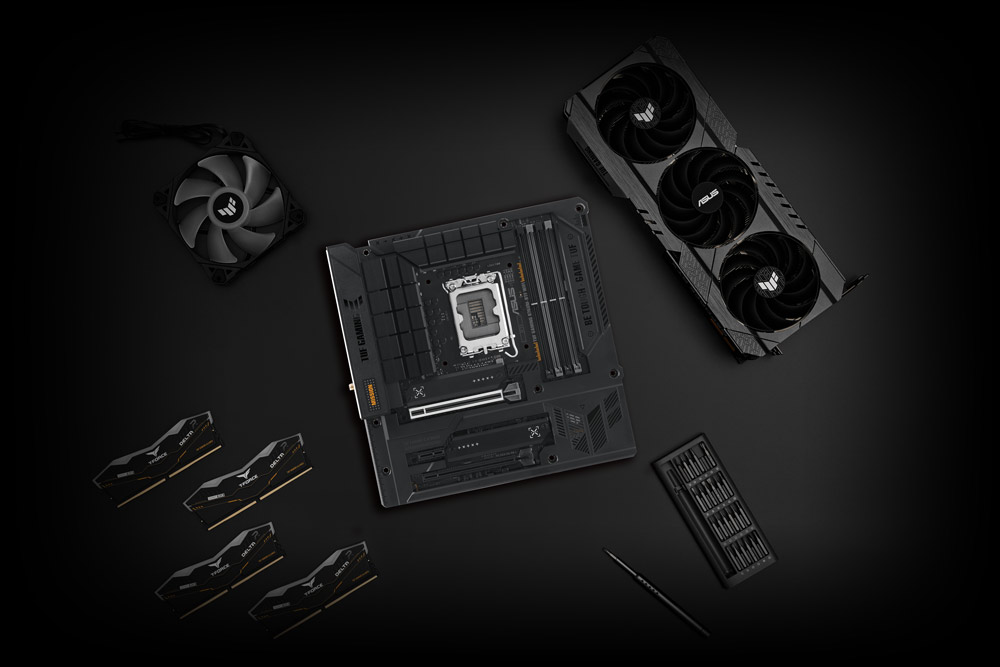

Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
 8_1702449753.jpg)

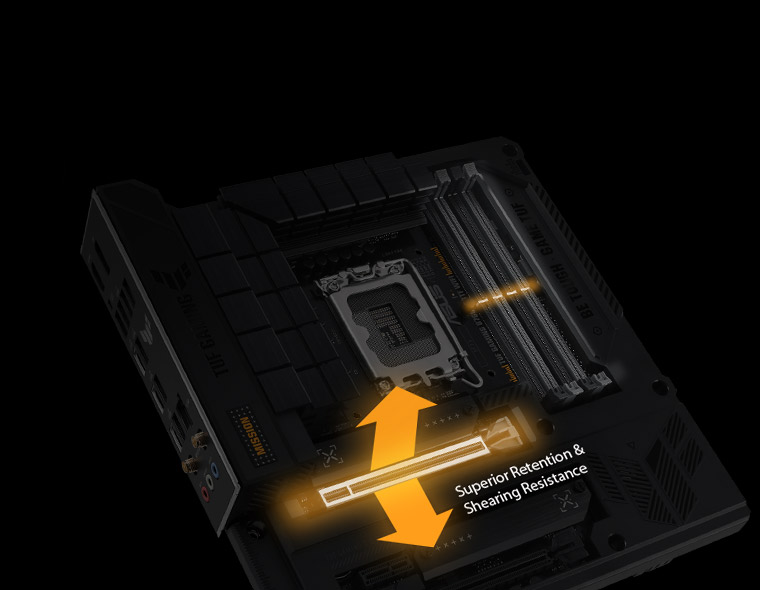

SafeSlot Core+ & SafeDIMM
SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.
 10_1702449753.jpg)
2.5 Gb Ethernet
2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
What is the price of Asus TUF GAMING B760M-BTF (Wi-Fi 6) Motherboard In Bangladesh?
The price of Asus TUF GAMING B760M-BTF (Wi-Fi 6) Motherboard starts from 37,600 . The price may vary due to your customization and product availability. You can buy Asus TUF GAMING B760M-BTF (Wi-Fi 6) Motherboard from our website or visit our showrooms nearby.
