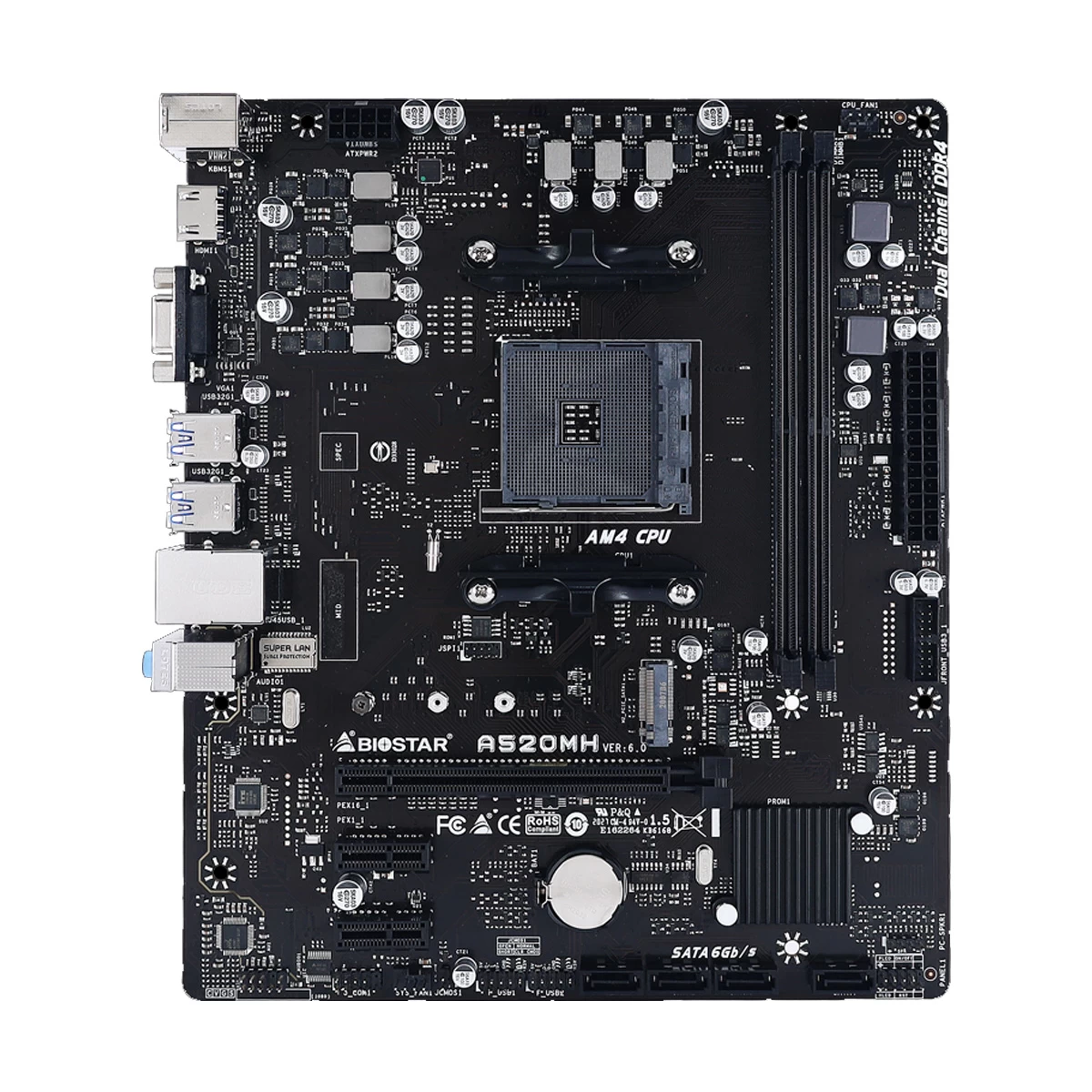

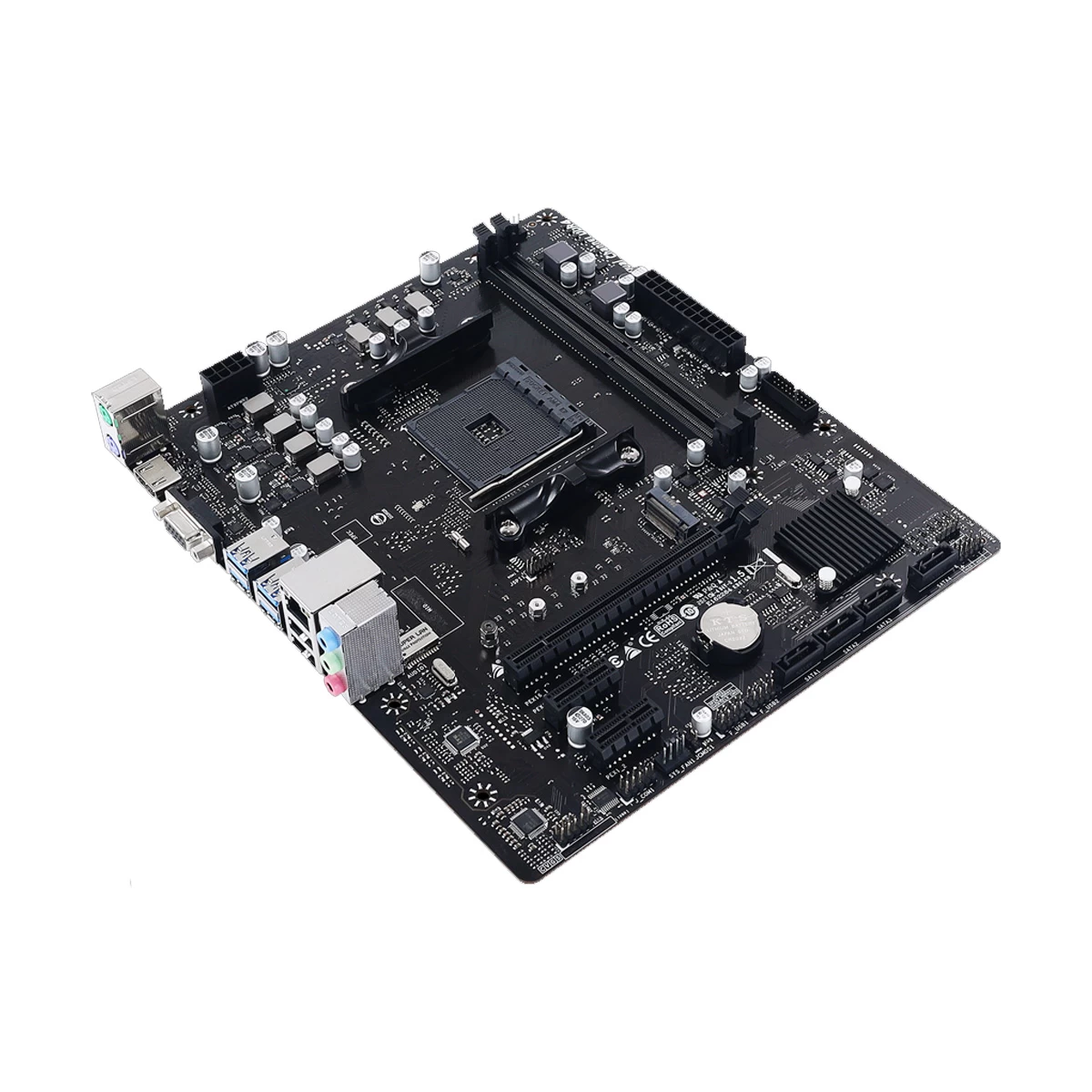

Biostar A520MH DDR4 AMD AM4 Socket Gaming Motherboard
Product Id: 02.02.059.23
Brand
Biostar

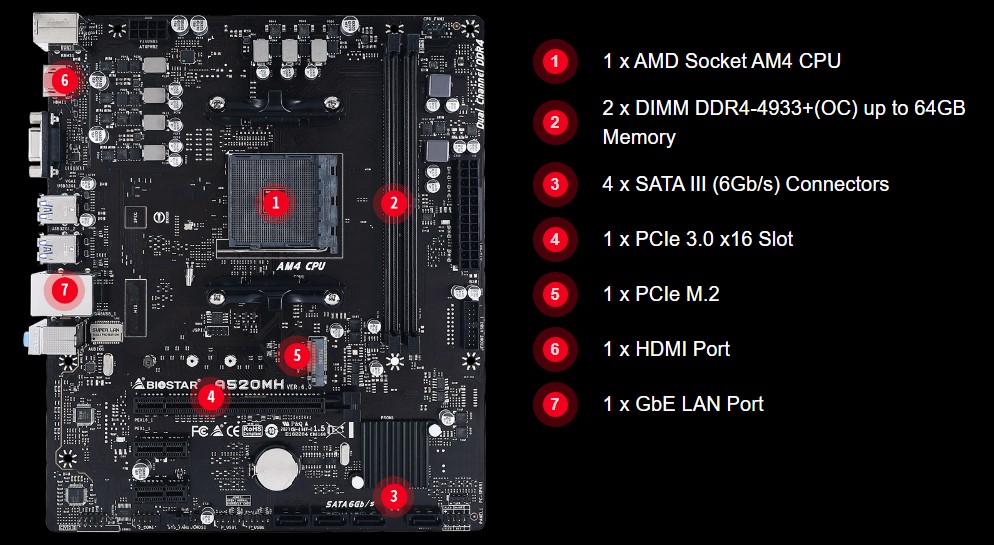

Quick Overview
- Chipset - AMD A520
- Sockets Supported - AM4
- Supported CPU - 3rd Gen, 4th Gen processors
- Generation - Not Applicable
- Memory Slot - 2
- Memory Max. - 64GB
- Back-Connect Design - No
Brand
Biostar
Model
Biostar A520MH
Chipset
AMD A520
Sockets Supported
AM4
Built-in Processor
No
Generation
Not Applicable
Back-Connect Design
No
Memory Type
DDR4
Memory Slot
2
Memory Max.
64GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
Integrated With Processor
M.2/SSD Expansion Slot
1
WiFi
No
Bluetooth
No
Form Factor
Micro-ATX
Supported Operating System
Windows 10
Body Color
Black
Warranty Details
3 year
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Biostar A520MH Motherboard In Bangladesh
Biostar A520MH DDR4 AMD AM4 Socket Mainboard Motherboard in Bangladesh
Biostar A520MH motherboard is a renowned motherboard in Bangladesh. The Biostar A520MH DDR4 AMD AM4 Socket Mainboard is an AMD A520 mainboard. The motherboard used an AMD A520 chipset. AM4 Sockets Supported. In this motherboard, you can use an 3rd Gen, 4th Gen processors. The Biostar A520MH mainboard has a Dual channel memory channel and 2 memory slot. It supports DDR4 4933+(OC), 4800(OC), 4600(OC), 4400+(OC), 4000(OC), 3800(OC), 3600(OC), 3200, 2933, 2667, 2400, 2133, 1866MHz ram. Maximum ram supports 64GB. Also, you can use 1 M.2/SSD Expansion Slot. Storage Interface is Storage Interface. Biostar A520MH DDR4 AMD AM4 Socket Mainboard comes with Graphics. PCI Express Slot are One PCIe 3.0 Sixteen, Two PCIe 3.0 One. The here audio chipset used ALC887. Audio Channel available are 7.1 so you can enjoy crystal clear sound. For Network and Connectivity purposes the Biostar motherboard offers Realtek RTL8111H lan chipset and it’s speeds 10/ 100/ 1000 Mb/s USB port available Six USB 3.2 Gen 1, Six USB 2.0. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a Form Factor motherboard. RGB Support it’s a RGB support motherboard, also you can RGB Connector RGB c The Biostar A520MH DDR4 AMD AM4 Socket Mainboard supported operating system is Windows 10 You will get a 3 Year brand warranty.
What is the Biostar A520MH motherboard Price in Bangladesh?
The Biostar A520MH motherboard Price in Bangladesh is given upper. Ryans computers offer Biostar A520MH DDR4 AMD AM4 Socket Mainboard is the competitive price in BD. You can purchase it from our website or computer shop.
AMD A520 chipset
AMD A520 chipset provides a simple, stable platform and more than enough connectivity and bandwidth options to satisfy both demanding home users and media aficionados.
HD Audio
Provides high quality sound with minimal loss of audio fidelity.
Hi-Fi Ground
BIOSTAR Hi-Fi Ground ( Golden Line ) is noise-blocking multi-layer PCB design to isolates analog audio signals from digital sources. Unique PCB layout is ideal for exceptional clarity and high fidelity sound.
DX12
DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware.
Integrated HDMI with HDCP
Onboard HDMI connector allows full video & audio support. It has industry-leading high definition video quality.
PCIe M.2
PCIe M.2 32Gb/s delivers the highest bandwidth and lower latency. It is 3 times faster compared with PCIe M.2 10Gb/s.
PCIe 3.0
PCIe 3.0 is the ubiquitous and general-purpose PCI Express I/O standard. At 8GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 2.0, while preserving compatibility with software and mechanical interfaces.
SATAIII 6Gbps
SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA II.
Dual DDR4
The primary advantages of DDR4 over DDR3, include higher module density, lower voltage requirements, coupled with higher data transfer rate.
USB 3.2 Gen1 Type-A
USB 3.2 Gen1 delivers a compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products.

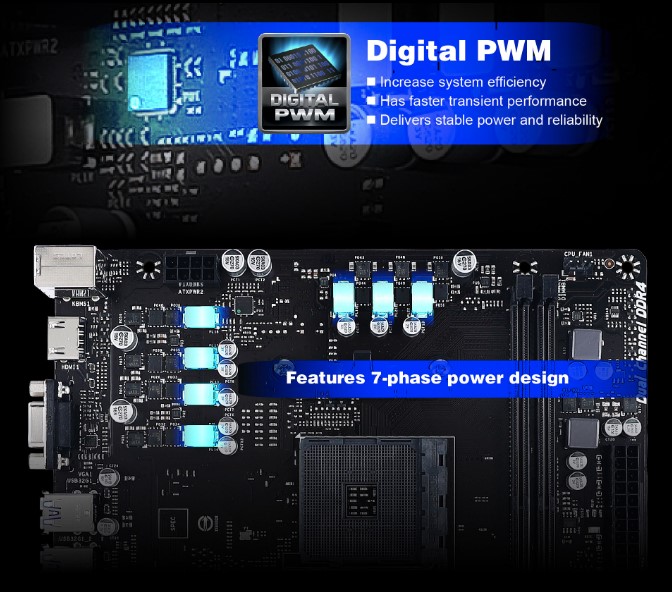

Digital PWM
Digital PWM controller is with dual-output multiphase that faster transient performance and accurately regulated frequency control. It can be enabled to greatly increase system efficiency.
Super Durable Ferrite Choke
Super Durable Ferrite Choke brings the benefits of higher current capacity, lower energy loss and better power stability.
Super Durable Solid Caps
The best quality solid state capacitors with ultra low ESR design, the Super Durable Solid Caps doubles the lifespan.
Super LAN Surge Protection
Super LAN Surge Protection, providing LAN port with more advanced antistatic protection capabilities by adding an integrated chip to strengthen electrical stability and prevent damage from lightning strikes and electrical surges. SLSP (Super LAN Surge Protection) series motherboard upgrades the existing system protection standards with maximum 4X protection comparing to other board makers.
OC / OV / OH Protection
OC / OV / OH Protection design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect your system.
HDMI 4K2K
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.

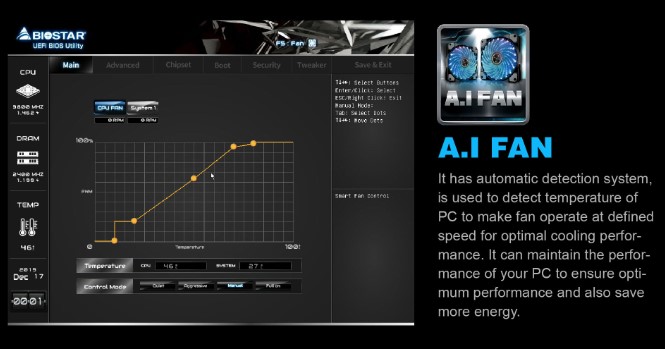

A.I FAN
With A.I FAN users can ensure that their gaming PC can maintain its performance while staying cool. According to different cooling needs and usage scenarios, users can control speed modes. Allows users to have more customizability of fan modes and automatically detects different temperatures to make fan operate at defined speed for optimal cooling performance. Furthermore, A.I FAN support both PWM and DC voltage fans for more cooling options.
What is the price of Biostar A520MH Motherboard In Bangladesh?
The price of Biostar A520MH Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Biostar A520MH Motherboard from our website or visit our showrooms nearby.
QUESTION & ANSWER
Customer Questions
Q:
Whats the Bios version?
By
Q:
Are This motherboard support ryzen 5 3400g ?
By Siam Ahmed Turjoy
A:
Dear customer yes its supported Thanks
By Ryans Computers Ltd.
, 15 Sep 2024
Q:
hdmi port version ki
By hgu
A:
প্রিয় গ্রাহক ,HDMI Version - 1.4,ধন্যবাদ
By Ryans Computers Ltd.
, 01 Jun 2024
Q:
does this have 2point1 port iknow their theiris only 1 port
By rafsan
A:
Dear sir HDMI Port
1 their only 1 port Thanks
By Ryans Computers Ltd.
, 30 May 2024
Q:
does this have hdmi 2 039 1 port support
By rafsan
A:
Dear Sir HDMI Port
1 Thanks
By Ryans Computers Ltd.
, 30 May 2024
Q:
does it have hdmi 2 ponit 1 port
By rafsan
A:
Dear customer, HDMI Port: 1.
By Ryans Computers Ltd.
, 29 May 2024
Q:
Which is best motherbord for intel core i3 4th gen
By Tanjim
A:
Dear Sir, According to the brand each one is good, you can take any one according to your preferred model and brand and Asus and Gigabyte is more famous brand than Bioster. Thanks for your query!
By Ryans Computers Ltd.
, 04 May 2024
Q:
Does it support intle 4th gen core i3
By Tanjim
A:
Dear Sir, It will not support intel processor, here is the product ID which are support 4th gen intel processor : 02.01.018.504 - Gigabyte GA-H81M-H M.2 DDR3 Intel Motherboard, 02.01.504.110 - Asrock H81M-VG4 R4.0 DDR3 4th Gen LGA1150 Socket Motherboard, 02.01.018.490 - Gigabyte GA-H81M-H DDR3 Intel Motherboard, 02.01.006.49 - Asus H81M-K DDR3 4Th Gen. Intel LGA1150 Socket Motherboard, Thanks for your query!
By Ryans Computers Ltd.
, 02 May 2024
Q:
Is it support dual channel ram facility, or work like single channel with 2 ram kit?
By Rayhan
A:
Dear Sir, Memory Channel - Dual and if you use two stick ram then you will get dual channel facility, Thanks for your query!
By Ryans Computers Ltd.
, 29 Feb 2024
Q:
HDMI output regulations & fps?
By Rafi
A:
Dear Sir, This information is not provided by Biostar, Thanks for your query!
By Ryans Computers Ltd.
, 11 Jan 2024
