Cudy GS1005PTS1 6 Port Network Switch
Product Id: 29.05.896.40
Brand
Cudy
Special Price
Tk 4,100
Tk 4,100
Regular Price
Tk 4,450
Quick Overview
- Type - Network Switch
- Number of Total Port - 6 Port
- PoE - Yes
- Manageability - Unmentioned
- Network Standards - IEEE 802.3at / IEEE 802.3af
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Desktop
General
Brand
Cudy
Model
Cudy GS1005PTS1
Type
Network Switch
Ports & Slots
Number of Total Port
6 Port
Gigabit Port
1
SFP Port
1
PoE+ Port
4
Technical Info
PoE
Yes
Manageability
Unmentioned
Interface(s)
4 x 10/100/1000Mbps PoE+, 1 x 10/100/1000Mbps Ethernet & 1 x 10/100/1000Mbps SFP Uplink
Network Standards
IEEE 802.3at / IEEE 802.3af
Data Transfer Rate
10/100/1000 Mbps
Connector Type
RJ-45
Switching Capacity
12Gbps
MTBF
100000 Hour
Physical Description
Fan/Fanless
Fanless
Body Color
Black
Form Factor
Desktop
Dimension
200 x 118 x 44mm (Product)
Weight
0.6 kg (N.W)
Packet Contents
1 x GS1005PTS1, 1 x Power Cord, 1 x Installation Guide
Power
Power Supply
120W
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Throughput: 8.928Mpps. Packet Buffer: 1Mb. MAC Address: 2K. Jumbo Frame: 9216bytes. Transfer Mode: Store and forward. Network protocol: IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab(1000Base-TX), IEEE802.3z(1000Base-FX), IEEE802.3x (Flow control). PoE Protocol: IEEE802.3af (15.4W), IEEE802.3at (30W), IEEE802.3at(4 Pair 60W). Network Medium: 10Base-T : Cat3,4,5 or above UTP(<=100m), 100Base-TX : Cat5 or above UTP(100m), 1000Base-TX : Cat5 or above UTP(100m). Optical Media: Multimode fiber : 50/125, 62.5/125, 100/140m, Single mode fiber: 8/125, 8.7/125, 9/125, 10/125m. Working Temperature: -20 - 50 Degree C, Storage Temperature: -40 - 85 Degree C, Working Humidity: 10%-90%, non-condensing, Storage Temperature: 5%-90%, non-condensing, Working Height: Maximum 10,000 feet, Storage heigh: Maximum 10,000 feet. Input Voltage AC 100-240 V. Package: 1 x Switch, 1 x Power cord, User manual, Certification.
Specialty

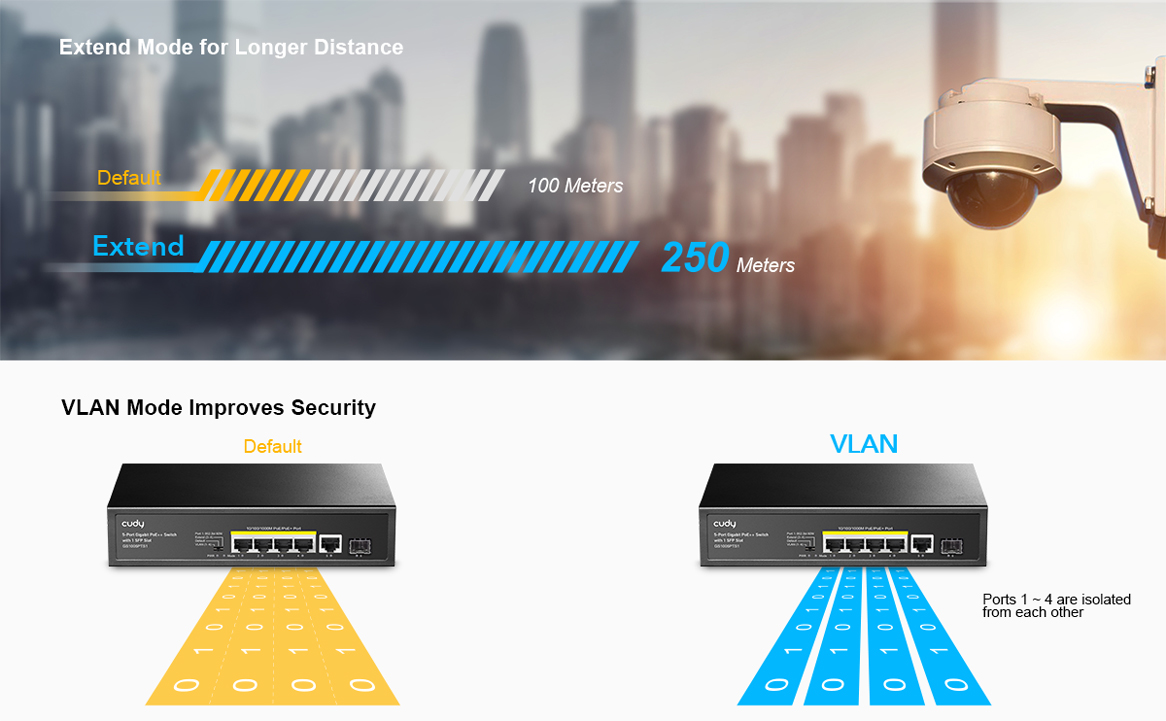

120 watts PoE power supply. 4 Gigabit PoE+ ports and 1 Gigabit Ethernet ports+1Gigabit SFP. Extend mode support remote PoE feeding up to 250m. VLAN mode isolate each PoE Ports for security. Watchdog reactivates the abnormalPD by resuming POE power. IEEE 802.3at / IEEE 802.3af standard compliant. Plug&play, simple setup with no configuration needed.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Cudy GS1005PTS1 Network Switch In Bangladesh

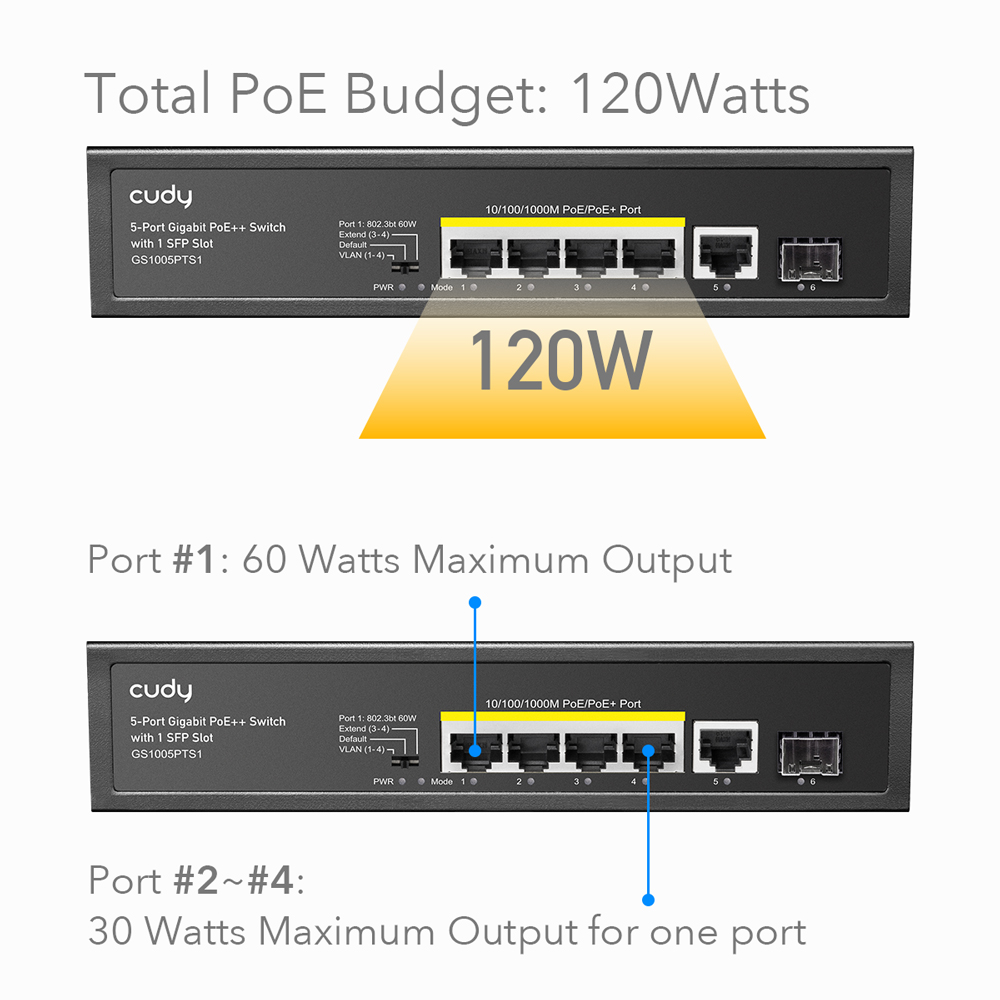

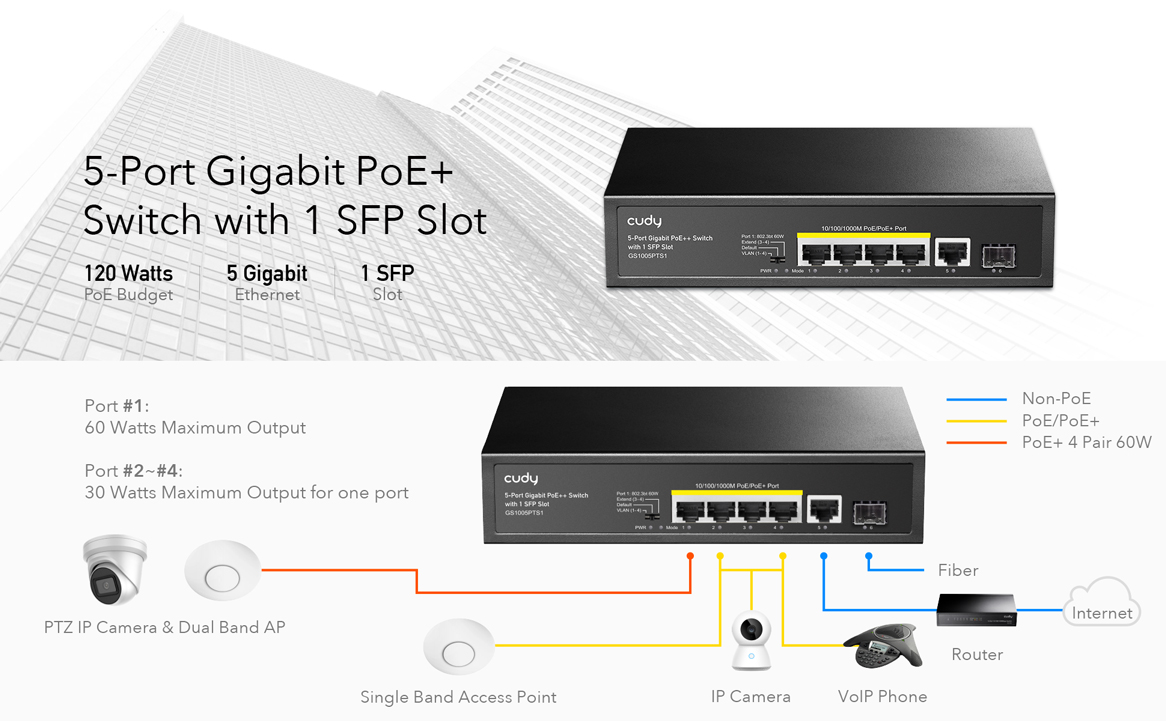

120 W Power budget & 60 W Maximum One Port
The total PoE power supported by the PoE port is 120 W, and the maximum for port #1 is 60 W. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.

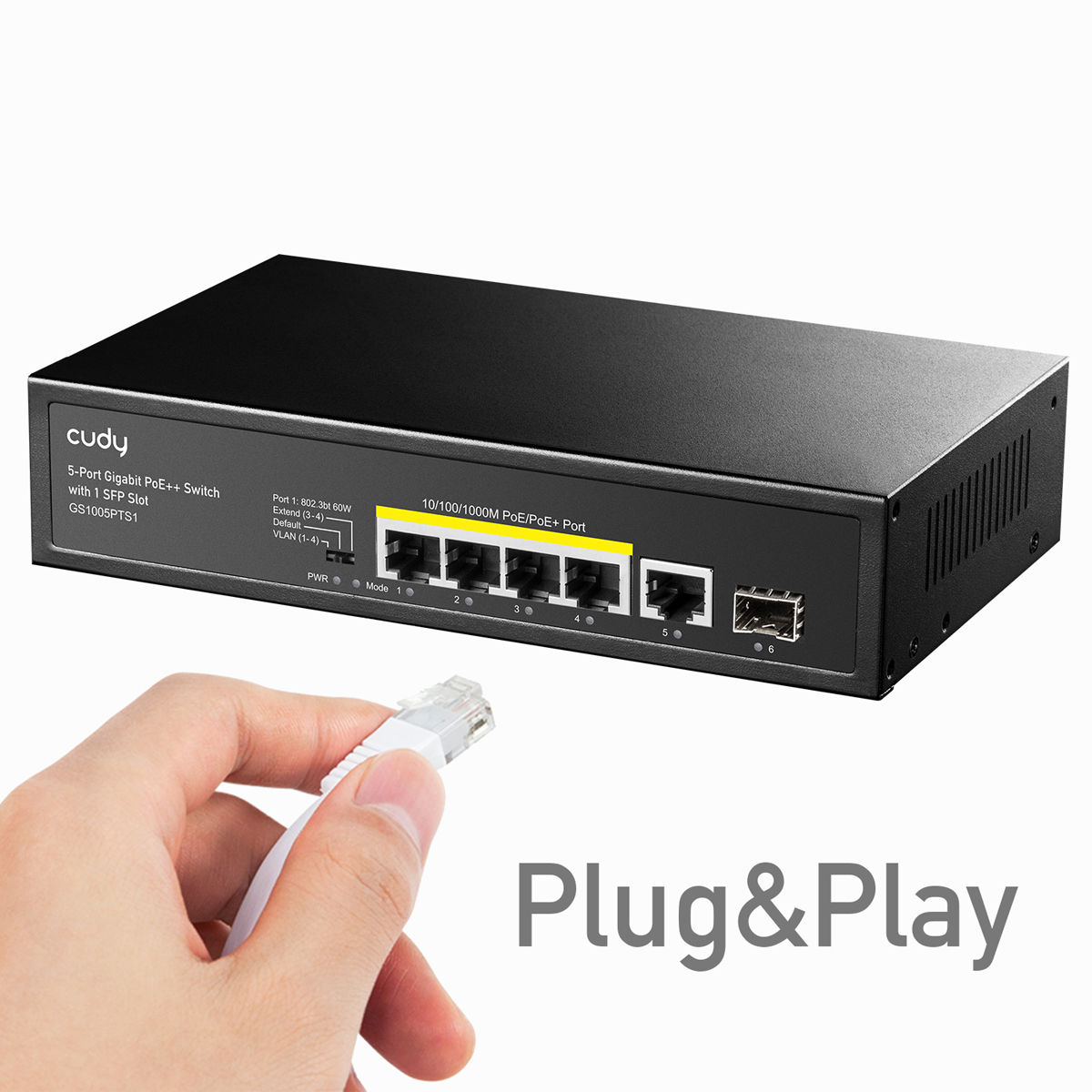

Plug&Play, Fanless design
Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)
