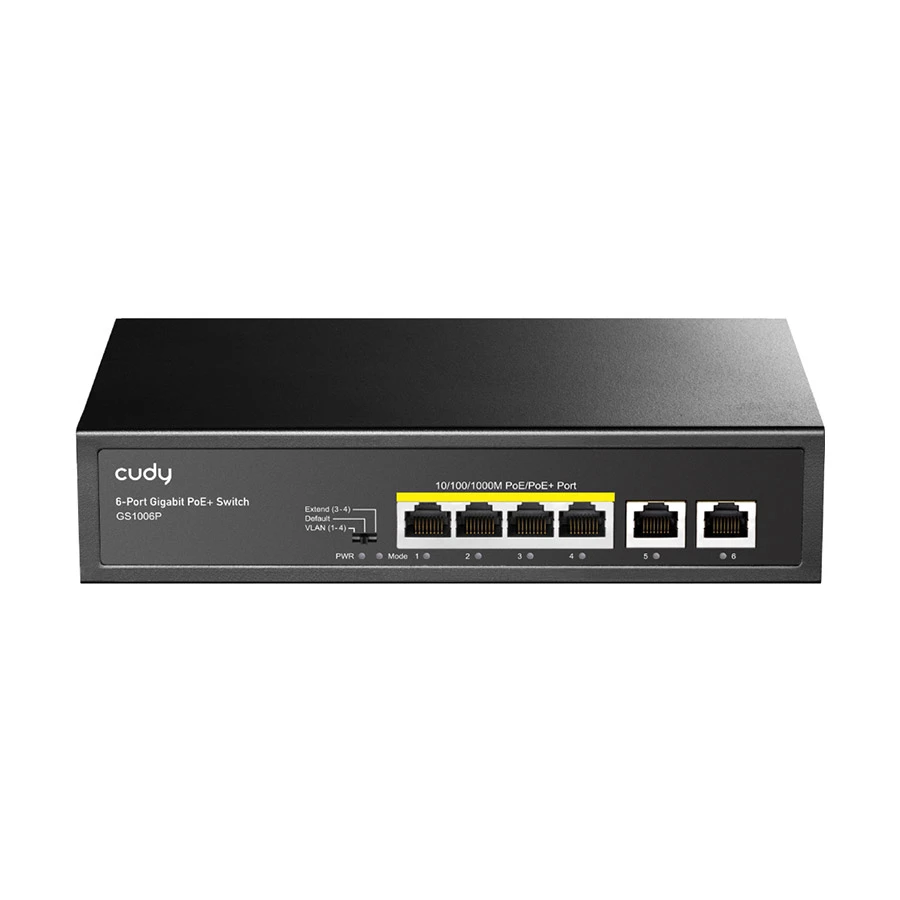

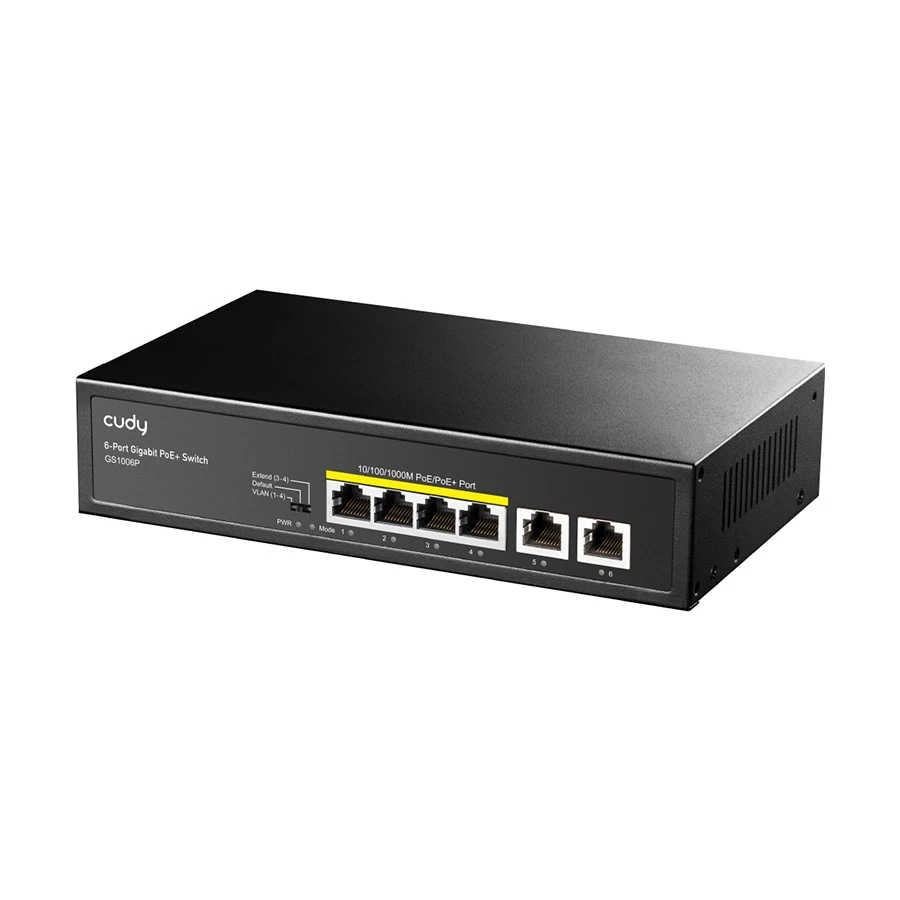

Cudy GS1006P 6 Port Desktop Switch

Product Id: 29.05.896.51

Brand Cudy

Special Price
Tk 4,800
Regular Price
Tk 5,150
EMI TK 430

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 6 Port
  • PoE - Yes
  • Manageability - Unmentioned
  • Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x standards.
  • Data Transfer Rate - 10/100/1000 Mbps
  • Form Factor - Desktop
Avail EMI Offer
EMI starts from Tk 572/months
General
Brand
Cudy

Model
Cudy GS1006P

Type
Network Switch


Ports & Slots
Number of Total Port
6 Port

Gigabit Port
2

SFP Port
No

SFP+ Port
4


Technical Info
PoE
Yes

Manageability
Unmentioned

Interface(s)
4 x Gigabit PoE ports, 2 x Gigabit Ethernet ports

Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x standards.

Data Transfer Rate
10/100/1000 Mbps

Transmission Method
Store Forward

Connector Type
6 x 10/100/1000Mbps RJ45 port


Physical Description
Body Color
Gray

Form Factor
Desktop

Dimension
200 x 118 x 44mm

Weight
0.61 Kg

Packet Contents

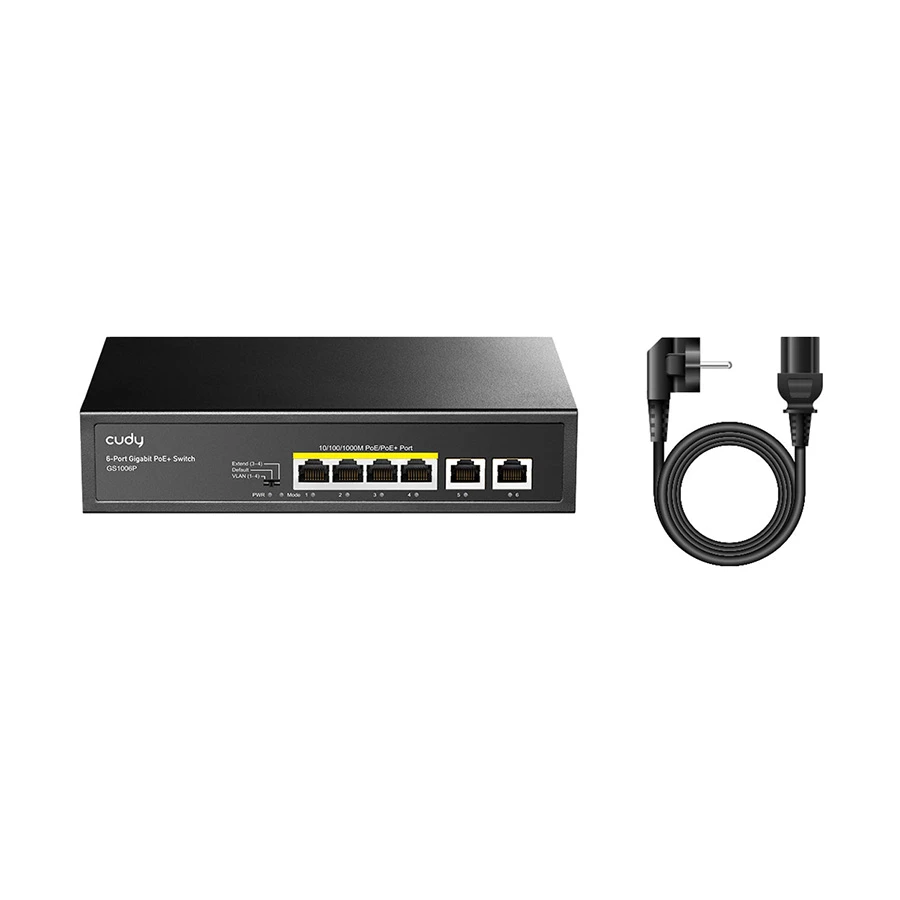

GS1006P, Power Cord, Installation Guide


Power
Power Supply
AC INPUT (100-240V) 50/60Hz

Approx. Power Consumption
Product power: maximum 5W, POE power: maximum 60W


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
Chip: RTL8367 (5E19), Bandwidth 12Gbps, Packet Forwarding Rate 8.928Mpps, Package Cache 1Mbit, Mac Address 2K, Network Protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, PoE Protocol: IEEE802.3af (15.4 W), IEEE802.3at (30 W), POE port output voltage: DC 44-57V, POE power supply core: 1/2+; 3/6-, Network Media: 10Base-T : Cat3, 4, 5 or above UTP/STP ( <-100m), 100Base-TX : Cat5 or above UTP/STP ( <-100m), 1000Base-TX : Cat5 or above UTP/STP ( <-100m), Industry Standard: EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge), Working Environment: Working temperature: - 10 to 50 Degree C, Storage temperature: - 40 to 70 Degree C, Working humidity: 10%~90%, non-condensing, Storage humidity: 5%~95%, non-condensing, PWR (Power light): PWR (Power indication), Mode (DIP indication), 1-6 Green light (Link&Data), PWR: On: Powered on, Off: Powered off, Mode: On VLAN (Port isolation), Off Default (Normal mode), Flashing Extend (Link extension), 1-6 Green light: On: Link connection is normal, Off: Link not working, Flashing Data transmitting, VLAN, Default, Extend, DIP switch: VLAN, Default, Extend, VLAN: Port isolation: 1-4 ports realize isolation between the each port of the monitoring network and interworking with the uplink port to protect internet security. Default: Normal mode, all ports communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100/1000M self-adaptive. Extend: In the link extension mode, the 3-4 port PoE power supply and data transmission distance can be extended to 250 meters, and the transmission rate turns to 10 M.

Specialty
4 x Gigabit PoE ports + 2 x Gigabit Ethernet ports. Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x standards. Ethernet ports support 10/100/1000M self-adaptive. Flow control method: IEEE 802.3x standard is adopted for full duplex, and Back pressure standard is adopted for half duplex. Supports automatic port rollover (Auto MDI/MDIX). Support for watchdog, default on Using a store-and-forward switching mechanism. All ports support line speed switching. Zero configuration feature, automatically feeding to adaptive devices. Panel indicators monitor the working status and assist in fault analysis. Three speed one button intelligent dial switch, supporting VLAN, Default, and Extend modes. Support Surge protection: Common mode 4KV; ESD: Air 8KV, Contact 6KV (level B).

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
