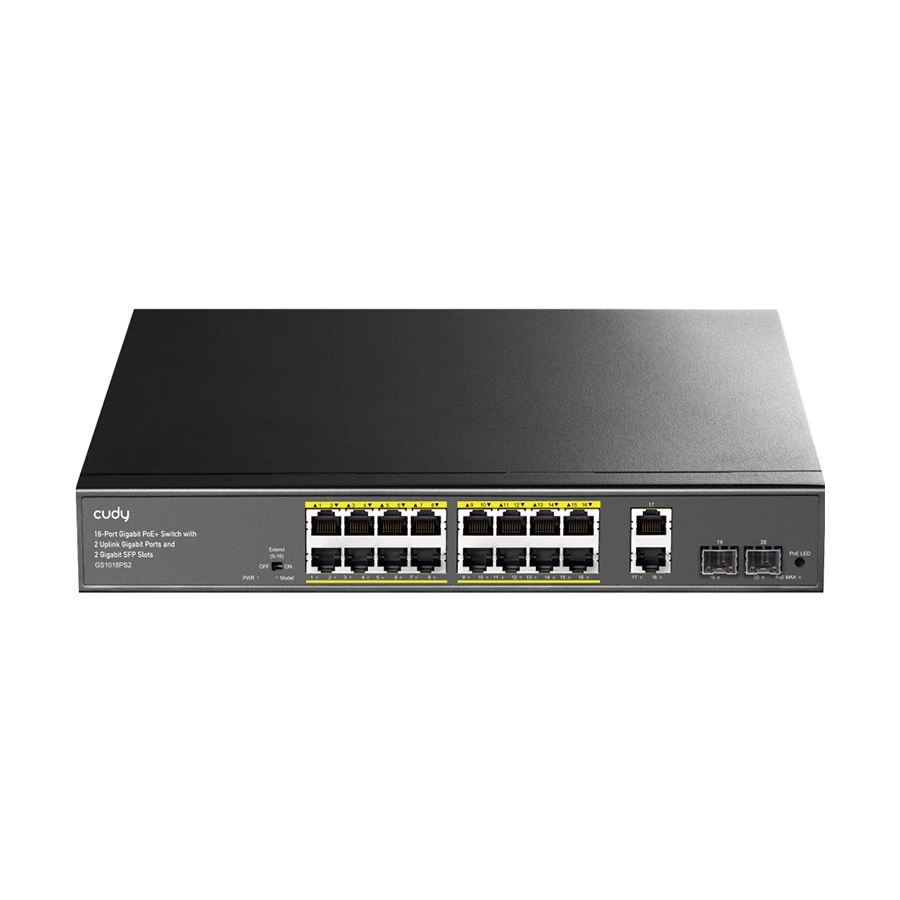

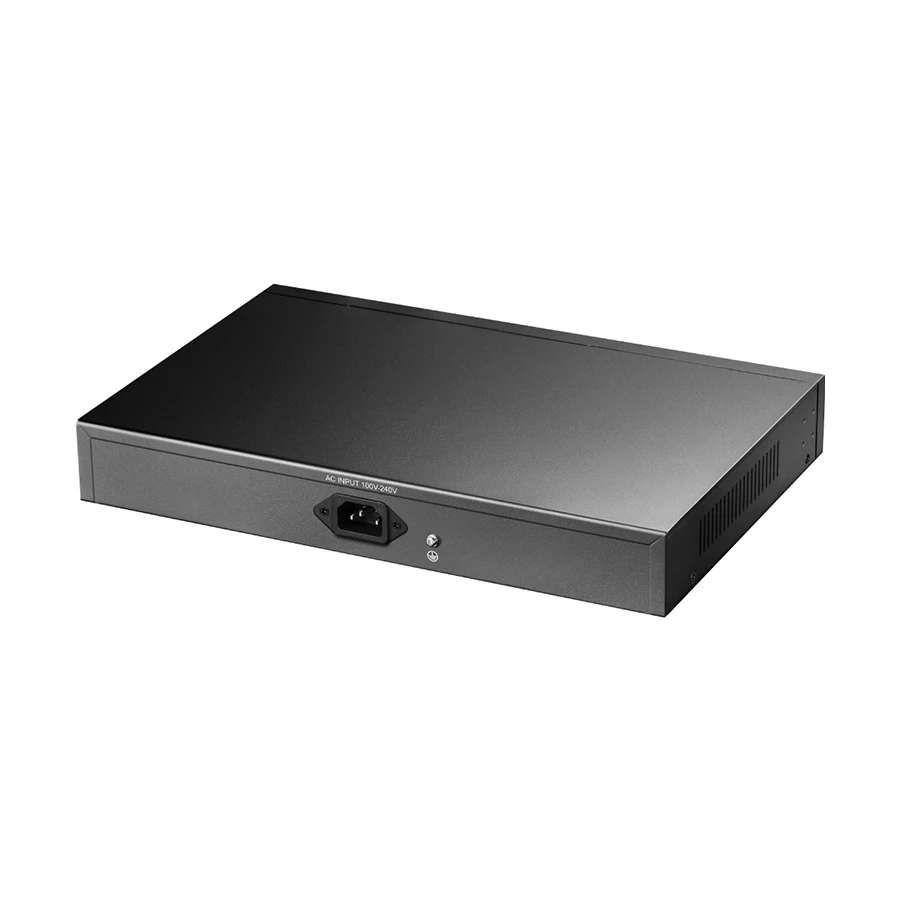

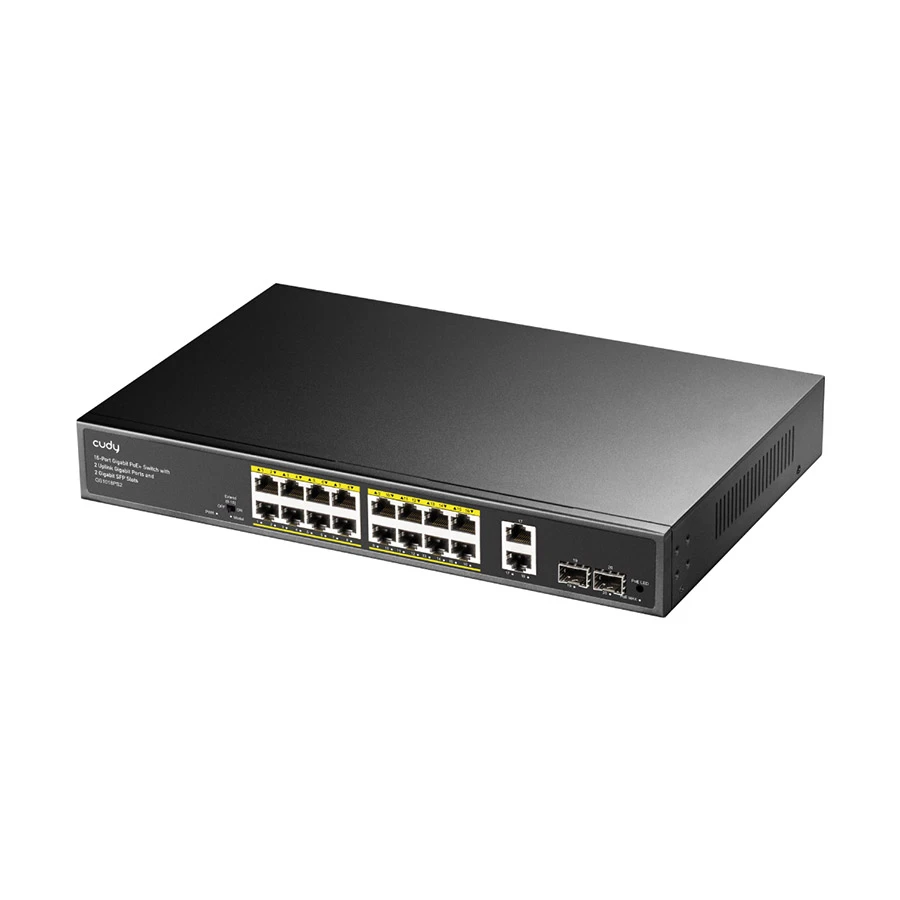

Cudy GS1018PS2 20 Port Desktop Switch
Product Id: 29.05.896.53
Brand
Cudy
Special Price
Tk 15,600 (Estimated)
Tk 15,600 (Estimated)
Regular Price
Tk 16,820 (Estimated)
EMI TK 1,402
Delivery in 1 days
Quick Overview
- Type - Network Switch
- Number of Total Port - 20 Port
- PoE - Yes
- Manageability - Unmentioned
- Network Standards - IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE 802.3z (Gigabit Fiber Standard)
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Rackmount
General
Brand
Cudy
Model
Cudy GS1018PS2
Type
Network Switch
Ports & Slots
Number of Total Port
20 Port
Gigabit Port
2
SFP Port
2
PoE Port
16
Technical Info
PoE
Yes
Manageability
Unmentioned
Interface(s)
16 x 10/100/1000Mbps PoE, 2 x 10/100/1000Mbps Uplink & 2 x 1.25G SFP
Network Standards
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE 802.3z (Gigabit Fiber Standard)
Data Transfer Rate
10/100/1000 Mbps
Transmission Method
Store and Forward
Connector Type
18 x 10/100/1000Mbps The RJ45 port, 2 x 1.25G SFP
Physical Description
Fan/Fanless
Fanless
Indicators
PWR (Power), 1-20 Green Light (Link&Data), 1-16 (Yellow Light), POE Led Key
Body Color
Gray
Form Factor
Rackmount
Dimension
320 x 207 x 44mm
Weight
1.78 Kg
Packet Contents
1 x Switch, 1 x Power Cord, 1 x User Manual
Power
Power Supply
AC100-240V 50/60Hz, Supply Power: 52V / 3.84A
Approx. Power Consumption
Non PoE board power: maximum 10W, PoE power: maximum 180W
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Chipset: EN8850DH, RTL8238B, Bandwidth: 40 Gbps, Pack forward rate: 29.76 Mpps, Packet Buffer: 3 Mbit, MAC Address 8K, PoE Protocols: IEEE802.3af (15.4W), IEEE802.3at (30W), POE port output voltage: DC 44-57V, POE power supply core: 1/2+; 3/6-, Industry Standards: EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge), Network medium: 10Base-T: Cat 3, 4, 5 Class or above UTP/STP (<- 100m), 100Base-TX: Cat 5 Class or above UTP/STP (<- 100m), 1000Base-TX: Cat 5 Class or above UTP/STP (<- 100m), Optical Mediumt: Multimode optical fiber: 50/125, 62.5/125, 100/140um, Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um, Working Environment: Working temperature: -10 - 50 Degree C, Storage temperature: -40 - 70 Degree C, Working humidity: 10% - 90%, non-condensing, Storage humidity: 5% - 95%, non-condensing, PWR: On: Powered on, Off: Powered off, 1-20 Green Light (Link&Data): On: Link normal, Off: Link blocked, Flashing: Data transmitting, 1-16 Yellow Light (PoE Powering): On PoE on, Off PoE off, PoE Status Indicator: Off: indicates PoE power usage is less than 90%, Flashing: indicates PoE power usage of 90% <-P <-95%, On: indicates that PoE power is used at 95%
Specialty
16 x PoE+ GbE + 2 x Uplink GbE + 2x SFP Slots, Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab Standard, Extend transmission distance to 250 m for ports 9~16 in Extend mode, POE priority from ports 1~16 enabled by default, Watchdog automatically reboots unresponsive clients connected to ports 1~16 to improve system stability under Extend mode, Flow control full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard, Panel indicator monitors status and helps failure analysis, Display PoE budget usage with PoE status light, Display PoE powering status at each port, Surge Protection: Max 4KV common protection, ESD Preotcion: Max 8KV air / 6KV contact protection
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
