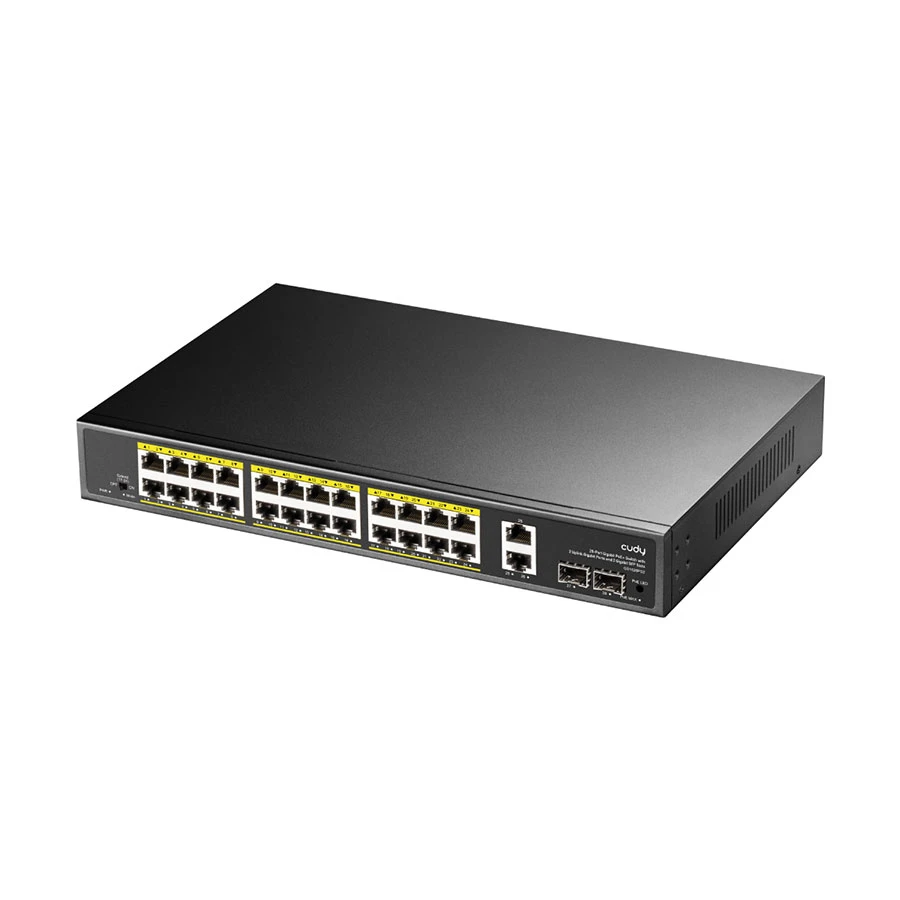

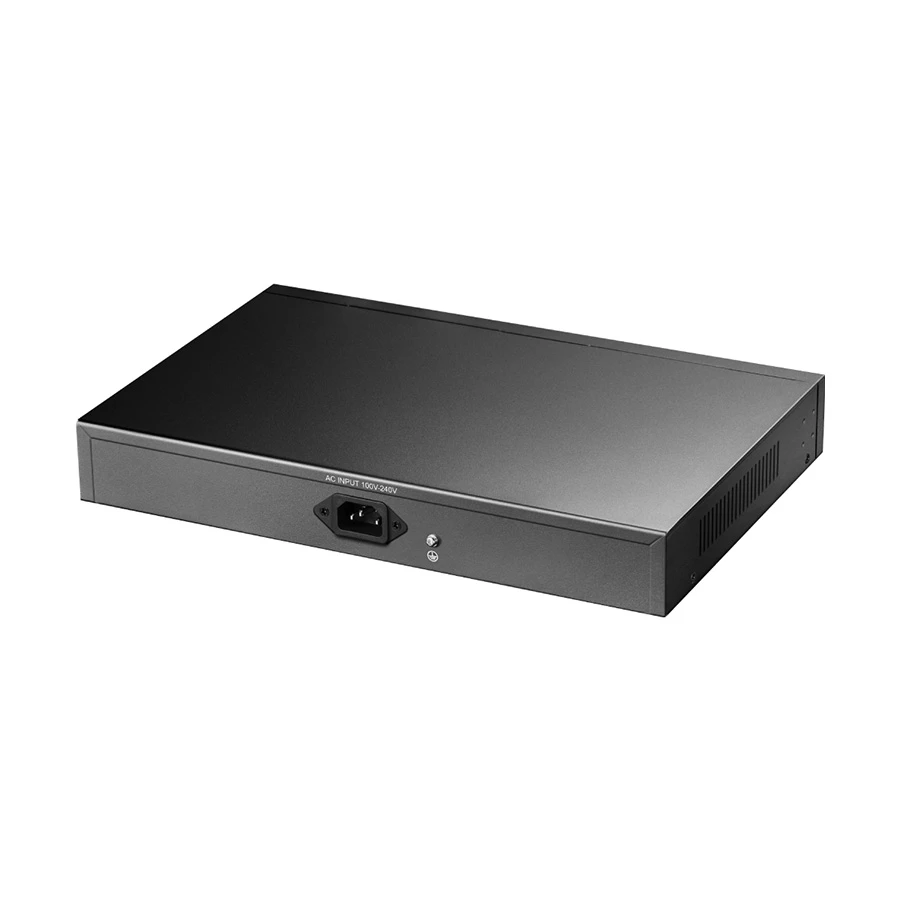

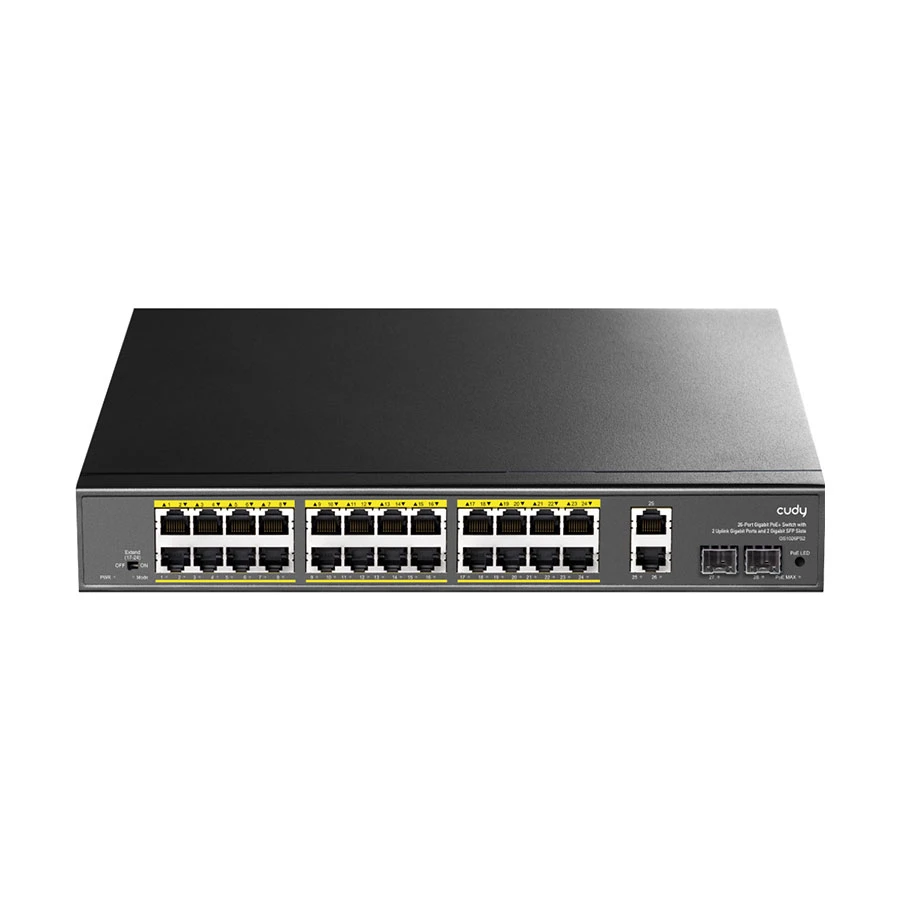

Cudy GS1026PS2 28 Port Desktop Switch

Product Id: 29.05.896.54

Brand Cudy

Special Price
Tk 18,900
Regular Price
Tk 20,400
EMI TK 1,700

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 28 Port
  • PoE - Yes
  • Manageability - Unmentioned
  • Network Standards - IEEE802.3, IEEE802.3u, IEEE802.3ab
  • Data Transfer Rate - 10/100/1000 Mbps
  • Form Factor - Rackmount
Avail EMI Offer
EMI starts from Tk 2,267/months
General
Brand
Cudy

Model
Cudy GS1026PS2

Type
Network Switch


Ports & Slots
Number of Total Port
28 Port

Gigabit Port
2

SFP Port
2

PoE Port
24


Technical Info
PoE
Yes

Manageability
Unmentioned

Interface(s)
24 x 10/100/1000Mbps PoE, 2 x 10/100/1000Mbps Uplink & 2 x 1.25G SFP

Network Standards
IEEE802.3, IEEE802.3u, IEEE802.3ab

Data Transfer Rate
10/100/1000 Mbps

Transmission Method
Store and forward

Connector Type
26 x 10/100/1000Mbps The RJ45 port, 2 x 1.25G SFP


Physical Description
Indicators
PWR (Power), 1-28 Green Light (Link&Data), 1-24 (Yellow Light), POE Led Key

Body Color
Gray

Form Factor
Rackmount

Dimension
320 x 207 x 44mm

Weight
1.967 Kg

Packet Contents
1 x Switch, 1 x Power Cord, 1 x User Manual


Power
Power Supply
Input Voltage: AC 100-240 V 50-60Hz, Supply Power: 52V /5.76A

Approx. Power Consumption
Power Supply: 300W, POE Budget: 280W


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
Chipset EN8850DH, RTL8238B, Bandwidth 56 Gbps, Pack forward rate 41.644 Mpps, Packet Buffer 3 Mbit, MAC Address 8K, Network Protocol: IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3x (Flow Control), IEEE 802.3z (Gigabit Ethernet Fiber Standard), PoE protocol: IEEE802.3af (15.4W), IEEE802.3at (30W) POE port output voltage: DC 44 - 57V POE power supply core: 1/2+; 3/6-, Industry Standard: EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge), Network medium: 10Base-T: Cat 3, 4, 5 Class or above UTP/STP (<- 100m), 100Base-TX: Cat 5 Class or above UTP/STP (<- 100m), 1000Base-TX: Cat 5 Class or above UTP/STP (<- 100m), Optical Mediumt: Multimode optical fiber: 50/125, 62.5/125, 100/140um, Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um, Working Environment: Working temperature: -10 - 50 Degree C, Storage temperature: -40 - 70 Degree C, Working humidity: 10% - 90%, non-condensing, Storage humidity: 5% - 95%, non-condensing, PWR: On: Powered on, Off: Powered off, 1-28 Green Light (Link&Data): On: Link normal, Off: Link blocked, Flashing: Data transmitting, PoE Status Indicator: Off: indicates PoE power usage is less than 90%, Flashing: indicates PoE power usage of 90% <- P <- 95%, On: indicates that PoE power is used at 95%

Specialty
24 x PoE+ GbE + 2 x Uplink GbE + 2 x Uplink SFP, Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab Standard; Ethernet Ports support 10/ 100/ 1000M self- adaptive; Extend transmission to 250 m for ports 17 - 24 in Extend mode, POE priority from ports 1 - 24 enabled by default, Watchdog automatically reboots unresponsive clients connected to ports 1 - 24 to improve system stability under Extend mode , Flow control full-duplex adopts IEEE 802.3x standard, half-duplex adopts back pressure standard , Panel indicator monitors status and helps failure analysis, Display PoE budget usage with PoE status light, Display PoE powering status at each port, Surge Protection: Max 4KV common / 2KV differential protection, ESD Preotcion: Max 8KV air / 6KV contact protection

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
