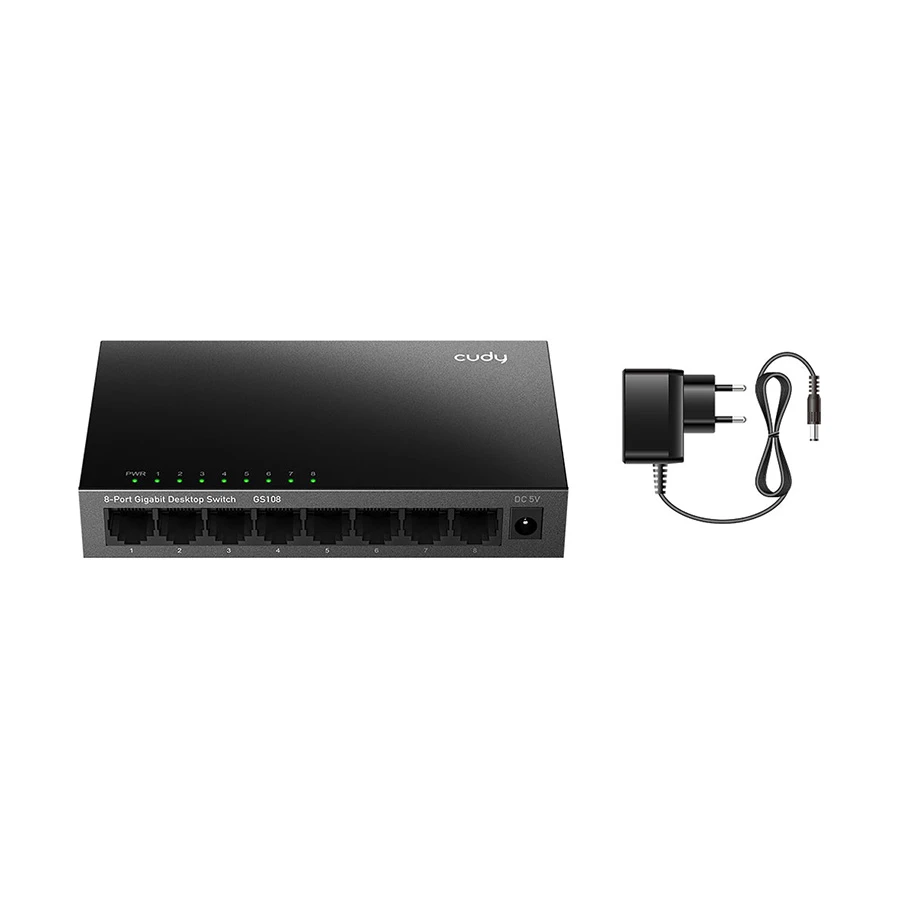

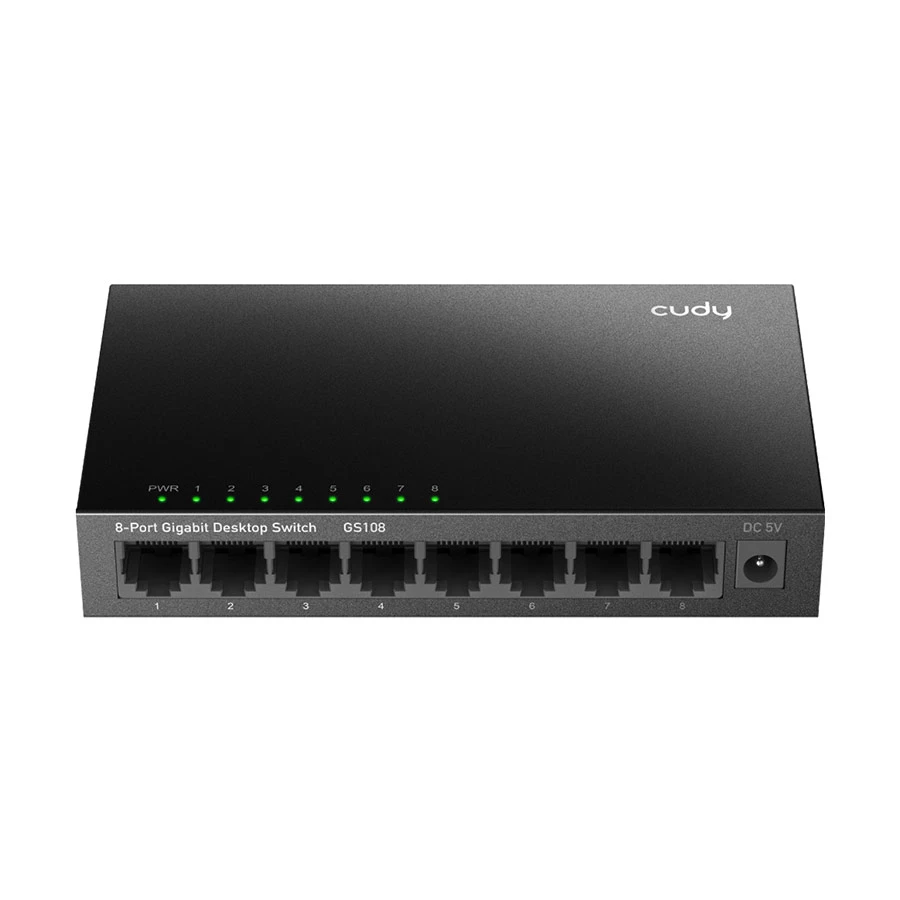

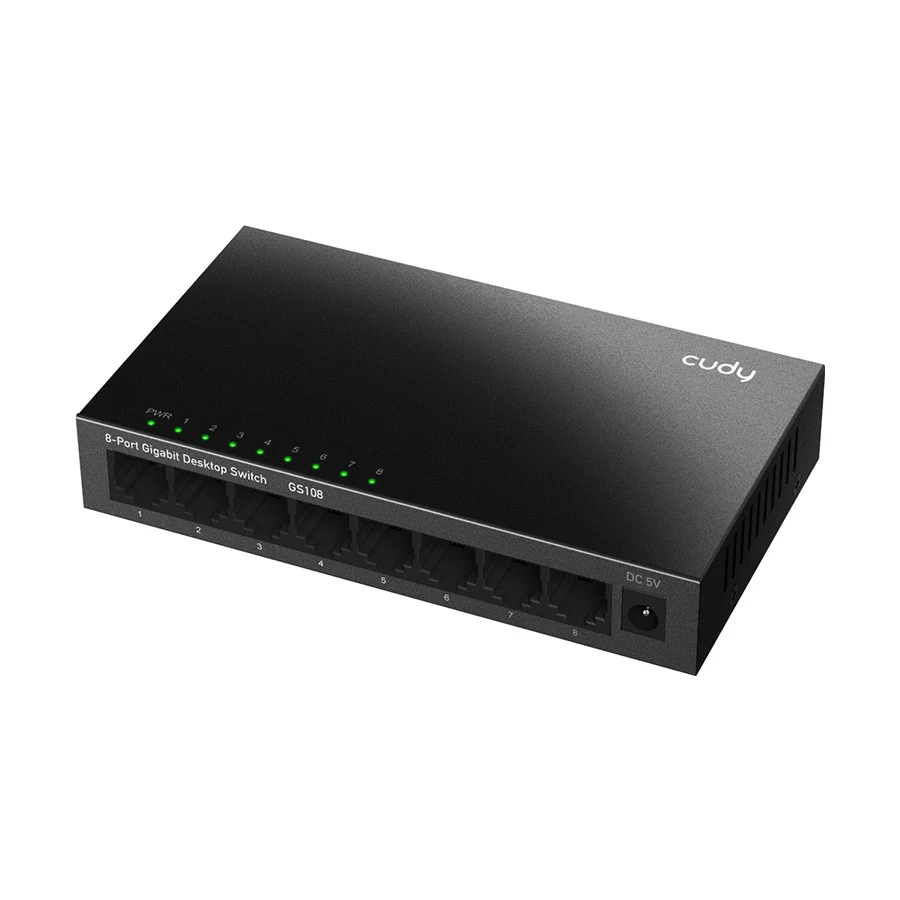

Cudy GS108 8 Port 10/100/1000Mbps Ethernet Desktop Switch
PWR: On: power on, Off: no power, Link: On: 10/100/1000M link connection is normal, Blinking: Data transmission is normal, Off: link failure
Body Color
Gray
Form Factor
Desktop
Dimension

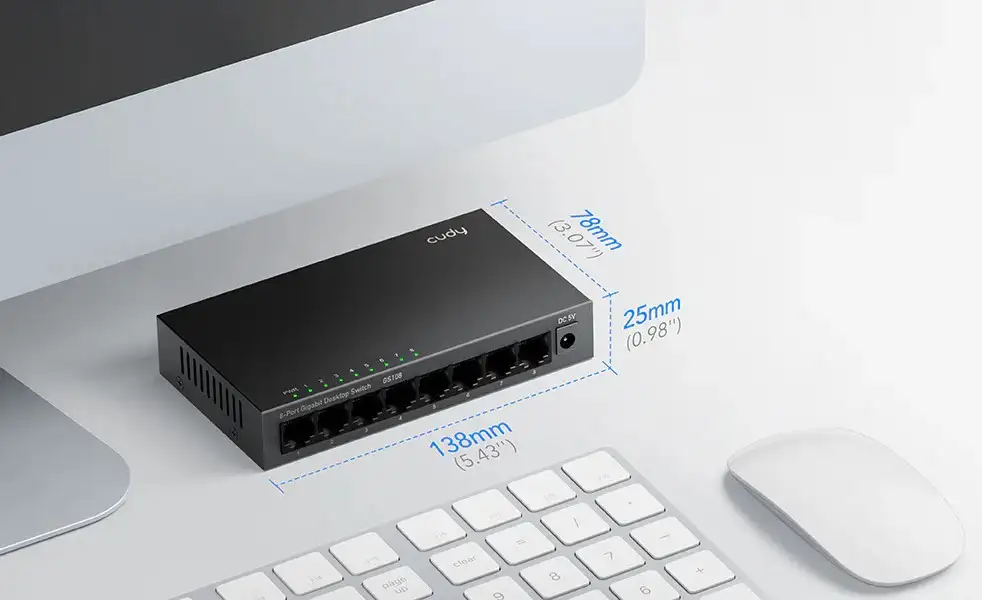

138 x 78 x 25mm
Packet Contents
Switch, Adapter, User guide.
Power
Power Supply
Input Voltage: DC 5V0.55A
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Network Media: 10Base-T : Cat3,4,5 or above UTP(<-100m), 100Base-TX : Cat5 or above UTP(<-100m), 1000Base-TX : Cat5 or aboveUTP(<-100m), MAC Address Table 8K, Packet Forwarding Rate: 11.9 Mbps, Packet Buffer: 4 Mbit, Jumbo Frame: 15K Byte, Environment: Operating Temperature: -10 Degree C to 50 Degree C, Storage Temperature: -40 Degree C to 70 Degree C, Operating Humidity: 10% - 90% non-condensing, Storage humidity: 5% - 95% non-condensing
Specialty
Gigabit RJ45 Ports, Apply to IEEE802.3,IEEE802.3u,IEEE802.3ab standard, Ethernet ports support 10/100/1000M adaptive, Support Auto MDI/MDIX, Panel indicators to monitor working status and help fault analysis, Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard, Port 1-2 supports Qos data priority
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
