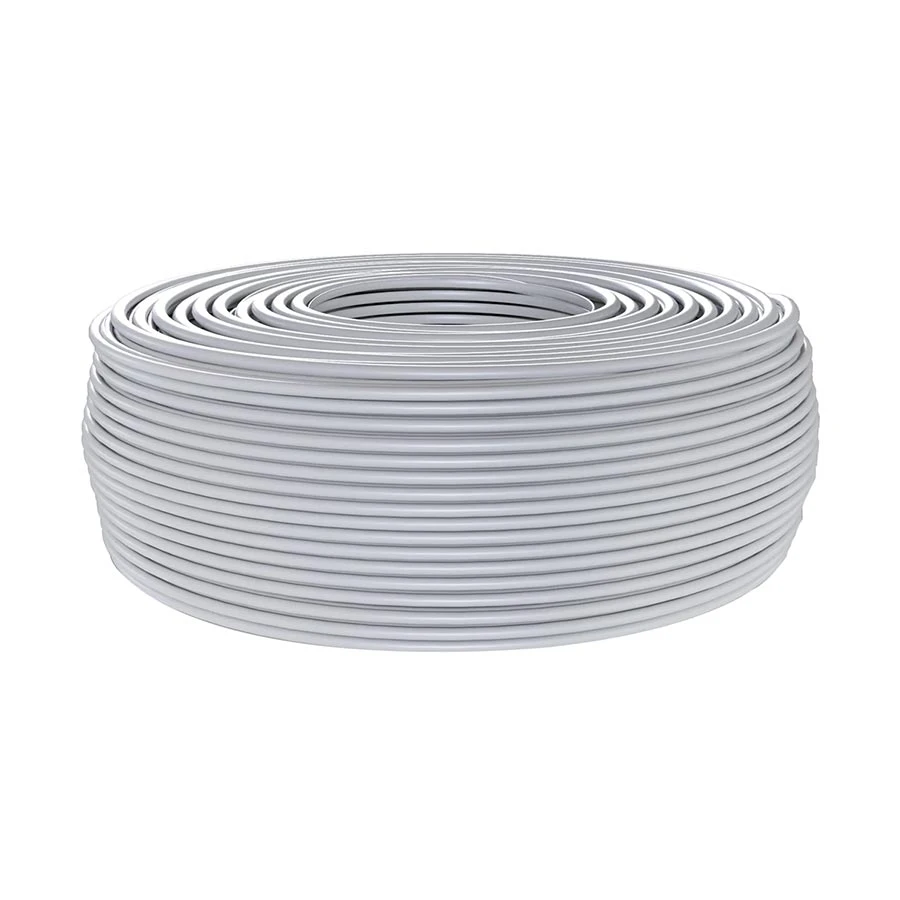

D-Link Cat-6 UTP, 305 Meter, Gray Network Cable #NCB-C6UGRYR-305

Product Id: 29.06.014.118

Brand D-link

Special Price
Tk 14,700
Regular Price
Tk 15,840
EMI TK 1,320

Quick Overview

  • Type - Network Cable
  • Length - 305 Meter
  • Cable Shielding - UTP (Unshielded Twisted Pair)
  • Conductor Material - Bare Solid Copper
  • Jacket Material - PVC
Avail EMI Offer
EMI starts from Tk 1,760/months
General
Brand
D-Link

Model
D-Link Cat-6 UTP

Type
Network Cable

Part No
NCB-C6UGRYR-305


Technical Info
Length
305 Meter

Connector Type
RJ45

Product Type
Unmentioned


Main Features
Network Speed
1000Mbps

Channel Bandwidth
250MHz

Conductor Material
Bare Solid Copper

Jacket Material
PVC

Cable Shielding
UTP (Unshielded Twisted Pair)

AWG
23AWG


Physical Description
Color
Gray


Warranty
Warranty Details
No warranty


Additional Info
Others
Mutual Capacitance: 5.6nF/100m nominal, Characteristic Impedance: 100 ohm -+15%, Nominal Velocity of Propagation: 69%, Characteristic Impedance: 100+15 ohm. Conductor Resistance: <9.38 ohm /100m. Mutual Capacitance: < 5.6nF/100m, Resistance Unbalance: 5% Max, Capacitance Unbalance: 330pF/100m, Delay Skew: < 45nS, Bending Radius: < 4 x Cable Diameter, at 20 Degree C -+ 1 Degree C. Pulling Force: 11.5Kg. Temperature Range: -20 Degree C to +70 Degree C. 4 Pairs Unshielded Twisted Pair (UTP) Cable. Conductor Metal: Solid Bare Copper. Color Code: Gray. Conductor Diameter: 0.560mm Nominal, 23 AWG. Insulation Diameter: 0.970mm Nominal, Insulation Material: HD-PE. Jacket Material: PVC UL94V-0/LSZH, Cable Diameter: 6mm Nominal, PE Central Cross separator.

Feature
D-Link solid cables are the best twisted-pair cables in the market for transmitting data over local area Networks (LANs). These cables exceed performance requirements specified by the TIA/EIA-568C.2 and IEC 60603-7-4 standards. CAT6 cables reduce crosstalk and system noise. The superior insulation around the 23 AWG copper wires attribute to the increased performance. They can transmit data at 1000 Mbps (~1 Gigabit per second) with a frequency of 250 MHz and suitable for 10BASE-T, 100BASE-TX Fast Ethernet and 1000BASE-T / 1000BASE-TX (Gigabit Ethernet).

Specialty
As streaming video and multimedia over LAN are gaining popularity, users demand faster data transmission and reduced waiting time. D-Link cables are ideal for simple, cost-effective and high-speed transmission performance. They support a higher signal-to-noise ratio, providing better reliability for current applications and higher data rates for future applications. APPROVAL / CERTIFICATION: Verified compliant with TIA/EIA-568C.2 standards by ETL. CUL listed, RoHs.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
