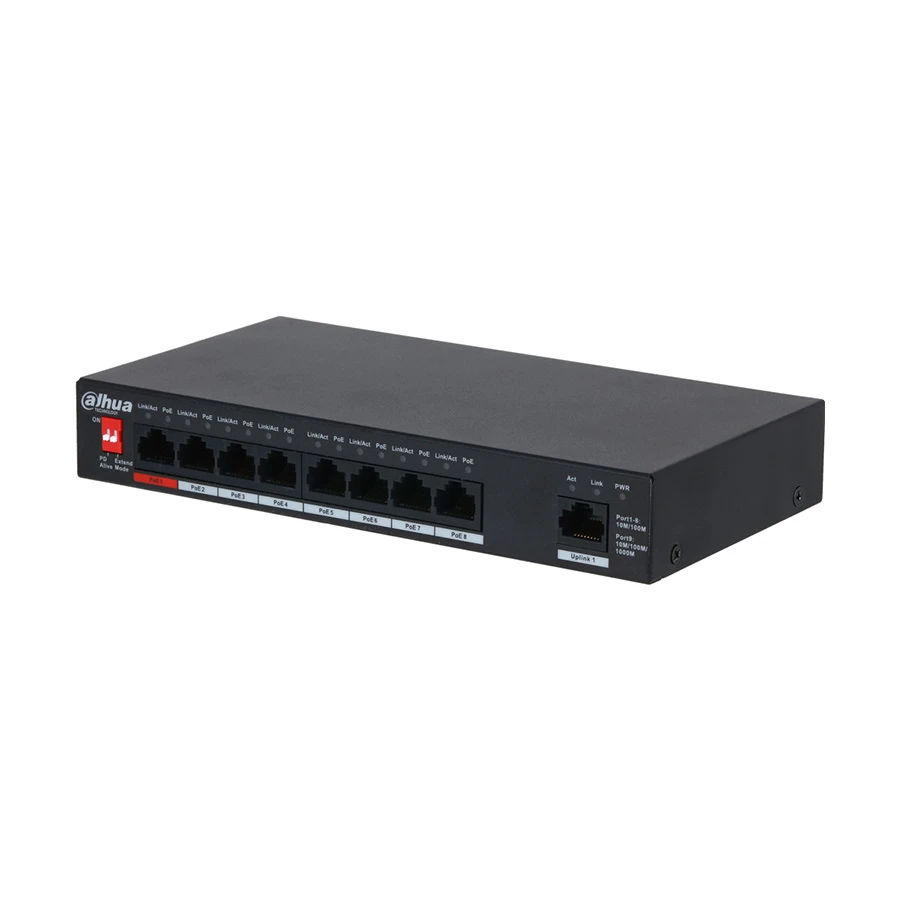

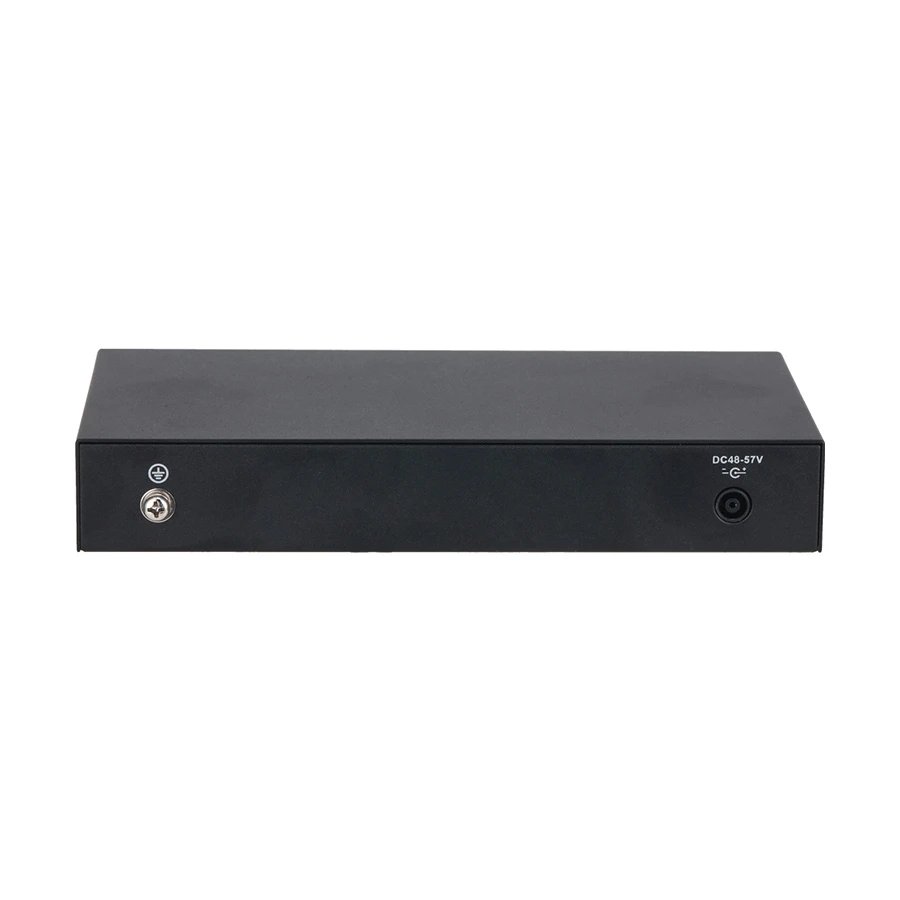

Dahua PFS3009-8ET1GT-96 9 Port Unmanaged Desktop Switch
Product Id: 29.05.776.05
Brand
Dahua
Quick Overview
- Type - Network Switch
- Number of Total Port - 9 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE802.3, IEEE802.3u, IEEE802.3x (Compliance), IEEE802.3af, IEEE802.3at, Hi-PoE (PoE)
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop
General
Brand
Dahua
Model
Dahua PFS3009-8ET1GT-96
Type
Network Switch
Ports & Slots
Number of Total Port
9 Port
Gigabit Port
1
PoE Port
8
Technical Info
PoE
Yes
Manageability
Unmanaged
Interface(s)
8 x RJ45 10/100M (PoE), 1 x RJ45 10/100/1000M (Uplink)
Network Standards
IEEE802.3, IEEE802.3u, IEEE802.3x (Compliance), IEEE802.3af, IEEE802.3at, Hi-PoE (PoE)
Data Transfer Rate
10/100 Mbps
Switching Capacity
3.6 Gbps
Physical Description
Form Factor
Desktop
Dimension
190 x 100 x 30mm
Weight
0.47 Kg
Packet Contents
1 x Dahua PFS3009-8ET1GT-96, 1 x User manual
Power
Power Supply
External power adpater: 53V DV
Approx. Power Consumption
2.7W (static)
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
PoE Budget: Port 1 <- 60W(Hi-PoE), Port2-8 <- 30W, total <- 96W. PoE Pin Assignment: PoE/Hi-PoE:1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-). Long Distance: 250 m, 10 Mbps. PoE Management: Support, Packet Forwarding Rate: 2.678 Mpps, Packet Buffer Memory: 1 Mbit, MAC Table Size: 2K, Flow Control: Enable by default, Operating Humidity: 5 - 95%. Thunderproof: Common mode: 4kV, Differential mode: 2kV. ESD: Air discharge: 8kV, Contact discharge: 6kV. Mounting: Support desktop and wall mounting, Anti-theft Lock Hole: Support
Specialty
The 9-Port Unmanaged Desktop Switch with 8-Port PoE is a type of layer 2 commercial switch, which supports long distance Ethernet power supply. It provides eight 10/100 Mbps Ethernet ports and one 10/100/1000 Mbps uplink port. The product is equipped with two types of transmission modes (Default/Extend), which are controlled by DIP switch. Advantages of solid and sealed all-metal case design, low power consumption, fanless and efficient surface heat dissipation make it work in the environment from -10 Degree C to 55 Degree C. Support desktop and wall mounting. The anti-theft lock hole supports mechanical anti-theft function.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
