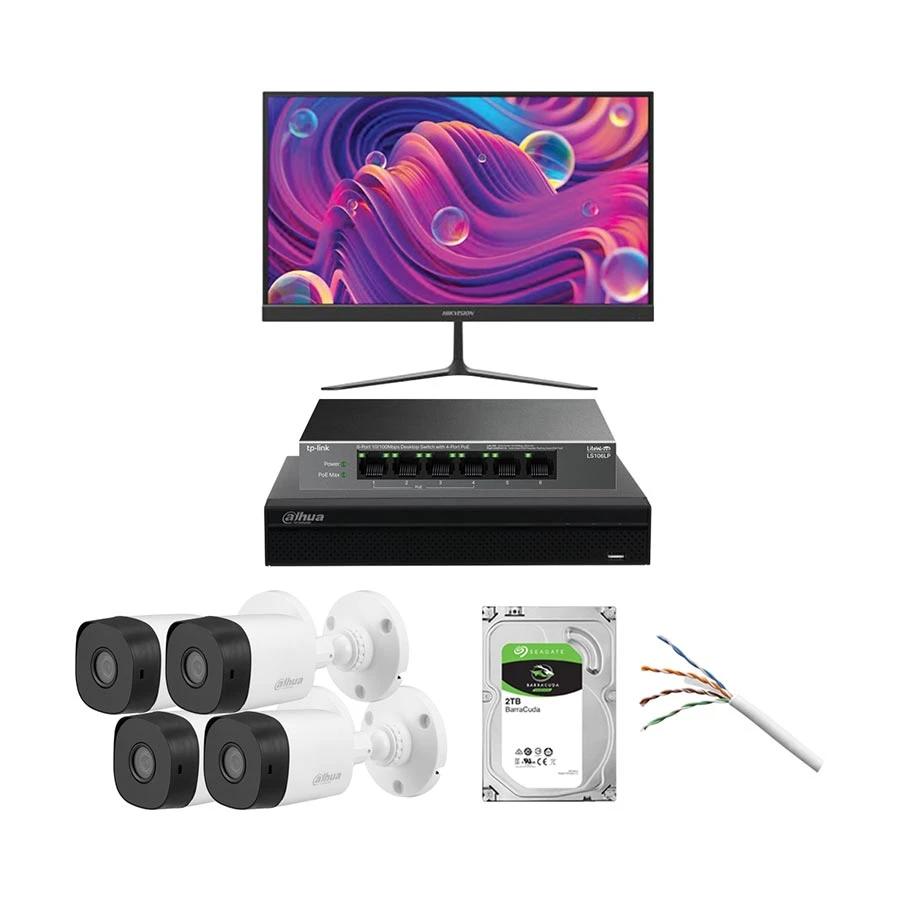

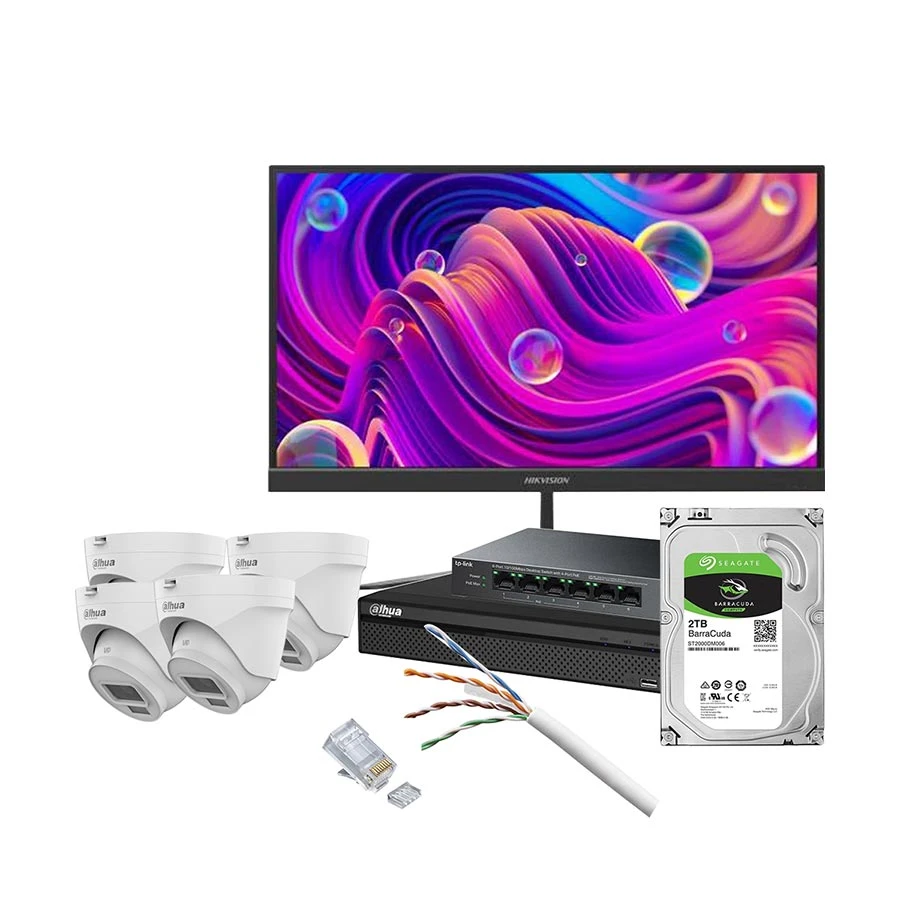

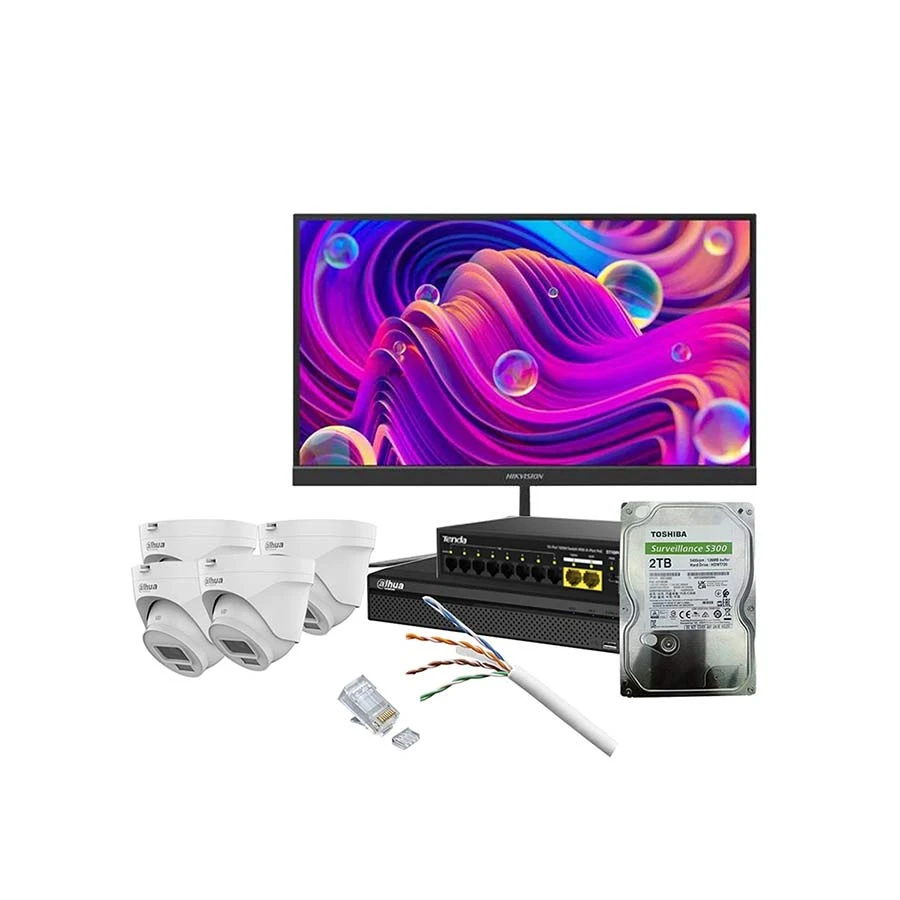

Security / Dahua Small Home / Office Outdoor CC TV Package #SOH-IM-001

Product Id: 127.14.776.257

Brand Dahua

Special Price
Tk 31,214
Save Extra Tk 500 on online order
Regular Price
Tk 33,870
EMI TK 2,823

Quick Overview

  • HDD Qty. - 1
  • Memory Card Qty. - Not Applicable
  • Camera Qty. - 4
  • DVR Qty. - Not Applicable
  • XVR Qty. - Not Applicable
  • NVR Qty. - 1
  • Monitor Qty. - 1
  • Router Qty. - Not Applicable
Avail EMI Offer
EMI starts from Tk 3,763/months
General
Brand
Dahua

Model
Dahua SOH-IM-001

Type
CCTV Package


HDD Details
HDD
Yes

HDD Qty.
1

HDD Model
Seagate Barracuda35 2TB

HDD Details
Seagate Barracuda35 2TB 3.5 Inch SATA 7200RPM Desktop HDD #ST2000DM006 / ST2000DM008


Memory Card Details
Memory Card
No

Memory Card Qty.
Not Applicable


Camera Details
Camera
Yes

Camera Qty.
4

Camera Model
Dahua DH-HAC-B1A21P

Camera Details
Dahua DH-HAC-B1A21P (3.6mm) (2MP) Bullet CC Camera


DVR Details
DVR
No

DVR Qty.
Not Applicable


XVR Details
XVR
No

XVR Qty.
Not Applicable


NVR Details
NVR
Yes

NVR Qty.
1

NVR Model
Dahua DHI-NVR1104HS-S3/H

NVR Details
Dahua DHI-NVR1104HS-S3/H 4 Channel NVR


Monitor Details
Monitor
Yes

Monitor Qty.
1

Monitor Model
Hikvision DS-D5022F2-CBD 21.45 Inch

Monitor Details
Hikvision DS-D5022F2-CBD 21.45 Inch FHD (1920x1080) IPS 100Hz Black Monitor (HDMI, VGA & Headphone)


Router Details
Router
No

Router Qty.
Not Applicable


Switch Details
Switch
Yes

Switch Qty.
1

Switch Model
TP-Link LS106LP

Switch Details
TP-Link LS106LP 6 Port (4 Port 10/100Mbps PoE & 2 Port 10/100Mbps Ethernet) Unmanaged Desktop Switch


Cable Details
Cable
Yes

Cable Qty.
40

Cable Model
Hikvision Cat-6

Cable Details
Hikvision Cat-6, 1 Meter, White Network Cable # 1 Coil-305 Meter (DS-1LN6U-W/CCA) 40Meter


Adapter Details
Adapter
No

Adapter Qty.
Not Applicable


Connector Details
Connector
Yes

Connector Qty.
8

Connector Model
D-Link CAT-6

Connector Details
D-Link CAT-6 2 PART RJ45 Connector


Physical Description
Dimensions (WxHxD)
70 x 70 x 149mm (Camera), 260 x 225 x 47.6mm (NVR), 158 x 101 x 25mm (Network Switch), 147 x 101 x 20mm (Internal HDD), 493.26 x 369.12 x 162.75mm (Monitor)

Weight
140 gm (Camera), 490 gm (HDD), 2.0 Kg (Monitor)


Warranty
Warranty Details
Clone CCTV Package Warranty vary by parts


Additional Info
Others
Haze Haze 25%, 3H, Reliability 7 x 16H, Power Supply DC 12V, 2.0A, Working Humidity 20% to 90% RH (Non-Condensing), Storage Temperature -20 Degree C to 60 Degree C, Storage Humidity 10% to 90% RH (Non-Condensing), Casing Material Plastic, Bezel Width 2.38 mm (top/left/right), 21.55 mm (bottom). (Monitor), Max Aperture: F1.85, Close Focus Distance: 800mm (2000mm), DORI Distance: Detect (25px/m (8px/ft), Distance 3.6mm: 51m(167ft)), Observe: (63px/m (19px/ft), Distance 3.6mm: 20m(66ft)), Recognize: ((125px/m (38px/ft) 3.6mm: 10m(33ft)), Identify: (250ppm (76px/ft) Distance 3.6mm: 5m(17ft)). (Camera)

Specialty
IPS technology, 178 Degree ultra-wide view screen. 8 bit LVDS FHD (1920 x 1080) display. 100 Hz refresh rate, more fluid and life-like video. Ultra-thin device body with ultra-thin border for 3 sides. 3D noise reduction. Low blue light design for eye care. Dual interface of HDMI and VGA. Support VESA wall mount. (Monitor), Max. 30fps@1080P, HD and SD output switchable, Max. IR length 20m, Smart IR, Long Distance Transmission. (Camera), Extend Mode Button (Ports 1 - 4, Up to 250 m PoE power supply and data transmission), PoE Auto Recovery Button (Ports 1-4), Compatible With IEEE 802.3af Compliant PDs, Mac Address Auto-Learning and Auto-Aging, IEEE 802.3x Flow Control, Green Technology. (Network Switch), New user interface 4.0, P2P remote monitoring, mobile video playback, 4 channels @ 1080P (30 frames per second), self-adaptive decoding capability, ONVIF and RTSP main cameras support Smart H.265+/Smart H.264+/H .265/H.264, Simultaneous VGA/HDMI video output, maximum HDMI resolution - 1080P, Remote IPC configuration and management DHCP (Dynamic Host Configuration Protocol), HTTP (Hypertext Transfer Protocol), NTP (Network Time Protocol) and DDNS (Dynamic Domain Name System). (NVR)


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
