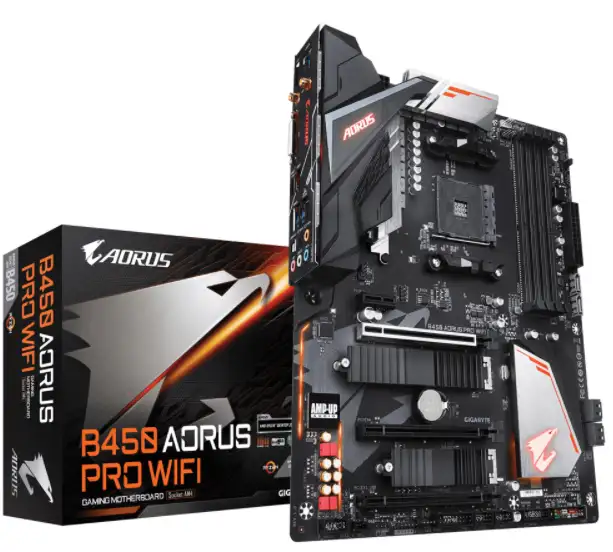

AMD B450 AORUS Motherboard with Hybrid Digital PWM, Intel® Dual Band 802.11ac WIFI, Dual M.2 with Dual Thermal Guards, Audio ALC1220-VB, Intel® GbE LAN with cFosSpeed, CEC 2019 ready, RGB FUSION 2.0
The AORUS Core is inspired by the falcon's aggressive nature and hunting prowess. The falcon uses its razor sharp talons to swiftly strike down its prey with exceptional efficiency and precision, qualities that are exemplified in the fine details of AORUS design.
GET READY FOR AMD RYZEN™ 3000-SERIES
GIGABYTE AM4 motherboards are ready to support the latest AMD Ryzen™ 3000 Processors and are backwards compatible with AMD Ryzen™ 2000 and 1000 Processors. With a rich list of features on GIGABYTE AM4 motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design, GIGABYTE AM4 motherboards are perfect for users looking to build the best AMD platform systems.
AMD Ryzen™ 2000, 1000 Series Compatible
AMD StoreMI technology
GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors
Hybrid Digital Power Design
Optimized for the 2nd Gen AMD Ryzen™ CPUs
Hybrid Digital PWM + Lower RDS(on) MOSFETs
AORUS 400-series motherboards use Hybrid Digital PWM + Lower RDS(on) MOSFETs design to support the 2nd Gen AMD Ryzen™ processors by offering incredible precision in developing power of the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Benefits of Lower RDS(on) MOSFETs
‧ Optimized gate charge to minimize switching losses.
‧ Lower temperature, smaller size, better thermal characteristics.
Dual NVMe M.2 PCIe SSDs in RAID
Extreme Performance with NVMe PCIe Gen3 x4, x2 SSDs
With Dual M.2s available on the AORUS 400-series motherboards, configuring RAID Arrays has never been simpler.
AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.
Thermal Throttling As Temperature Rises
Immersive VR
Gaming Experience
> VR requires more performance than Full HD graphics for a steady 90FPS or greater.
> Only Gaming PCs can provide the best VR experience.
Recommended configuration for VR Gaming PC*
■ Graphics Card: NVIDIA GTX 1050 / AMD R9 290 or greater, Compatible HDMI 1.4 video output
■ CPU: AMD Ryzen™ 7 series processor
■ Motherboard: GIGABYTE AMD X470 / B450 motherboards
■ Memory: 8GB RAM or greater
■ USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
■ OS: Windows 10 64-bit or newer
To create a seamless VR experience AORUS Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for heavier discrete graphics cards it's obvious that AORUS has the tools you need to start your journey in VR. To set the mood AORUS Motherboards include RGB Fusion 2.0 to put you in the center of action.
Faster and Better Coverage with Intel Dual Band 802.11ac WIFI + BT 4.2 Module
The onboard 802.11ac WIFI module from Intel® supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH 4.2.
Native USB 3.1 Gen2
AMD 400-series chipset provides native USB 3.1 Gen2 ports with speeds up to 10Gbps. 2x faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.
Connecting the Future - USB Type-C™
• The World's Next Universal Connector
• Reversible USB Type-C™ with USB 3.1 Gen 2
Intel ® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel ® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
ALC1220-VB Immersive Gaming ViBes
All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
New VB series audio controller stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).
No More Confusion
During In-Game Voice Chat
Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!
High-End WIMA & Audio Capacitors
The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
Brand - Gigabyte, Model - Gigabyte B450 AORUS PRO WIFI, Chipset Brand - AMD, Chipset - AMD B450, CPU Sockets - AM4, Supported CPU - 1st/2nd Generation AMD Ryzen processors with Radeon Vega Graphics, Memory Type - DDR4, Memory MHz - 3200(O.C.)/ 2933/ 2667/ 2400/ 2133MHz, Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 64GB, Optane Memory Support - No, Graphics - Integrated, Graphics Chipset - Integrated With Processor, Multi-GPU Support - AMD Quad-GPU CrossFire and 2-Way AMD CrossFire, PCI Express Slot - 1 x PCI Express x16 slot, (running at x16, x4, x1), 1 x PCI Express x1 slot, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 Socket 3 (type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)), 1 x M.2 Socket 3 (type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)), LAN Chipset - Intel GbE LAN, LAN Speed (Mbps) - 10/100/1000Mbps, Audio Chipset - Realtek ALC1220-VB, Audio Channel - 2/4/5.1/7.1-channel, Wi-Fi - Yes, Wi-Fi Technology - Wi-Fi 802.11 a/b/g/n/ac, Supporting 2.4/5 GHz Dual-Band, Support for 11ac wireless standard and up to 433 Mbps data rate, Bluetooth - Bluetooth 4.2, USB Port - 1 x USB 3.1 Gen 2, 1 x USB Type-C, 2 x USB 3.1 Gen 1, 4 x USB 2.0, VGA Port - No, DVI Port - 1, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 6 x SATA, BIOS Type - 2 x 128 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, FireWire - No, CrossFire Support - Yes, Sli Support - No, RaidSupport - 0, 1, 10, Thunderbolt - No, TPM Port - Yes, COM Port - No, RGB Support - RGB, RGB Sync - RGB Fusion, RGB Connector - 1 x RGB (RGBW) LED strip header, Power Consumption - 70W, Form Factor - ATX, Supported Operating System - Windows 7 / 10, Special Features - 3D OSD, AutoGreen, Cloud Station, EasyTune, Fast Boot, Game Boost, RGB Fusion, Smart Backup, Smart Keyboard, Smart TimeLock, Smart HUD, Smart Survey, System Information Viewer, USB Blocker, V-Tuner, Q-Flash, Xpress Install, Hybrid Digital PWM, Intel Dual Band 802.11ac WIFI, Dual M.2 with Dual Thermal Guards, Audio ALC1220-VB, Intel GbE LAN with cFosSpeed, CEC 2019 ready, Others - 2 x M.2 Socket 3, 1 x CPU fan header, 1 x water cooling CPU fan header, 1 x Trusted Platform Module (TPM) header, 1 x Clear CMOS jumper, 5 x audio jacks, Warranty - 3 years, Country of Origin - Taiwan, Made in/ Assemble - China
The price of Gigabyte B450 AORUS PRO WIFI Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Gigabyte B450 AORUS PRO WIFI Motherboard from our website or visit our showrooms nearby.
