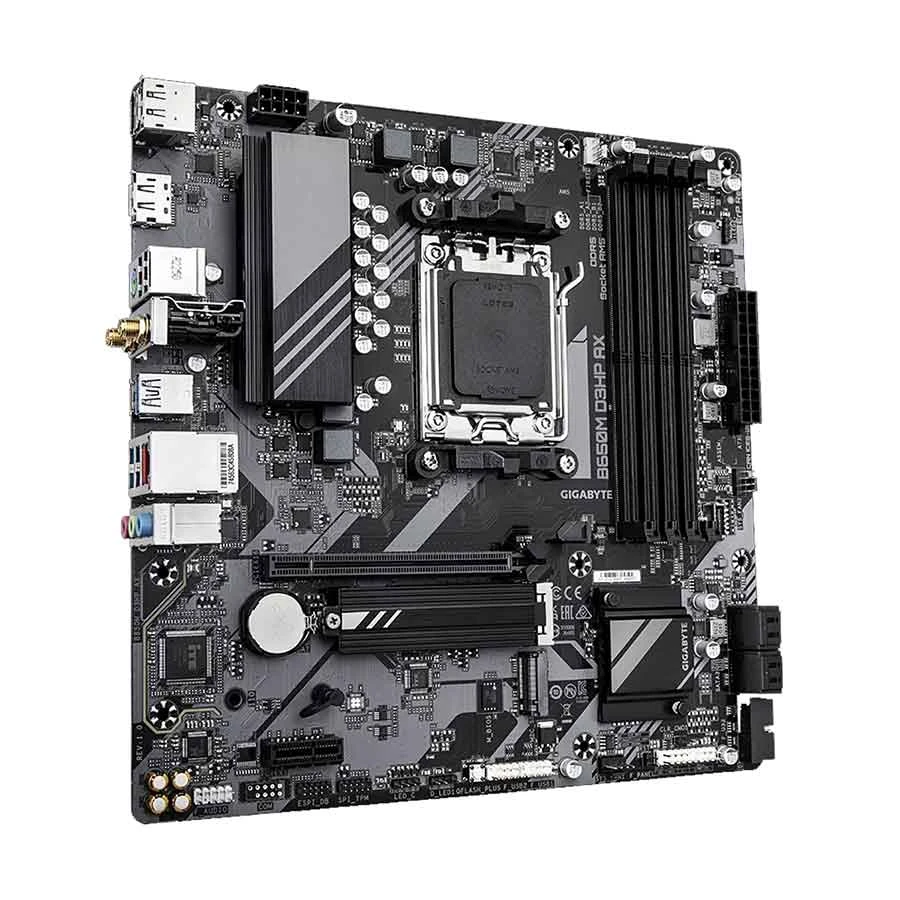

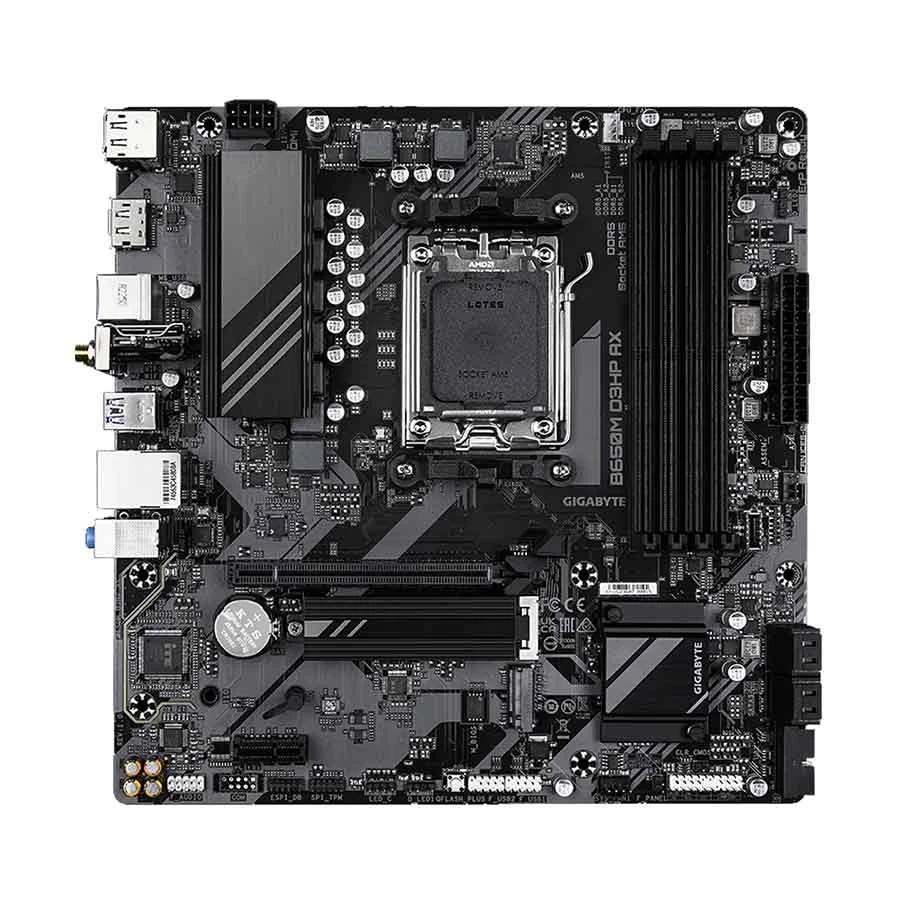

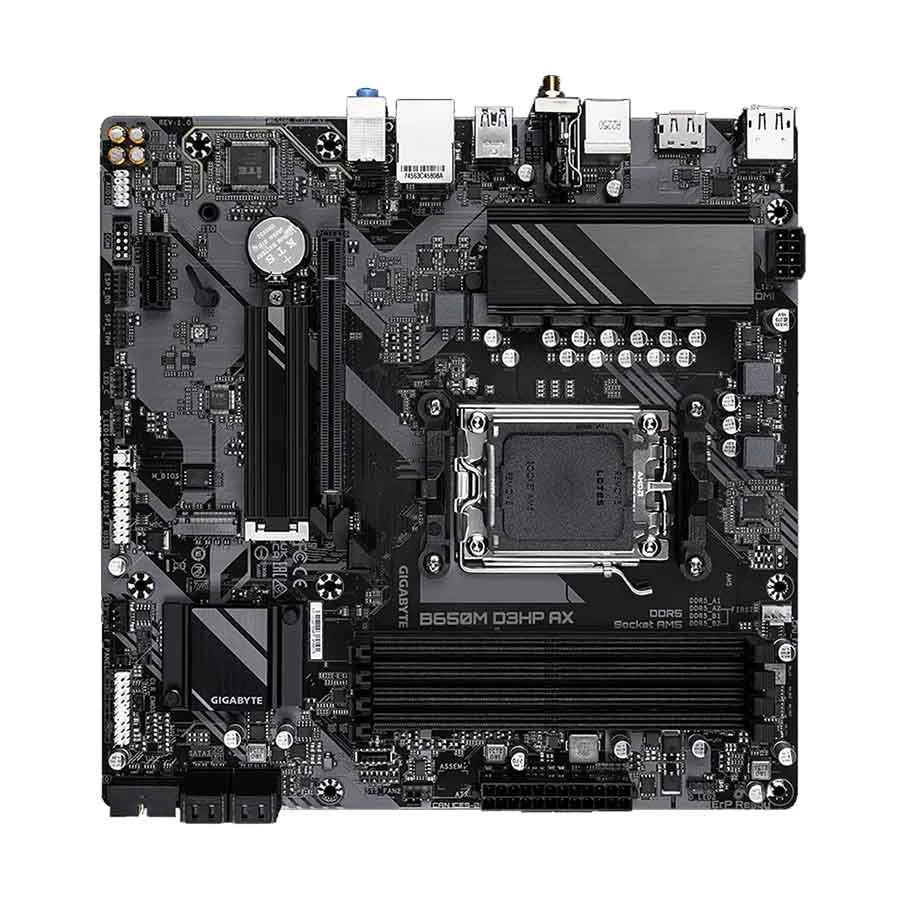

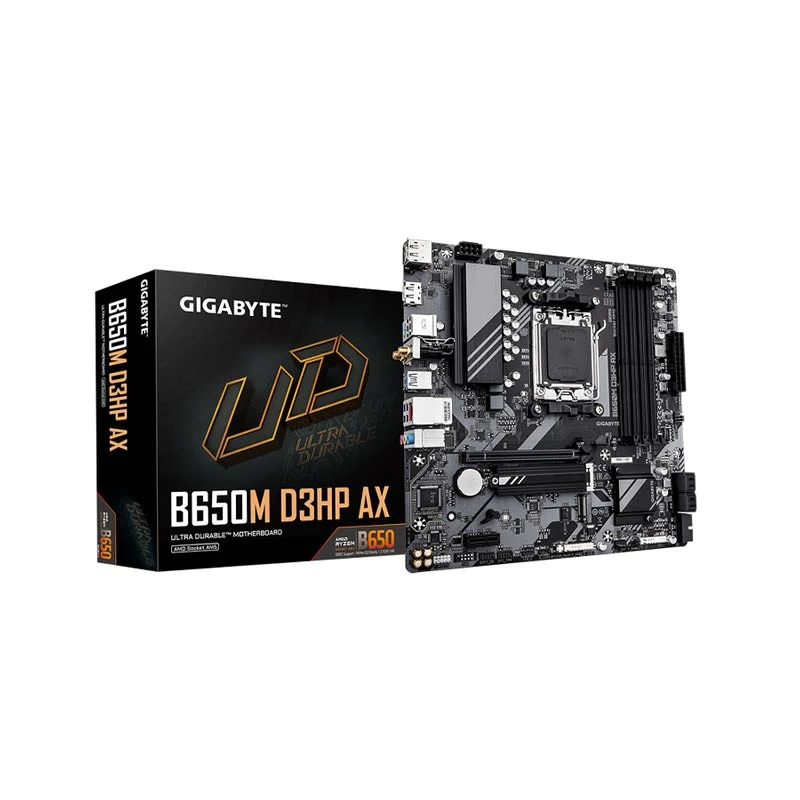

Gigabyte B650M D3HP AX (Wi-Fi 6E) DDR5 Motherboard
Product Id: 02.02.018.509
Brand
Gigabyte
Special Price
Tk 20,200
Tk 20,200
Regular Price
Tk 21,920
EMI TK 1,827
Quick Overview
- Chipset - AMD B650
- Sockets Supported - AM5
- Supported CPU - Ryzen 7000 / Ryzen 8000 Series Processors
- Generation - Not Applicable
- Memory Slot - 4
- Memory Max. - 192GB
- Back-Connect Design - No
Brand
Gigabyte
Model
Gigabyte B650M D3HP AX (Wi-Fi 6E)
Chipset
AMD B650
Sockets Supported
AM5
Built-in Processor
No
Generation
Not Applicable
Back-Connect Design
No
Memory Type
DDR5
Memory Slot
4
Memory Max.
192GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
AMD Radeon Graphics support
M.2/SSD Expansion Slot
2
WiFi
Yes
Bluetooth
Bluetooth 5.3
Form Factor
Micro-ATX
Supported Operating System
Windows 10, Windows 11
Body Color
Black
Warranty Details
3 year
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details

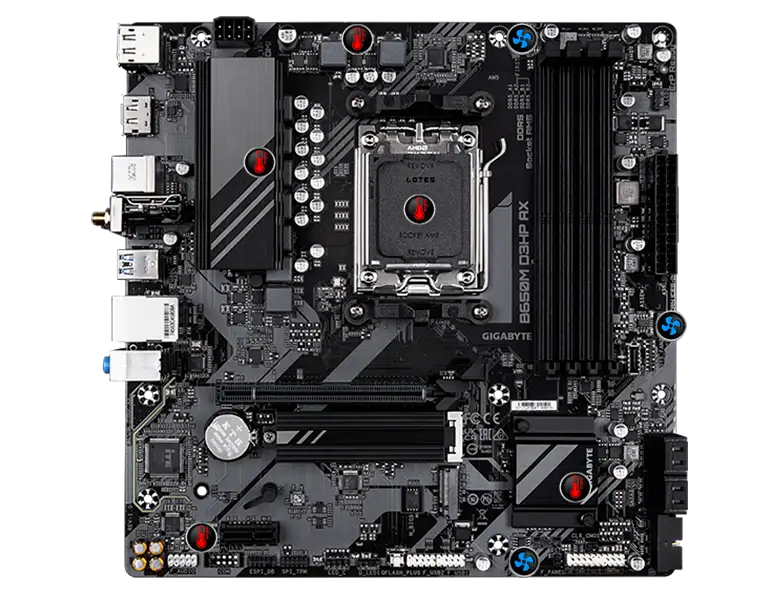

Features of Gigabyte B650M D3HP AX (Wi-Fi 6E) Motherboard In Bangladesh
 4_1724584555.webp)

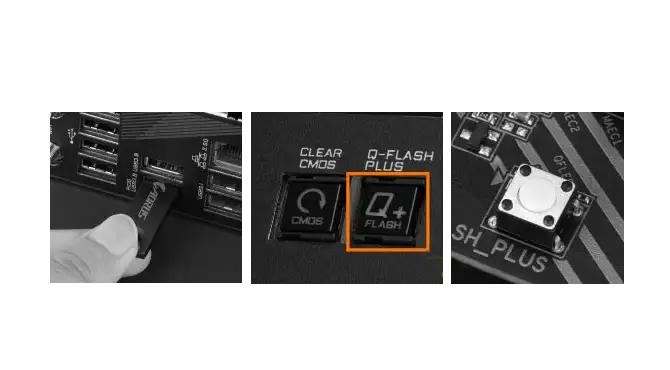

Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
STEP 1: Plug 24pin & 8pin power supply cable on motherboard
STEP 2: Download motherboard BIOS file and rename to ""gigabyte.bin"", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
 5_1724584555.webp)

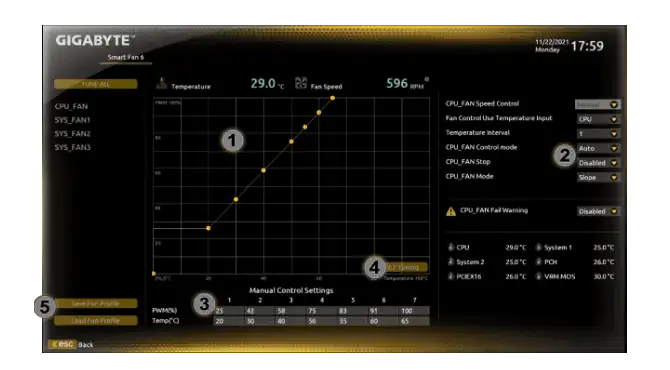

Smart Fan 6 BIOS UI
Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
Manual Input: For advanced users, we provide fan speed manual input for more precise control.
EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
 3_1724584555.webp)

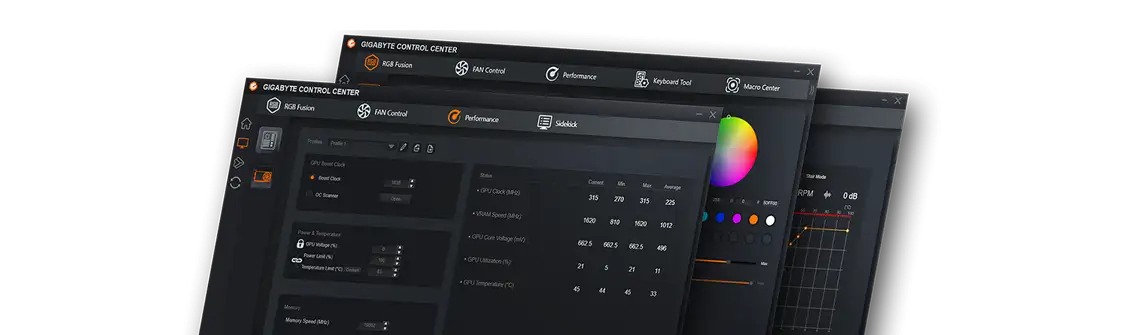

GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
 2_1724584555.webp)
 1_1724584555.webp)
Digital VRM Design
5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability
 6_1724584555.webp)
What is the price of Gigabyte B650M D3HP AX (Wi-Fi 6E) Motherboard In Bangladesh?
The price of Gigabyte B650M D3HP AX (Wi-Fi 6E) Motherboard starts from 20,200 . The price may vary due to your customization and product availability. You can buy Gigabyte B650M D3HP AX (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
