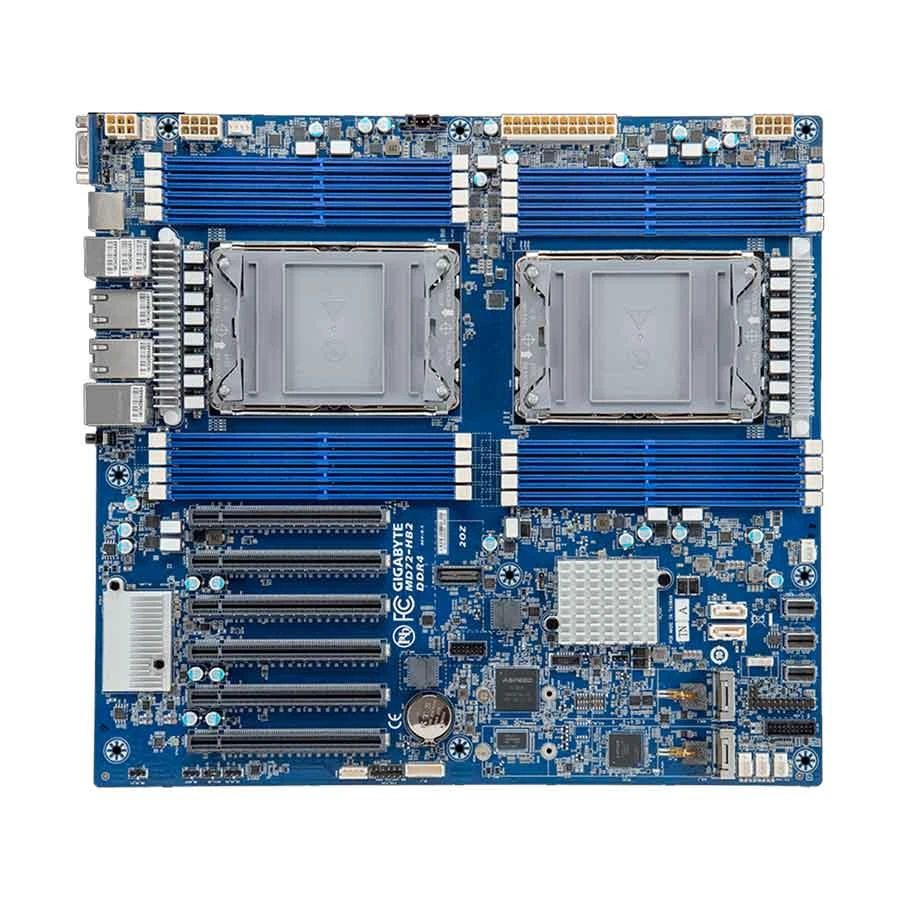

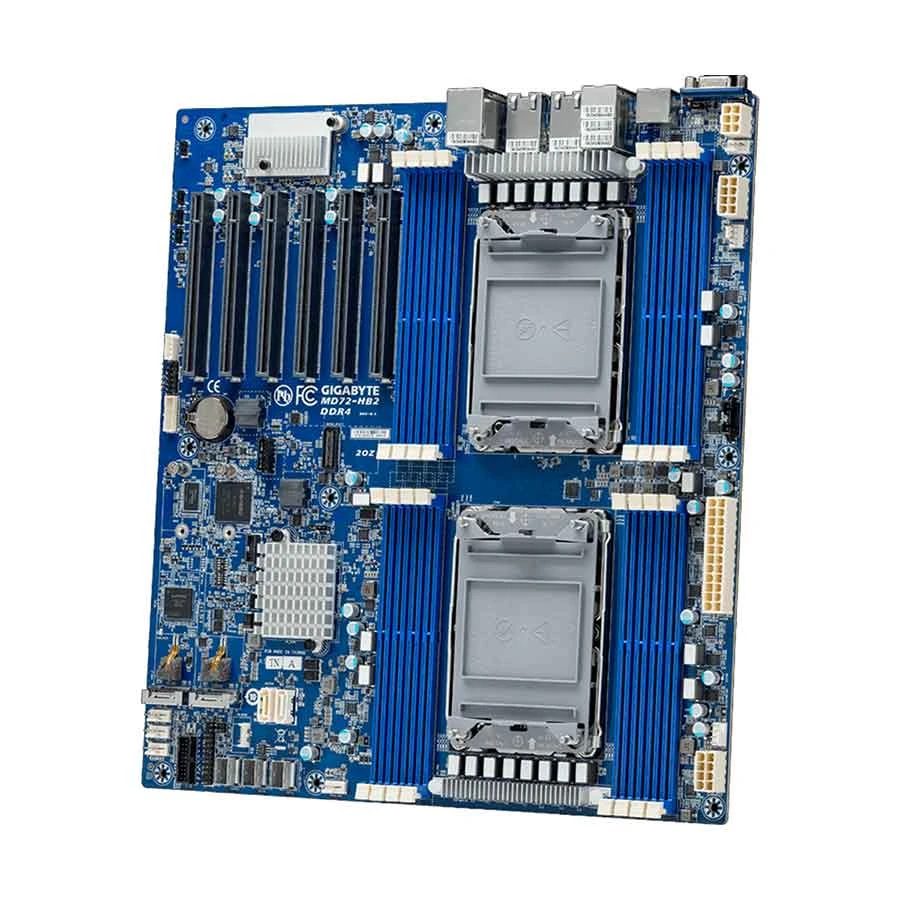

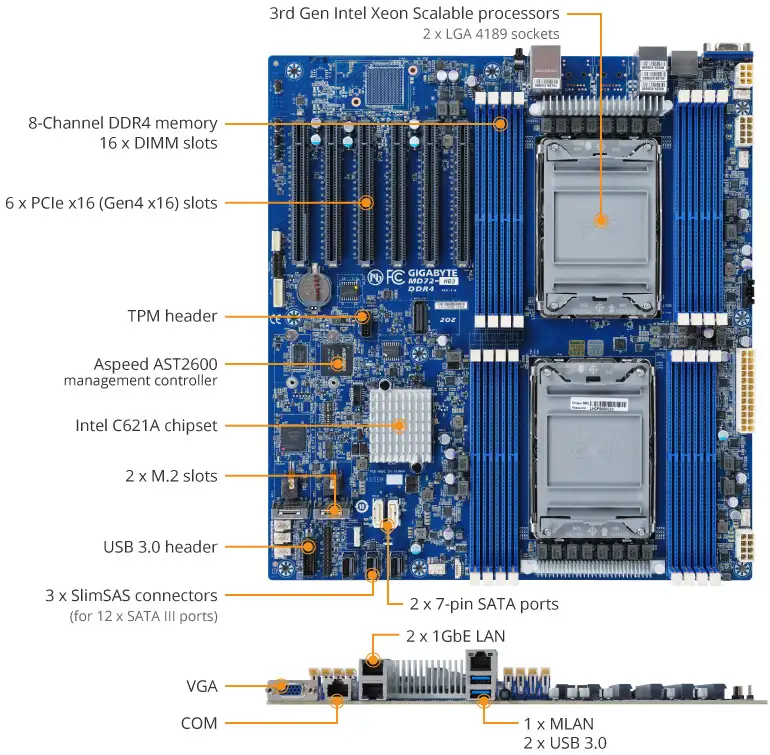

Gigabyte MD72-HB2 DDR4 C621A Chipset Motherboard for Server Board
Product Id: 02.03.018.506
Brand
Gigabyte
Coming Soon
Quick Overview
- Chipset - Intel C621A
- Sockets Supported - LGA4189
- Supported CPU - 3rd Gen Intel Xeon Scalable Processors
- Generation - 3rd
- Memory Slot - 16
- Memory Max. - 256GB
- Back-Connect Design - No
Brand
Gigabyte
Model
Gigabyte MD72-HB2
Chipset
Intel C621A
Sockets Supported
LGA4189
Built-in Processor
No
Generation
3rd
Back-Connect Design
No
Memory Type
DDR4
Memory Slot
16
Memory Max.
256GB
Optane Memory Support
Yes
Graphics
Integrated
Graphics Chipset
Integrated With Aspeed AST2600 Support
M.2/SSD Expansion Slot
2
WiFi
No
Bluetooth
No
Form Factor
E-ATX
Supported Operating System
Windows Server 2016/2019/2022. Red Hat Enterprise Linux 7.9/8.2/9.0 or later, SUSE Linux Enterprise Server 12 SP5/15 SP2 or later, Ubuntu 20.04/22.04 LTS or later, VMware ESXi 6.7 Update3 P03/ESXi 7.0 Update2/ESXi 8.0 or later. Citrix Hypervisor 8.2.0 or later.
Body Color
Blue
Warranty Details
3 year
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Gigabyte MD72-HB2 Motherboard In Bangladesh

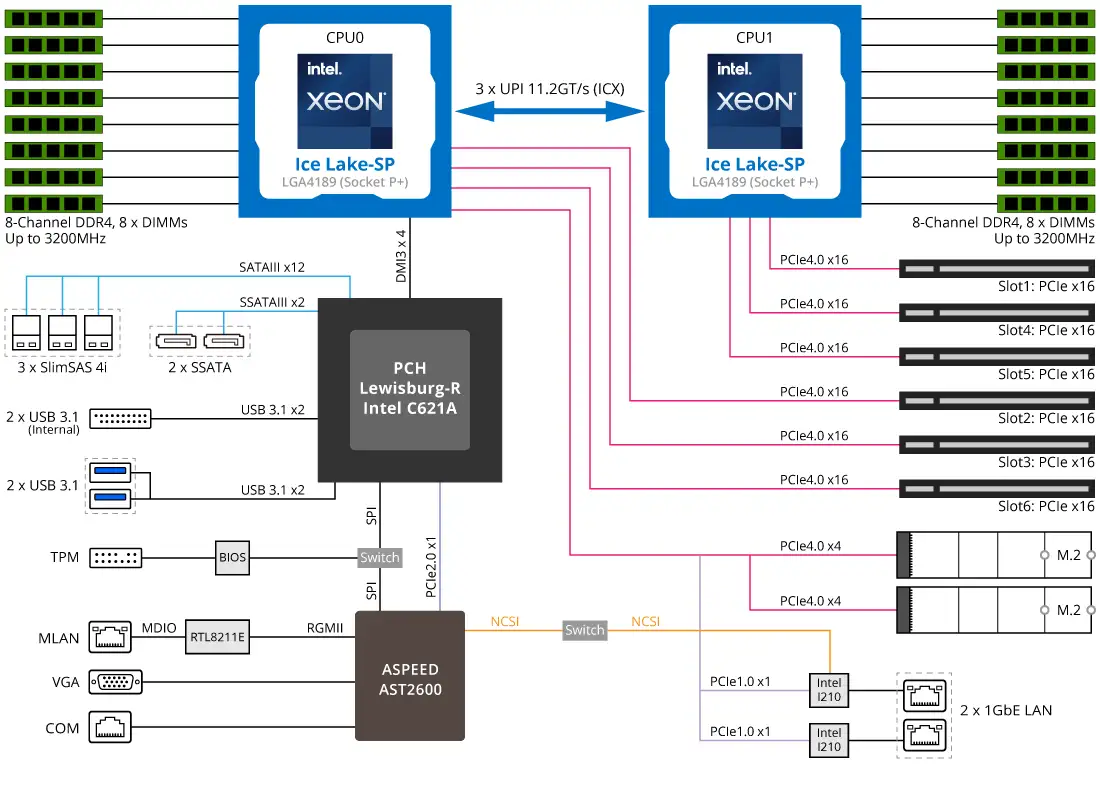

Enhanced I/0: Support for PCIe 4.0 allows for double the throughput of PCIe 3.0 for fast and large data transfers. Also, 64 lanes per socket with up to 128 lanes in a 2P configuration for fast data transmission from CPU to GPU, accelerator or storage.
CPU Performance Boost: Now up to 40 cores per socket with greatly improved IPC on Intel’s 10nm architecture while operating CPUs at 105-270W. Also, an additional UPI lane is added for up to 11.2GT/s for a low latency interconnect between CPUs.
Next Gen Memory: Each processor provides eight memory channels to support 8 or 16 DIMM slots with up to DDR4-3200. There are two sub-clustering modes, Sub NUMA (SNC) and Hemisphere (HEMI), available using balanced memory that results in performance improvements. Additionally, support for Intel Optane PMem 200 series provides two modes for greater memory capacity and data persistence to process large amounts of data faster.
Next Level Security: New instructions and architecture deliver a high level of cryptographic operations for data privacy and protection. Cryptographic accelerators speed up encryption protocols as well as improvements in software guard extensions and memory encryption are added.
AI Acceleration: AI inference and training are enhanced with DL Boost Technology for greater business, operational, and security insights. Applications include HPC, AI, and Media & Graphics.
What is the price of Gigabyte MD72-HB2 Motherboard In Bangladesh?
The price of Gigabyte MD72-HB2 Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Gigabyte MD72-HB2 Motherboard from our website or visit our showrooms nearby.
