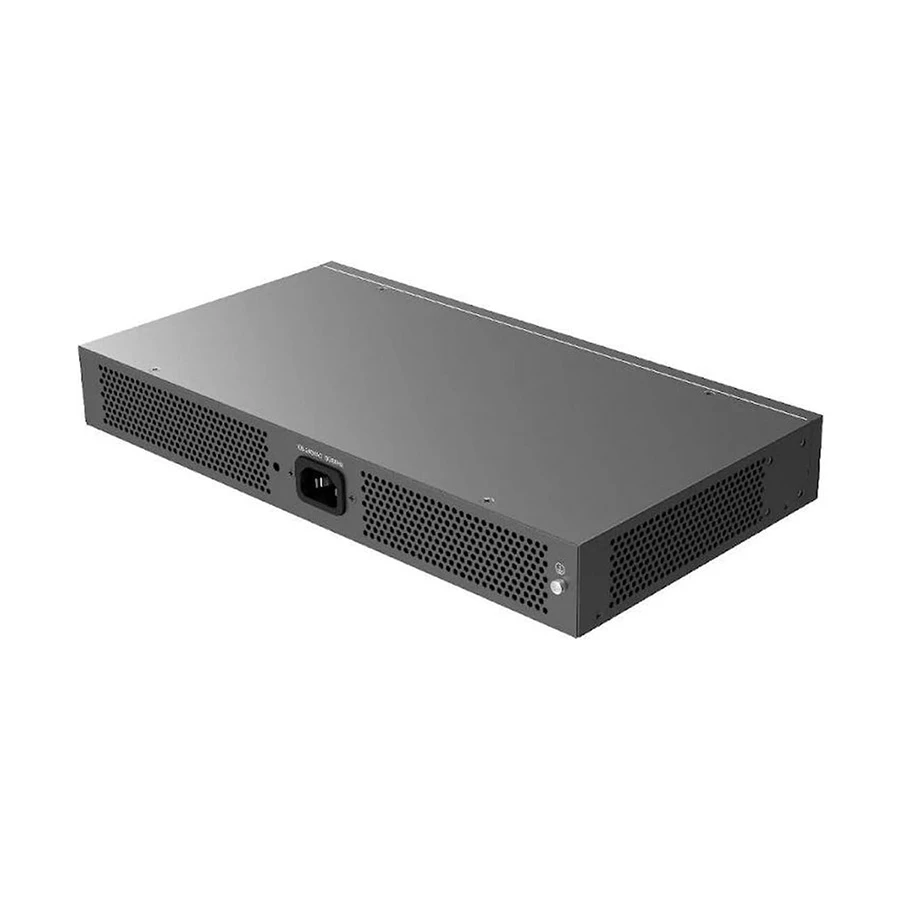

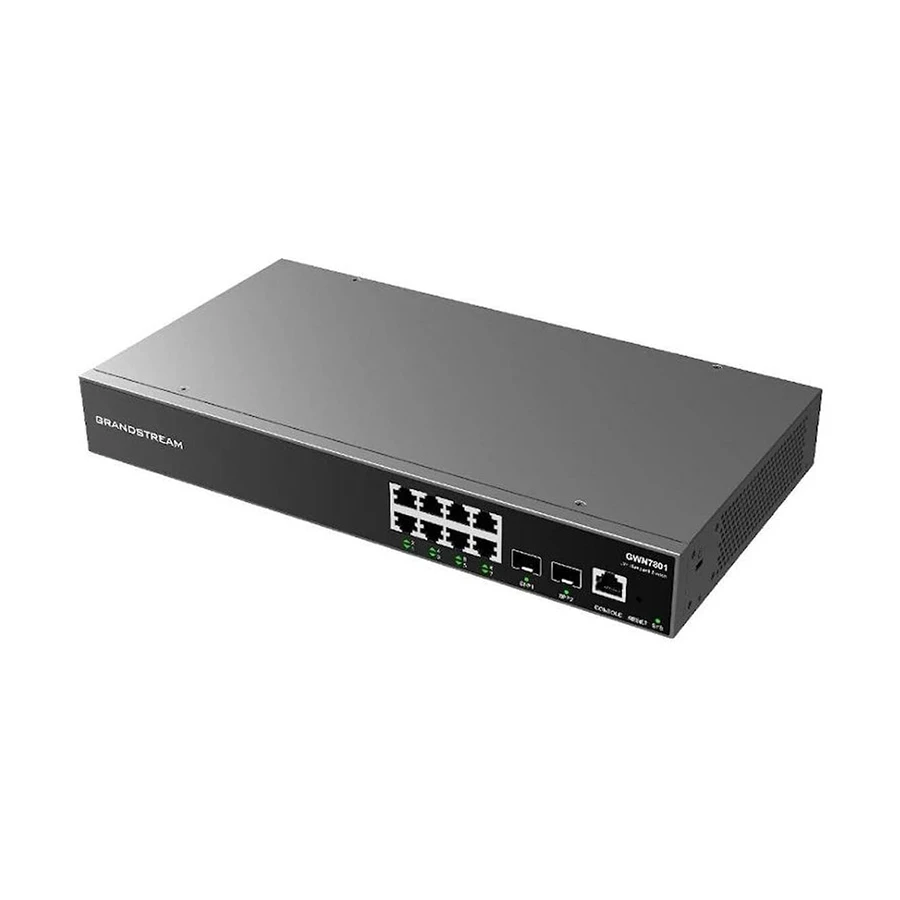

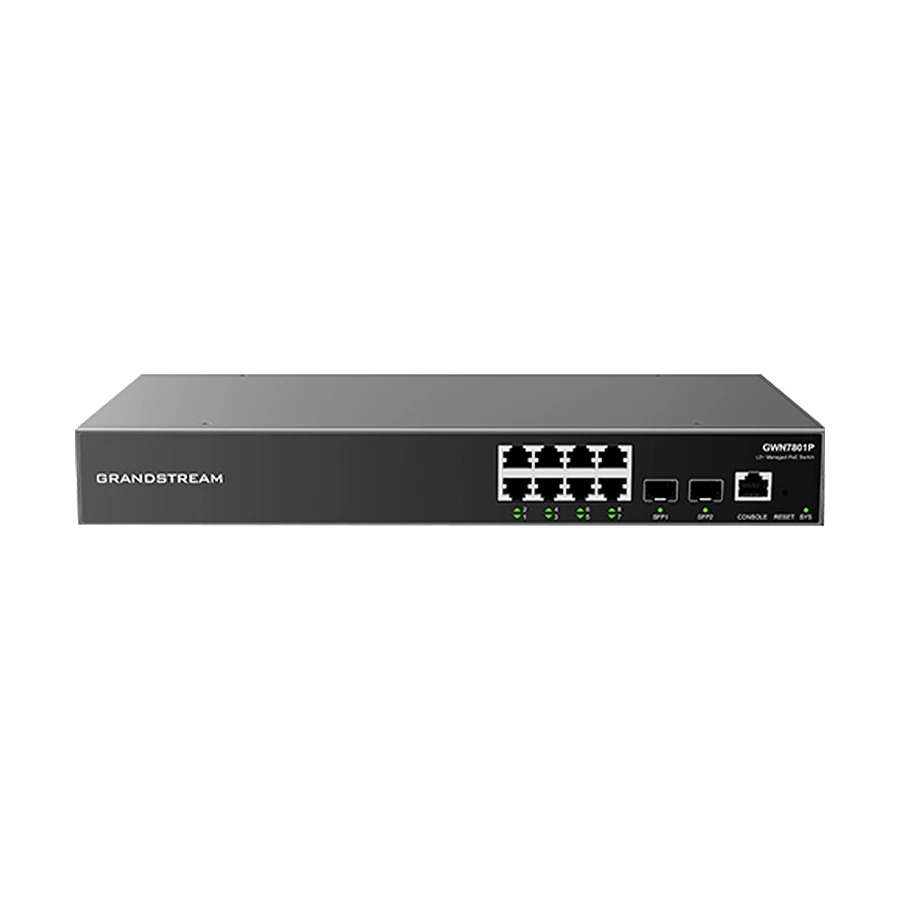

Grandstream GWN7801(P) 10-Port Enterprise Layer 2+ Managed Network Switch

Product Id: 29.05.726.78

Brand Grandstream

Special Price
Tk 14,700  (Estimated)
Regular Price
Tk 15,840 (Estimated)
EMI TK 1,320

Delivery in 1 days

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 10 Port
  • PoE - Yes
  • Manageability - Managed
  • Network Standards - IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
  • Data Transfer Rate - 10/100/1000 Mbps
  • Form Factor - Desktop/Rackmount/Wall Mounting
Avail EMI Offer
EMI starts from Tk 1,760/months
General
Brand
Grandstream

Model
Grandstream GWN7801(P)

Type
Network Switch


Ports & Slots
Number of Total Port
10 Port

Gigabit Port
10

SFP Port
2

SFP+ Port
No

PoE Port
8

PoE+ Port
No


Technical Info
PoE
Yes

Manageability
Managed

Interface(s)
8 x 10/100/1000Mbps PoE, 2 x 10/100/1000Mbps SFP

Network Standards
IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s

Data Transfer Rate
10/100/1000 Mbps

Transmission Method
Store-and-forward

Connector Type
RJ45

Switching Capacity
20 Gbps


Physical Description
Fan/Fanless
Fanless

Indicators
1x tri-color LED for device tracking and status indication, 10x green-color LEDs for data ports, 8x yellow-color LEDs for PoE ports.

Body Color
Black

Form Factor
Desktop/Rackmount/Wall Mounting

Dimension
330 x 175 x 44mm

Weight
2 kg

Packet Contents
1 x Switch, 1 x 1.2m(10A) AC Cable, 8 x screws, 1 x Ground Cable, 4 x Rubber Feet, 1 x Quick Installation Guide, 1 x Power Cord Anti-Trip, 2 x Extended Rack-Mounting Kits.


Power
Power Supply
150W


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
PoE Standard: IEEE 802.3af/at, Integrated Power Supply: 150W, Max Output Power per PoE Port: 30W, Max Total PoE Output Power: 120W, Auxiliary Ports: 1 x Reset Pinhole, Total non-blocking throughput: 10Gbps, Forwarding Rate: 14.88Mbps, Network Latency: Avg<4s, Switching: (8K static, dynamic and filtering MAC addresses, 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN, VLAN virtual interface, GVRP (pending), 8 link aggregation groups, Spanning tree, 16 instances for STP/RSTP/MSTP), Multicast: IGMP Snooping, MLD Snooping, MVR, QoS/ACL: (Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending), Port priority, Priority mapping, Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ, Traffic shaping, Rate limit, 1.5K ACL for Ethernet, IPv4 and IPv6), DHCP: (DHCP server, DHCP relay, Option 82, 60,160 and 43), Maintenance: (CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test, Security: (User hierarchical management and password protection, HTTPS, SSH, Telnet, 802.1X authentication, AAA authentication including RADIUS, TACACS+, Storm control, Port isolation, port security, sticky MAC, Filtering MAC address, IP source guard, DoS attack prevention, ARP inspection, DHCP Snooping, Loop protection including BPDU protection, root protection and loopback protection, Kensington Security Slot (Kensington Lock) support), Operation: 0 to 45 degree C, humidity 10-90% RH(Non-condensing, Storage: -10 to 60 degree C, humidity: 5% to 95%(Non-condensing), Compliance: FCC, CE, RCM, IC, UKCA.

Specialty
Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models, Supports deployment in IPv6 and IPv4 networks, ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping, Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstreams cloud and on-premise Wi-Fi management platform, Built-in QoS allows for prioritization of network traffic.

Country Of Origin
USA

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
