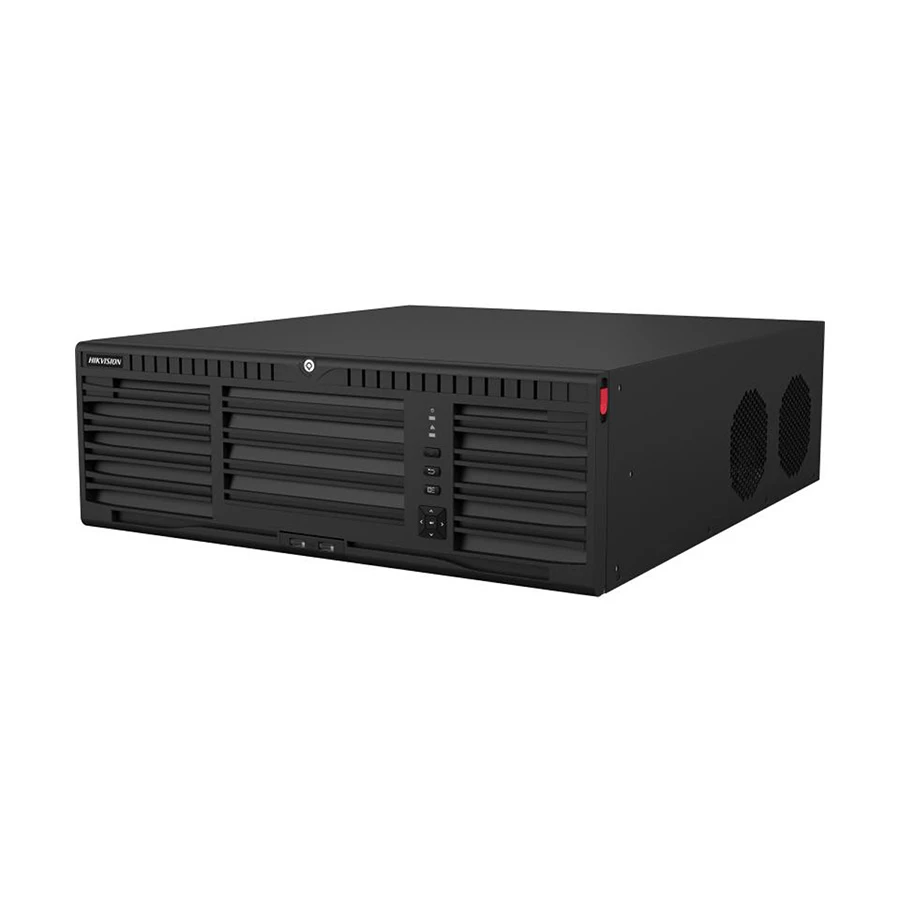

Hikvision DS-96128NI-M16 128 Channel 3U 4K NVR

Product Id: 127.04.485.426

Brand Hikvision

Special Price
Tk 270,000  (Estimated)
Regular Price
Tk 289,700 (Estimated)
EMI TK 24,142

Delivery in 1 days

Quick Overview

  • Number of Input Channel - 128 Channel
  • Video Recording Res. - 32 MP/ 24 MP/ 12 MP/ 8 MP/ 7 MP/ 6 MP/ 5 MP/ 4 MP/ 3
  • Dual Stream Support - Unmentioned
  • Number HDD Interface (SATA) - 16 SATA
General
Brand
Hikvision

Model
Hikvision DS-96128NI-M16

Type
NVR


Video Info
Number of Input Channel
128 Channel

Video Compression/Format
H.265+/ H.265/ H.264+/ H.264

Video Output (VGA)
1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Output (HDMI)
HDMI 1: 8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz HDMI 2: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Recording Res.
32 MP/ 24 MP/ 12 MP/ 8 MP/ 7 MP/ 6 MP/ 5 MP/ 4 MP/ 3

Max. Video Recording Res.
7680 x 4320

IP Video Input
128 Channel


Audio Info
Audio Input Channel (RCA)
1-ch, RCA (2.0 Vp-p, 1 Kohm)

Audio Compression
G.711ulaw/ G.711alaw/ G.722/ G.726/ AAC/ MP2L2/ PCM

Audio Output Channel
2-ch, RCA (Linear, 1 Kohm)

Two way Audio
1-ch, RCA (2.0 Vp-p, 1 Kohm, using the audio input)


Recording & Decoding
Dual Stream Support
Unmentioned

Decoding Capability
2-ch@32 MP (30 fps)/ 2-ch@24 MP (30fps)/ 4-ch@16 MP (30fps)/ 8-ch@8 MP (30fps)/ 16-ch@4 MP (30fps)/ 32-ch@2 MP (30fps)

Synchronous Playback
16-ch


Network
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

Network Interface (RJ45)
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface


Auxiliary Interface
Number HDD Interface (SATA)
16 SATA

Max HDD Support (GB,TB)
16TB

eSATA
1 eSATA

Serial Interface
1 RS-485 (full-duplex), 1 RS-232

USB Port
Front panel: 2 x USB 2.0; Rear panel: 2 x USB 3.0


Technical Info
Incoming Bandwidth
400 Mbps

Outgoing Bandwidth
400 Mbps


Power Info
Power Supply
100 to 240 VAC, 50 to 60Hz

Approx. Power Consumption
<= 50 W (without HDD)


Physical Description
Chassis
3U chassis

Color
Black

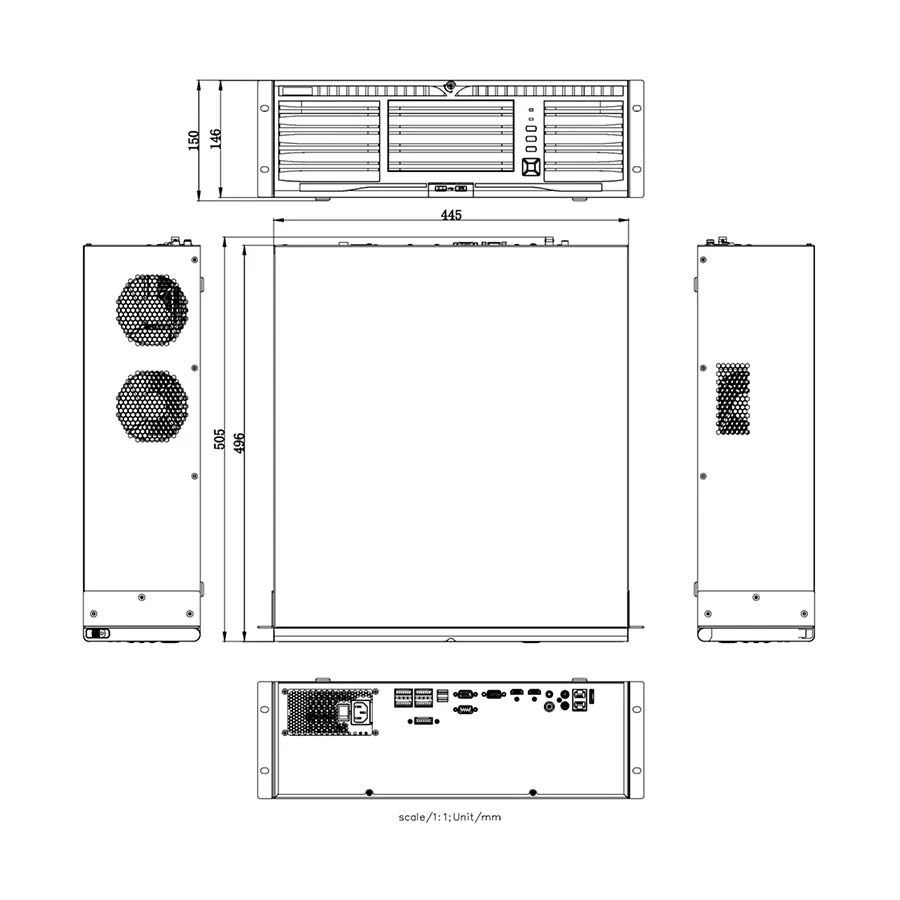

Dimensions
445 x 496 x 150mm

Weight (Kg)
<=12.5 kg


Warranty
Warranty Details
1 year


Additional Info
Feature
Advanced streaming technology enables smooth live view in poor network conditions. Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks.

Others
Video Output Mode: HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output, HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output, CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 ohm), resolution: PAL: 704 x 576, NTSC: 704 x 480, Camera Access Protocol: ONVIF(Version 2.5), RTSP, RAID Type: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, Alarm In/Out: 16/9, Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. DC 12V: 12 VDC, 1 A power output, Working Temperature: -10 Degree C to 55 Degree C, Working Humidity: 10% to 90%, Certification: CE, FCC.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
