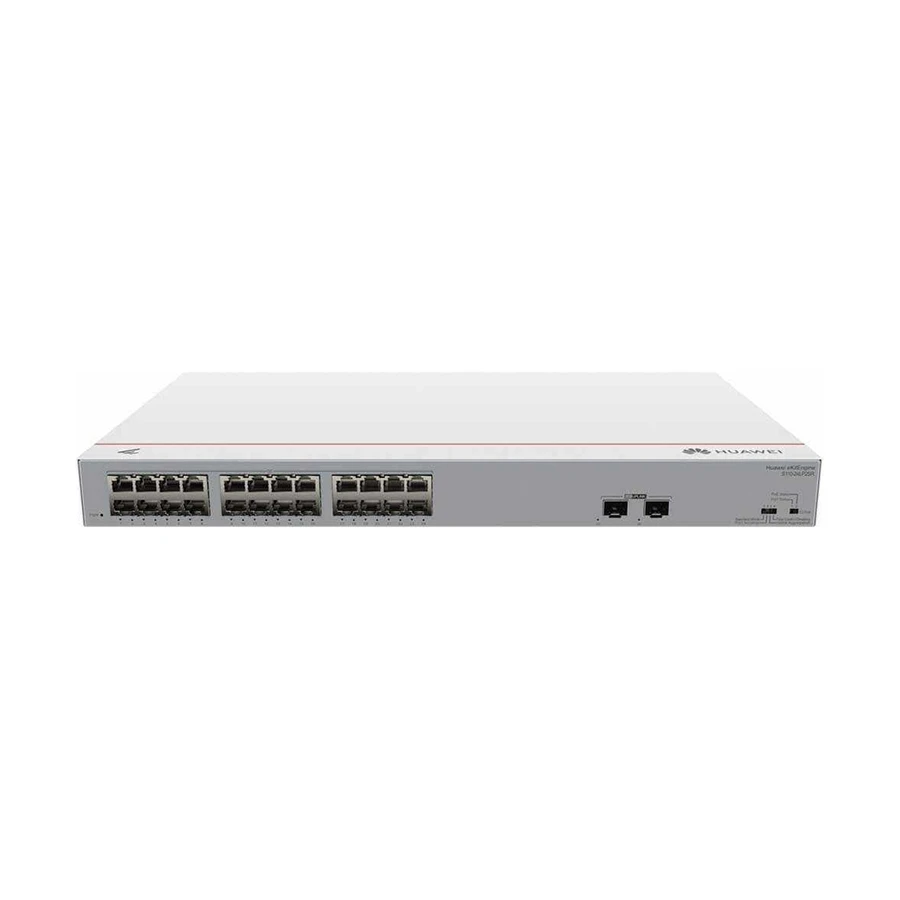

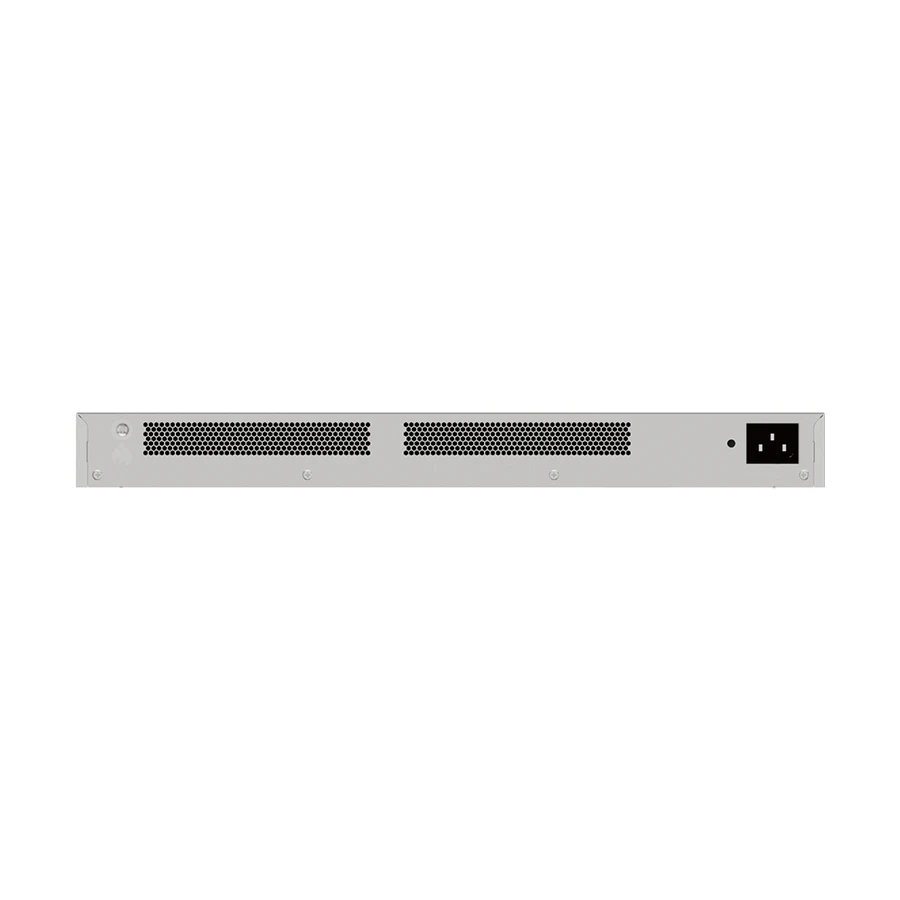

Huawei S110-24LP2SR 26 Port Unmanaged eKit SOHO Switch
Product Id: 29.05.487.13
Brand
Huawei
Special Price
Tk 32,000 (Estimated)
Tk 32,000 (Estimated)
Regular Price
Tk 34,720 (Estimated)
EMI TK 2,894
Delivery in 1 days
Quick Overview
- Type - Network Switch
- Number of Total Port - 26 Port
- PoE - Yes
- Manageability - Unmanaged
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - 1U Rack-mountable
General
Brand
Huawei
Model
Huawei S110-24LP2SR
Type
Network Switch
Ports & Slots
Number of Total Port
26 Port
Gigabit Port
26
SFP Port
2
SFP+ Port
24
Technical Info
PoE
Yes
Manageability
Unmanaged
Interface(s)
24 x 10/100/1000Mbps PoE+, 2 x 10/100/1000Mbps SFP
Data Transfer Rate
10/100/1000 Mbps
Connector Type
24 x 10/100/1000 Mbps RJ45, 2 x 10/100/1000Mbps SFP
MTBF
376236.72 Hours
Physical Description
Fan/Fanless
Fanless
Indicators
PWR , Port Indicator (Steady on, Blinking)
Body Material
Metal
Body Color
Grey
Form Factor
1U Rack-mountable
Dimension
43.6 x 442 x 260mm
Weight
3.2 Kg
Packet Contents
Huawei S110-24LP2SR Switch, User Manual, Warranty Card
Power
Power Supply
100 - 240 V AC; 50/60 Hz
Approx. Power Consumption
24W (Typical), Without PoE: 24 W, Full PoE load: 165 W (PoE: 124 W) (Max.), 13W (Static)
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Typical heat dissipation: 81.89 BTU/hour, MTTR: 2 hours, Availability: > 0.99999, Noise at normal temperature (acoustic power): Noise-free (no fans), < 30, Noise at normal temperature (acoustic pressure): Noise-free (no fans), < 20, Working mode: Standard mode, Port isolation, Uplink aggregation, Flow control disabling, MAC address entry: 8K, Long-term operating temperature: 0 Degree C to 40 Degree C at an altitude of 0 -1800m (0-5906 ft.), Restriction on the operating temperature variation rate: When the altitude is 1800 - 5000 m (5906-16404 ft.), the highest operating temperature reduces by 1 Degree C every time the altitude increases by 220 m (722 ft.), Storage temperature: -40 Degree C to 70 Degree C, Long-term operating relative humidity: 5% RH to 95% RH (non-condensing), Long-term operating altitude: 0 - 5000 m (0 - 16404 ft.), Storage altitude: 0 - 5000 m (0 - 16404 ft.), Power supply mode: AC built-in, Rated input voltage: AC input: 100 - 240 V AC; 50/60 Hz, Input voltage range: AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz, Maximum input current: 3 A, Service port surge protection: Common mode: -+4 kV, Power supply surge protection: Differential mode: -+6 kV; common mode: -+6 kV, Ingress protection level (dustproof/waterproof): IP20, Heat dissipation mode: Natural heat dissipation, Certification: EMC certification, Safety certification, Manufacturing certification
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
