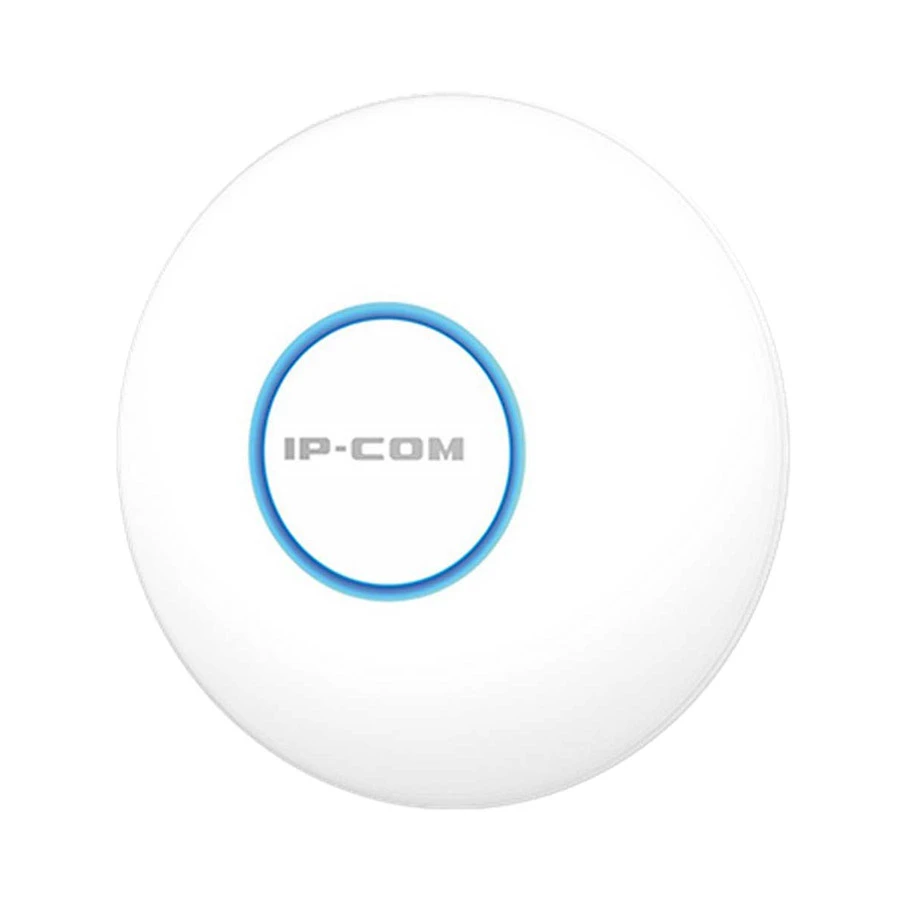

IP-Com iUAP-AC-LITE 1167Mbps Dual-Band Wireless Access Point
Product Id: 29.02.947.01
Brand
IP-Com
Quick Overview
- Network Standards - IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Data Transfer Rates - 1167 Mbps
- Outdoor Range - 150 Meter
- Band - Dual
- Interface(s) - 1 x 10/100/1000 Base-TX port
- Antenna (Type & Qty) - 2 x Internal
General
Brand
IP-Com
Model
IP-Com iUAP-AC-LITE
Hardware
Network Standards
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Data Transfer Rates
1167 Mbps
Outdoor Range
150 Meter
WAN Network Standard
No
LAN Network Standard
10/100/1000
Interface
Interface(s)
1 x 10/100/1000 Base-TX port
Number of WAN Port
No
Number of LAN Port
1
USB Sharing Support
No
Wireless
Security Protocols
WEP, WPA-PSK, WPA2-PSK, WPA, WPA2
Band
Dual
Frequency
2.4GHz - 5GHz
Bluetooth
No
Antenna (Type & Qty)
2 x Internal
Antenna Gain
4 dBi
Antenna Placement
Internal
MU-MIMO Support
Yes
Multi-User MIMO
Yes
Transmission Power
Adjustable power by 1dBm
Wireless Modes
Access Point
Management
Wireless Users Capacity
256
Max. Concurrent Clients
256
SSID Numbers
4
Operating Mode
AP, Client + AP
Management
Web UI
Security
Guest Network Support
No
Electrical
Power Method
IEEE 802.3af/at&24V0.5A Passive PoE
Max. Power Consumption
11.5W
Passive PoE Power Supply
24V 0.5A Passive PoE
Environmental
Operating Temperature
-10 Degree C - 45 Degree C
Operating Humidity
10%-90% RH, non-condensing
Storing/Storage Temperature
-30 Degree C - 70 Degree C
Storing/Storage Humidity
10%-90% RH, non-condensing
Physical Description
Button
1 x Reset
LED Indicators
1 x Power
Mounting
Yes
Mount Options
Ceiling
Dimensions
176 x 176 x 43.5mm
Color
White
Packet Contents
IP-Com iUAP-AC-LITE Access Point, User Manual
Warranty
Warranty Details
1 year
Additional Info
Others
2.4 GHz data rate: 1 - 300 Mbps, 5 GHz data rate: 6 - 867 Mbps, 2.4 GHz & 5 GHz Max. output power: 26+/- 1.5 dBm, 802.11b RX sensitivity: -93 dBm, 2.4 GHz 802.11n (MCS7) RX sensitivity: -72 dBm, 5 GHz 802.11a RX sensitivity: -93 dBm, 5 GHz 802.11n (MCS7) RX sensitivity: -74 dBm, Max. connected clients: 128 at 2.4 GHz, 256 at 5 GHz, Access control: MAC address-based, Diagnostics tool: Ping, Traceroute, Firmware upgrade: Local and AC upgrade, Reboot: Local and AC reboot, Reset: Local and AC reset
Specialty
Backup configuration, Restore configuration, System logs, Reboot at specified interval, Scheduled reboot, LED indicator control, VLAN tagging for SSID, RSSI threshold, AP isolation, Frequency analysis, Adjustable power transmit, MU-MIMO for high throughput, Up to 1167 Mbps dual-band data rate, 24V0.5A Passive PoE or IEEE 802.3af/at PoE power supply, Range of up to 150 meters, The dual-band wireless design allows clients that support 2.4 GHz and/or 5 GHz bands to connect to the AP at the same time, tripling the quantity of connected clients of traditional single-band AP. Compliant with IEEE 802.11ac Wave 2 and powered by MU-MIMO technology, a single iUAP-AC-LITE can communicate with multiple wireless clients simultaneously, leading to higher throughput. Built-in RF optimization, Built-in omni-directional antennas.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
