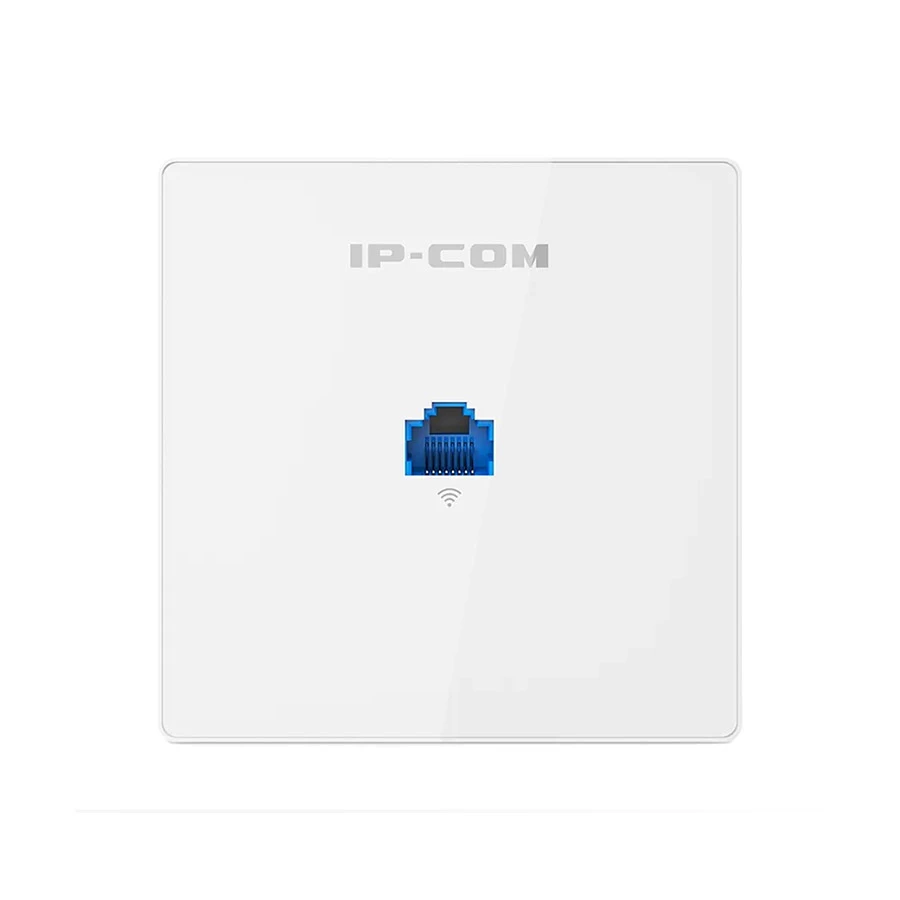

IP-Com W36AP AC1200 Dual Band Gigabit In-Wall Access Point
Product Id: 29.02.947.04
Brand
IP-Com
Special Price
Tk 4,050 (Estimated)
Tk 4,050 (Estimated)
Regular Price
Tk 4,390 (Estimated)
Delivery in 1 days
Quick Overview
- Network Standards - IEEE 802.11a/b/g/n/ac
- Data Transfer Rates - 1200 Mbps
- Band - Dual
- Interface(s) - 2 x 10/100/1000 Base TX ports
- Antenna (Type & Qty) - 4 x Internal
General
Brand
IP-Com
Model
IP-Com W36AP
Hardware
Network Standards
IEEE 802.11a/b/g/n/ac
Data Transfer Rates
1200 Mbps
LAN Network Standard
10/100/1000
Processor
No
Interface
Interface(s)
2 x 10/100/1000 Base TX ports
Number of WAN Port
1
Number of LAN Port
1
USB Sharing Support
No
Wireless
Band
Dual
Frequency
2.4GHz - 5GHz
Bluetooth
No
Antenna (Type & Qty)
4 x Internal
Antenna Gain
4 dBi
Antenna Placement
Internal
MU-MIMO Support
Yes
Multi-User MIMO
Yes
Management
Throughput
1-300Mbp/s 2.4 GHz : 6-867Mbp/s 5 GHz
Max. Concurrent Clients
128
Operating Mode
AP, Client + AP
Security
Wireless Security
WPA-PSK: AES/TKIP, WPA2-PSK: AES/TKIP
Electrical
Max. Power Consumption
7.8 W(Full load)
Passive PoE Power Supply
IEEE 802.3af
Environmental
Operating Temperature
-10 Degree C - 45 Degree C
Operating Humidity
10 - 90% RH (non-condensing)
Storing/Storage Temperature
-30 Degree C - 70 Degree C
Storing/Storage Humidity
10 - 90% RH (non-condensing)
Physical Description
Button
1 x Reset button
LED Indicators
1 x SYS LED indicator and 1 x LAN LED indicator
Mounting
Yes
Mount Options
Wall Mounting
Dimensions
86 x 86 x 32 mm
Color
White
Packet Contents
IP-Com W36AP Access Point, User Manual
Warranty
Warranty Details
1 year
Additional Info
Others
2.4 GHz Output Power: 20+/-1.5 dBm 5 GHz Output Power: 16+/-1.5 dBm 11b 1 Mbps Received Sensitivity: -95 dBm 11n MCS7 Received Sensitivity: -73 dBm 11a 6 Mbps Received Sensitivity: -93 dBm 11ac MCS7 Received Sensitivity: -75 dBm,WEP: 64/128 bit encryption supported,Wireless Access Control: MAC address-based filtering supported. AC Management:AC1000/AC2000/AC3000 supported
Specialty
Standard PoE power supply supported, making installation easier Central management of IP-COM full system AC and enterprise router supported.The AC1200 Dual Band Gigabit In-Wall Access Point (AP) is an IP-COM high-performance wireless access point designed for hotel rooms, villas, large apartments, KTV compartments and other places. Compliant with IEEE 802.11ac protocol and Wave 2 standard, and featured with the MU-MIMO technology, APs of this series support a dual-band concurrent wireless speed of up to 1167 Mbps. Adoption of the standard 86 mm x 86 mm in-wall design enables that the AP can be installed in any in-wall electrical boxes of 86 mm x 86 mm and 75 mm x 75 mm. Elegant and exquisite appearance goes well with the interior decoration design of the room. With the assistance of the existing in-wall electrical box structure, the AP helps you deploy your wireless networks easily, freeing you from time-consuming networking, and effectively addressing the weak WiFi signal problem in guest rooms.Compliant with IEEE 802.11ac and WAVE2.0. 2.4 GHz and 5 GHz concurrency for a higher capacity. Precise RF signal optimization, a guarantee of 2-room WiFi coverage without dead zone. Supporting unified configuration and management
Country Of Origin
China
Made in/ Assemble
China
