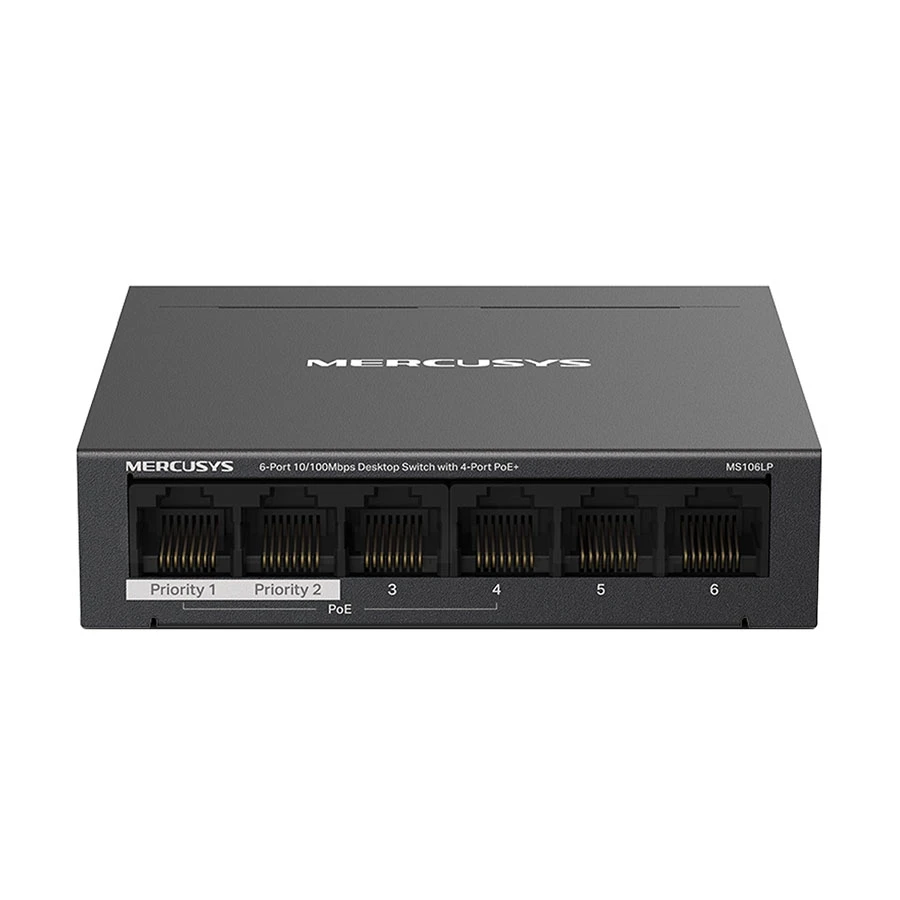

Mercusys MS106LP 6-Port Desktop Switch
Product Id: 29.05.771.11
Brand
Mercusys
Special Price
Tk 2,219
Save Extra Tk 119 on online order
Tk 2,219
Regular Price
Tk 2,410
Quick Overview
- Type - Network Switch
- Number of Total Port - 6 Port
- PoE - Yes
- Manageability - Unmentioned
- Network Standards - IEEE 802.3x
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop/Wall Mounting
Avail EMI Offer
EMI starts from Tk 268/months
General
Brand
Mercusys
Model
Mercusys MS106LP
Type
Network Switch
Ports & Slots
Number of Total Port
6 Port
Gigabit Port
No
SFP Port
No
SFP+ Port
No
PoE Port
No
PoE+ Port
4
Technical Info
PoE
Yes
Manageability
Unmentioned
Interface(s)
2-Port 10/100Mbps Ethernet, 4-Port 10/100Mbps PoE+
Network Standards
IEEE 802.3x
Data Transfer Rate
10/100 Mbps
Connector Type
RJ45 port
Physical Description
Fan/Fanless
Fanless
Indicators
Yes
Body Color
Black
Form Factor
Desktop/Wall Mounting
Dimension
99.8 x 98 x 25mm
Packet Contents
1 x 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP), Power Adapter, Quick Installation Guide
Power
Power Supply
53.5V/0.81A (Adapter)
Approx. Power Consumption
1.87W (220 V / 50 Hz, no PD connected), 44.8W (220 V / 50 Hz, with 40W PD connected)
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
PoE Ports: RJ45 Standard: Compliant with 802.3 af/at Powered Devices, PoE Ports: Port 1- Port 4, PoE Power Budget: 40 W. Interfaces: 6x10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX. Installation: Desktop, Wall Mount. Data Rates: 10/100 Mbps at Half Duplex, 20/200 Mbps at Full Duplex. Jumbo Frame: 2 KB, Mac Address Table: 2K. Max Heat Dissipation: 6.34 BTH/h (no PD connected), 152.32 BTH/h (with 40W PD connected). Package Contents: 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP), Power Adapter, Quick Installation Guide. Operating Temperature: 0-40 Degree C, Storage Temperature: -40-70 Degree C, Operating Humidity: 10%-90% RH non-condensing, Storage Humidity: 5%-95% RH non-condensing.
Specialty
Two Cables in One: With four PoE+ ports, transfers data and power on one single cable, High Power PoE+: Support PoE Power up to 30 W for each PoE port and 40 W for all PoE ports, 2x Uplink Ports: MS106LP provides 2x uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR. Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode. Isolation Mode: One click to divide traffic for specific ports for stability and security. Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs. Durable Metal Casing: Allows for efficient heat dissipation and long network life. Plug and Play: Simple to use and saves time and effort. PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Mercusys MS106LP Network Switch In Bangladesh
_1734168539.webp)
MS106LP

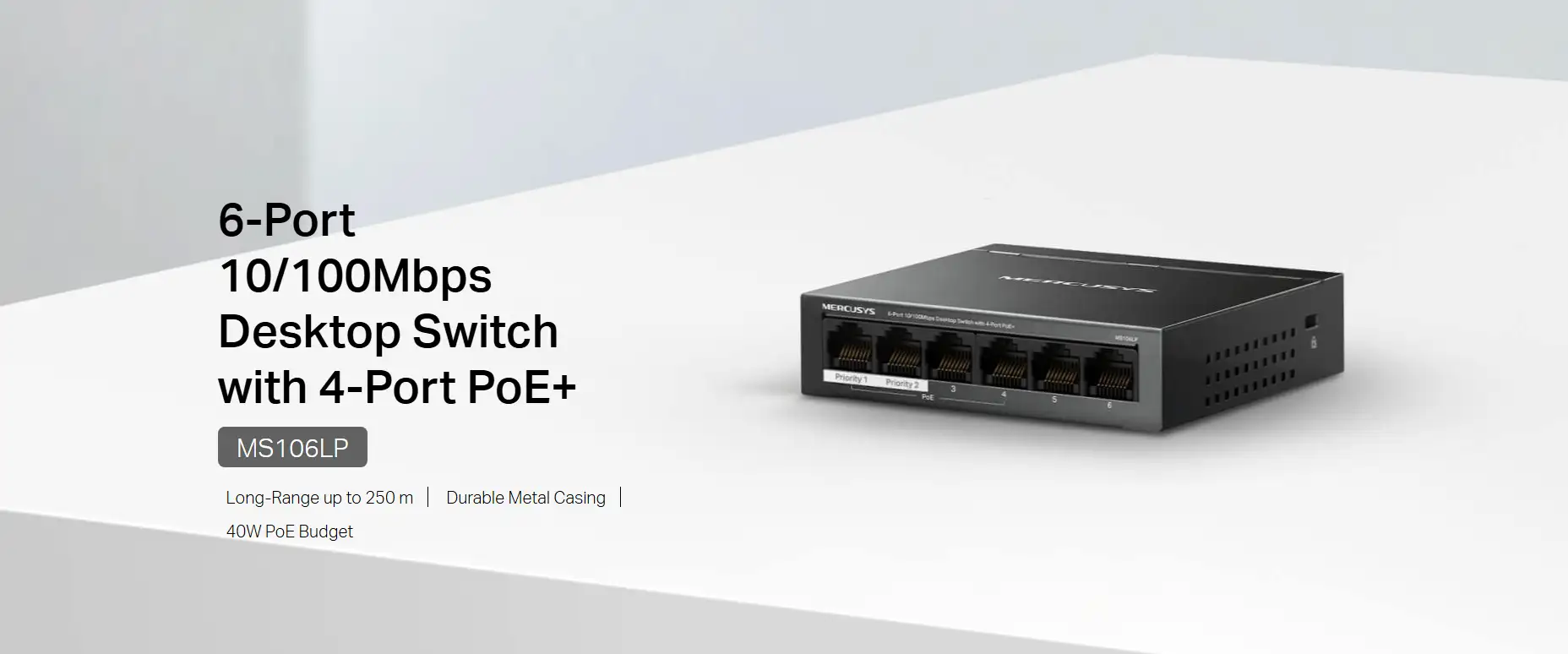

6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
- 6 Ports: 6× 10/100 Mbps RJ45 ports with 4 PoE+ ports

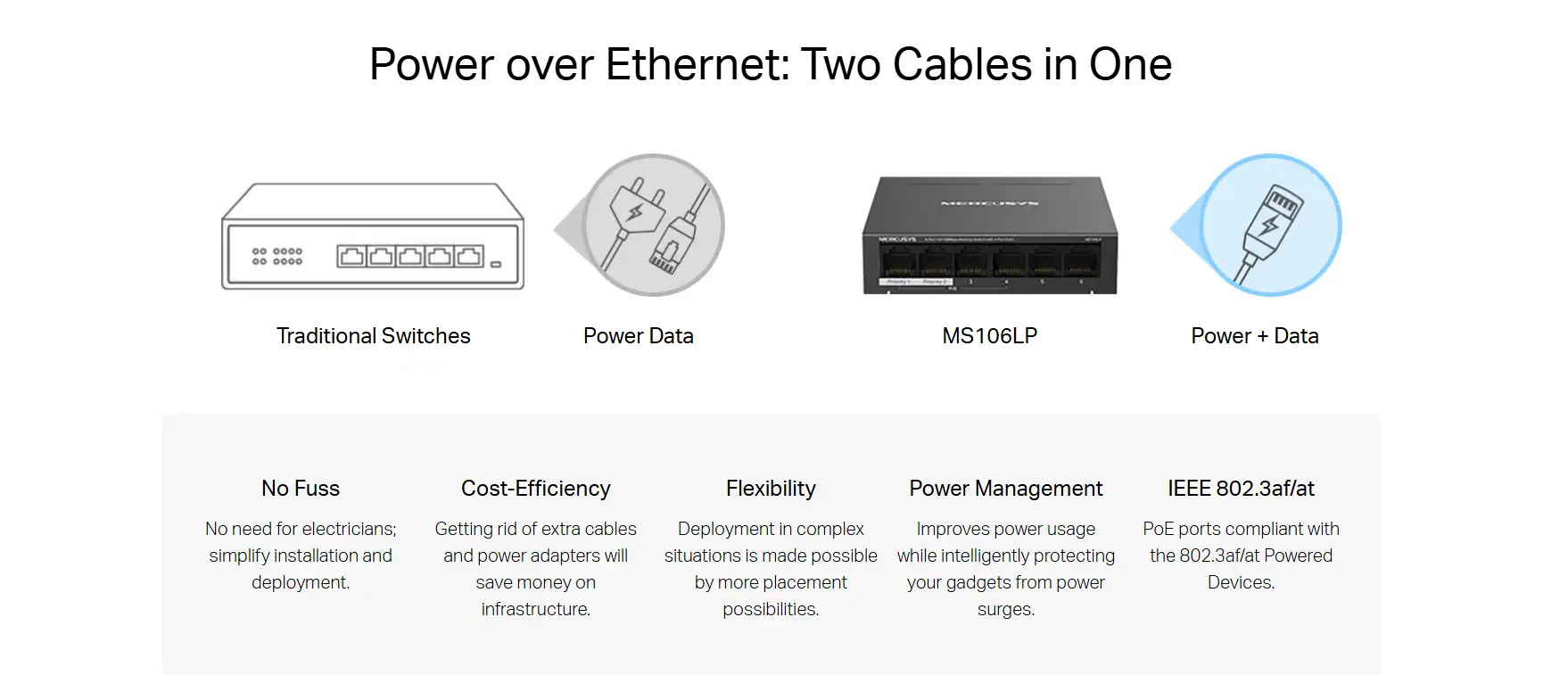

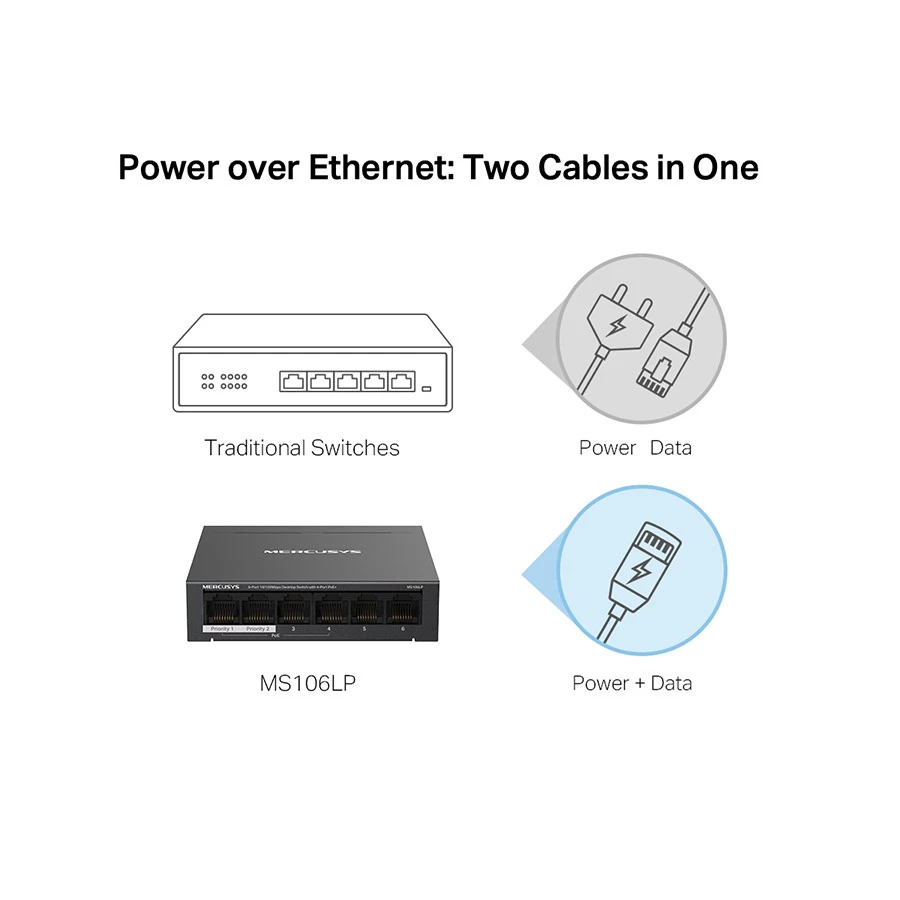

- Two Cables in One: With four PoE+ ports, transfers data and power on one single cable

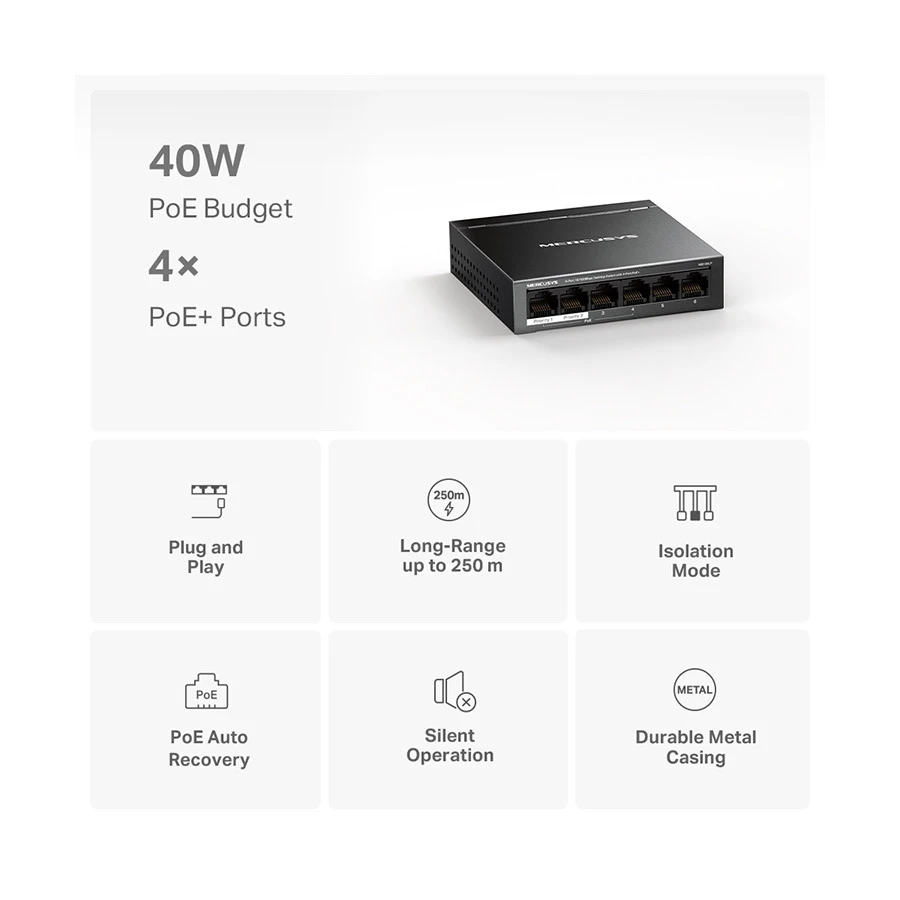

- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 40 W for all PoE ports*

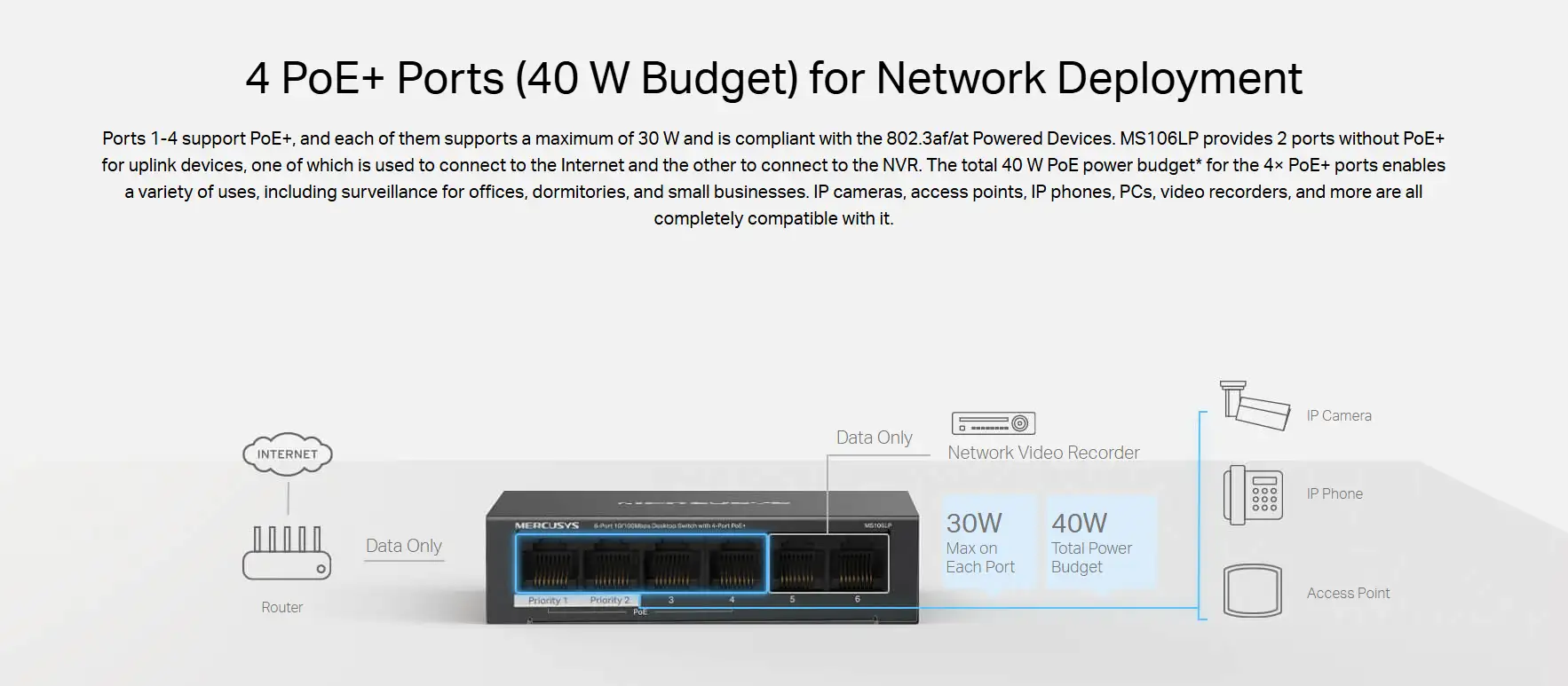

- 2× Uplink Ports: MS106LP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.

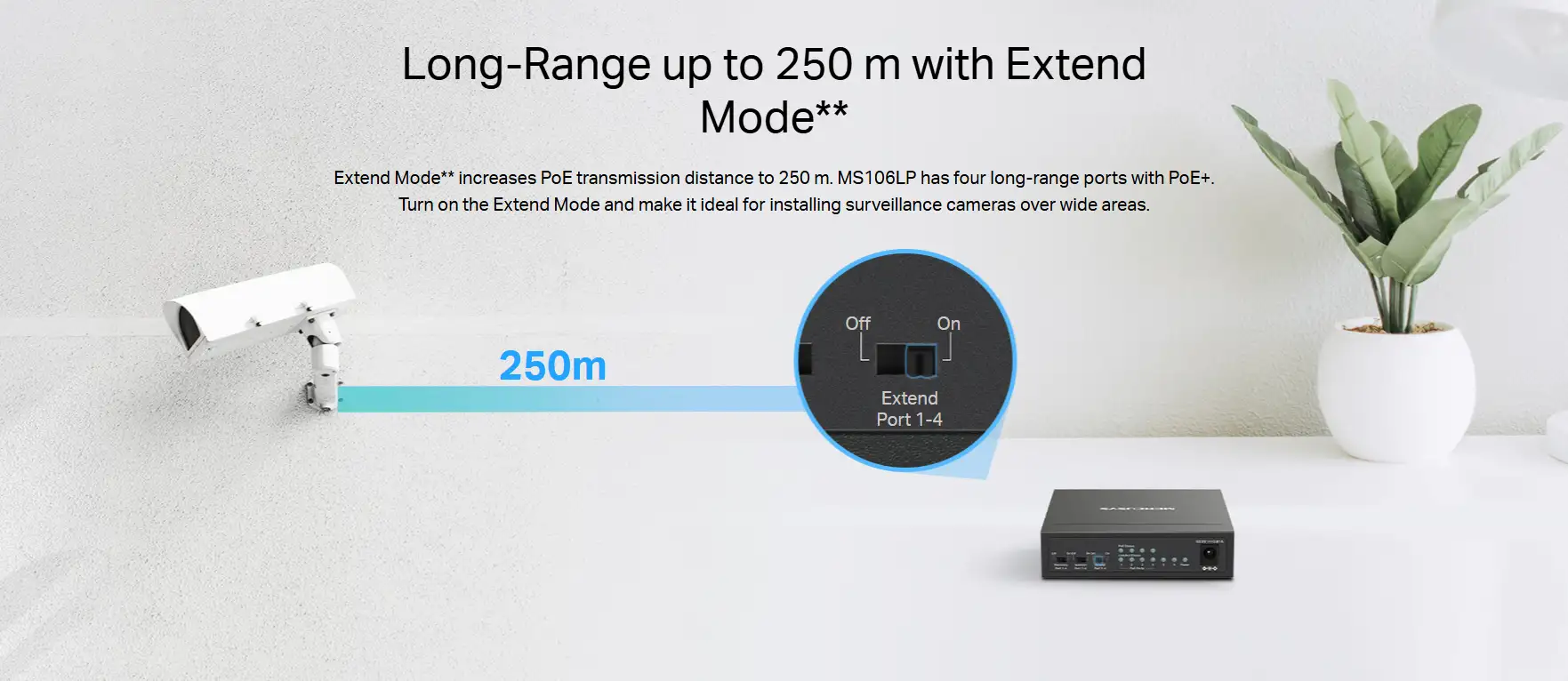

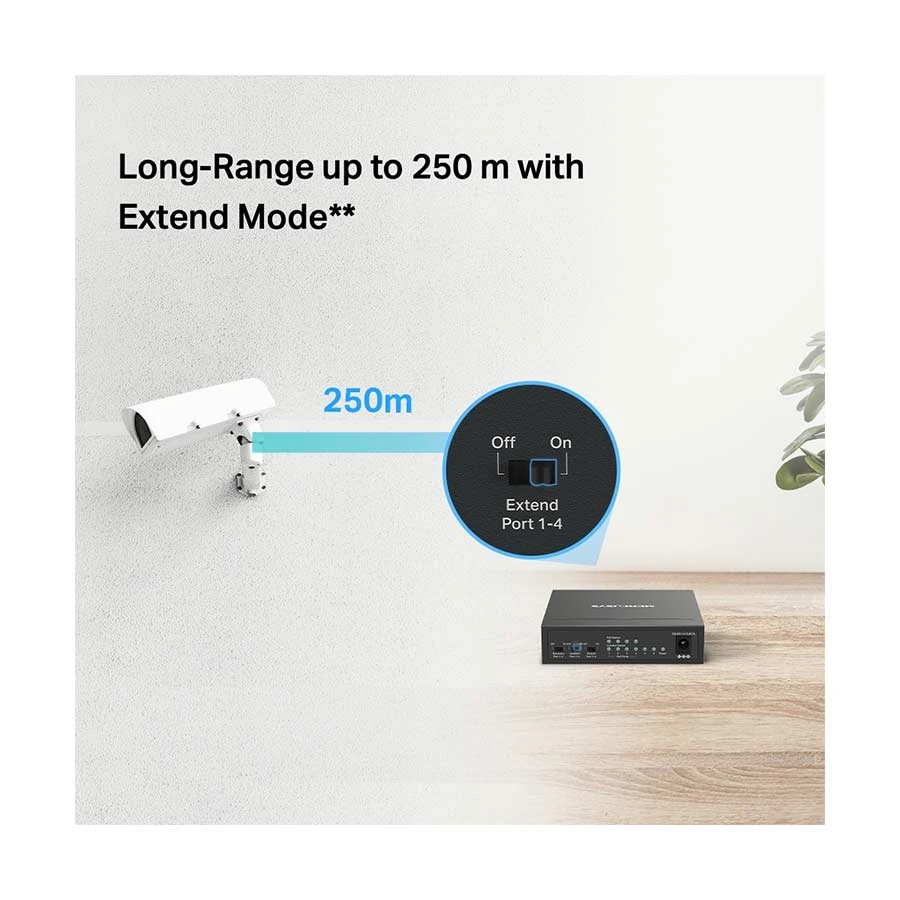

- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

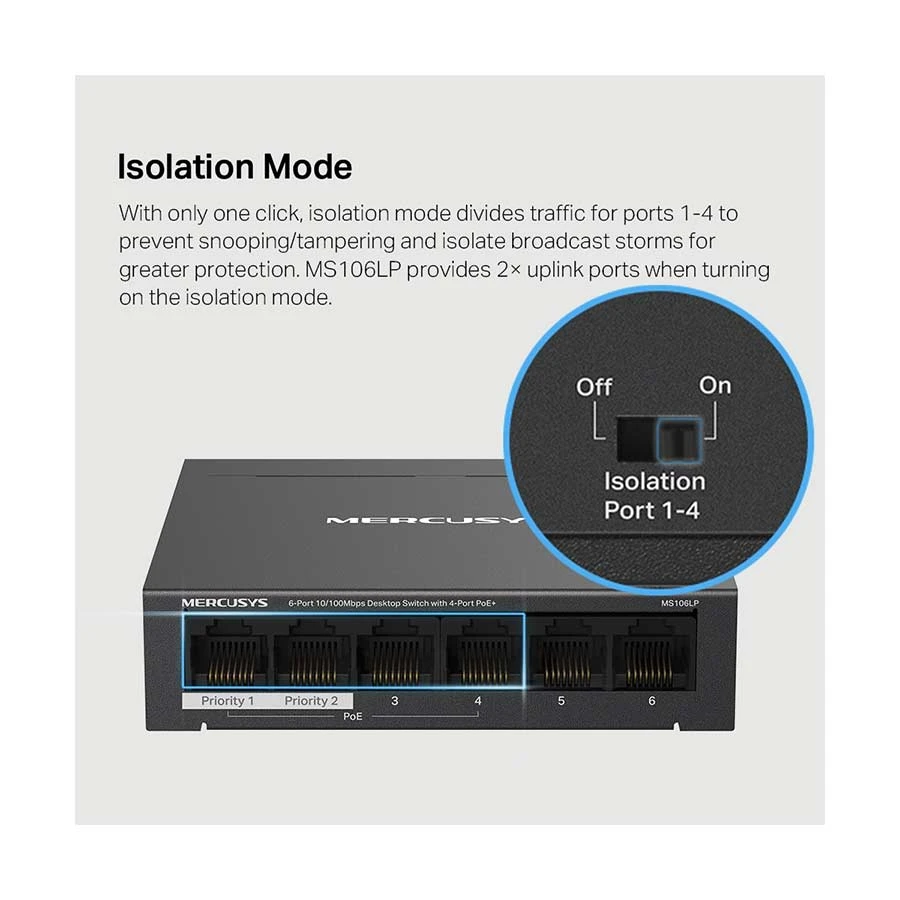

- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

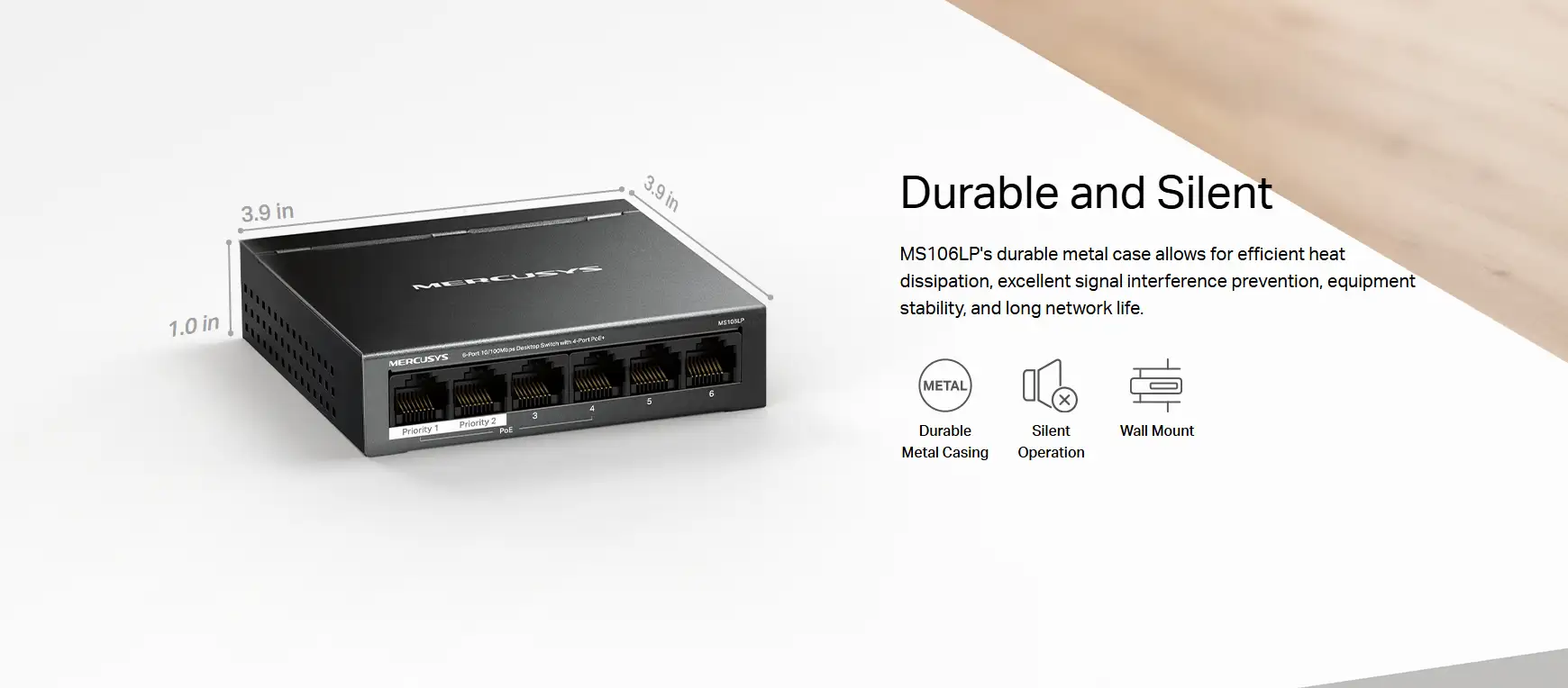

- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
_1734168539.webp)
Mercusys MS106LP 6-Port Desktop Switch: Enhance Your Network Efficiency
Are you looking to expand your network effortlessly and efficiently? The Mercusys MS106LP 6-Port Desktop Switch is your ideal solution. This compact and powerful switch allows you to connect multiple devices with ease, providing fast and reliable network performance. Perfect for both home and small office use, the MS106LP ensures your network remains stable and efficient.
_1734168539.webp)
Who Should Use the Mercusys MS106LP 6-Port Desktop Switch?
Home Users: Create a seamless home network by connecting multiple devices such as computers, gaming consoles, smart TVs, and more. Enjoy smooth streaming, online gaming, and uninterrupted internet browsing.
Small Business Owners: Optimize your office network by connecting all essential devices. The MS106LP is perfect for small businesses needing a reliable network to support everyday operations, including file sharing, online meetings, and cloud services.
IT Professionals: Simplify your network management with this easy-to-use switch. It’s an excellent choice for IT setups requiring quick deployment and reliable connectivity for various devices.
Gamers: Ensure a lag-free gaming experience by connecting your gaming console and PC to the Mercusys MS106LP. Enjoy fast and stable connections, crucial for competitive gaming.
_1734168539.webp)
Key Features of the Mercusys MS106LP 6-Port Desktop Switch
6 High-Speed Ports: Provides multiple connections for your devices, supporting fast data transfer rates for efficient network performance.
Plug and Play: Easy setup with no configuration required. Simply connect your devices and enjoy instant network expansion.
Compact Design: Space-saving and sleek design makes it easy to place on any desktop or workstation without clutter.
Energy Efficient: Features energy-saving technology to help reduce power consumption, making it an eco-friendly choice for your network needs.
Upgrade your network with the Mercusys MS106LP 6-Port Desktop Switch and enjoy enhanced connectivity and performance. Ideal for anyone seeking to improve their network setup at home or in the office, this switch offers a perfect balance of speed, reliability, and ease of use._1734168539.webp)
_1734168540.webp)
What is the price of Mercusys MS106LP Network Switch In Bangladesh?
The price of Mercusys MS106LP Network Switch starts from 2,219 . The price may vary due to your customization and product availability. You can buy Mercusys MS106LP Network Switch from our website or visit our showrooms nearby.
