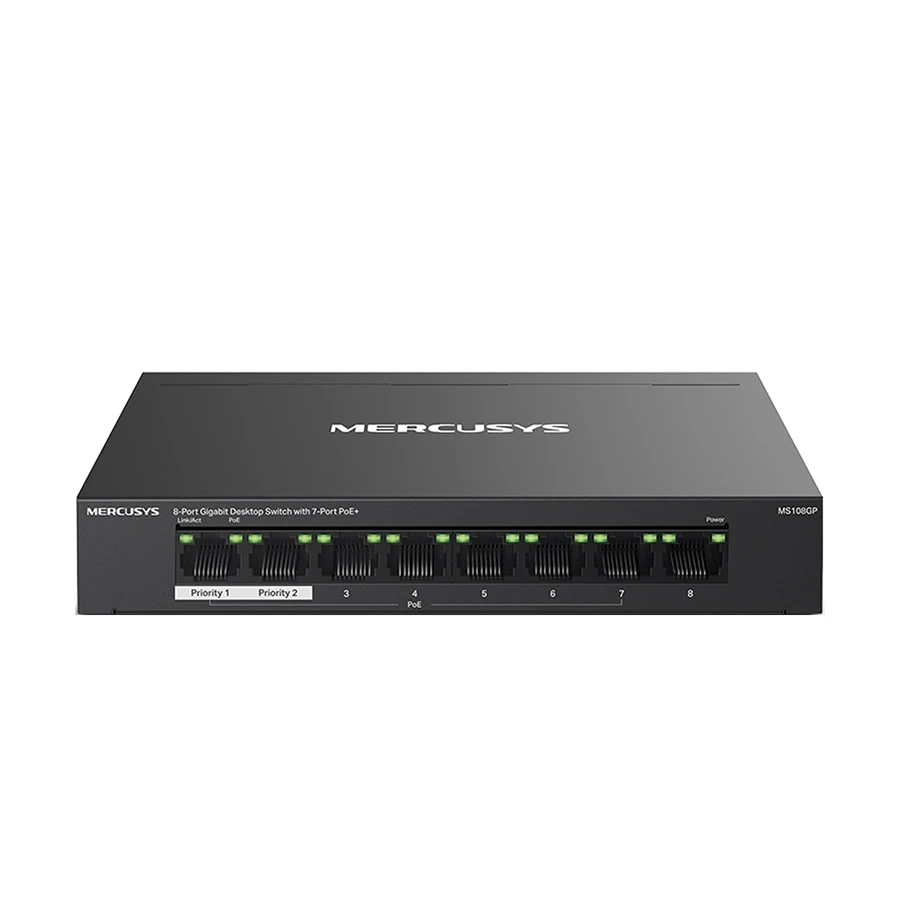

Mercusys MS108GP 8-Port Desktop Switch
Product Id: 29.05.771.12
Brand
Mercusys
Special Price
Tk 3,480
Tk 3,480
Regular Price
Tk 3,640
Quick Overview
- Type - Network Switch
- Number of Total Port - 8 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Desktop/Wall Mounting
Avail EMI Offer
EMI starts from Tk 404/months
General
Brand
Mercusys
Model
Mercusys MS108GP
Type
Network Switch
Ports & Slots
Number of Total Port
8 Port
Gigabit Port
1
SFP Port
No
SFP+ Port
No
PoE Port
Yes
PoE+ Port
7
Technical Info
PoE
Yes
Manageability
Unmanaged
Interface(s)
1 x Port 10/100/1000Mbps Ethernet, 7 x Port 10/100/1000Mbps PoE+
Network Standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Data Transfer Rate
10/100/1000 Mbps
Transmission Method
Store-and-forward
Connector Type
8 x 10/100/1000Mbps RJ45 Port
Switching Capacity
16 Gbps
Physical Description
Fan/Fanless
Fanless
Indicators
Power, Link/Act, PoE Status
Body Color
Black
Form Factor
Desktop/Wall Mounting
Dimension
171 x 98 x 27mm
Packet Contents
1 x 8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP), Power Adapter, Quick Installation Guide.
Power
Power Supply
53.5V/1.31A (Adapter)
Approx. Power Consumption
5.07W (220 V / 50 Hz, no PD connected), 77.33W (220 V / 50 Hz, with 65W PD connected)
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
PoE Ports: RJ45, Standard: Compliant with 802.3 af/at Powered Devices, PoE Ports: Port 1- Port 7, PoE Power Budget: 65 W. Data Rates: 10/100/1000 Mbps at Half Duplex, 20/200/2000 Mbps at Full Duplex, Jumbo Frame: 15 KB, Mac Address Table: 8K, Max Heat Dissipation: 17.238 BTH/h (no PD connected), 262.922 BTH/h (with 65W PD connected). Package Contents: 8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP), Power Adapter, Quick Installation Guide. Operating Temperature: 0-40 Degree C. Storage Temperature: -40-70 Degree C. Operating Humidity: 10%-90% RH non-condensing. Storage Humidity: 5%-95% RH non-condensing.
Specialty
Full Gigabit Ports: 8 x10/100/1000 Mbps RJ45 ports, Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable, High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports, Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode, Isolation Mode: One click to divide traffic for specific ports for stability and security, Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs, Durable Metal Casing: Allows for efficient heat dissipation and long network life, Plug and Play: Simple to use and saves time and effort, Auto-Negotiation, Auto MDI/MDIX.
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Mercusys MS108GP Network Switch In Bangladesh
_1734168876.webp)
MS108GP

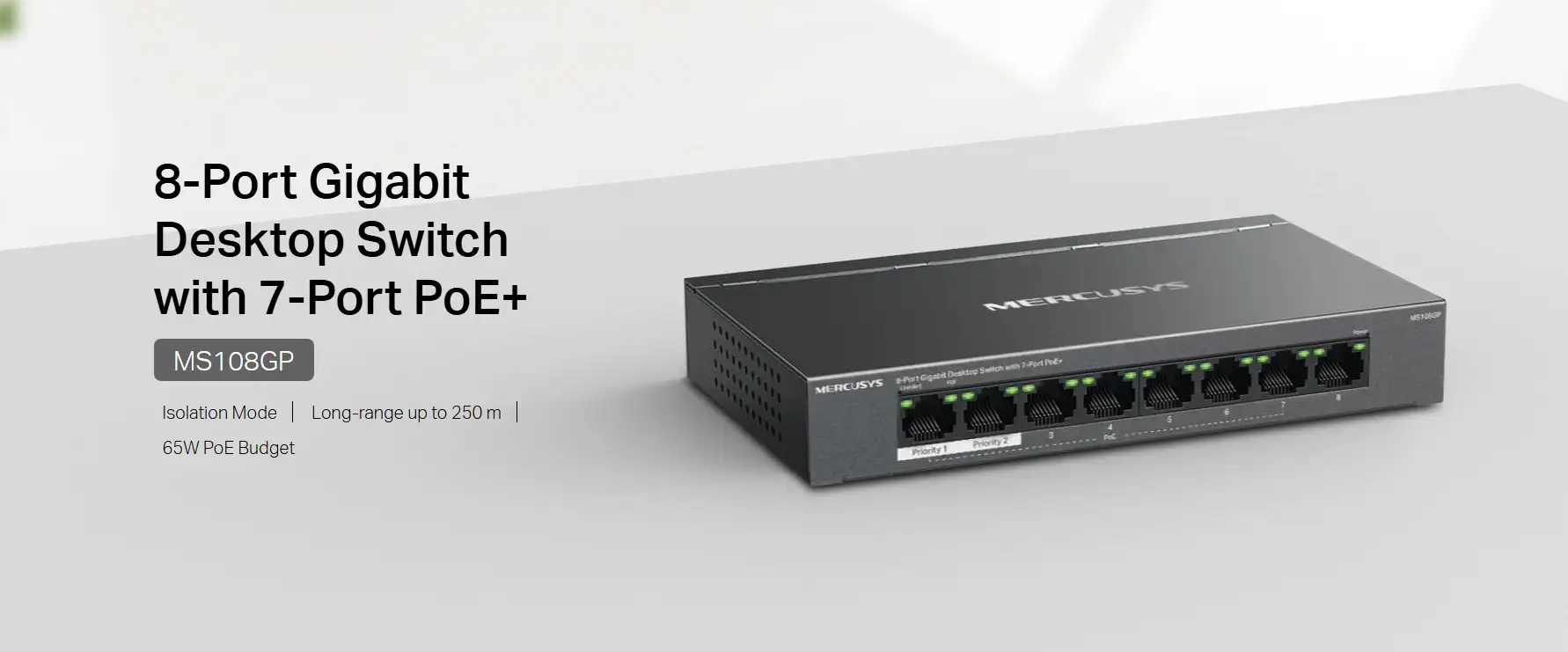

8-Port Gigabit Desktop Switch with 7-Port PoE+

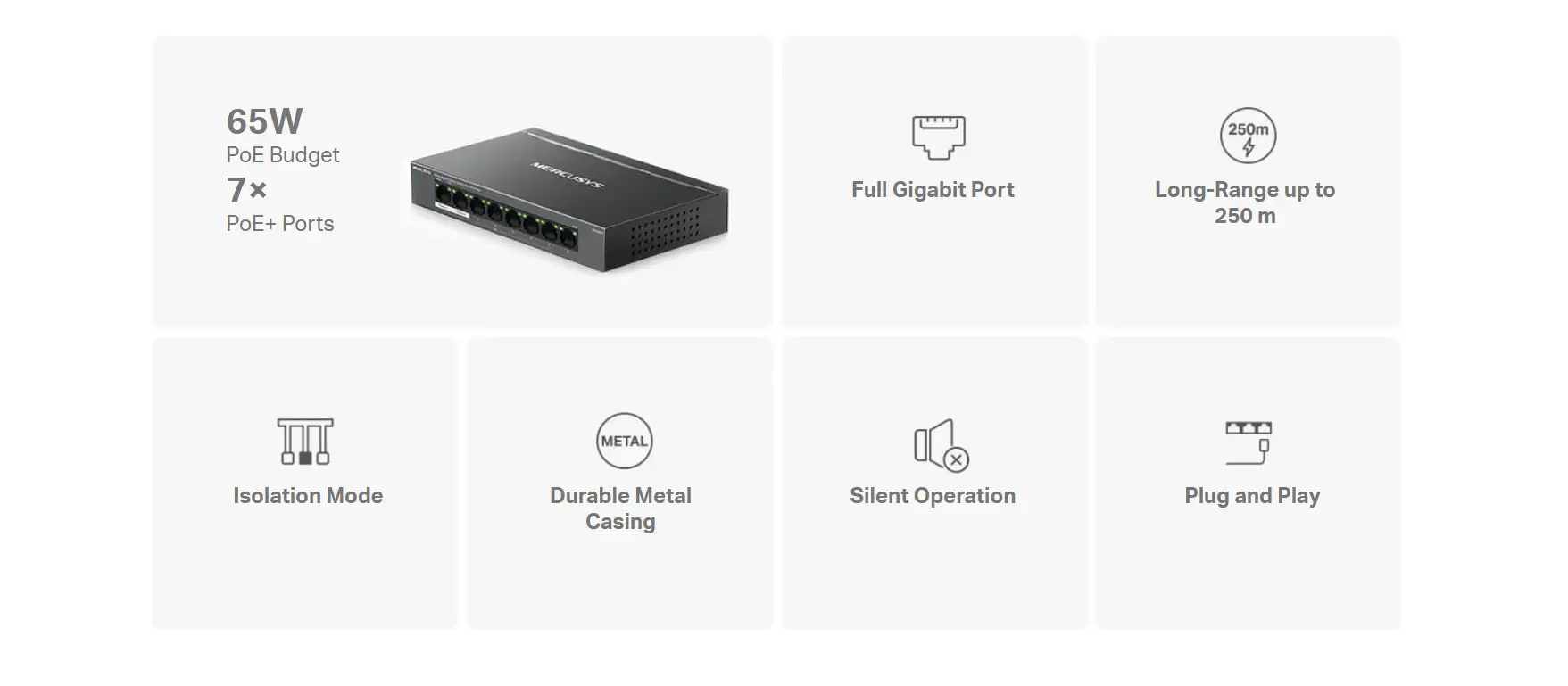

- Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports

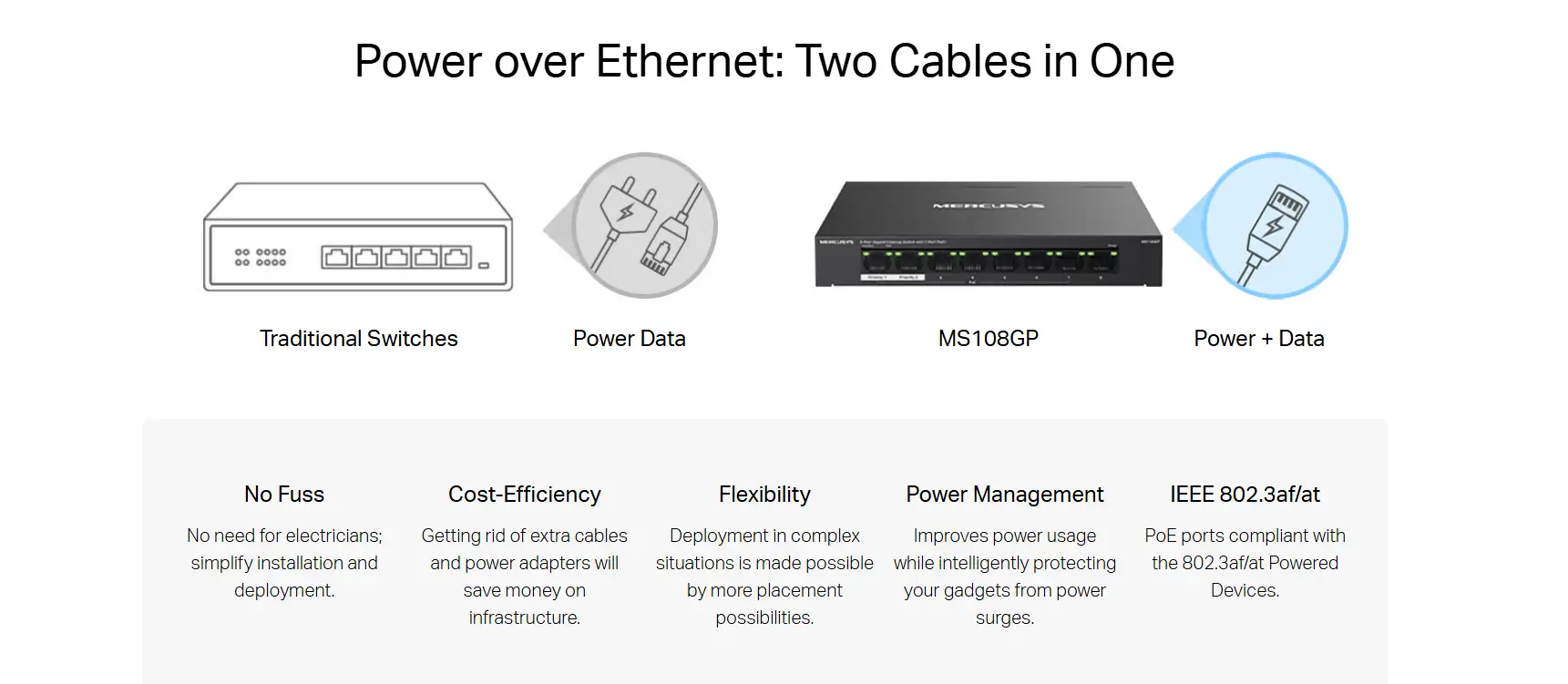

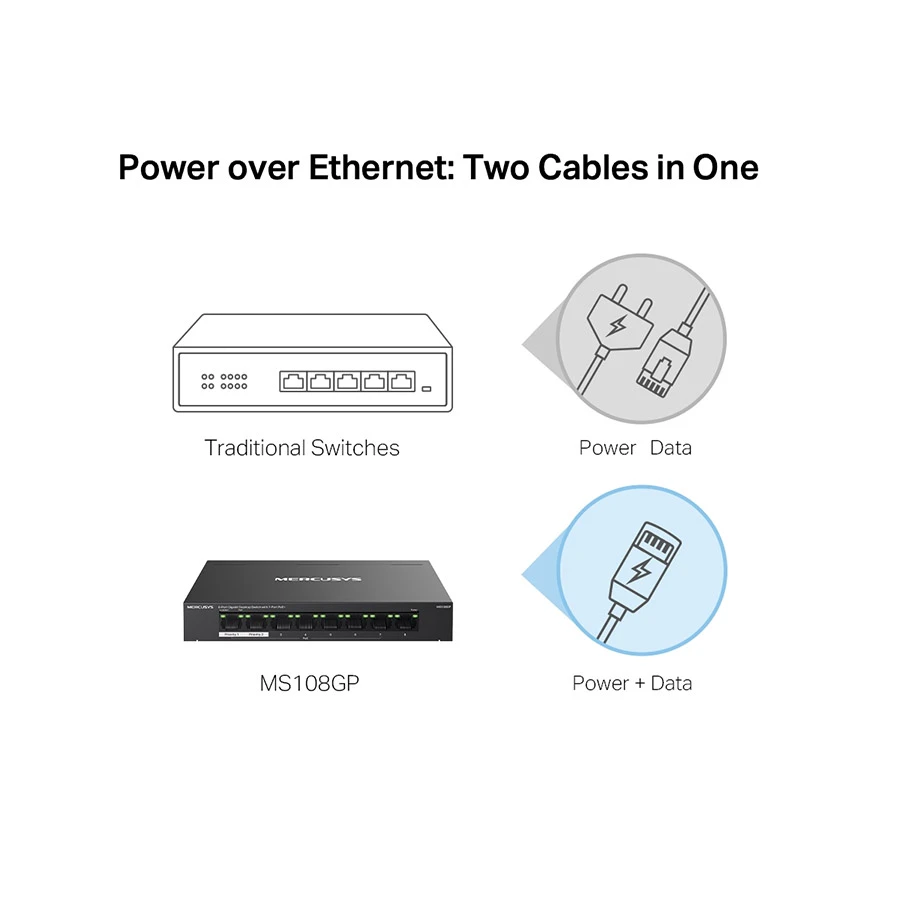

- Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

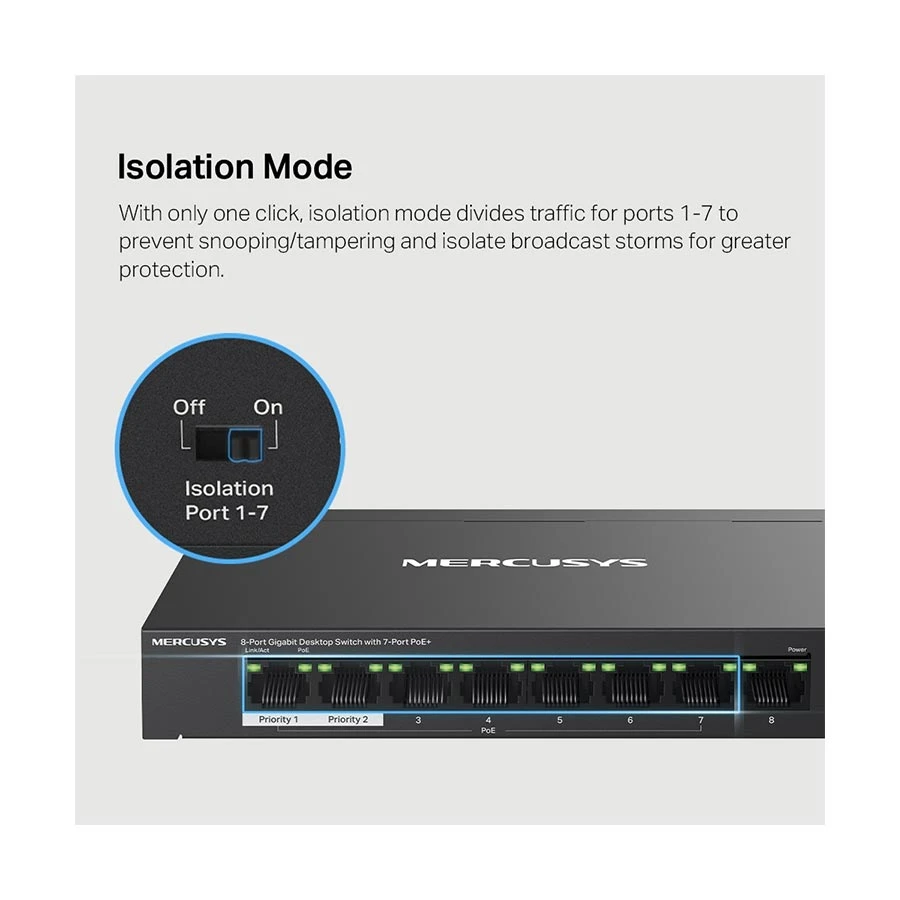

- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

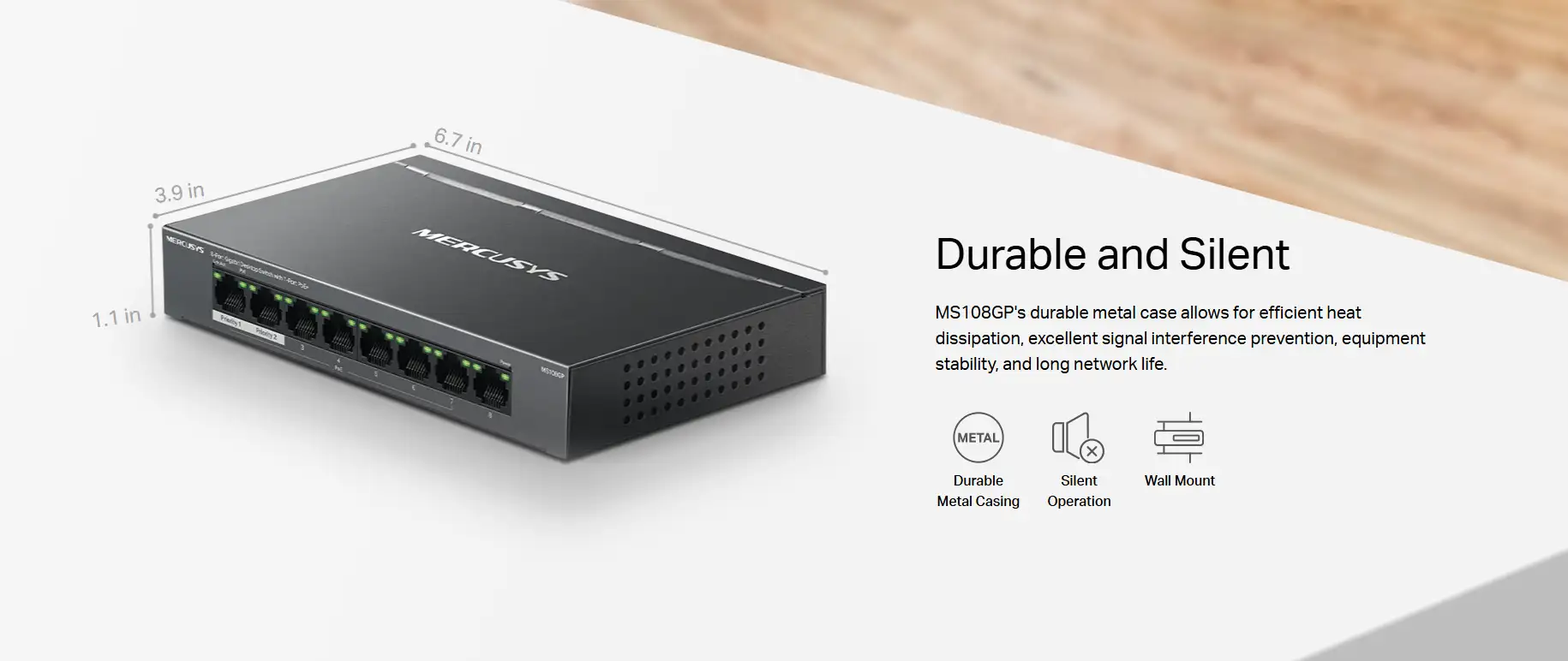

- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
_1734168876.webp)
Details Overview for Mercusys MS108GP 8-Port Desktop Switch
The Mercusys MS108GP is an 8-port Gigabit desktop switch with 7 of the ports supporting Power over Ethernet (PoE+). This means it can deliver data and power over a single Ethernet cable to compatible devices, such as IP cameras, VoIP phones, and access points. This eliminates the need for a separate power supply for these devices, making installation easier and more flexible.
_1734168876.webp)
What Makes Mercusys MS108GP 8-Port Desktop Switch Stand Out?
This Mercusys MS108GP Desktop Switch boasts some impressive technical features, particularly for those looking to expand their network with PoE functionality. Here are some of its most outstanding ones:
Power over Ethernet (PoE+) Capabilities:

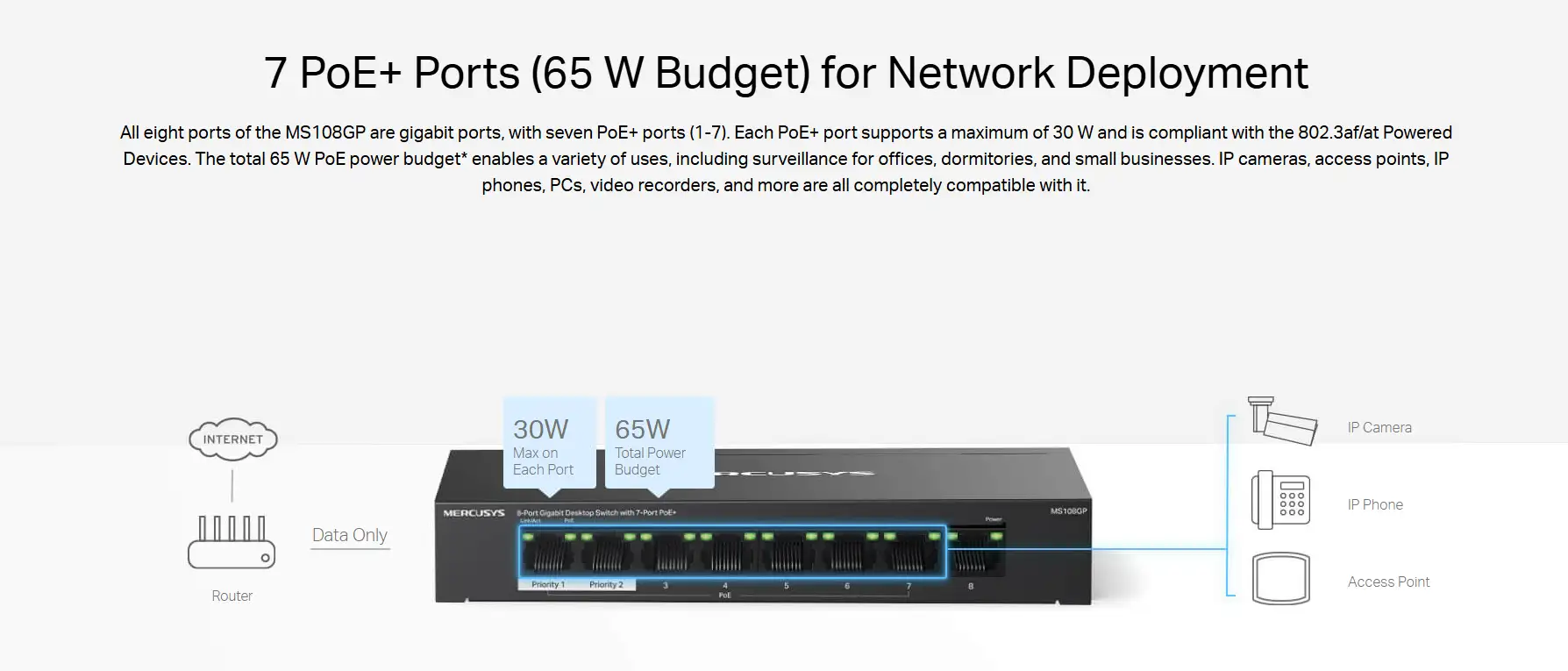

- High Power Delivery: Each of the 7 PoE+ ports can deliver up to 30W of power, ideal for powering a variety of PoE-compatible devices like IP cameras with pan-tilt-zoom mechanisms or high-resolution video capture.

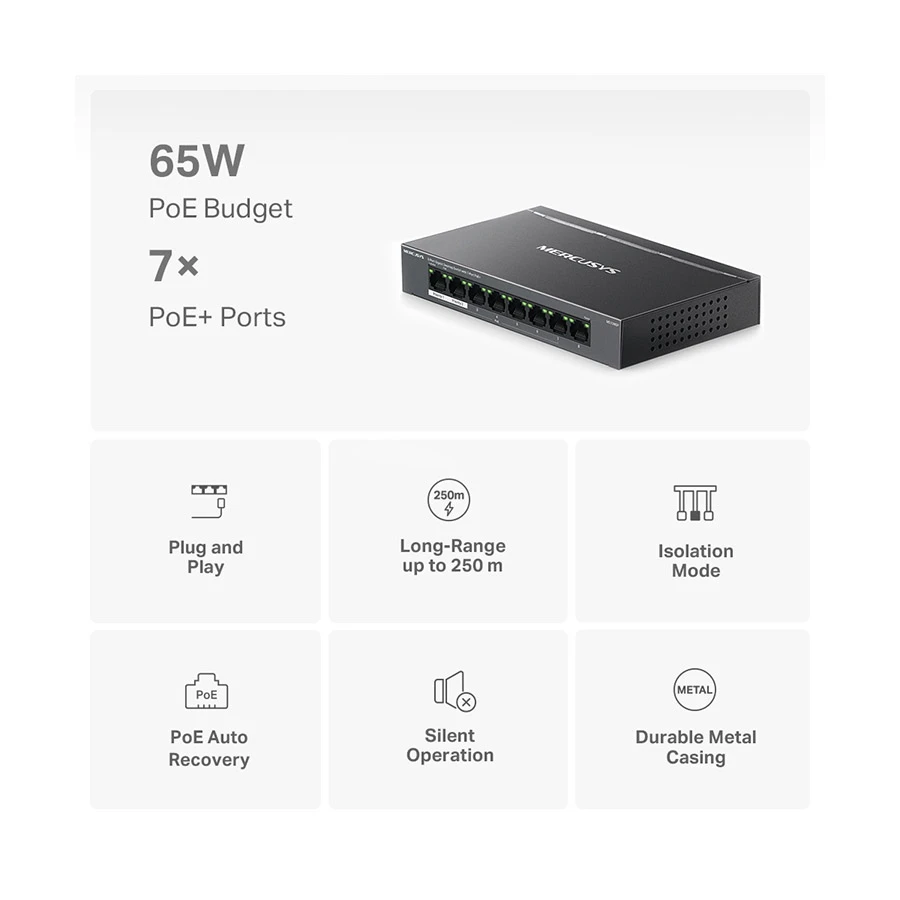

- Large Power Budget: With a total PoE budget of 65W, you can power multiple devices simultaneously without worrying about exceeding the switch's capacity. This is well-suited for powering a small network of PoE devices.

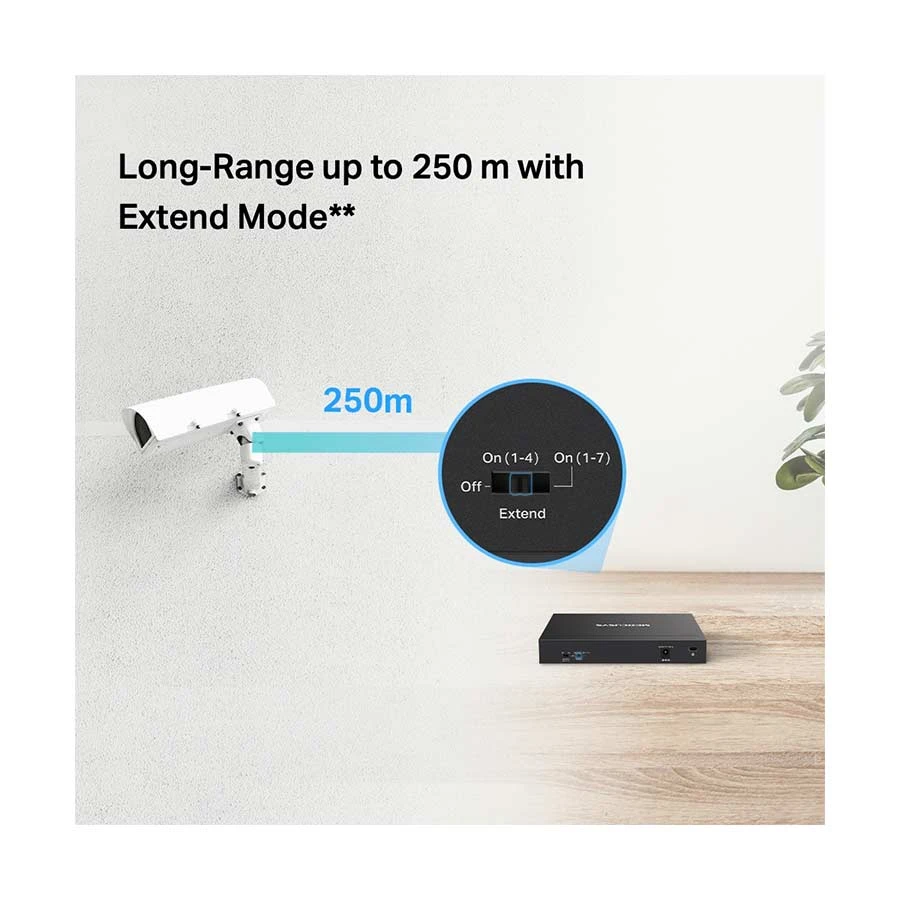

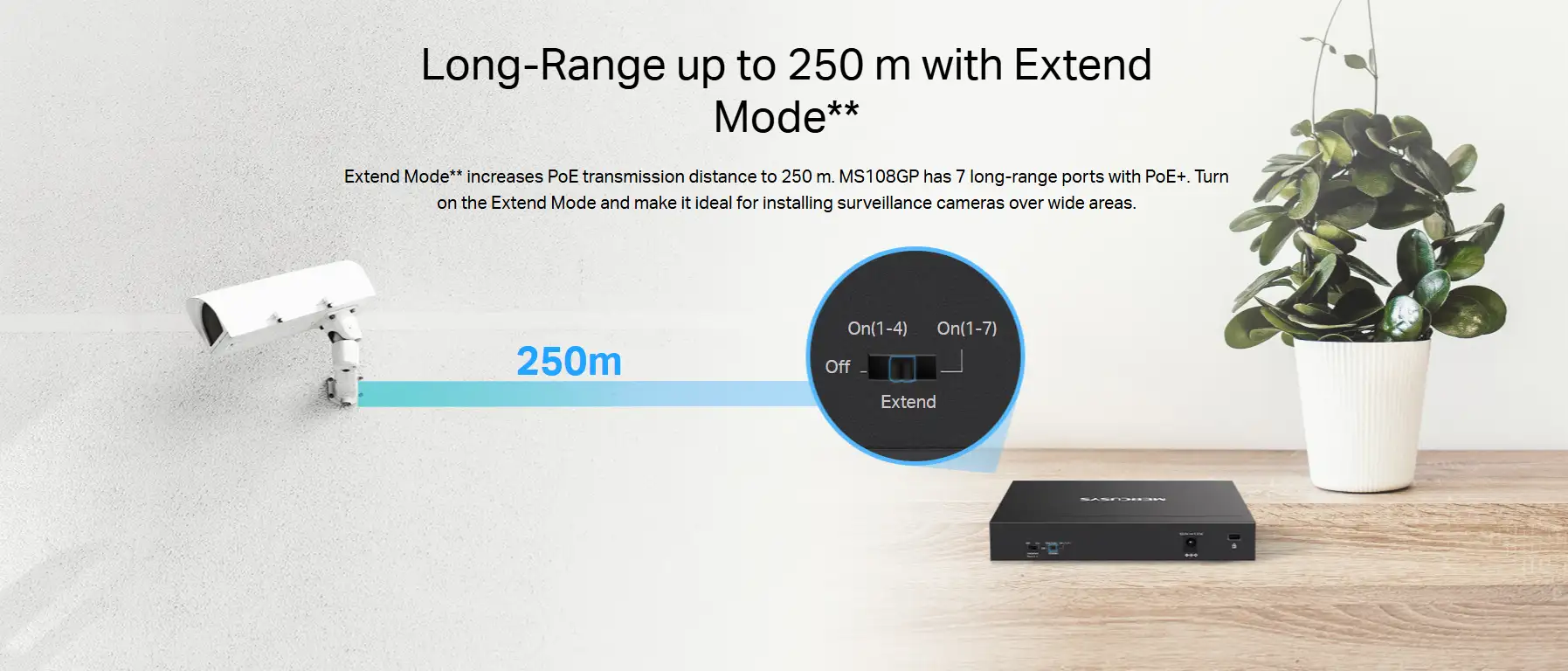

- Extended PoE Reach: The Extend Mode allows for PoE transmission distances of up to 250 meters. This is a significant advantage compared to standard PoE which reaches around 100 meters. This makes the MS108GP ideal for scenarios where devices need to be positioned further away from the switch, like outdoor security cameras or access points in large buildings.
_1734168876.webp)
Who Should Buy a Mercusys MS108GP 8-Port Desktop Switch?
This Desktop Switch is a great fit for several user groups, especially those who need to expand their network with Power over Ethernet (PoE) capabilities. Here's a breakdown of who would benefit most:
Ideal Users:
- Small Business Owners: If you're running a small business and need to power devices like IP cameras, VoIP phones, or access points, the MS108GP's PoE+ functionality and compact size make it a cost-effective solution.
- Home Network Enthusiasts: For home users with PoE-compatible devices like security cameras or access points spread across a larger property, the extended PoE reach (up to 250 meters) and user-friendly setup can simplify network expansion.
- Security System Installers: The PoE+ capabilities, gigabit speeds, and long PoE reach make the MS108GP well-suited for powering security cameras, especially those requiring more power for features like pan-tilt-zoom or high-resolution recording.
_1734168876.webp)
_1734168877.webp)
What is the price of Mercusys MS108GP Network Switch In Bangladesh?
The price of Mercusys MS108GP Network Switch starts from 3,480 . The price may vary due to your customization and product availability. You can buy Mercusys MS108GP Network Switch from our website or visit our showrooms nearby.
