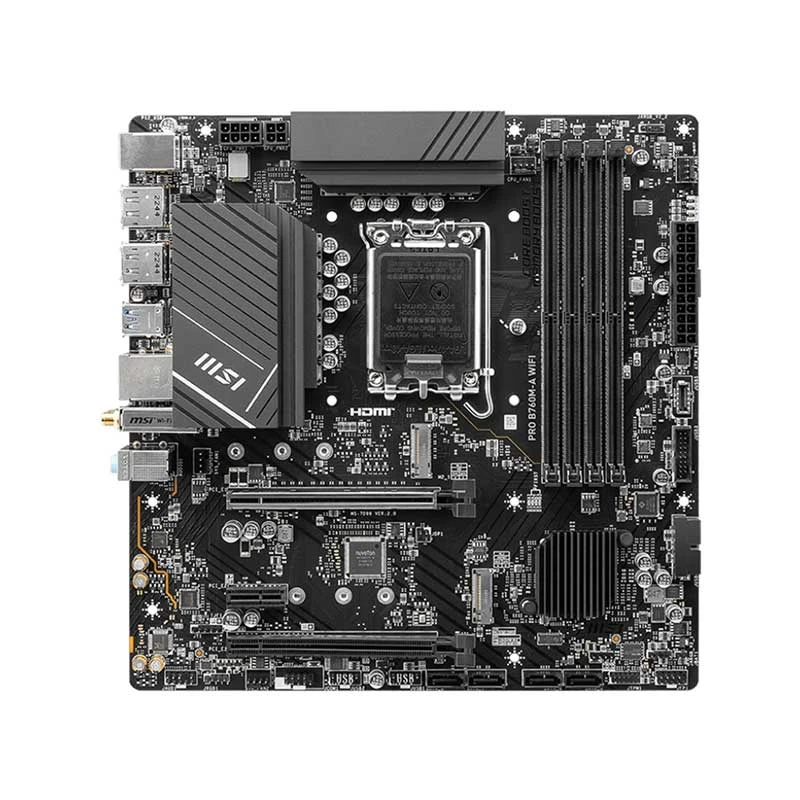

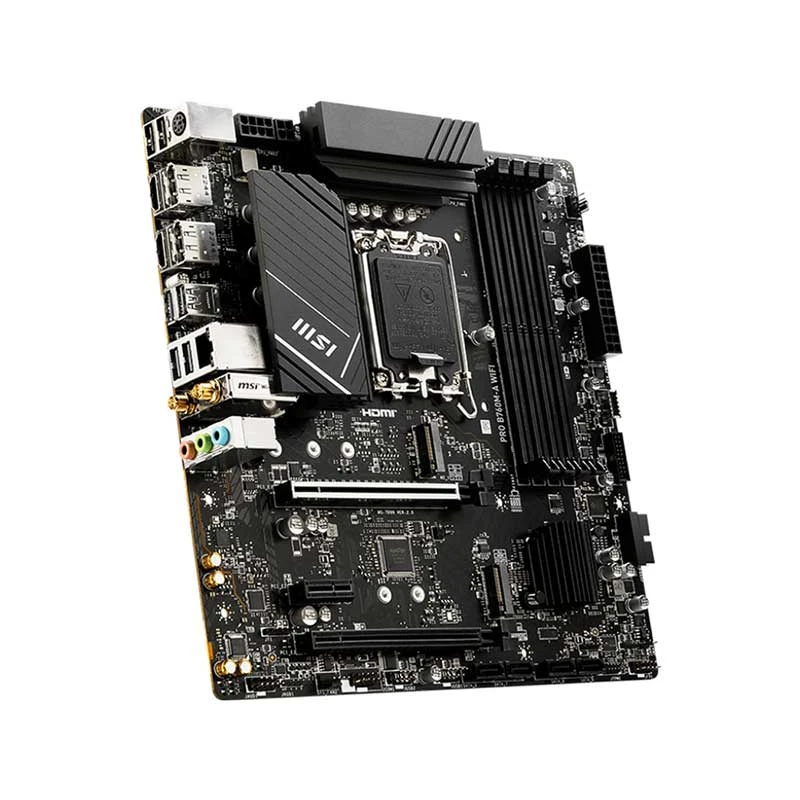

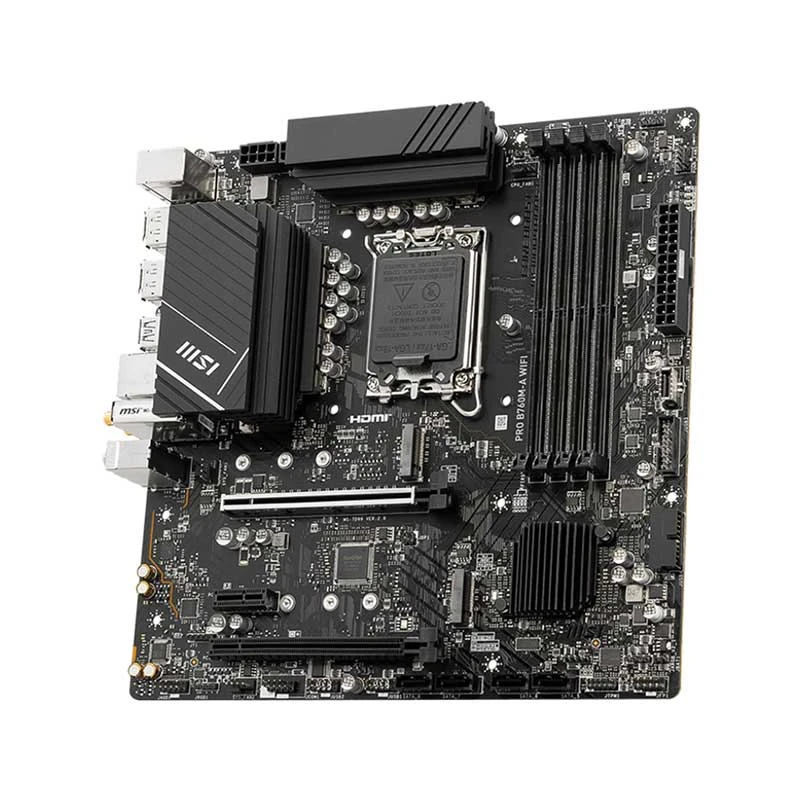

MSI PRO B760M-A (Wi-Fi 6E) DDR5 Intel Motherboard
Product Id: 02.01.033.379
Brand
MSI
Special Price
Tk 19,500
Tk 19,500
Regular Price
Tk 21,160
EMI TK 1,764
Quick Overview
- Chipset - Intel B760
- Sockets Supported - LGA1700
- Supported CPU - 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Generation - 12th/13th/14th
- Memory Slot - 4
- Memory Max. - 192GB
- Back-Connect Design - No
Brand
MSI
Model
MSI PRO B760M-A (Wi-Fi 6E)
Chipset
Intel B760
Sockets Supported
LGA1700
Built-in Processor
No
Generation
12th/13th/14th
Back-Connect Design
No
Memory Type
DDR5
Memory Slot
4
Memory Max.
192GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
Integrated With Processor
M.2/SSD Expansion Slot
2
WiFi
Yes
Bluetooth
Bluetooth 5.3
Form Factor
Micro-ATX
Supported Operating System
Windows 11, 10
Body Color
Black
Warranty Details
3 year
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of MSI PRO B760M-A (Wi-Fi 6E) Motherboard In Bangladesh
PRO B760M-A WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
EXCLUSIVE FEATURES
Extended Heatsink
2.5G Network Solution
Latest Wi-Fi 6E
Memory Boost
Lightning Gen 4
HARDWARE
- COOLING
- POWER SOLUTION
- DIY FRIENDLY
- COOLING OVERVIEW
- FULLY FAN CONTROL
- WATER COOLING
COOLING OVERVIEW
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CONTROL IN ONE CLICK
FROZR AI COOLING
AUTO DETECT YOUR FAN
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
12+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI PRO Series motherboards are ready to sustain heavy daily work.
DIGITALL POWER DESIGN
A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.
DOUBLE POWER CONNECTORS
The 8-pin and 4-pin connectors deliver adequate power even for an overclocked multi-core CPU.
CORE BOOST
Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
- 6 PCB layers
- 2oz Thickened Copper
- DRIVER UTILITY INS
- TALLER
- MORE FOR DIY FRIENDLY
WINDOWS 11 CERTIFIED
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
* Please ensure to remove the unnecessary mounting stand-off when installing the motherboard into the case.
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
PERFORMANCE
- EXPANSION
- MEMORY
- BIOS & SOFTWARE
- LIGHTNING GEN 4 PCI-E
- STORAGE
- USB
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
- CLICK BIOS 5
- MSI CENTER
- AIDA64
- SYSTEM SAFETY
- RESIZABLE BAR
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
EZ-MODE
ADVANCED MODE
XMP
Choose from a preset XMP profile and automatically overclock compatible DDR memory.
VMD (VOLUME MANAGEMENT DEVICE)
Enable direct control and management of NVMe SSDs from the PCIe bus without additional hardware adaptors.
M-FLASH
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
HARDWARE MONITOR
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
MEMORY TRY IT
Get extreme speed out of your system memory and get more performance.
SEARCH & FAVORITES
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.
EXCLUSIVE UI OF AIDA64 EXTREME
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
SYSTEM SAFETY
All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.
SECURE BOOT
Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.
Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
CONNECTIVITY
- AUDIO
- MYSTIC LIGHT
- NETWORKING
- AUDIO BOOST
AUDIO BOOST
- HIGH DEFINITION AUDIO PROCESSOR
- HIGH QUALITY AUDIO CAPACITORS
- HIGH QUALITY AUDIO JACKS
- ISOLATED AUDIO SIGNAL
- DE-POP PROTECTION
- SYNCHRONIZE
What is the price of MSI PRO B760M-A (Wi-Fi 6E) Motherboard In Bangladesh?
The price of MSI PRO B760M-A (Wi-Fi 6E) Motherboard starts from 19,500 . The price may vary due to your customization and product availability. You can buy MSI PRO B760M-A (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
QUESTION & ANSWER
Customer Questions
Q:
Hi how many USB 3 and Type C port ?
By
A:
Dear customer, This motherboard does not have a Type-C port, but it does have six USB ports.

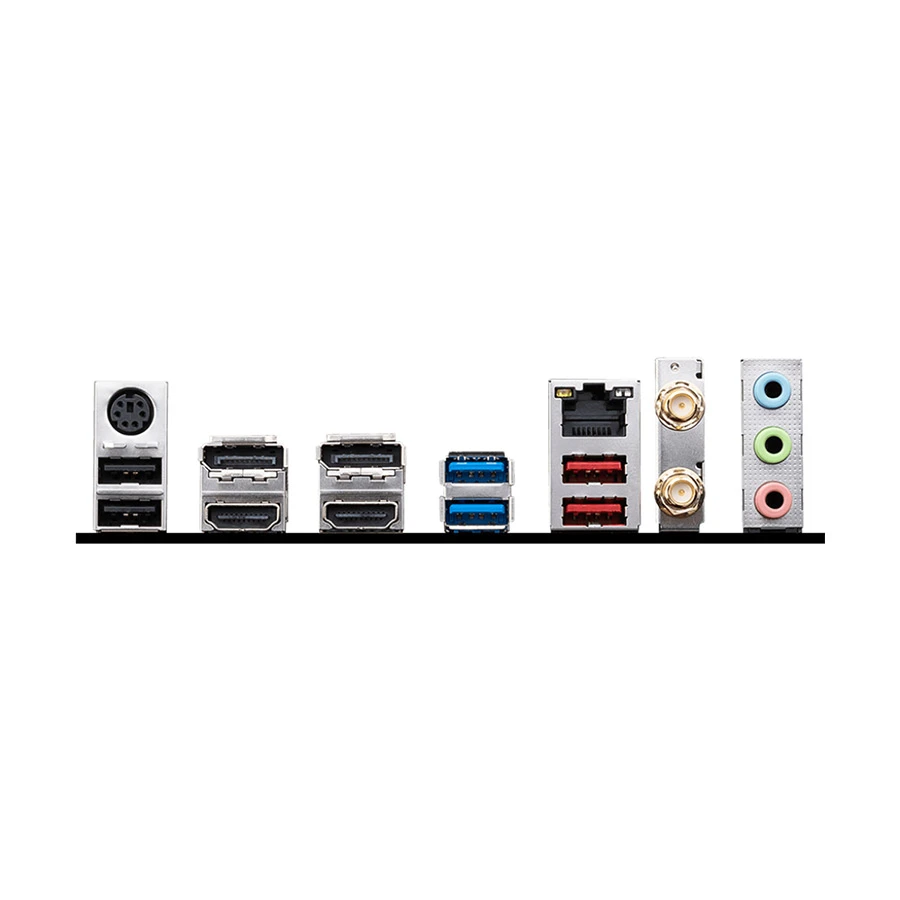

2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0, 2 x USB 3.2 Gen 2 Type-A
By Ryans Computers Ltd.
, 16 Oct 2024
