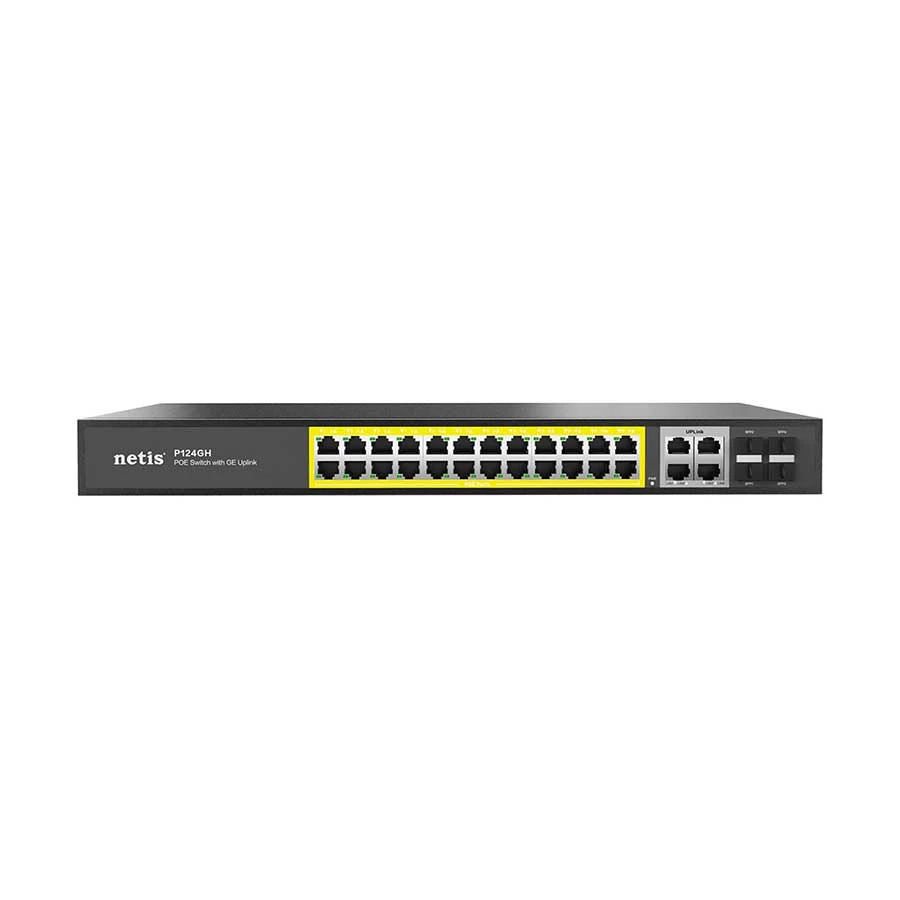

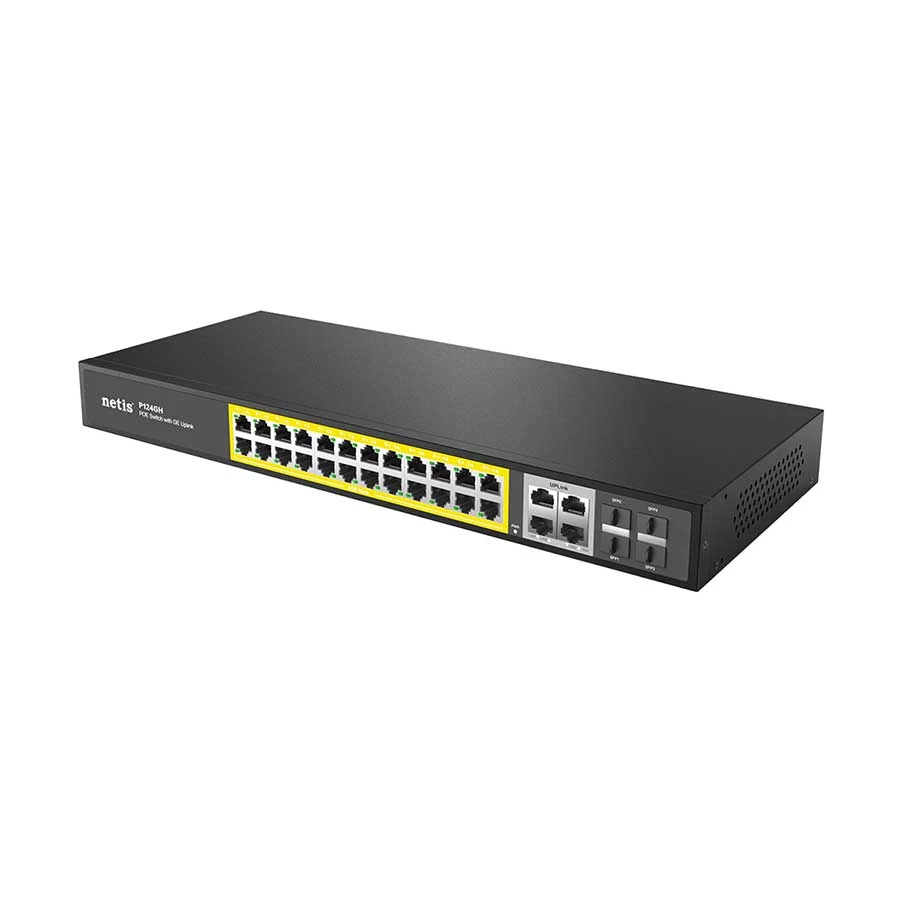

Netis P124GH 24 FE POE+4GE Uplink POE Switch
Product Id: 29.05.704.41
Brand
Netis
Quick Overview
- Type - Network Switch
- Number of Total Port - 28 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3 10BASE-T Ethernet, IEEE 802.3i 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3af/at, Power over Ethernet, IEEE 802.3x Flow Control
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Desktop
General
Brand
Netis
Model
Netis P124GH
Type
Network Switch
Ports & Slots
Number of Total Port
28 Port
Gigabit Port
4
SFP Port
4
PoE Port
24
Technical Info
PoE
Yes
Manageability
Unmanaged
Interface(s)
24 x 10/100Mbps POE ports Data/Power), 4 x 10/100/1000M uplink RJ45 ports (Data), 4 x 10/100/1000M uplink SFP slot ports (Data)
Network Standards
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3i 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3af/at, Power over Ethernet, IEEE 802.3x Flow Control
Data Transfer Rate
10/100/1000 Mbps
Switching Capacity
12.8G
Physical Description
Fan/Fanless
Fanless
Form Factor
Desktop
Dimension
440 x 180 x 43mm
Packet Contents
1 x P124GH, 1 x User manual
Power
Power Supply
Pin:12+/36- AC 110~240V 50/60HZ
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Jumbo Frame: 2048 byte, MAC Address Table Size: 16K, Store & Forwarding: Yes, Data Transfer Rate: Etherent:10Mbps(Half-duplex);20Mbps(Full-duplex), Fast Entherent:100Mbps(Half-duplex);200Mbps(Full-duplex). Mode: Normal switch mode/Extend mode. Basic function: Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol, Supports POE IEEE 802. 3af/at compliant Powered Device (PD), Store-and-forward switching scheme, Support IEEE802.3X full duplex and Backpressure half duplex, MAC address auto-learning & auto-aging. Power Input POE Standards: Single port maximum power 30W, Whole switch maximum power 320W, Support over-current,over-voltage and short-circuit protection, Support Soft Start of High Power PD, Support sequential boot-up. Cabling type: 100Base-TX: Cat 5e or better UTP/STP(<-100m), 10Base-TX: Cat 5e or better UTP/STP(<-250m)
Specialty
Netis P124GH is a 30 Ports standard POE switch that provides 24 FE POE ports , 4 Gigabit Up-link ports and 4 SFP fiber port. Ports 1~24 features POE power supply capability and can be used as Power over Ethernet devices. The power supply port can automatically detect and recognize the powered device that complies with the IEEE 802.3af/at standard and supply power through the network cable. 4 Gigabit uplink ports ensure a smooth transmission for NVR or up-link routers. P124GH is a most economical solution for HD security network.
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
