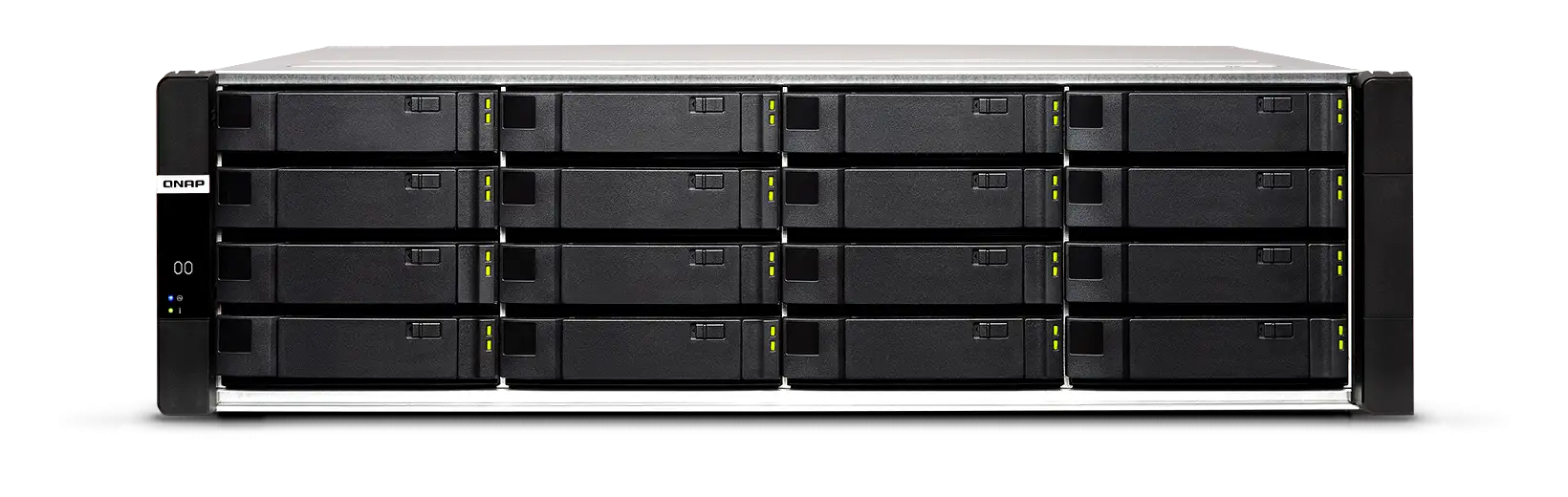

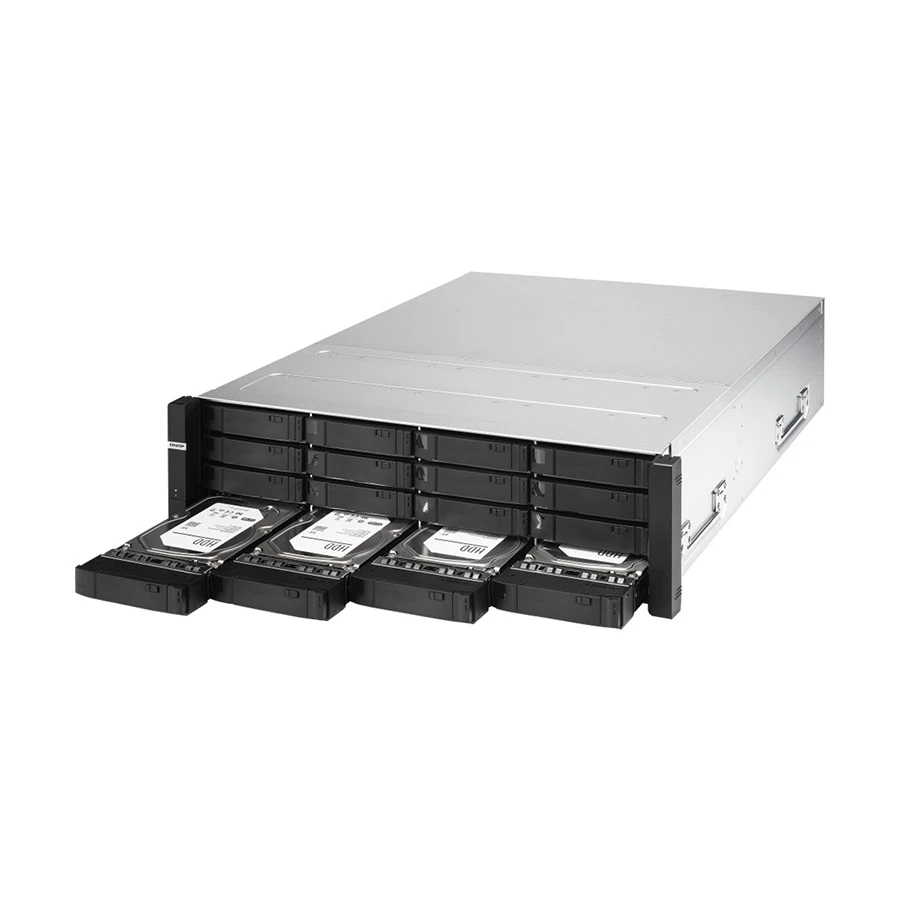

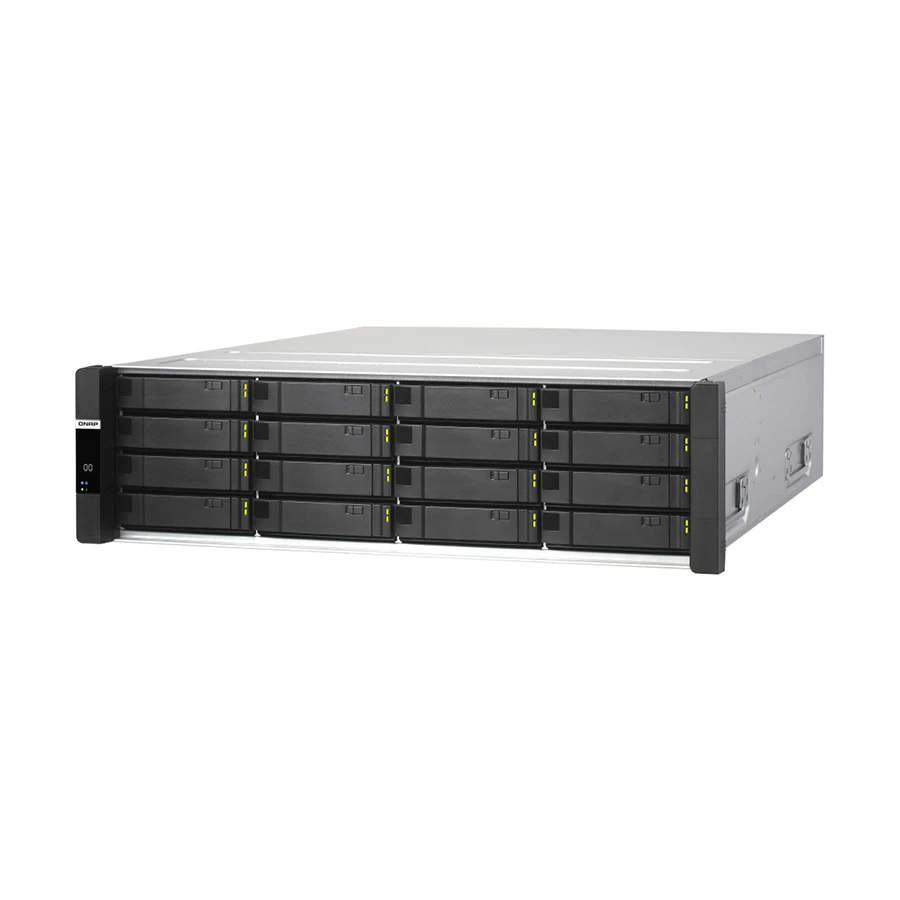

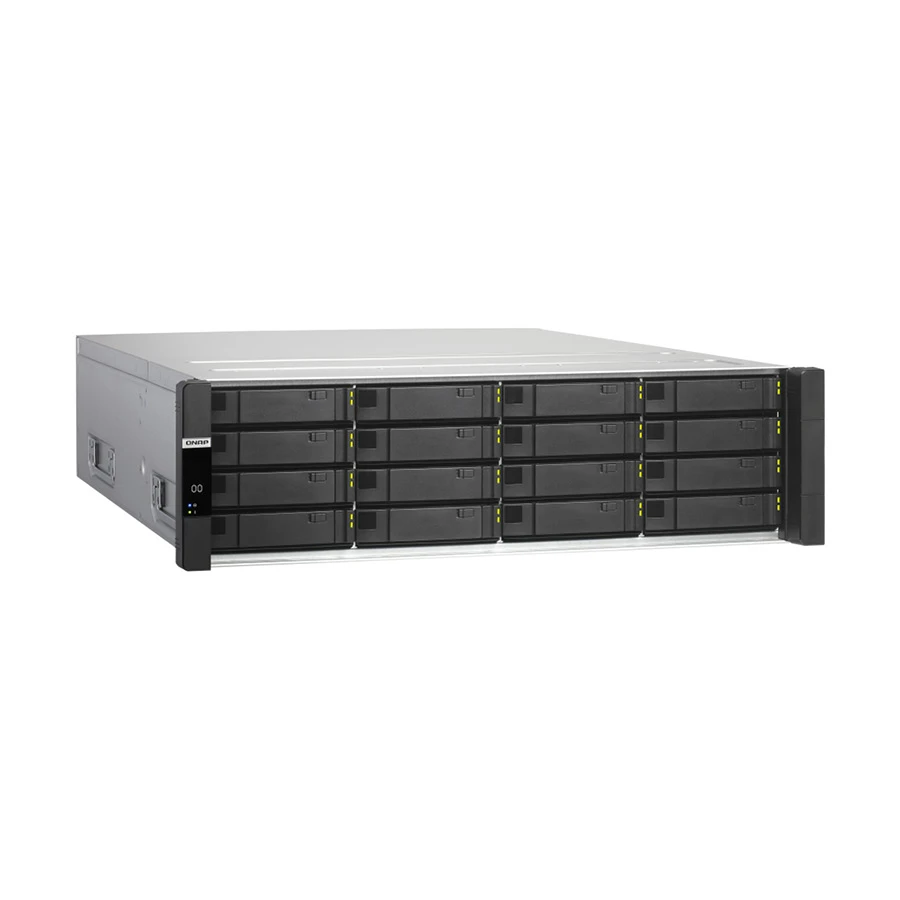

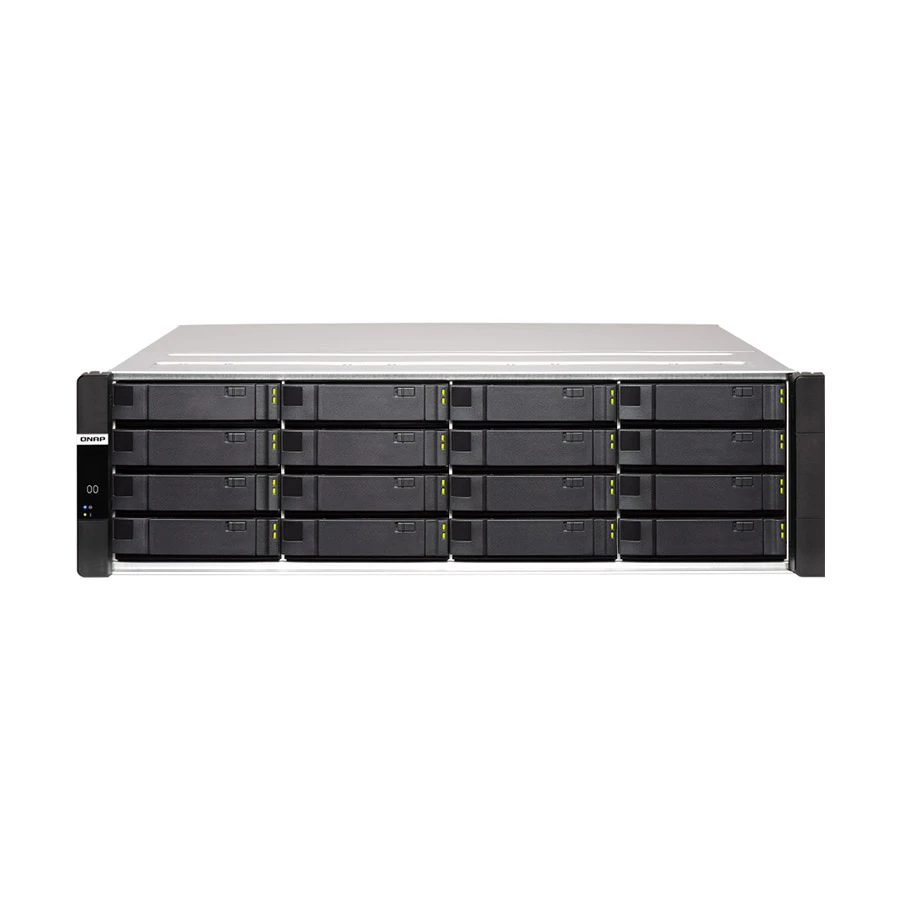

QNAP ES1686dc-2142IT-128G 16 Bays NAS Storage 3U Rackmount (5 Year Warranty)
Product Id: 29.07.535.48
Brand
Qnap
Special Price
Tk 2,330,000 (Estimated)
Tk 2,330,000 (Estimated)
Regular Price
Tk 2,517,200 (Estimated)
EMI TK 209,767
Delivery in 30 days
Quick Overview
- Bays - 16 BAY
- Lan Port - 14 x Gigabit Lan
- Max. Capacity - Unmentioned
- Processor Model - Intel Xeon D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
- RAM - 128GB
Additional Info
Brand
QNAP
Model
QNAP ES1686dc-2142IT-128G
Processor Model
Intel Xeon D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
RAM
128GB
Bays
16 BAY
Drive Type
3.5 Inch SAS/SATA HDD, 2.5 Inch SAS SATA HDD/ SATA SSD
eSATA Port
No
Max. Capacity
Unmentioned
Display
No
Lan Port
14 x Gigabit Lan
Dimensions
132 x 446.2 x 587.75mm
USB Port
4 x USB3.2
Feature
High Availability: Active-Active dual controller for NAS, Active-Active dual controller for JBOD expander, MPIO for iSCSI high availability, Firmware update without interrupting service, Link aggregation for network high availability, Supported Browsers: Google Chrome, Mozilla Firefox, Apple Safari, Package Content: ES1686dc, Ethernet Cable (1GbE) x6, Power Cord x 2, Flat head screw x 64 (for 3.5 Inch HDD), Flat head screw x 64 (for 2.5 HDD), E02 series (Chassis) rail kit, max. load 57kg: RAIL-E02, Console Cable (RJ11 to RS-232) x1, Battery Backup Unit for NVRAM write cache x 2, Quick Installation Guide (QIG)
Others
CPU Architecture: 64-bit x86, Floating Point Unit , Encryption Engine: (AES-NI), System Memory: 64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller, Maximum Memory: 512 GB (8 x 64GB), Memory Slot: 8 x R-DIMM/LR-DIMM DDR4, Flash Memory: 4GB (Dual boot OS protection), Drive Bay: 16 x 3.5-inch, Hot-swappable, SSD Cache Acceleration Support, Read cache only, Cache for Copy To Flash (C2F): 1 per each controller (64GB M.2 SSD), Wake on LAN (WOL) , Jumbo Frame , PCIe Slot: 2 per controller, Slot 1: PCIe Gen 3 x8 (CPU), Slot 2: PCIe Gen 3 x8 (CPU), Form Factor: 3U Rackmount, LED Indicators: System Power LED (Green): on/off, Buttons: Power, Reset, Weight (Net): 30.22 kg, Weight (Gross: 34.92 kg, Operating Temperature: 0 - 40 Degree C, Storage Temperature: -20 - 70 Degree C, Relative Humidity: 5-95% RH non-condensing, wet bulb: 27 Degree C, Power Supply Unit: Redundant/ Hot Swap Power Vin:90~264VAC;770W, Power Consumption: Operating Mode, Typical 500.87 W, Fan Hot-swappable fan module (60x60x38mm; 16000RPM/12v/2.8A x 3), System Warning: Buzzer, Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 10000, Safety Standard FCC Class A (USA only), CE Mark: ( EN55022 Class A, EN55024), EN60950, BSMI, VCCI, CB,LVD
Warranty Details
5 Year
Country Of Origin
Taiwan
Made in/ Assemble
Taiwan
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of QNAP ES1686dc-2142IT-128G Network Storage In Bangladesh
ES1686dc
Next-generation Enterprise ZFS NAS: High-performance and near-zero downtime high availability

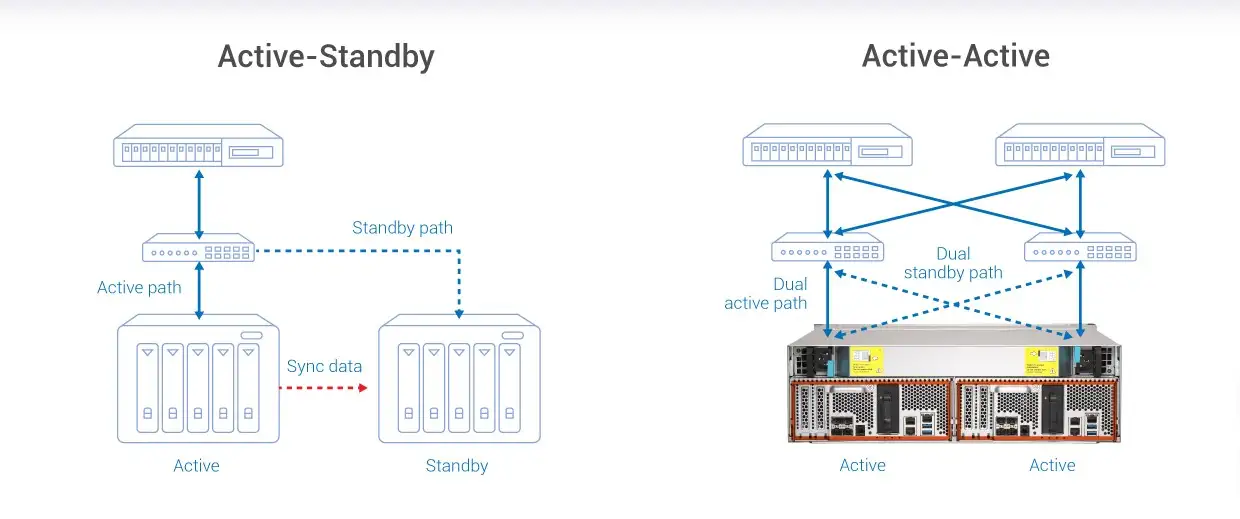

Active-Active high availability with optimal storage efficiency
In Active-Active storage system architecture, both controllers are able to provide a complete range of services, which is different from the Active-Standby architecture of single-controller systems. The Active-Active architecture does not have the disadvantage of idle computing resources. To leverage the strengths of the ES1686dc Active-Active controller architecture, it is recommended to create multiple storage pools and distribute their ownership between both controllers. This allows simultaneous output from both controllers for better load balancing.

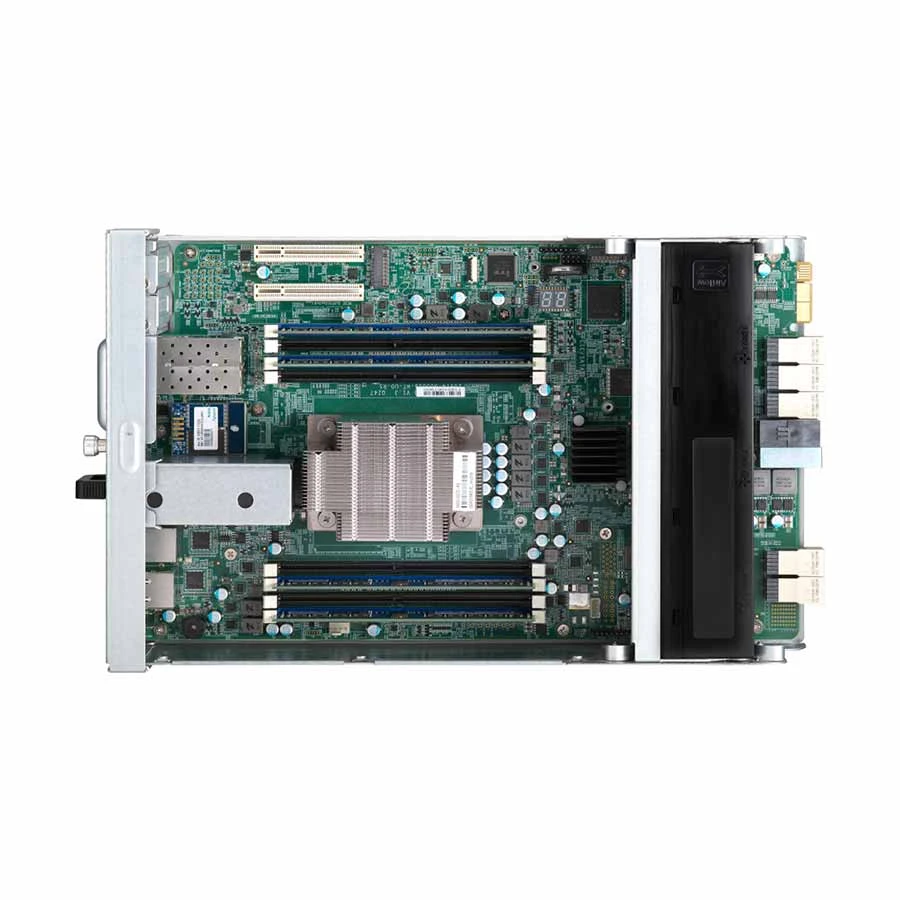

Intel® Xeon® D dual-controller ensures high availability and failure-resistant service

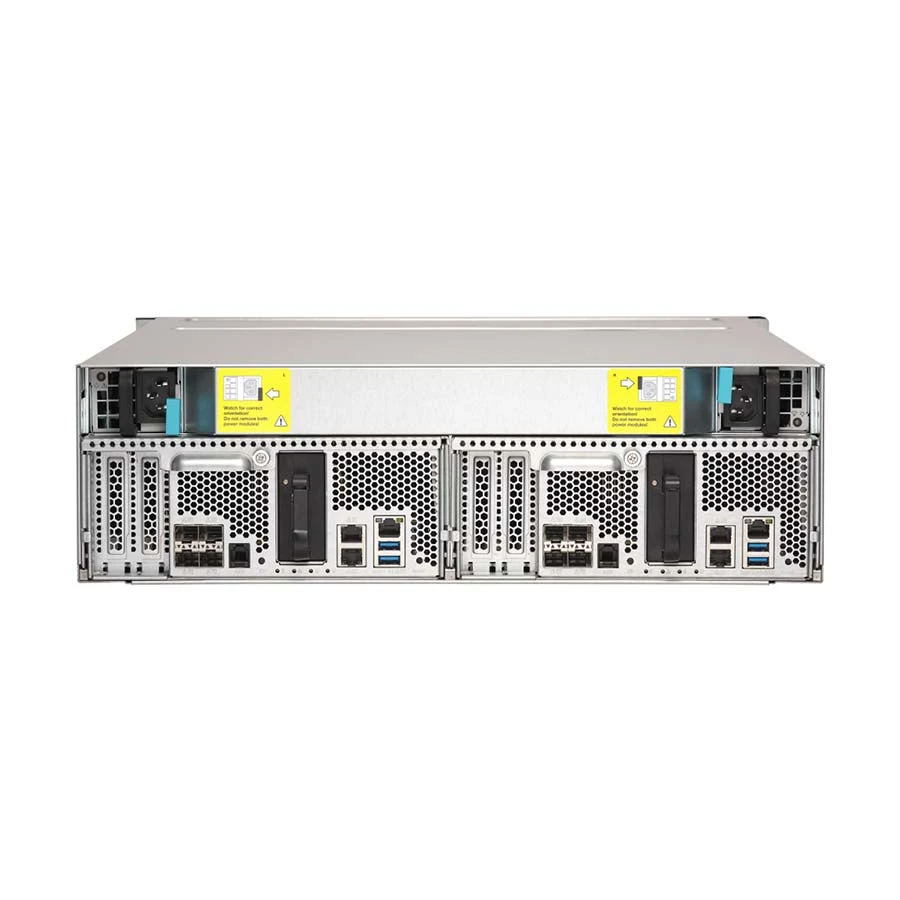

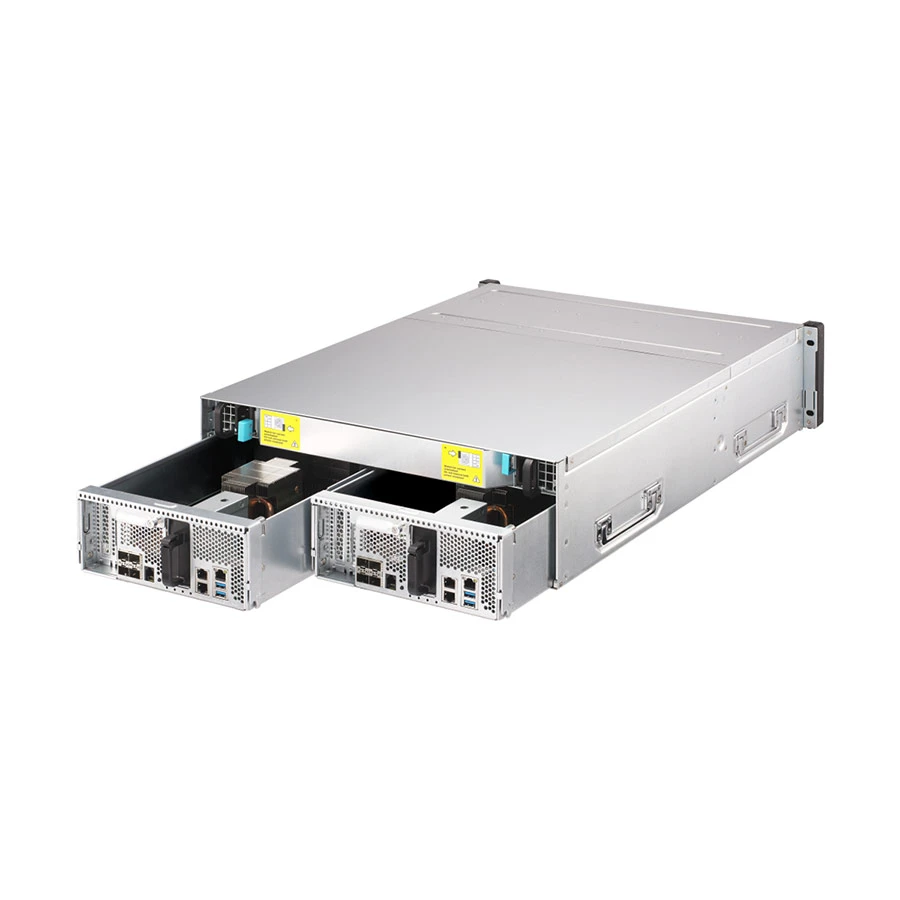

Powered by two Intel® Xeon® D processors, the ES1686dc features a dual active-active controller architecture that provides failover/failback operations as the standby controller can quickly take over if one controller breaks down. Redundant hot-swappable power supplies and cooling fans are also included to provide businesses with near-zero downtime high availability. The ES1686dc connects to the JBOD enclosure (TL-R1620Sdc) via the dual-path mini-SAS design to sustain continuous operations even if a JBOD cable is disconnected. Designed around redundancy, the ES1686dc is the best realization of reliable enterprise storage for uninterrupted mission-critical enterprise tasks and productivity.
PCIe expansion for 25GbE high-speed networks
The ES1686dc provides two PCIe Gen3 x8 slots connected to the CPU, allowing you to install lightning-fast 10GbE/25GbE network cards to boost virtualization, media streaming, and other bandwidth-demanding applications. Installing NVIDIA® Mellanox Smart NICs further adds support for iSER for improved VMware® virtualization performance. You can also install a SAS expansion card (QXP-820S-B3408) for connecting up to seven 16-bay TL-R1620Sdc expansion enclosures to seamlessly expand the potential storage capacity over 1PB, with unprecedented performance of up to 48Gbps per host connection.
QES 2.1.0: ZFS-based, and optimized for all flash performance
The ES1686dc features the QES (QNAP Enterprise Storage) 2.1.0 operating system, which is based on the simple and efficient FreeBSD kernel and the ZFS file system that has been proven through years of experience to be most suitable for high-end enterprise applications. Not only does QES 2.1.0 provide reliable data protection, recovery, and business-class features, it is optimized for flash storage and is capable of driving outstanding performance for all-flash storage arrays to accelerate mission-critical services and eliminate challenges in VDI environments. QES 2.1.0 also comes with Quality of Service (QoS) capabilities that help ensure consistent primary storage performance in multi-application environments. Continuing the same user experience with the intuitive QTS operating system, QES provides business users with an easy learning curve for quick implementation within IT infrastructures.

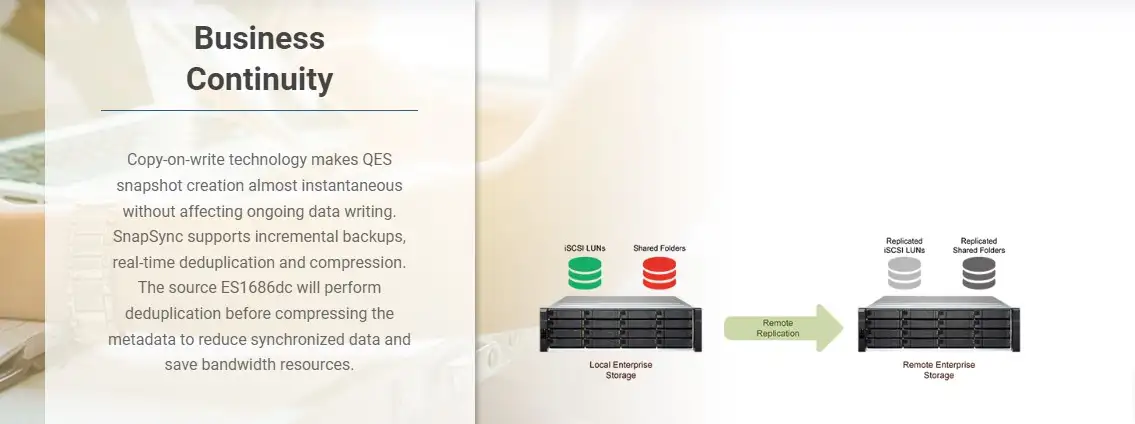

Streamlined remote backups with nearly limitless snapshots and SnapSync
The ES1686dc supports up to 65,536 snapshots for iSCSI LUN and shared folders (if 1 snapshot is created every hour, 24 snapshots per day, then up to 7 years worth of snapshots can be created without needing to delete any) and replicates snapshots to remote servers by using the block-level SnapSync. In the event of a primary site failure, SnapSync assists businesses to resume essential services in the shortest possible time.
Create VMware/Windows backups for VSS-Aware applications using QNAP Snapshot Agent
QNAP Netbak Replicator is easy-to-use and VSS-aware backup software, helping businesses to create complete backups in data centers and virtualization environments without needing additional software. To build a QNAP Snap Agent and VSS Hardware Provider operating environment, all applications (including VSS Service, Requestor, Provider and QNAP Snap Agent) can be deployed with VSS-Aware applications on the same server, and the minimal requirements are only one ES1686dc and one server for it to be operational.
QES is OpenStack Ready to explore out-of-the-box enterprise cloud services
QES supports OpenStack® Cinder and Manila file sharing services. With the QNAP Cinder Driver, the ES1686dc can provide block-level storage space to virtual machines. It not only accelerates the deployment of virtual machines and enhances virtual machine image access efficiency through iSCSI, but it is also easier to integrate into commercial cloud storage platforms, providing businesses with a flexible, easy-to-use, and low-cost storage solution.
What is the price of QNAP ES1686dc-2142IT-128G Network Storage In Bangladesh?
The price of QNAP ES1686dc-2142IT-128G Network Storage starts from 2,330,000 . The price may vary due to your customization and product availability. You can buy QNAP ES1686dc-2142IT-128G Network Storage from our website or visit our showrooms nearby.
