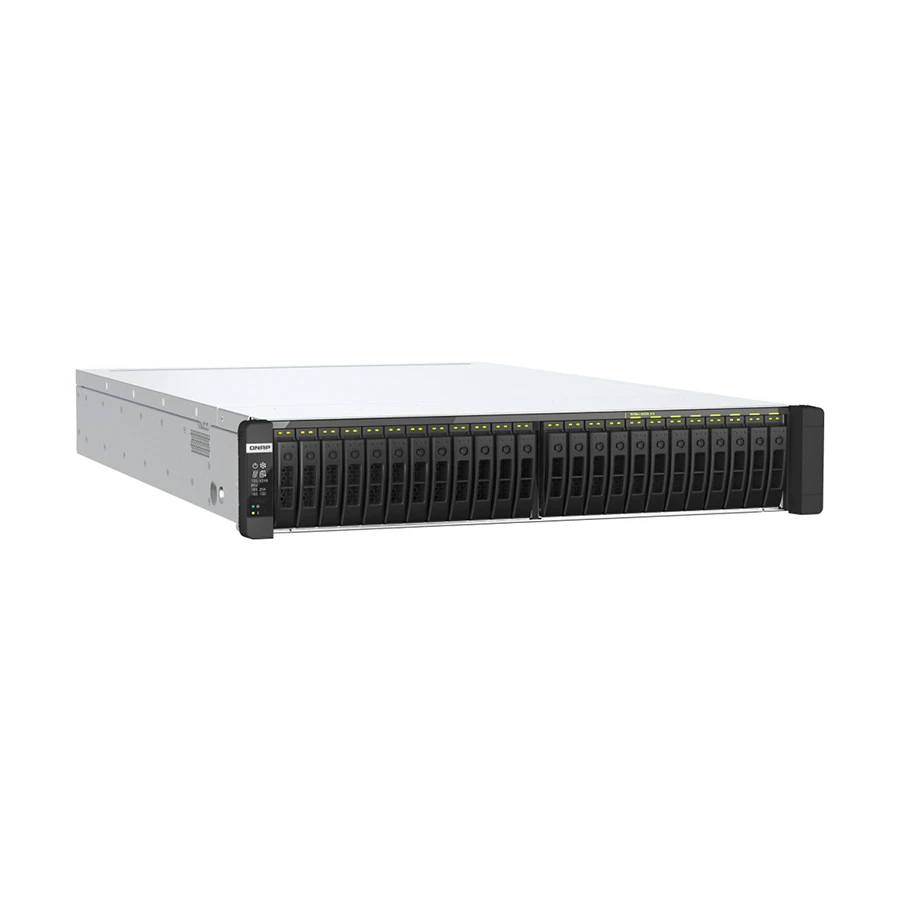

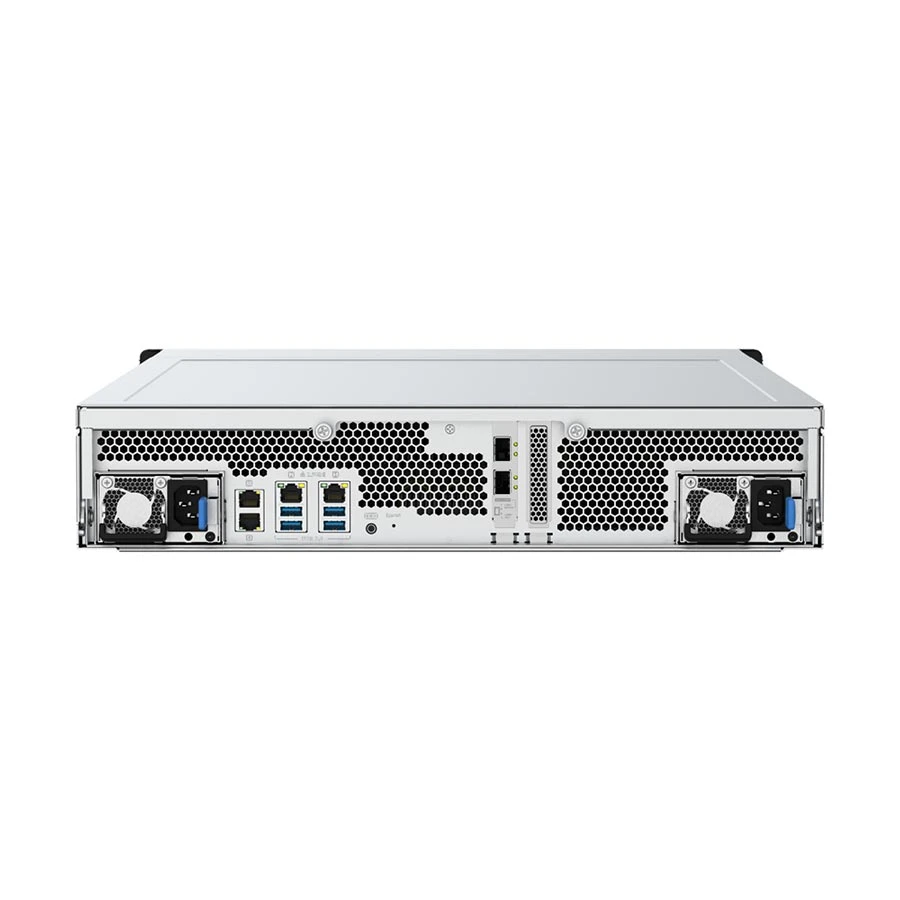

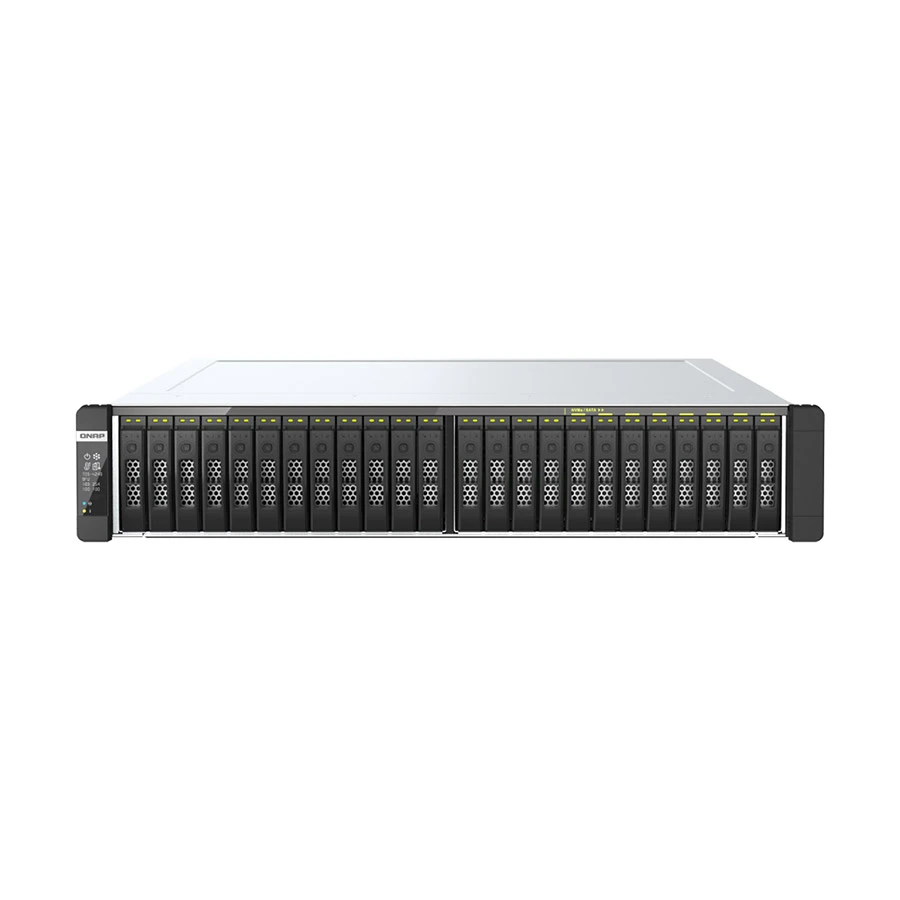

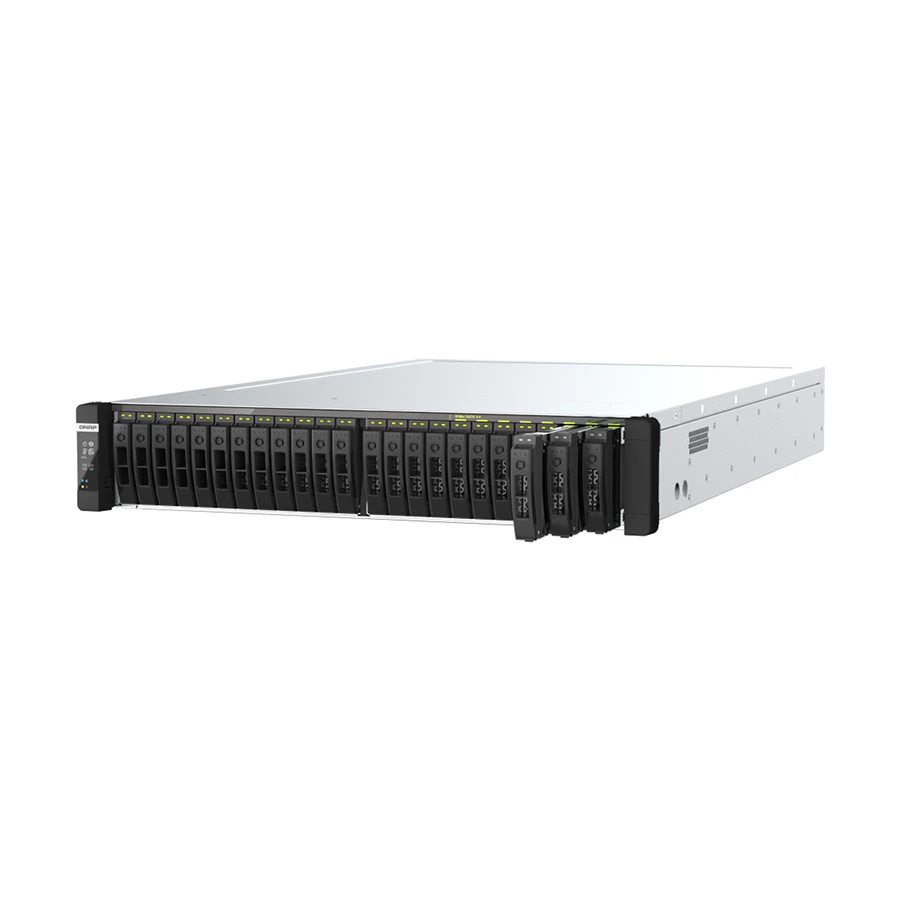

QNAP TDS-h2489FU-4314-256G 24 Bays NAS Storage 2U Rackmount Network Storage (5 Year Warranty)
Product Id: 29.07.535.60
Brand
Qnap
Special Price
Tk 2,580,000 (Estimated)
Tk 2,580,000 (Estimated)
Regular Price
Tk 2,793,880 (Estimated)
EMI TK 232,824
Delivery in 30 days
Quick Overview
- Bays - 14 BAY
- Lan Port - 4 x Gigabit Lan
- Max. Capacity - 250TB
- Processor Model - 2 x Intel Xeon Silver 4314 16-core/32-thread processor, up to 3.4 GHz
- RAM - 256GB
Additional Info
Brand
QNAP
Model
QNAP TDS-h2489FU-4314-256G
Processor Model
2 x Intel Xeon Silver 4314 16-core/32-thread processor, up to 3.4 GHz
RAM
256GB
Bays
14 BAY
Drive Type
SATA/U.2 NVMe 2.5 Inch SSD
Max. Capacity
250TB
Display
Yes
Lan Port
4 x Gigabit Lan
Dimensions
88.3 x 446.2 x 713.2 mm
USB Port
4 x USB Type-A 3.2 Gen 1
Feature
Supported Browsers:Apple Safari (latest version). Google Chrome (latest version). Microsoft Edge (latest version). Mozilla Firefox (latest version). Storage Pool. SED Storage Pool. Volume Type: Thick, Thin, Static. JBOD Expansion.VJBOD / VJBOD Cloud . iSCSI Service. Fibre Channel Service LUN Type: Thick, Thin. File-based iSCSI LUN. Block-based iSCSI LUN LUN feature: LUN Mapping (LUN can be moved between iSCSI and FC) LUN Masking. WWPN Aliases Import/ExportFC Port Group. FC Port Binding. Multipath IO (MPIO). Online LUN capacity expansion LUN snapshot. LUN snapshot replication and clone Auto Tiering. RAID Type: 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10. 2-bay: JBOD, Single, RAID 0, 1. RAID Group.RAID Level Migration. RAID Expansion (by adding Disk). RAID Expansion (by replacing bigger Disks). Storage Pool Expansion (by adding RAID Group) RAID Hot Spare: Global, Local File Server: File sharing across Windows, Mac, and Linux/UNIX Microsoft networking (CIFS/SMB). Apple networking (AFP). NFS version 3/4 services FTP Server: QuFTP, FTP, SFTP and TFTP protocols, FTP over SSL/TLS (explicit FTPS), FXP support Advanced folder permission:, (AFP, CIFS/SMB, FTP, and File Station) Network access protection with auto-blocking : SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
Others
CPU Architecture: 64-bit x86 Flash Memory: 5GB (Dual boot OS protection) M.2 Slot: Slot 1: M.2 2280 NVMe PCIe Gen 3 x4 or SATA 6Gb/s. Slot 2: M.2 2280 NVMe PCIe Gen 3 x2 or SATA 6Gb/s 25 Gigabit Ethernet Port: 2 x 25GbE SFP28 SmartNIC port PCIe Slot: Slot 1: PCIe Gen4 x16, Slot 2: PCIe Gen4 x8 LED Indicators: SSD, Status, Power, Fan, Temperaure, Power Module Status, Device Name, IP Address Buttons: Power, Reset, OLED Weight (Net): 22.77 kg Operating Temperature : 0 degree C - 35 degree C (32 degree F - 95 degree F), Storage Temperature: -20 degree C - 70 degree C (-4 degree F - 158 degree F) Relative Humidity: 5-95% RH non-condensing, wet bulb: 27 degree C (80.6 degree F) Power Supply Unit: 1200W PSU(x2), 100-240Vac Max Wattage:1200W@200-240Vac, 1000W@100-127Vac Power Consumption: Operating Mode, Typical: 467.59 W. Fan:6 x 60mm, 12VDC System Warning: Buzzer Supported Client Operating Systems: Apple Mac OS 10.10 or later Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux. IBM AIX 7, Solaris 10 or later UNIX Microsoft Windows 7, 8, 10 and 11. Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022. Internet protocol: IPv4, IPv6
Warranty Details
5 Year
Country Of Origin
Taiwan
Made in/ Assemble
Taiwan
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of QNAP TDS-h2489FU-4314-256G Network Storage In Bangladesh

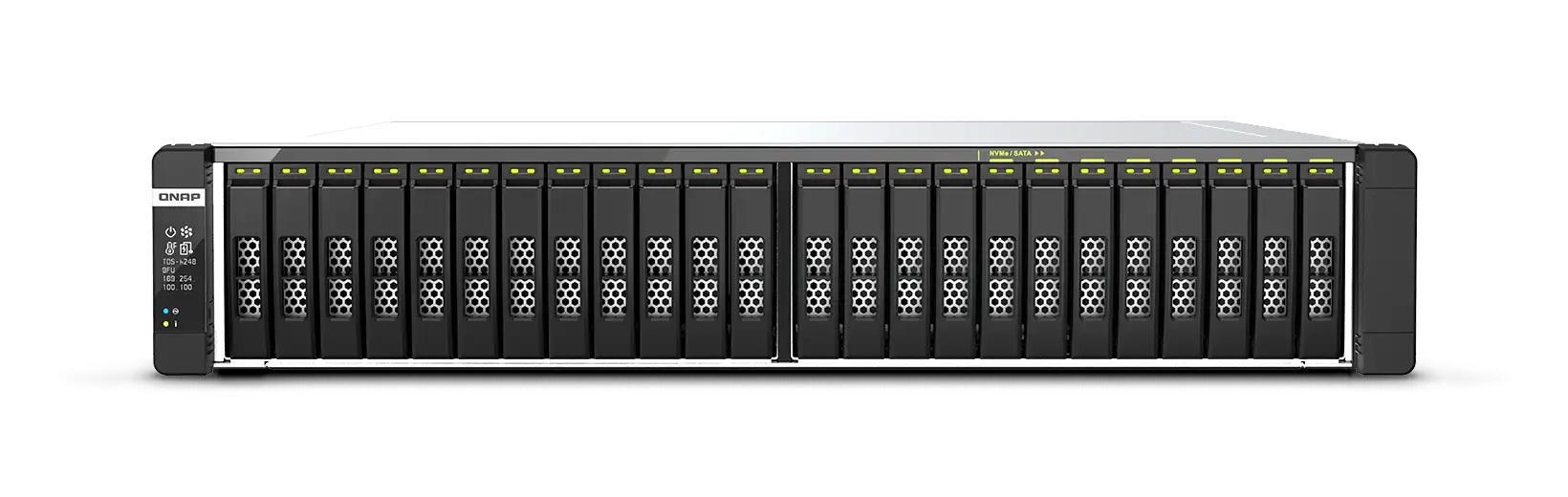

TDS-h2489FU
Dual-processor (2 x 8 Cores & 2 x 16 Cores) NVMe all-flash ZFS storage built for latency-sensitive file servers, virtualized workloads, and 4K/8K streams
(Supports QuTS hero or QTS operating system)
Build high-performance storage infrastructure for IOPS-demanding applications
Virtualization
Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI).
Data Centers
Delivers ultra-low latency and high IOPS performance, providing response times within microseconds for data centers that host significant business-critical systems and data.
Media and Entertainment (M&E) production
Satisfies smooth 4K/8K media streaming and post-production, empowering multimedia workflows with faster data transfer, access, and backup for boosted efficiency.
M.2 PCIe/SATA slots for SSD cache acceleration or enhanced AI image recognition
To attain optimal I/O and reduce latency, you can configure SSD caching by using either 2.5-inch SSDs or two M.2 2280 SSDs (NVMe PCIe Gen 3 or SATA 6 Gb/s, sold separately) in the TDS-h2489FU. You can implement durable data center SSDs to enhance ZIL protection along with the QuTS hero Dedicated ZIL – SLOG. Extra M.2 SSD slots can also be added by installing QM2 PCIe cards. The M.2 PCIe slots also allow for installing a Coral M.2 Accelerator with Edge TPU, providing an affordable solution to leverage AI acceleration for faster image recognition in your NAS applications.

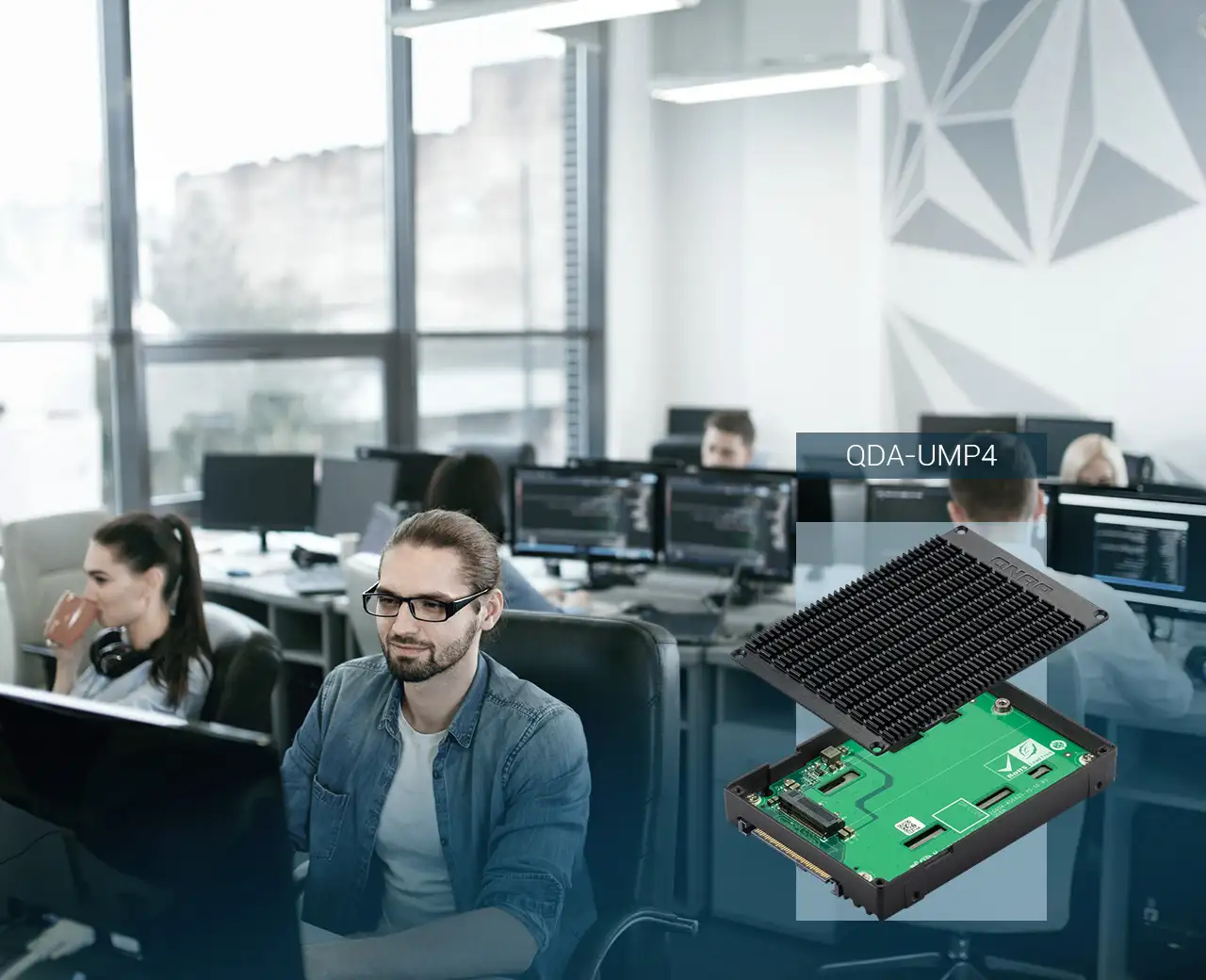

Leverage the M.2 PCIe NVMe SSD to U.2 Adapter
Install one or more QDA-UMP4 adapter in the TDS-h2489FU to maximize PCIe bandwidth utilization in a cost-effective way by using M.2 PCIe 4.0 x4 NVMe SSD instead of the U.2 SSD for optimizing data-intensive applications. It can also boost IOPS performance when configuring SSD caching. Users can monitor drive health and manage SSD usage from the QTS Storage & Snapshots Manager. The M.2 SSD installed in the QDA-UMP4 is hot swappable.
Multiple PCIe Gen 4 slots for flexible expansion
The TDS-h2489FU is equipped with two PCIe Gen 4 slots (one slot comes with a pre-installed dual-port 25GbE NIC) which delivers twice the I/O performance of PCIe Gen 3 for expanding NAS application potential.

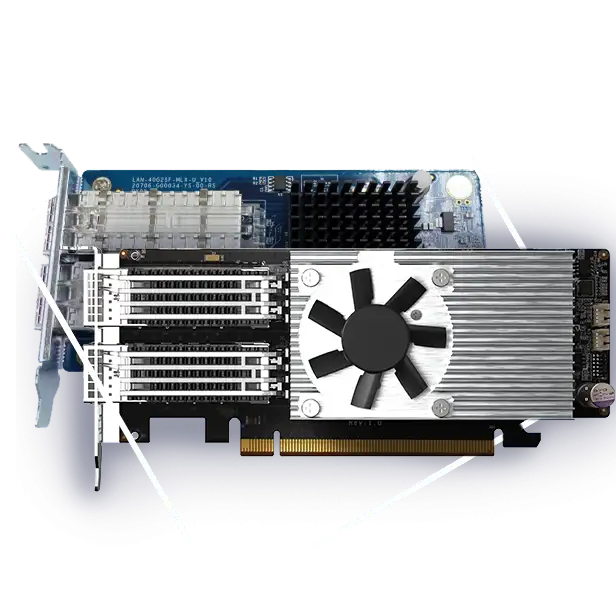

10/25/40/100GbE network card
Enable lightning-fast throughput for bandwidth-hungry tasks(such as virtualization, massive data transmission, and fast backup- restoration

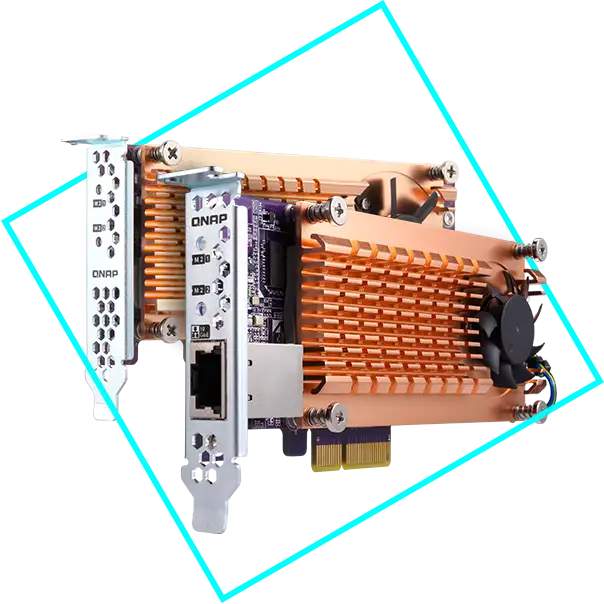

QM2 cards
Add m.2 caching or 2.5GbE/10GbE connectivity for optimized performance or bandwidth

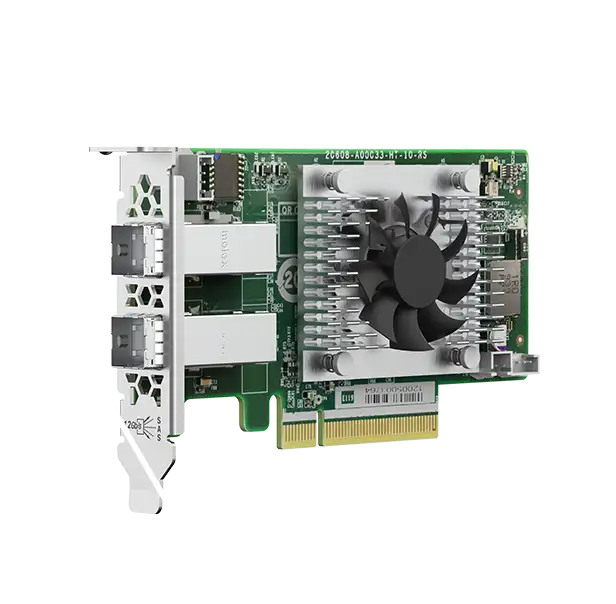

SAS/SATA storage expansiomn cards
Designed for connecting the TDS-h2489FU to SAS 12Gb/s expansion units for petabyte-scale storage capacity

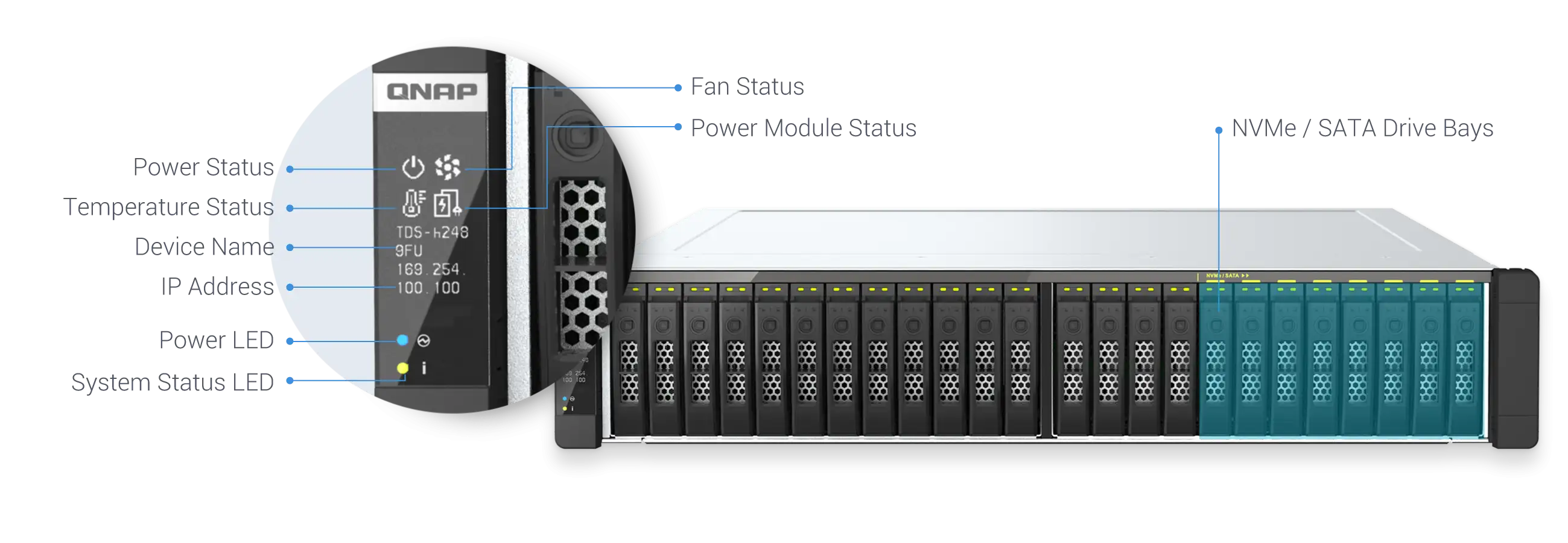

OLED display for system status
ZFS-based QuTS hero operating system enhances NAS performance and data integrity

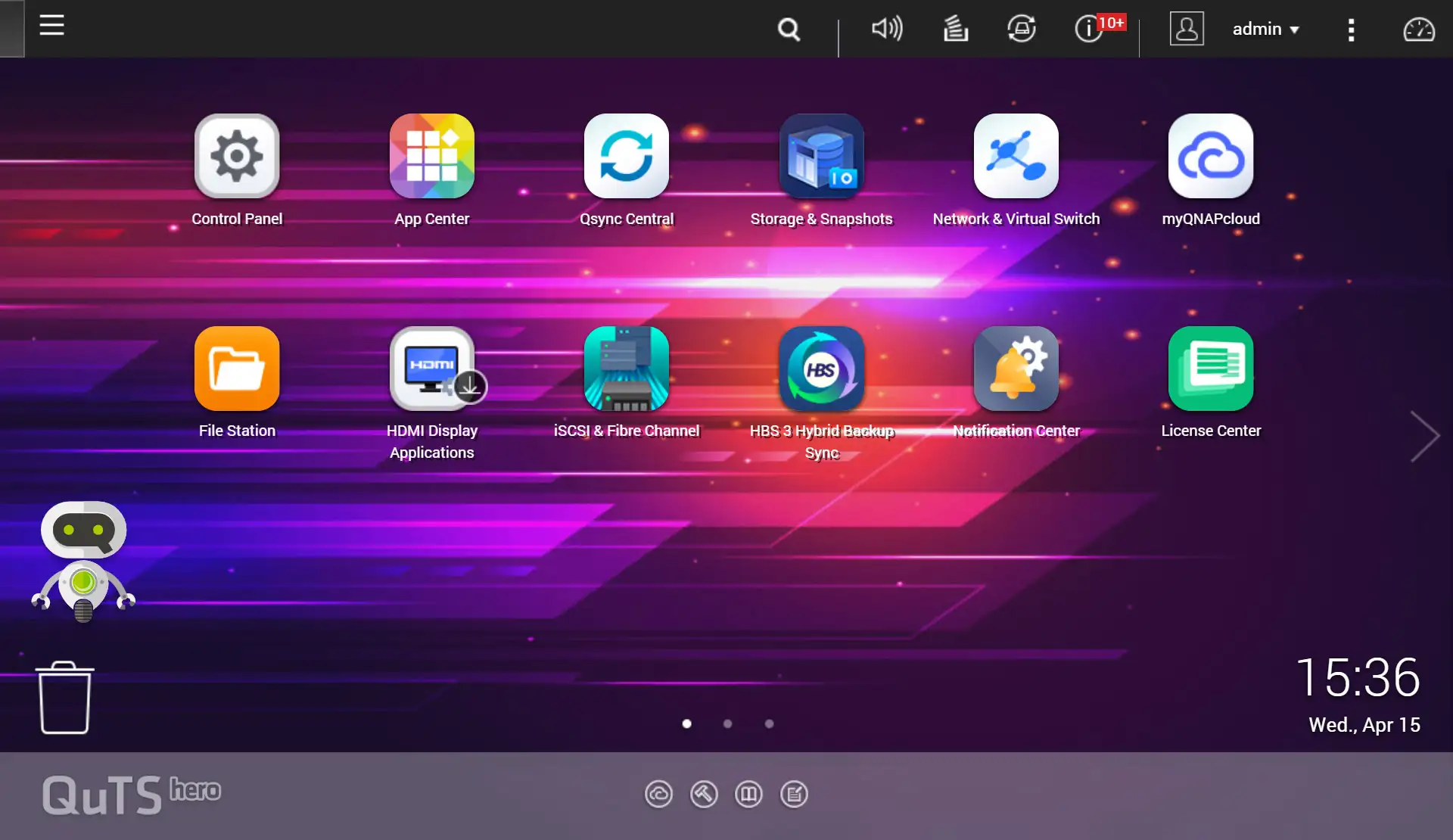

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Reliable, high-performance storage for virtualization
The TDS-h2489FU supports block-based iSCSI LUN as a reliable, high-performance, and affordable storage solution for mainstream virtualization environments. It supports VMware® VAAI and Microsoft® ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively.
The best file storage and collaboration center
The TDS-h2489FU integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.

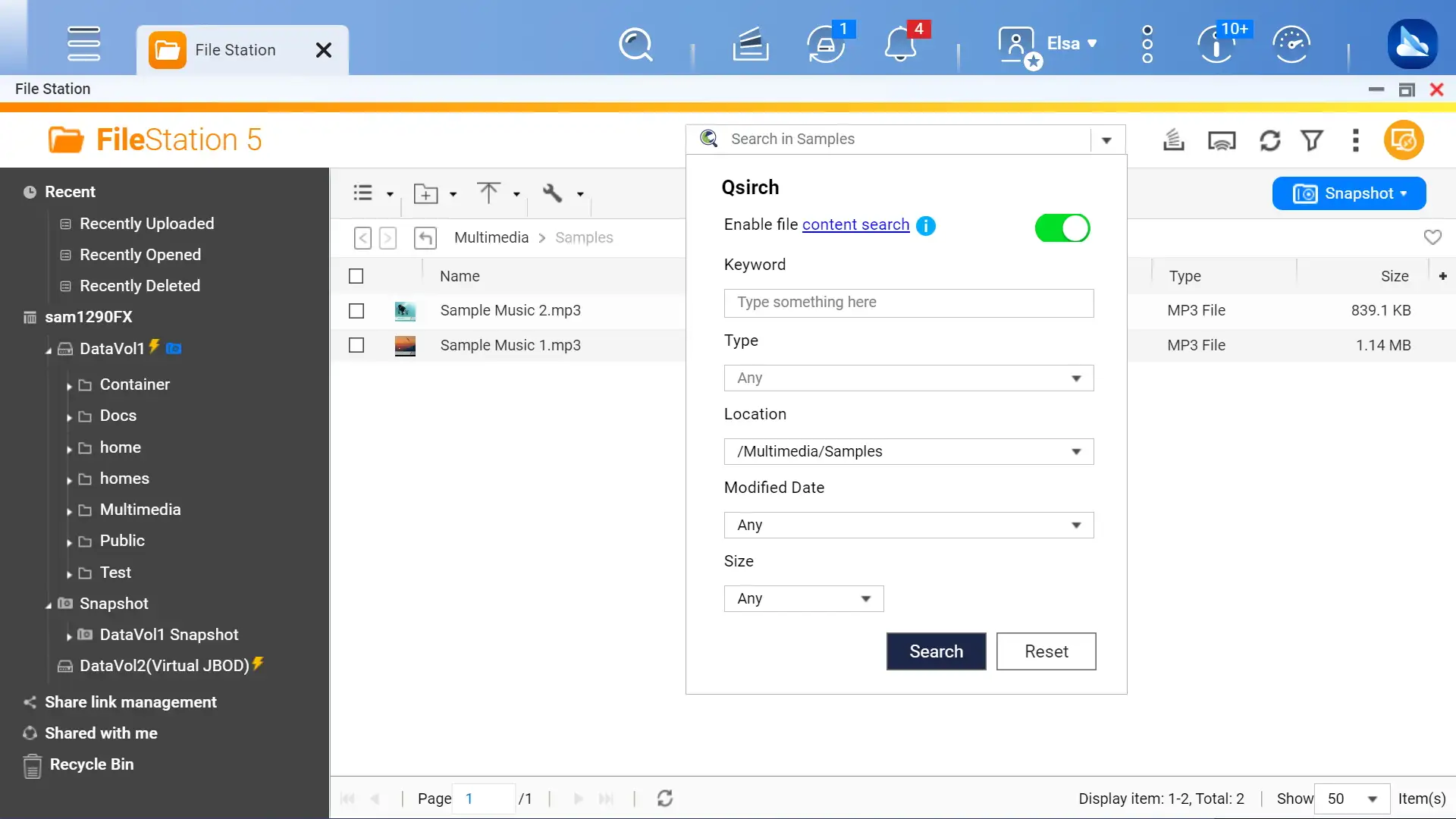

File Station
Manage, access, and share all the files in the TDS-h2489FU and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.

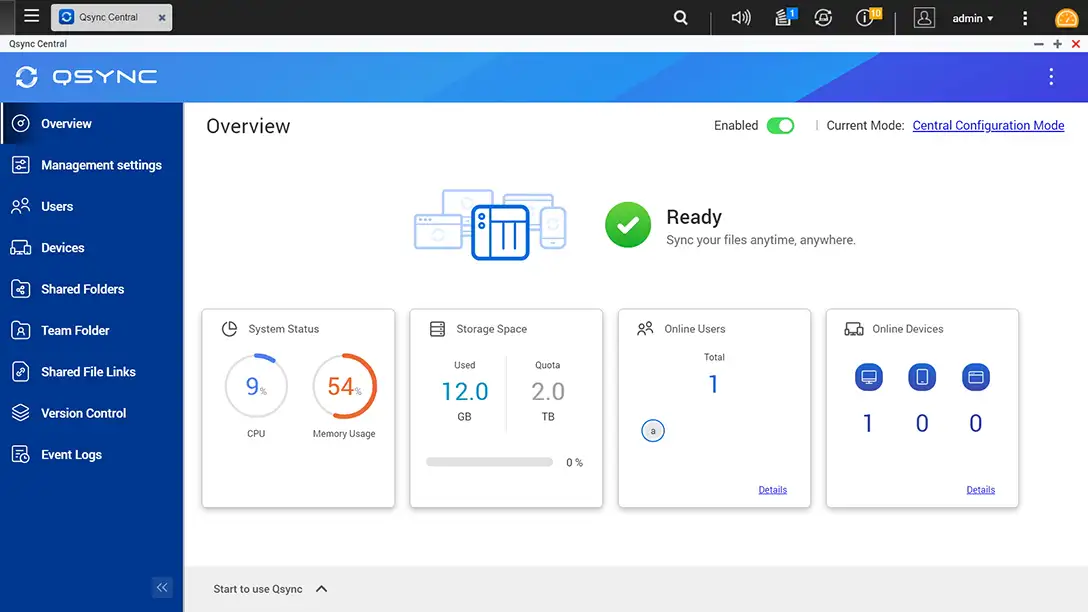

Qsync
Make any file uploaded to a TDS-h2489FU available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.

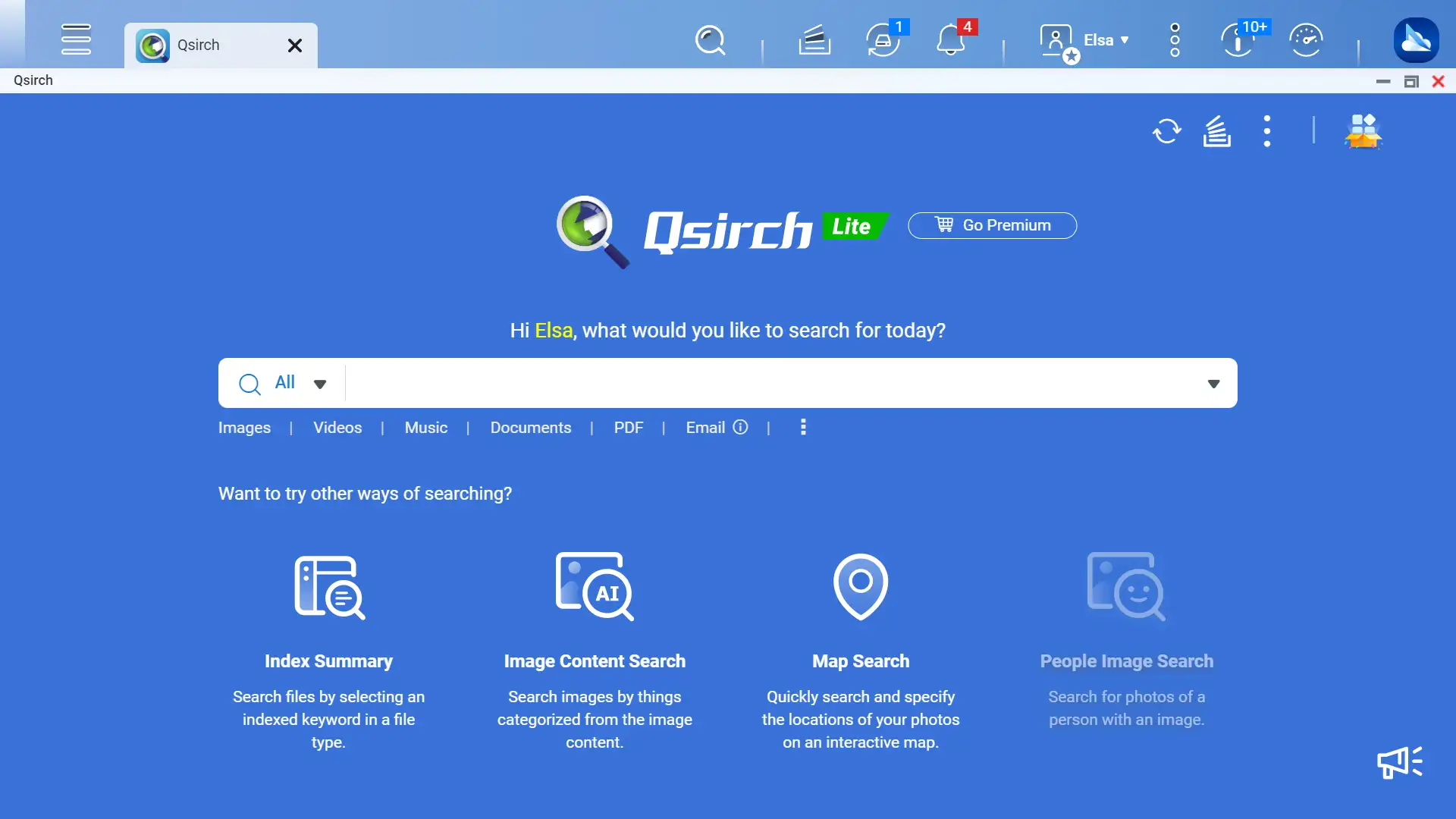

Qsirch
QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

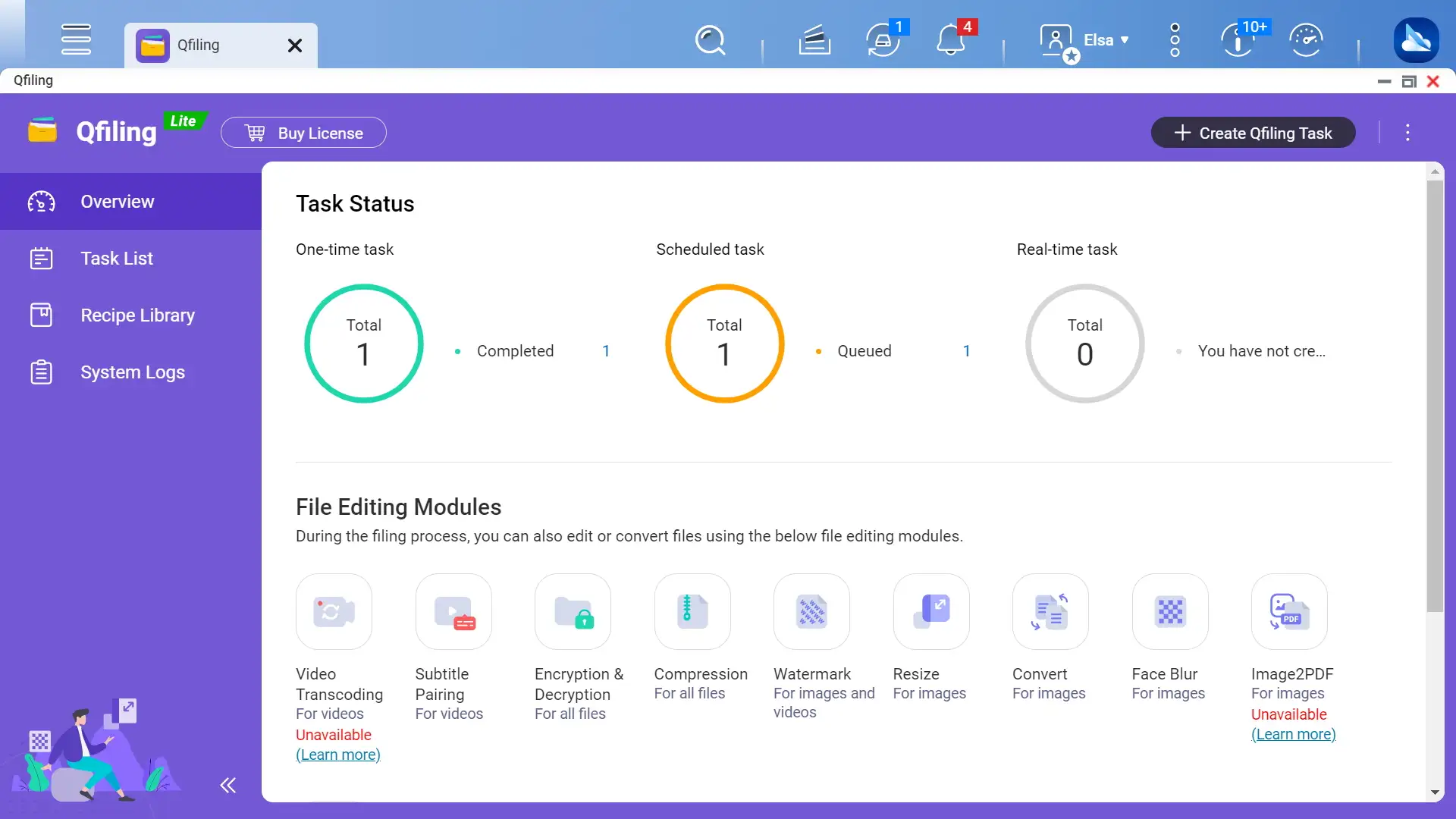

Qfiling
Automate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.

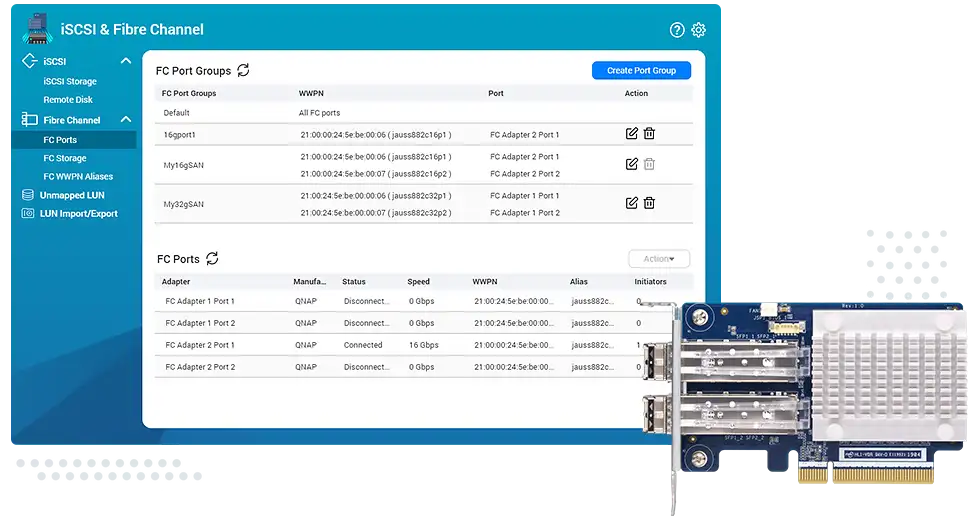

Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TDS-h2489FU, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

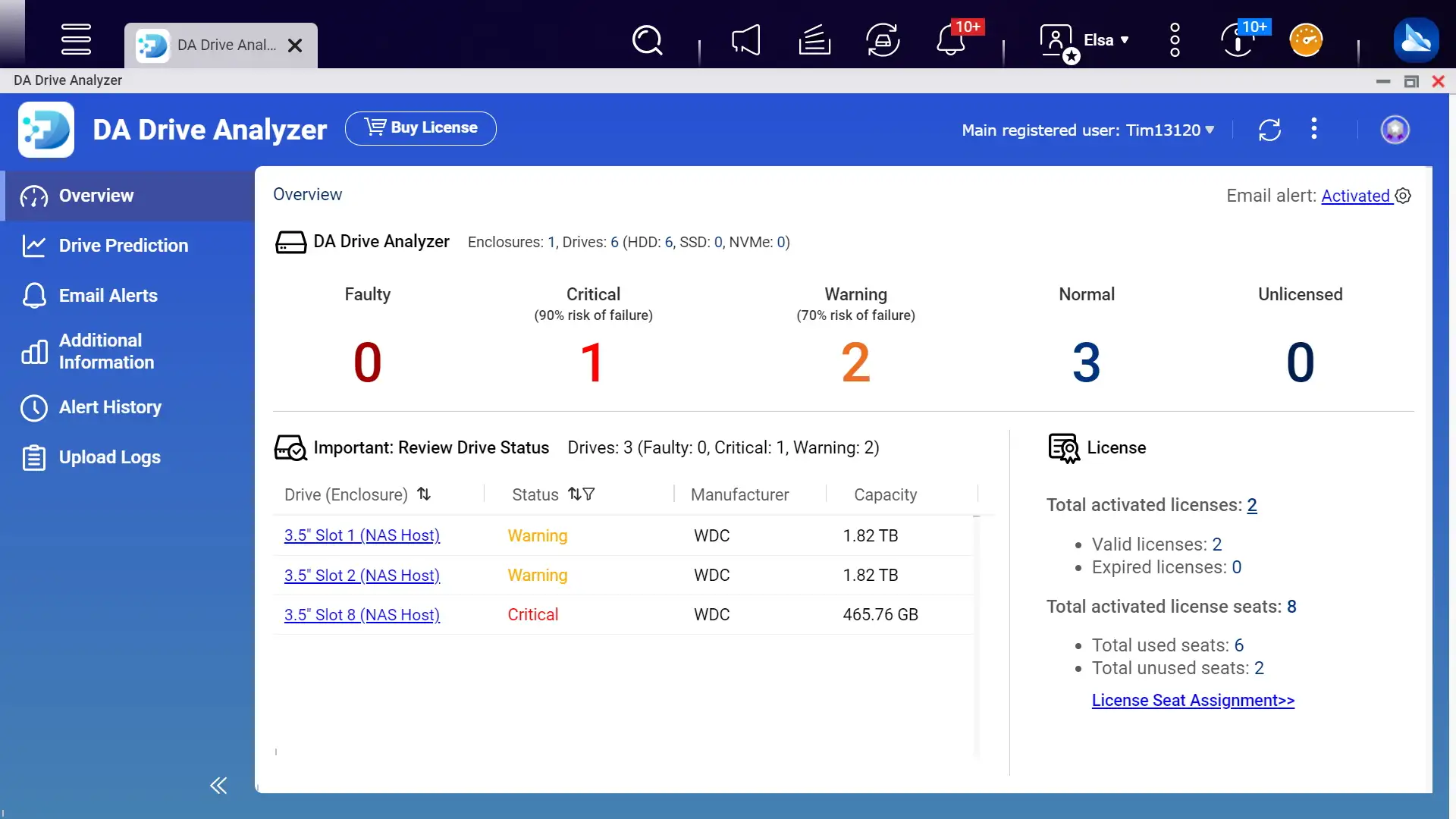

DA Drive Analyzer
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.

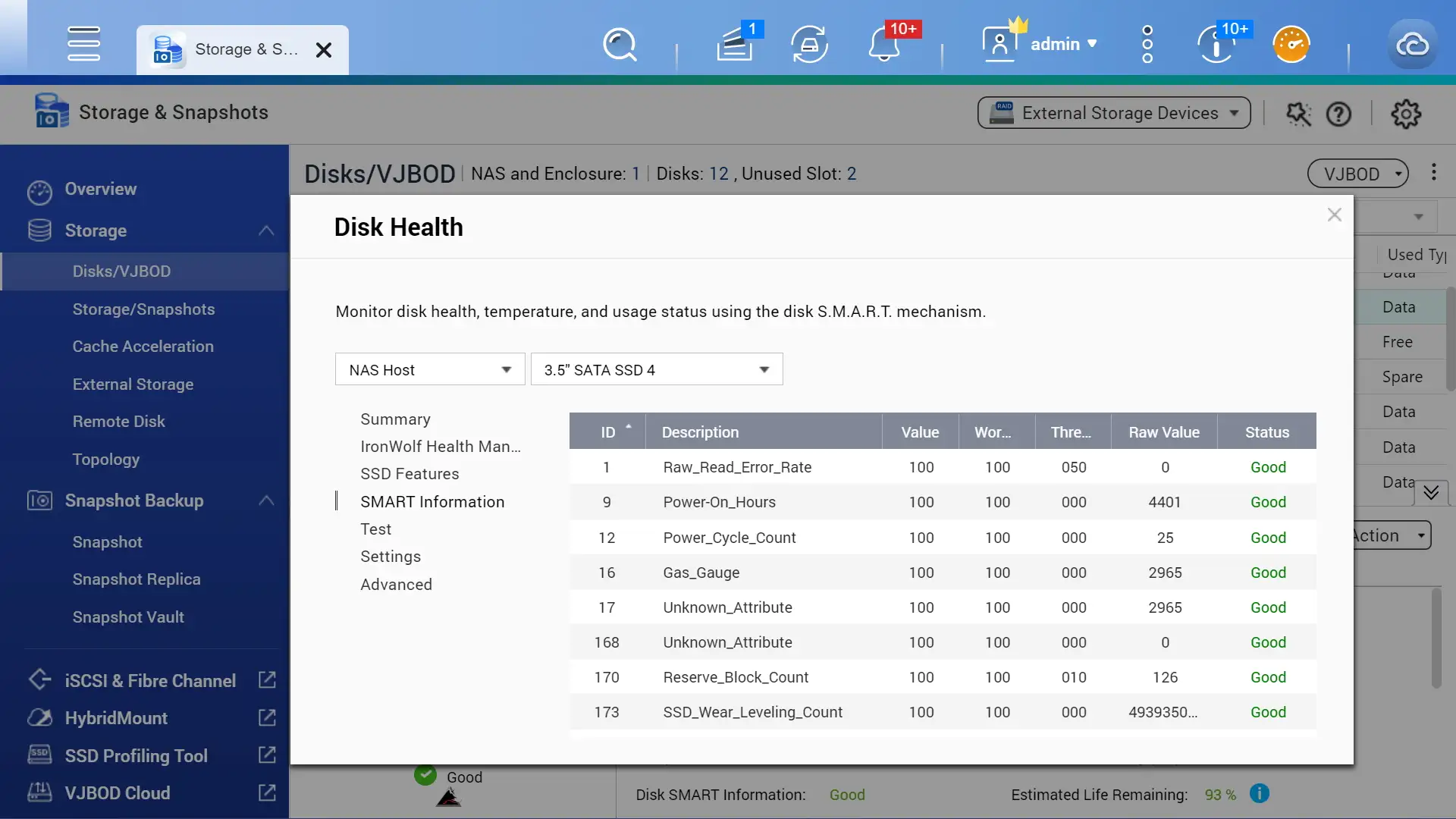

A health check for your hard drives
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.
S.M.A.R.T. and back block scanning
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.
Flexibly switch to QTS operating system
The TDS-h2489FU also supports QTS - QNAP’s standard NAS operating system – that provides great everyday performance, efficient memory utilization, and the advantage of Qtier auto-tiering. You can also migrate drives from your current QTS-based NAS to the TDS-h2489FU.
What is the price of QNAP TDS-h2489FU-4314-256G Network Storage In Bangladesh?
The price of QNAP TDS-h2489FU-4314-256G Network Storage starts from 2,580,000 . The price may vary due to your customization and product availability. You can buy QNAP TDS-h2489FU-4314-256G Network Storage from our website or visit our showrooms nearby.
