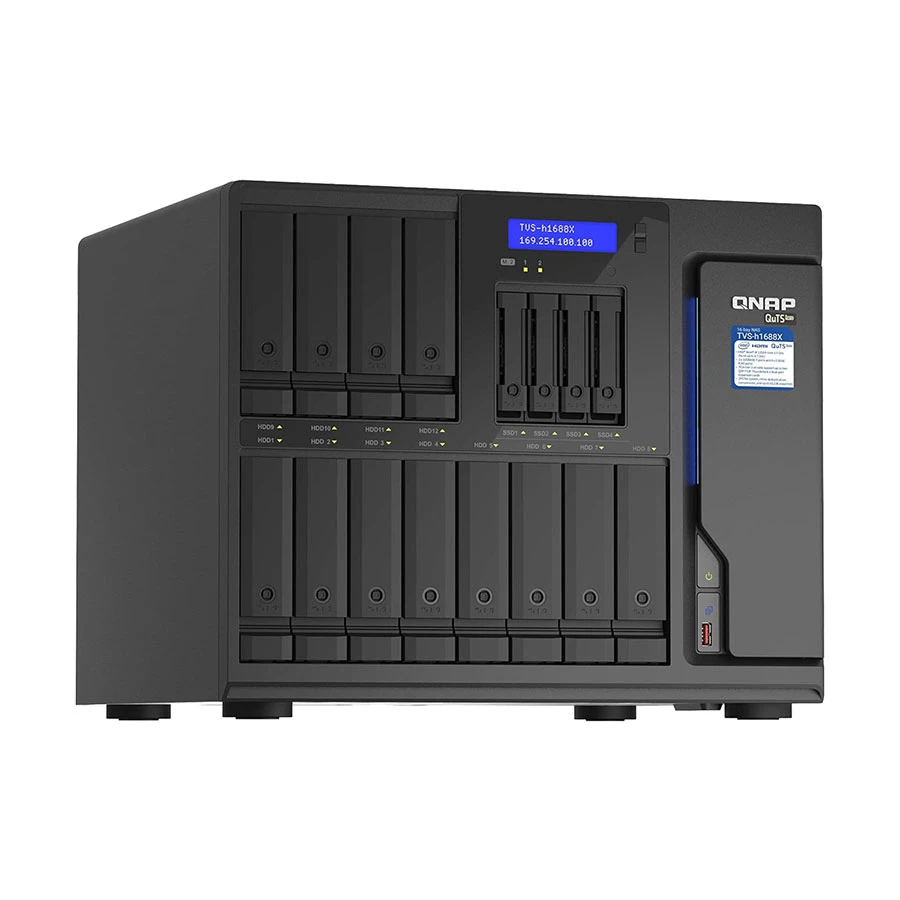

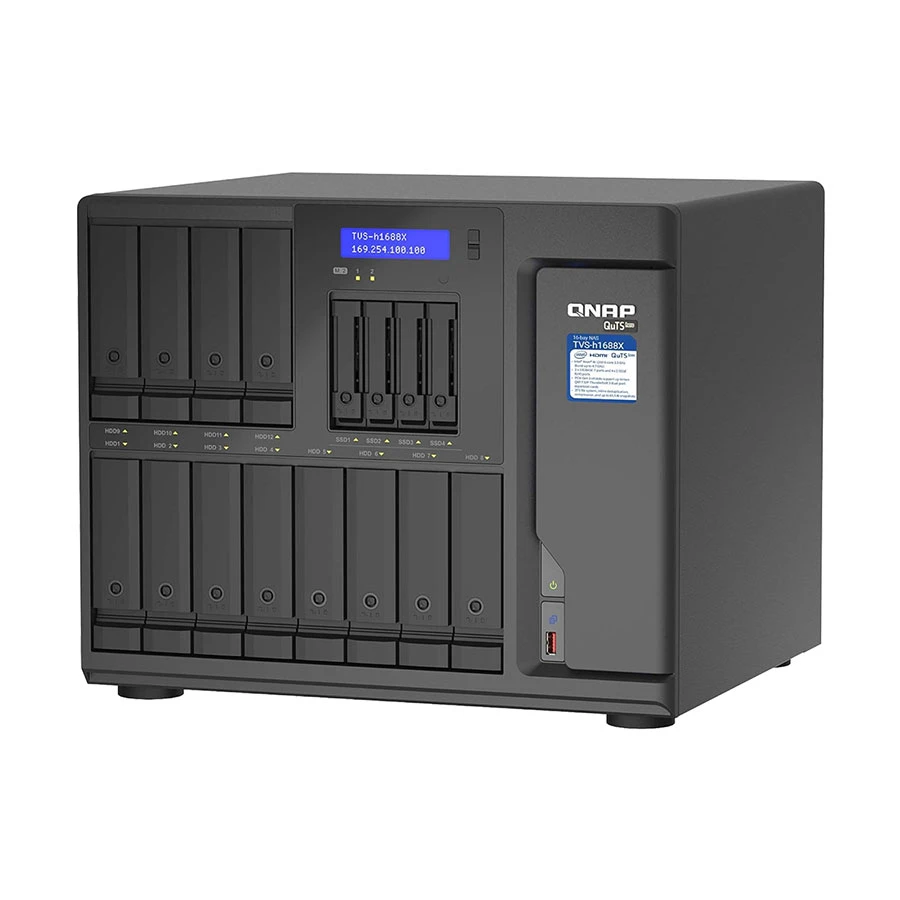

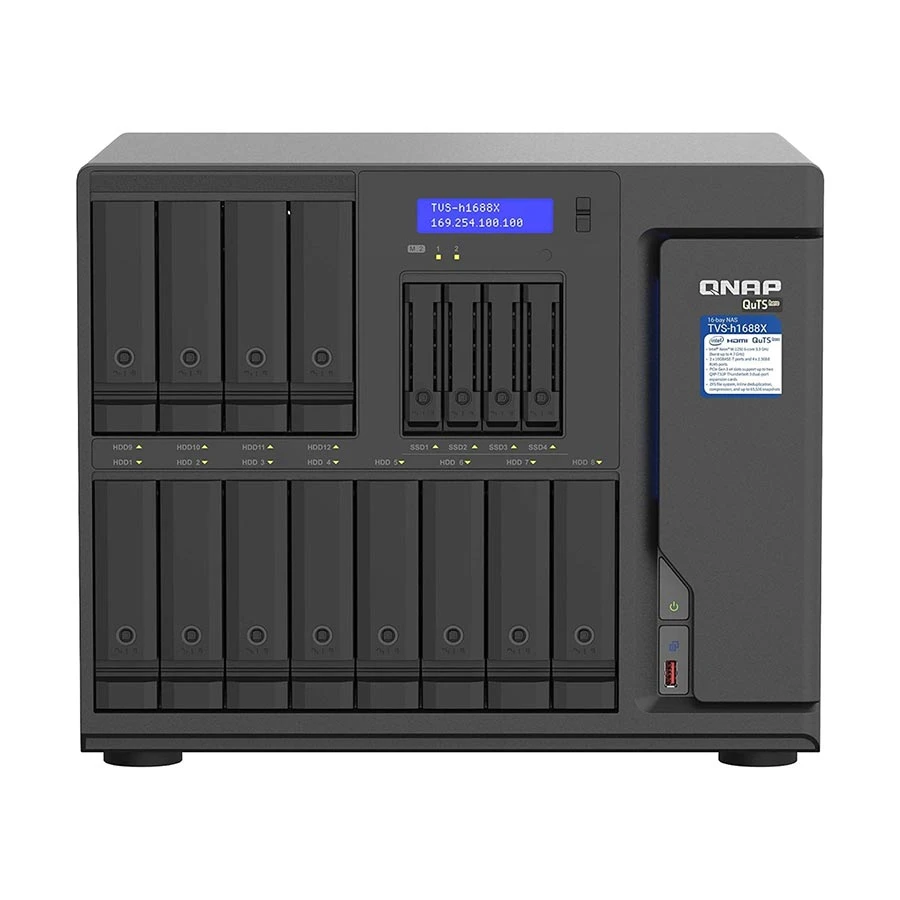

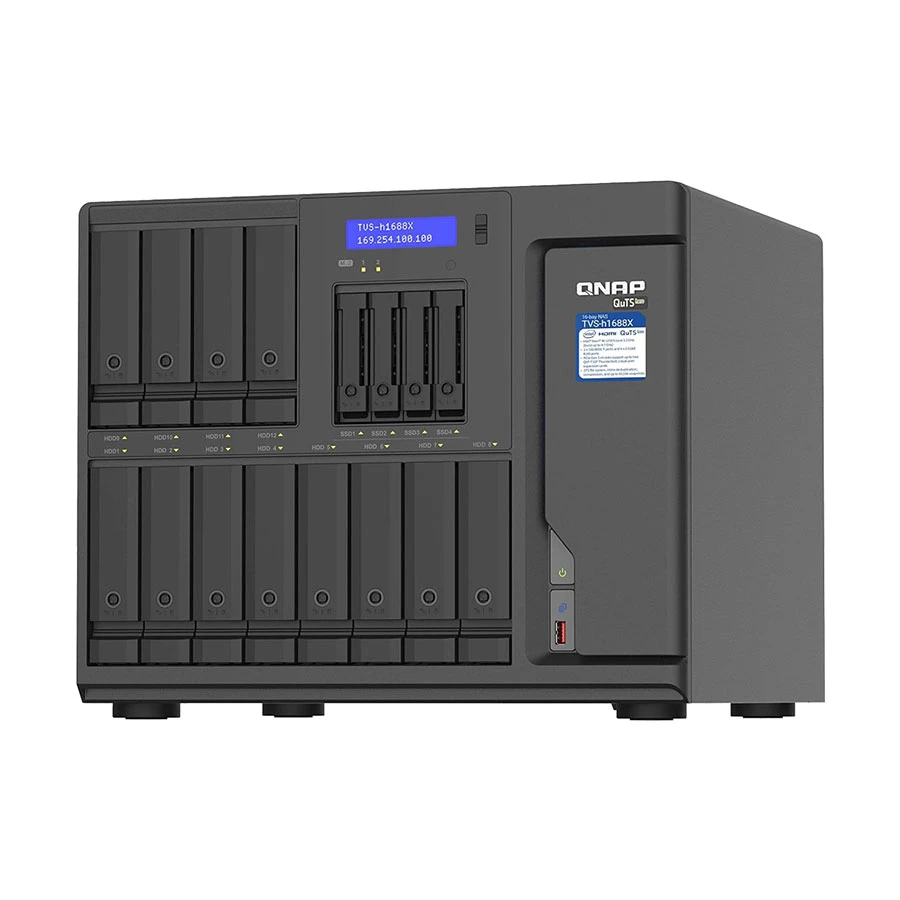

QNAP TVS-h1688X-W1250-32G 32GB RAM Network Storage (3 Year Warranty)
Product Id: 29.07.535.105
Brand
Qnap
Special Price
Tk 575,000 (Estimated)
Tk 575,000 (Estimated)
Regular Price
Tk 620,620 (Estimated)
EMI TK 51,719
Delivery in 30 days
Quick Overview
- Bays - 16 BAY
- Lan Port - 6 x Gigabit Lan
- Max. Capacity - 250TB
- Processor Model - Intel Xeon W-1250 6-core 4.70GHz CPU
- RAM - 32GB
Additional Info
Brand
QNAP
Model
QNAP TVS-h1688X-W1250-32G
Processor Model
Intel Xeon W-1250 6-core 4.70GHz CPU
RAM
32GB
Bays
16 BAY
Drive Type
SATA3 HDD/SSD 2.5 or 3.5 Disk & M.2 2280 NVMe SSD
eSATA Port
No
Max. Capacity
250TB
Display
Yes
Lan Port
6 x Gigabit Lan
Dimensions
294.3 x 369.89 x 319.8mm
USB Port
4 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 2 Type-C
Feature
Floating Point Unit, Hardware-accelerated Transcoding, Hot-swappable, SSD Cache Acceleration Support, GPU pass-through, 2 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M), 2 x 10GBASE-T (10G/1G), Wake on LAN (WOL), Jumbo Frame, LCD Display/ Button, Kensington Security Slot.
Others

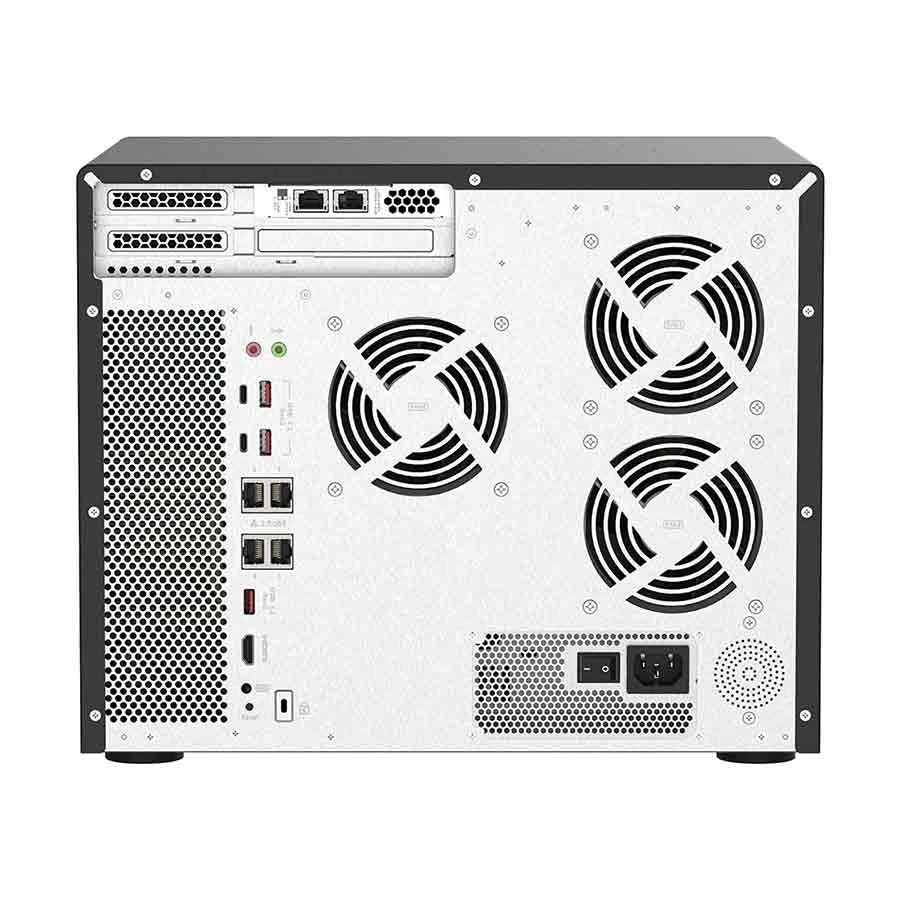

Form Factor: Tower, CPU: 12-thread processor, up to 4.7 GHz 64-bit x86, Graphic Processors: Intel UHD Graphics P630, Encryption Engine: (AES-NI), System Memory: 32GB ECC UDIMM DDR4 (2 x 16GB), Maximum Memory: 128GB (4 x 32GB), Memory Slot: 4 x UDIMM DDR4, Flash Memory: 5GB (Dual boot OS protection), Drive Bay: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s, Drive Compatibility: (3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives), M.2 Slot: 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots, Thunderbolt Port: (Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter), PCIe Slot: 3 (Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x4 Slot 3: PCIe Gen3 x4), HDMI Output: 1, HDMI 1.4b (up to 4096 x 2160 @30Hz), LED Indicators: System status, LAN, USB, Disk 1-16, M.2 SSD 1-2, Buttons: Power, Reset, USB Auto Copy, Weight (Net): 14.49kg, Operating Temperature: 0 - 40 degree C, Storage Temperature: -20 - 70 degree C, Relative Humidity: 5-95% RH non-condensing, Power Supply Unit: 550W PSU, 100-240V, Power Consumption: HDD Sleep Mode 91.26W, Fan: System fan: 3 x 80mm, 12VDC CPU fan: 2 x 97mm, 12VDC, System Warning: Buzzer, Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 10000, Operating System: QTS 5.1.3, Supported Client Operating Systems: (Apple Mac OS 10.10 or later Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux IBM AIX 7, Solaris 10 or later UNIX Microsoft Windows 7, 8, 10 and 11 Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022), Supported Browsers: (Apple Safari (latest version) Google Chrome (latest version) Microsoft Edge (latest version) Mozilla Firefox (latest version)), Supported Languages: ( Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish).
Warranty Details
3 year
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
