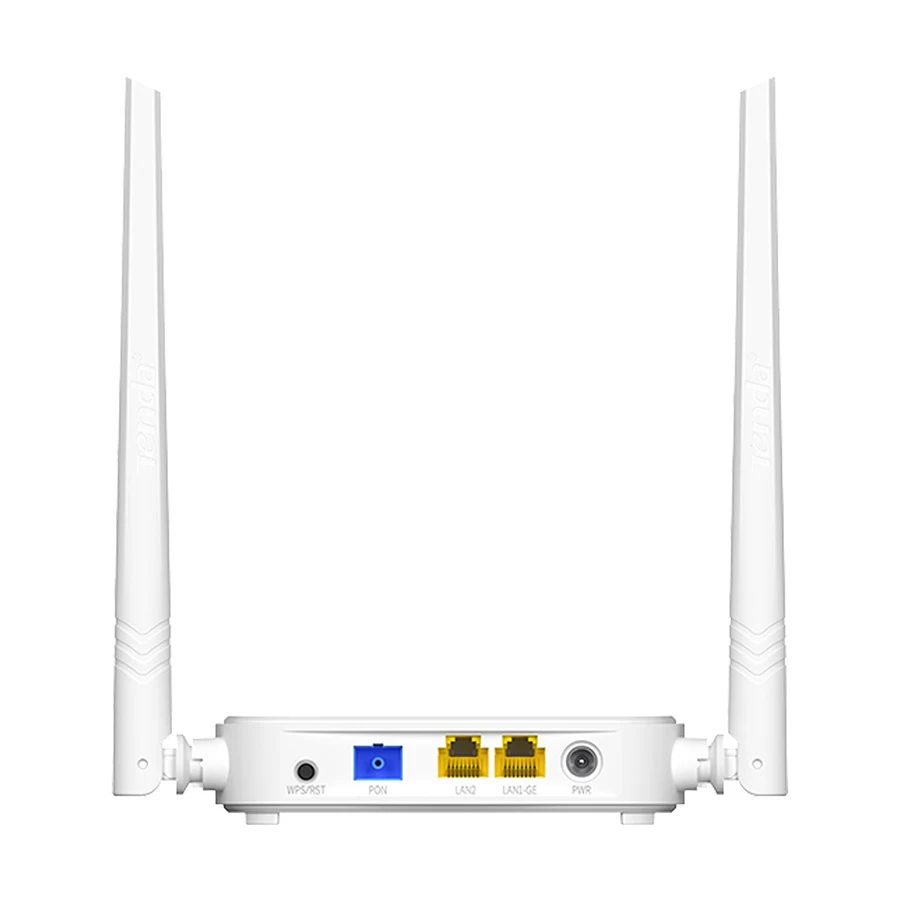

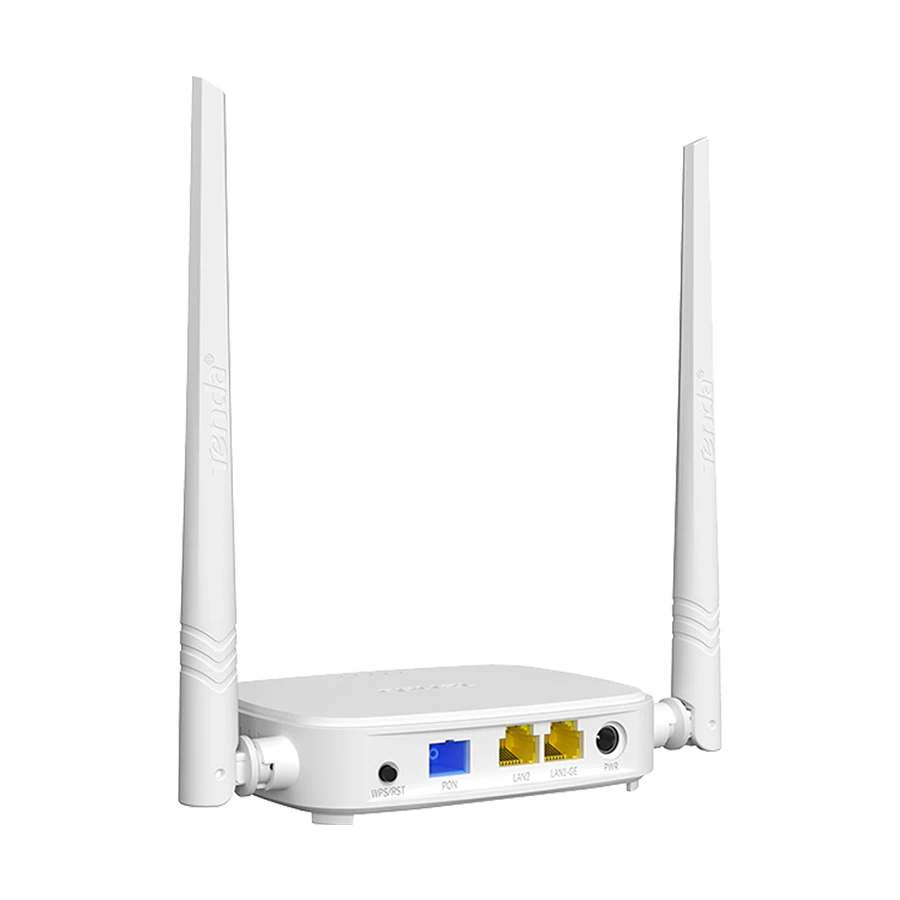

Tenda HG3 Double Port PON Optical Network Terminal (ONU)
Product Id: 29.12.744.34
Brand
Tenda
Special Price
Tk 2,300
Save Extra Tk 100 on online order
Tk 2,300
Regular Price
Tk 2,500
Quick Overview
- Data Transmission Ethernet - Upstream 1.25Gbps Max, Downstream 2.5Gbps Max
- PON Interface - 1 x SC/APC GPON
- PON Port Connector Type - SC/APC
Additional Info
Brand
Tenda
Model
Tenda HG3 N300
PON Interface
1 x SC/APC GPON
PON Port Connector Type
SC/APC
PON Port Transmission Distance
20KM
PON Port Wavelength
Tx 1310nm, Rx 1490nm
PON Port TX Power
0.5 - 5dBm
PON Port Rx Sensitivity
-28 - -8dBm
Ethernet Interface
1 x 1000Mbps RJ45 LAN, 1 x 100Mbps RJ45
Ethernet Interface Transmission Distance
20KM
Data Transmission Ethernet
Upstream 1.25Gbps Max, Downstream 2.5Gbps Max
Network Management
Unmentioned
Power Supply
9V /1A DC
Approx. Power Consumption
<=9W
Operating Temperature
0 Degree C - 45 Degree C
Operating Humidity
10% - 90% (Non-condensing)
Storing/Storage Temperature
-40 Degree C - 70 Degree C
Storing/Storage Humidity
5% ~ 90% (Non-condensing)
Dimension
166.6 x 90.5 x 27mm
Feature
Tenda`s N300 Wireless xPON ONT HG3 is a passive optical network(PON) terminal which is compatible with EPON and GPON ideal for Fiber To The Home solution. Custom batch modification of default configuration, Stable and reliable with the powerful chipset and delicate cooling design, Auto adaptive EPON & GPON, High compatible with OLTs, OAM/OMCI/TR069 Management , Easy Preset, Pre-Configuration, Stable and Reliable, Auto-adaption for Both EPON and GPON Network, 2*5dBi Antenna for Better Wi-Fi Coverage, High Compatible with Worldwide OLTs, Environmental Friendly, IPv6 Supported.
Specialty
It`s an all-in-one device allowing the user to access high-speed internet, IPTV connection via EPON&GPON port and share it wirelessly at 300Mbps wireless 802.11n speeds. HG3 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
Others
IEEE Standards - IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z, PON Standards - GPON: ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4 EPON: IEEE802.3ah, LED Indicator - 1*WPS/RST Button, Button - 1*WPS/RST Button, Optical Mode - Class B+, DHCP Server - PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection, WAN Connection - PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection, Business Type - TR069, Internet, IPTV, IP Version - IPv4, IPv6, Services - DHCP, Dynamic DNS , IGMP Proxy UPnP, VPN Pass-through, PPTP, L2TP, IPsec Pass-through, Firewall - ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding, DMZ, IPv6 - Radvd, DHCPv6, MLD Proxy, MLD Snooping, Diagnostics - Ping, Ping6, Tracert, Tracert6, TR069 - ACS, Connection request, Frequency - 2.4GHz, Bandwidth - 20M/40M, Channel Range - CH1-CH13, Antenna - m2 * 5 dBi Antenna, Easy Client Setup - WPS/RST Button, Speed - 11n 300M, Wireless Functions - Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Security - 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering, SSIDs - Main SSID ,4 Guest SSIDs, Max Terminal Linked - 16.
Warranty Details
1 year
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
QUESTION & ANSWER
Customer Questions
Q:
ata Router na Onu
By Md. Elias Ali
A:
প্রিয় গ্রাহক ,জ্বী এই প্রোডাক্টটি অনু |
By Ryans Computers Ltd.
, 27 May 2024
Q:
Naur dam koto
By Khairul
A:
প্রিয় গ্রাহক, Tenda HG3 Double Port PON Optical Network Terminal (ONU) এর বর্তমান মূল্য ২৩০০ টাকা এখন পর্যন্ত, ধন্যবাদ!
By Ryans Computers Ltd.
, 21 Apr 2024
Q:
1. Can I use two IP connection with this onu?
2. Can I use WiFi router without rj45 wire cable?
By Mohammad Tozammel Hoque
A:
Dear Sir, You can't use two different IP line, and it can't be use Wi-Fi without wire cable, Thanks for your query!
By Ryans Computers Ltd.
, 02 Mar 2024
Q:
এটির মাধ্যমে ২ টি রাউটার একসাথে চালাতে পারবো?
By Nasim
A:
প্রিয় গ্রাহক, জি! একই সাথে দুটি রাউটার ব্যবহার করতে পারবেন, ধন্যবাদ!
By Ryans Computers Ltd.
, 08 Feb 2024
Q:
Is this Device a wifi router also? I mean, can I connect optical fiber in this device and then it will work as wifi router?
By Nazmul
A:
Dear Sir, It just an ONU, it will not work as a router, Thanks for your query!
By Ryans Computers Ltd.
, 22 Nov 2023
Q:
Can I use this device as onu without using router mode.
By FAHIM
A:
Dear Sir, this device is ONU, we couldn't understand your query, please share in details. Thanks for your query!
By Ryans Computers Ltd.
, 19 Oct 2023
Q:
একই সাথে অনু এবং রাউটারের কাজ করবে?
By নাঈমুর রহমান
