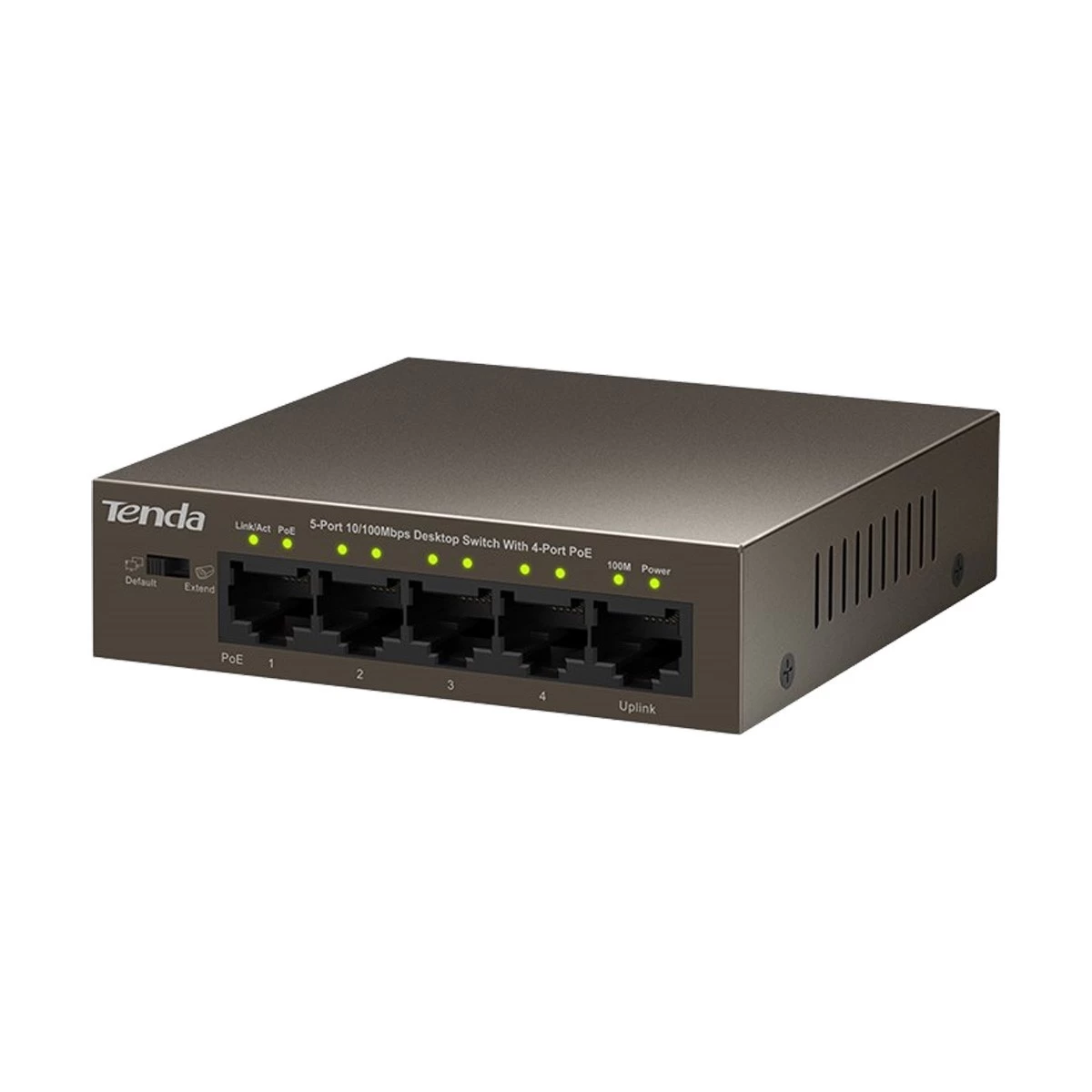

Tenda TEF1105P 5 Port Desktop (4 Port PoE) Switch #TEF1105P-4-63W
Product Id: 29.05.744.02
Brand
Tenda
Quick Overview
- Type - Network Switch
- Number of Total Port - 5 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop/Wall Mounting
General
Brand
Tenda
Model
Tenda TEF1105P
Type
Network Switch
Ports & Slots
Number of Total Port
5 Port
PoE Port
4
Technical Info
PoE
Yes
Manageability
Unmanaged
Interface(s)
4 10/100Base-Tx ports(Data/Power), 10/100Base-Tx port(Data)
Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Data Transfer Rate
10/100 Mbps
Switching Capacity
1 Gbps
Physical Description
Fan/Fanless
Fanless
Indicators
5 x Link/Act per device, 4 x PoE per device, 1 x Power per device
Form Factor
Desktop/Wall Mounting
Dimension
100 x 100 x 26mm
Packet Contents
1 x Tenda TEF1105P, 1 x User manual
Power
Power Supply
AC: 100-240V - 50/60Hz
Approx. Power Consumption
in full configuration: <63W PoE, Max Power Supply: 58W
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
PoE budget: Single port: AF: 15.4W, AT: 30W, Whole device: 58W, MAC address table: 1K, Buffer: 448K, Packet forwarding rate: 0.74Mpps, Interface: 4 10/100Base-Tx ports(Data/Power), 10/100Base-Tx port(Data), exchange capacity: 1 Gbps, PoE supply management: Port 1 to Port 4 support IEEE802.3at/af PoE standard, PoE through pin: 1 2 4 5 +???3 6 7 8 -, Power Input AC???100 - 240V - 50/60Hz, Part no.: TEF1105P-4-63W, Dimension: 100 x 100 x 26 mm
Specialty
TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Tenda TEF1105P Network Switch In Bangladesh
Tenda TEF1105P 5 Port Desktop Switch
TEF1105P-4-63W / Switch / 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.
Born for WLAN And
IP Surveillance
5-Port 10/100Mbps Desktop Switch with 4-Port PoE
6KV Port Lightning Protection
Maximum PoE Output Power 58W
PoE power up to 30W for each PoE port
6KV lighting protection PoE switch
is the real monitoring private switch
In the real project, AP or IP cameras are often installed outdoor or the higher position, which is also increases the risk of cameras and PoE switches impact by the lightning shock .The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis. Tenda TEF11 series switches have the professional lightning protection design -up 6 kv port and power supply thunder prevents , with two levels of protection design respectively, effectively restrain the power of lightning from cable, which equivalent to give the entire network monitoring system with a security fence. The test standard is much higher than the national CE request. In thunderstorms weather, it can also provide monitoring system or local area network stable, reliable service, protect the images transmission be normal.
Up to 250 meters long distance transmission
beyond hundred meters transfer limit
Due to the complex monitoring environment, when making cabling and networking, it very often to encounter the problem of inadequate network transmission distance, the distance of each camera terminal to the monitoring center is different, some only a few meters, some hundred metres, while others are more than kilometers. Tenda TEF11 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the existing twisted pair hundreds meters transmission limit.
150m distance transmission
250m long distance transmission
Brand - Tenda, Model - Tenda TEF1105P, Type - Desktop PoE Switch, Number of Total Port - 5 Port, Interface - 4 10/100Base-Tx ports(Data/Power), 10/100Base-Tx port(Data), Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, Data Transfer Rate (Mbps) - 10/100 Mbps, Switching Capacity - 1 Gbps, Indicator - 5 x Link/Act per device, 4 x PoE per device, 1 x Power per device, Power Supply - AC: 100-240V - 50/60Hz, Power Consumption - in full configuration: <63W PoE, Max Power Supply: 58W, Form Factor - Desktop, Dimension - 100 x 100 x 26mm, Others - Interface: 4 10/100Base-Tx ports(Data/Power), 10/100Base-Tx port(Data), exchange capacity: 1 Gbps, PoE supply management: Port 1 to Port 4 support IEEE802.3at/af PoE standard, PoE through pin: 1 2 4 5 +???3 6 7 8 -, Power Input AC???100 - 240V - 50/60Hz, Part no.: TEF1105P-4-63W, Dimension: 100 x 100 x 26 mm, Specialty - TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device., Part No - TEF1105P-4-63W, Warranty - 1 year
58W PoE power supply
simplified wiring
Ports 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W, whereas each port offers a maximum PoE power output of 30W. The ports can be used to supply power to and exchange data with APs and IP cameras.
Brand - Tenda, Model - Tenda TEF1105P, Type - Network Switch, Number of Total Port - 5 Port, PoE - Yes, Manageability - Unmanaged, PoE Port - 4, Interface - 4 10/100Base-Tx ports(Data/Power), 10/100Base-Tx port(Data), Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, Data Transfer Rate (Mbps) - 10/100 Mbps, Switching Capacity - 1 Gbps, Fan/Fanless - Fanless, Indicator - 5 x Link/Act per device, 4 x PoE per device, 1 x Power per device, Power Supply - AC: 100-240V - 50/60Hz, Power Consumption - in full configuration: <63W PoE, Max Power Supply: 58W, Form Factor - Desktop/Wall Mounting, Dimension - 100 x 100 x 26mm, Others - PoE budget: Single port: AF: 15.4W, AT: 30W, Whole device: 58W, MAC address table: 1K, Buffer: 448K, Packet forwarding rate: 0.74Mpps, Interface: 4 10/100Base-Tx ports(Data/Power), 10/100Base-Tx port(Data), exchange capacity: 1 Gbps, PoE supply management: Port 1 to Port 4 support IEEE802.3at/af PoE standard, PoE through pin: 1 2 4 5 +???3 6 7 8 -, Power Input AC???100 - 240V - 50/60Hz, Part no.: TEF1105P-4-63W, Dimension: 100 x 100 x 26 mm, Specialty - TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device., Part No - TEF1105P-4-63W, Warranty - 1 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
What is the price of Tenda TEF1105P Network Switch In Bangladesh?
The price of Tenda TEF1105P Network Switch not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Tenda TEF1105P Network Switch from our website or visit our showrooms nearby.
