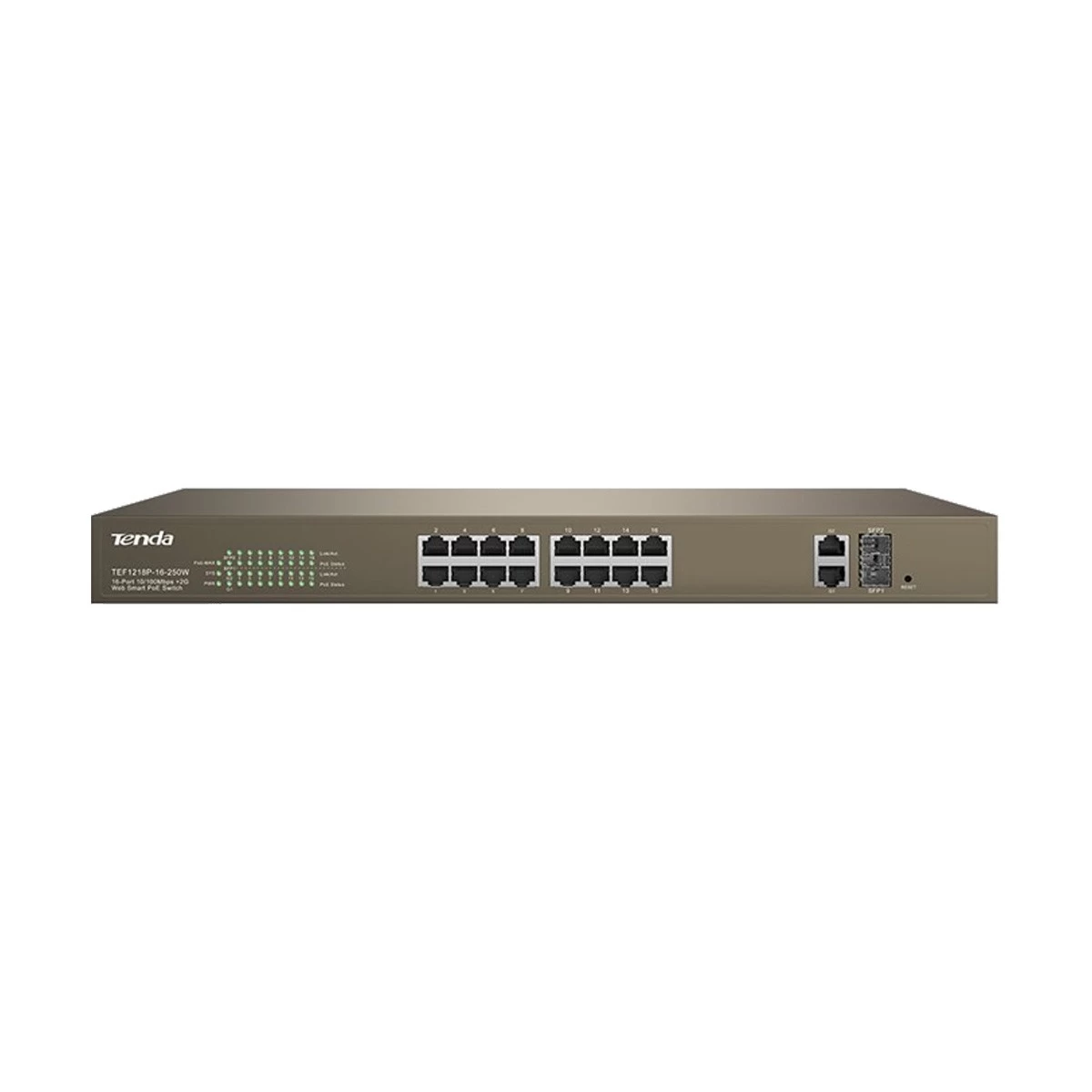

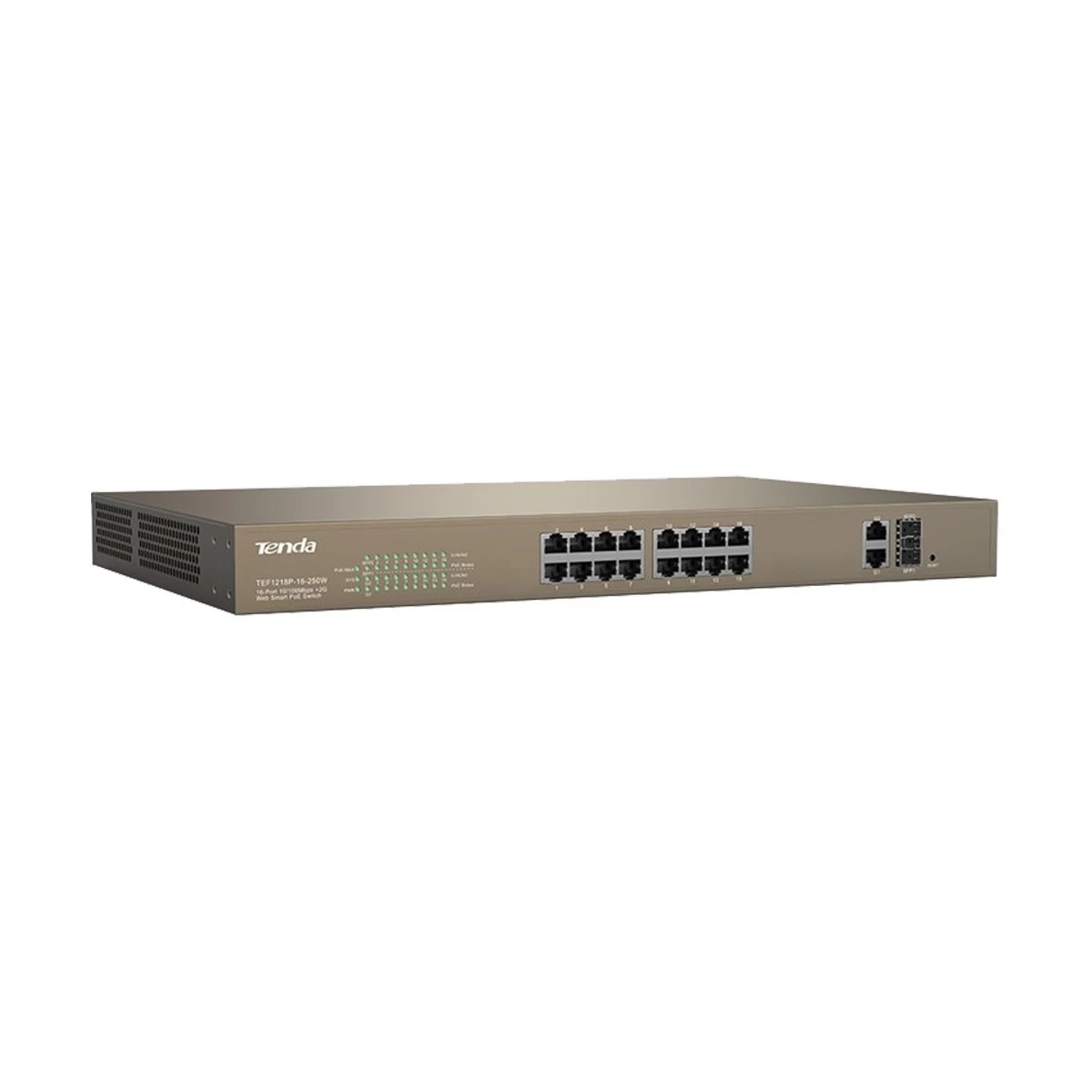

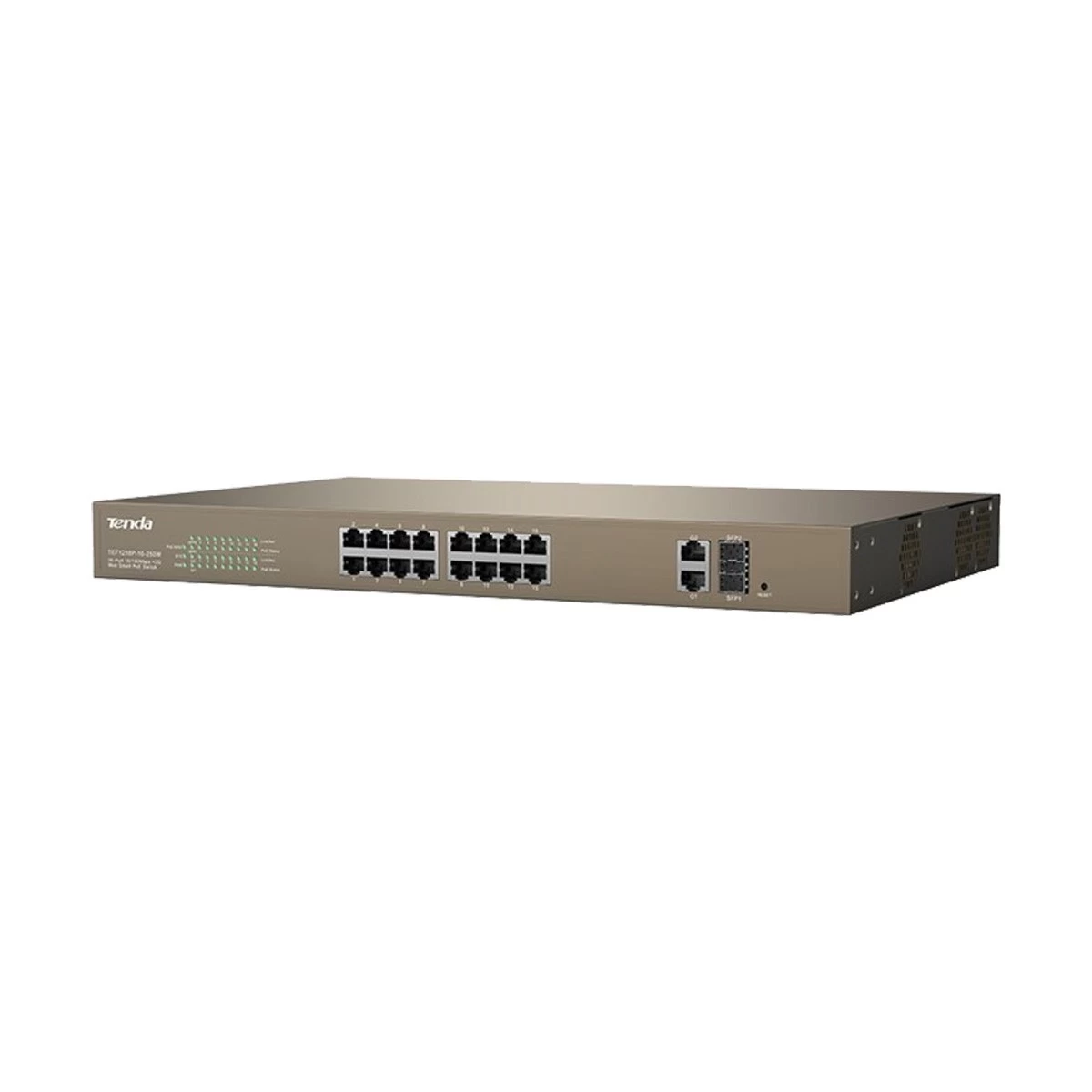

Tenda TEF1218P 18 (16-Port 10/100Mbps + 2 Gigabit) Web Smart PoE Switch #TEF1218P-16-250W
Product Id: 29.05.744.09
Brand
Tenda
Quick Overview
- Type - Network Switch
- Number of Total Port - 18 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3,3u,3z,3ab,3x,1D,1W,1Q,3af,3at
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop/Wall Mounting
General
Brand
Tenda
Model
Tenda TEF1218P
Type
Network Switch
Part No
TEF1218P-16-250W
Ports & Slots
Number of Total Port
18 Port
Gigabit Port
1
SFP Port
1
PoE Port
16
PoE+ Port
No
Technical Info
PoE
Yes
Manageability
Unmanaged
Interface(s)
16 x 10/100 Base-TX Ethernet ports (Data/Power), 2 x 10/100/1000 Base-T Ethernet ports (Data), 1 x 10/100/1000 Base-X SFP port (Combo)
Network Standards
IEEE 802.3,3u,3z,3ab,3x,1D,1W,1Q,3af,3at
Data Transfer Rate
10/100 Mbps
Transmission Method
Store-and-forward
Switching Capacity
7.2 Gbps
Physical Description
Fan/Fanless
1
Indicators
16 x Link/Act LEDs, 1 x G1 LED, 1 x G2/SFP2 LED, 1 x PoE-MAX LED, 1 x Power LED, 1 x SYS LED
Body Color
Gray
Form Factor
Desktop/Wall Mounting
Dimension
440 x 178.8 x 44mm
Packet Contents
1 x Tenda TEF1218P, 1 x User manual
Power
Power Supply
100-240V AC 50/60Hz
Approx. Power Consumption
250W output the whole device
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Transmission media: Recommended: CAT5/5e UTP or better. Level of protection: Lightning protection for ports: 6kV, Lightning protection for power: 6kV, ESD: Air discharge: + - 10kV, Contact discharge: + - 8kV. Packet forwarding rate: 5.36Mpps, Buffer: 1.25Mb, MAC address table: 4K, PoE power supply management: Support, PoE budget: Single port: AF: 15.4W, AT: 30W, Whole device: 230W. Energy Efficient: Support
Specialty
PoE power supply management: Support over temperature protection for PoE module Support graphical management detection of PD equipment. Security features: MAC-Port Binding. VLAN: Supports Port VLAN Supports 802.1Q VLAN. Port aggregation: Static Trunk Supports 3 groups of 4-Port trunk support. Static Trunk Supports 3 groups of 4-Port trunk support: STP/RSTP. Multicast: IGMP (v1/v2) Snooping. Port Mirroring: N: 1 port mirroring. Quality of Service: 802.1p and DSCP priority re-marking Flow control Flexible queue scheduling algorithm can be set based on port and queue, support SP, WRR. Management and maintenance: Support SNMP v1/v2 and WEB-based management
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Tenda TEF1218P Network Switch In Bangladesh
Tenda TEF1218P Web Smart PoE Switch
TEF1218P-16-250W / Switch / 16FE+2GE/1SFP Smart Switch With 16-Port PoE
TEF1218P-16-250W is a smart PoE switch independently designed by Tenda. Featured with 16 IEEE 802.3at/af-compliant RJ45 ports, it supplies a maximum PoE power output of 250 W. The switch can supply power when transmitting data with APs, IP cameras, and IP phones through CAT5 cables . Featured smart management functions, including 250 m long distance power supply, 802.1Q VLAN, link aggregation, QoS and MAC address binding, it minimizes the difficulty and cost in networking deployment.
TEF1218P-16-250W 16FE+2GE/1SFP Smart Switch With 16-Port PoE
Dedicated for Surveillance & SMB Networking
6KV lightning protection
GE&SFP uplink ports
Smart PoE Supply
Smart Web management
250W Power Supply
Due to smart web management, engineering is so simple
Tenda Gigabit smart PoE switch TEF1218P-16-250W, with intelligent web network management functions, provides a more intuitive and user-friendly interface.It supports 250 meters long distance power supply, QVLAN, link aggregation, QoS, MAC address binding, etc., which greatly reduces construction difficulty and saves time, maximizing cost savings for engineerings.
GE & SFP uplink ports，Large Buffer of Nearly 3M
With one 10/100/1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fiber module TEG311SM, the switch supports a maximum transmission distance up to 20km.
6KV Excellent Lightning Protection
The switch offers various safety and protection types, including 6 kV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc., and these greatly protect the switch from being damaged by thunderstorm. Besides, it supports wide voltage input, AC：100-240V~50/60Hz.
Up to 250 meters long distance transmission under the Extend Modebeyond hundred meters transfer limitation
Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1218-16-250W can support 250 meters long distance transmission, which can save the cost of your project with less devices used.
230 W PoE power supply
The switch features 16 RJ45 ports being compliant with IEEE 802.3af/at standard. The entire switch offers a maximum PoE power output of 230 W, and 30 W for a single port, to supply power to data transmission with 16 PoE-devices such as APs and IP cameras.
