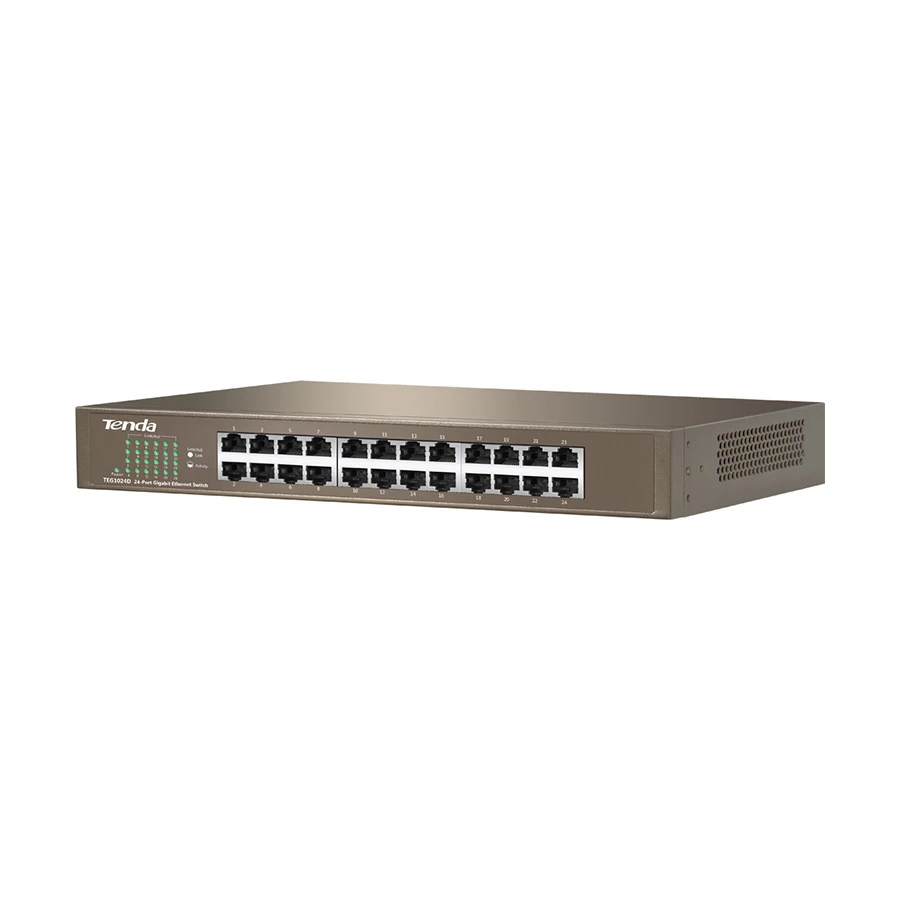

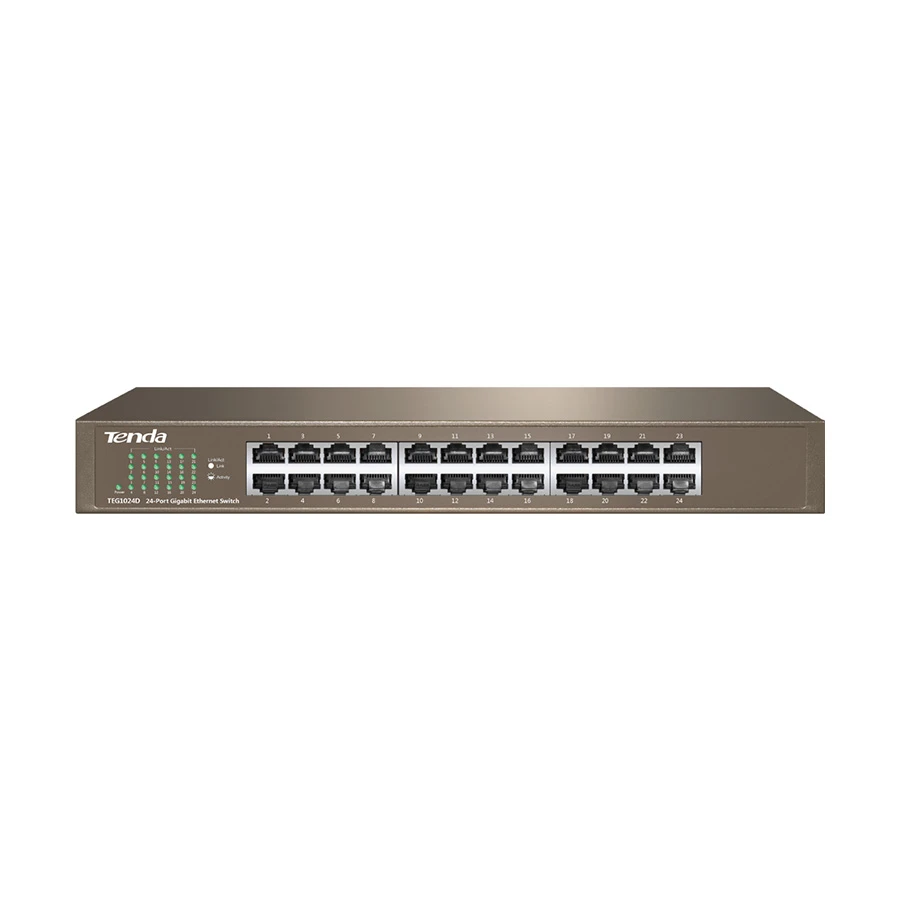

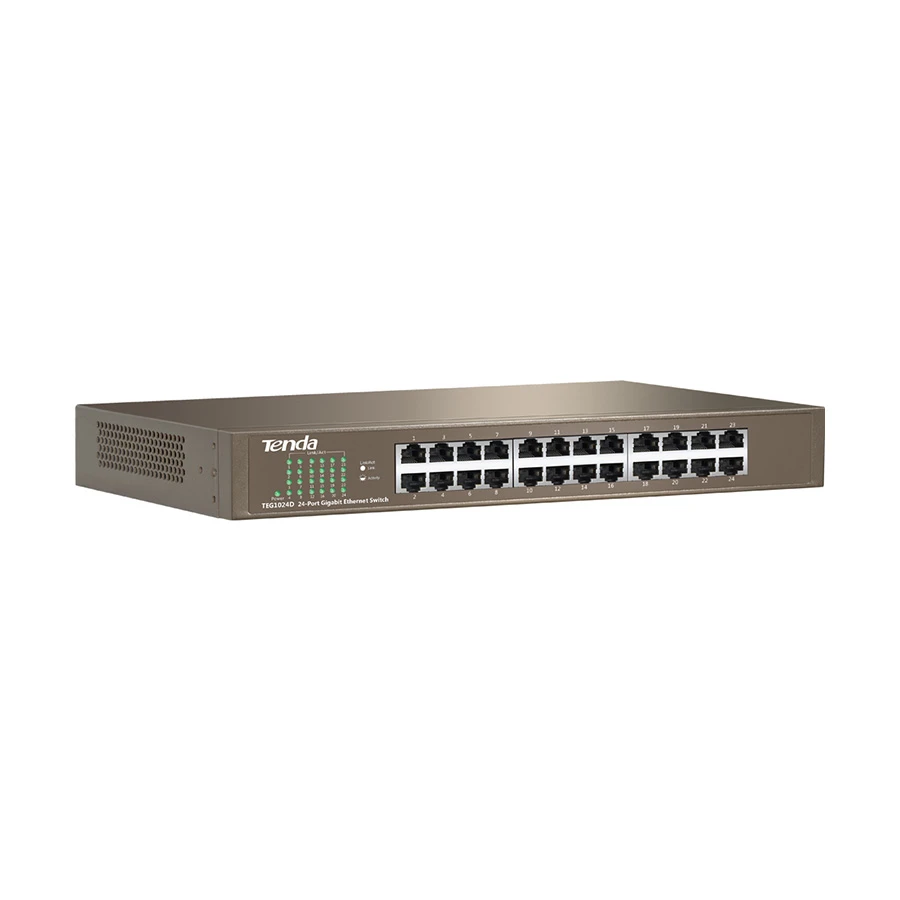

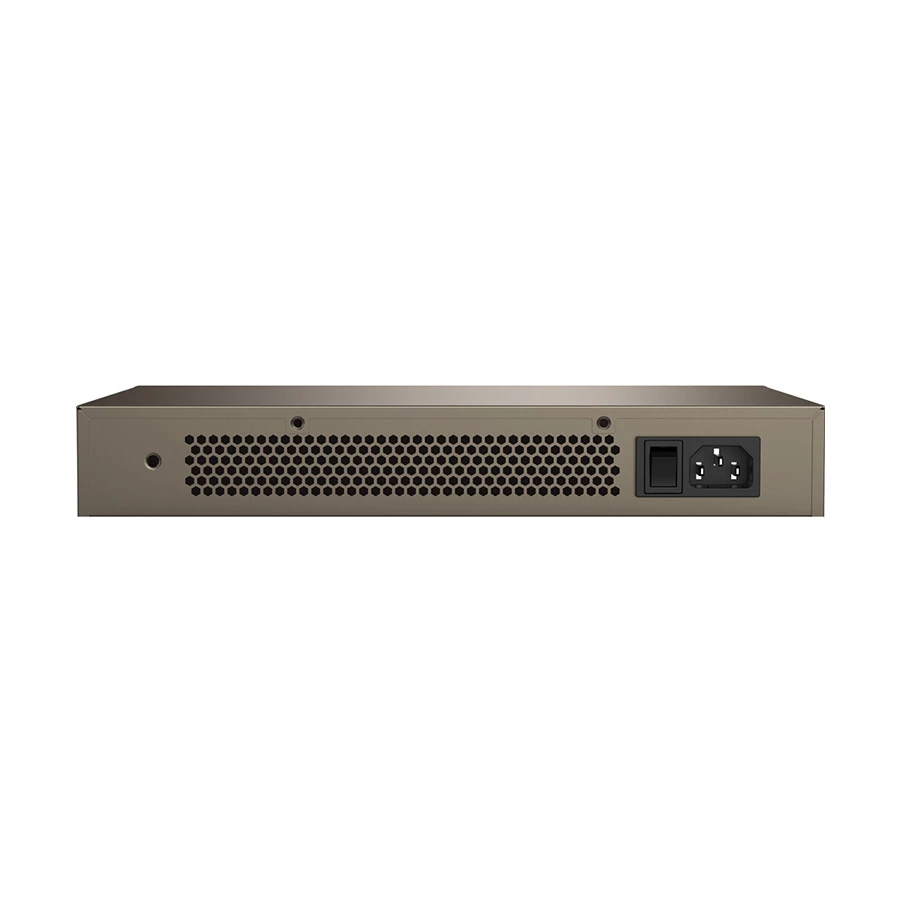

Tenda TEG1024D v7.0 24-Port Unmanaged Gigabit Ethernet Switch
Product Id: 29.05.744.27
Brand
Tenda
Quick Overview
- Type - Network Switch
- Number of Total Port - 24 Port
- PoE - No
- Manageability - Unmanaged
- Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Desktop/Rackmount/Wall Mounting
General
Brand
Tenda
Model
Tenda TEG1024D v7.0
Type
Network Switch
Ports & Slots
Number of Total Port
24 Port
Gigabit Port
24
PoE Port
No
PoE+ Port
No
Technical Info
PoE
No
Manageability
Unmanaged
Interface(s)
24 x 10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Data Transfer Rate
10/100/1000 Mbps
Transmission Method
Store-and-forward
Switching Capacity
48Gbps
Physical Description
Fan/Fanless
Fanless
Indicators
1 x Power, 24 x Link/Act
Body Material
Metal
Form Factor
Desktop/Rackmount/Wall Mounting
Dimension
294.0 x 178.0 x 44.0mm
Packet Contents
1 x Tenda TEG1024D v7.0, 1 x User manual
Power
Power Supply
Input: 100-240V AC 50/60Hz
Approx. Power Consumption
Max:<12W
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Transmission media: Recommended: CAT5/5e UTP or better, Level of protection: Lightning protection for uplink ports: 6KV, Lightning protection for power: 6KV, ESD: Air discharge: + - 10kV, Contact discharge: + - 8kV. Packet forwarding rate: 35.60Mpps, Buffer: 2Mb, MAC address table: 8K, Jombo frame: N/A, Certification: CE, FCC, RoHS. Software - Protocols: CDMA/CD, MAC address learning: Auto-Learning and Auto-Aging, Funtions: plug-and-play, Operating temperature: 0 Degree C - 45 Degree C, Storage temperature: -40 Degree C - 70 Degree C, Operating humidity: (10% - 90%) RH, non-condensing, Storage humidity: (5% - 90%) RH, non-condensing
Specialty
24 x 10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7 x 24. Professional integrated lightning protection circuit enables all the 24 ports to provide IV-class (6 kV in common mode) lightning protection, effectively decreasing the damage rate to the ports by lightning surge. The built-in power supply module is designed with enhanced lightning protection, which can withstand 6 kV lightning surge, 3 times higher than other ordinary switches, effectively protecting the switch from being damaged by adverse thunderstorm.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
