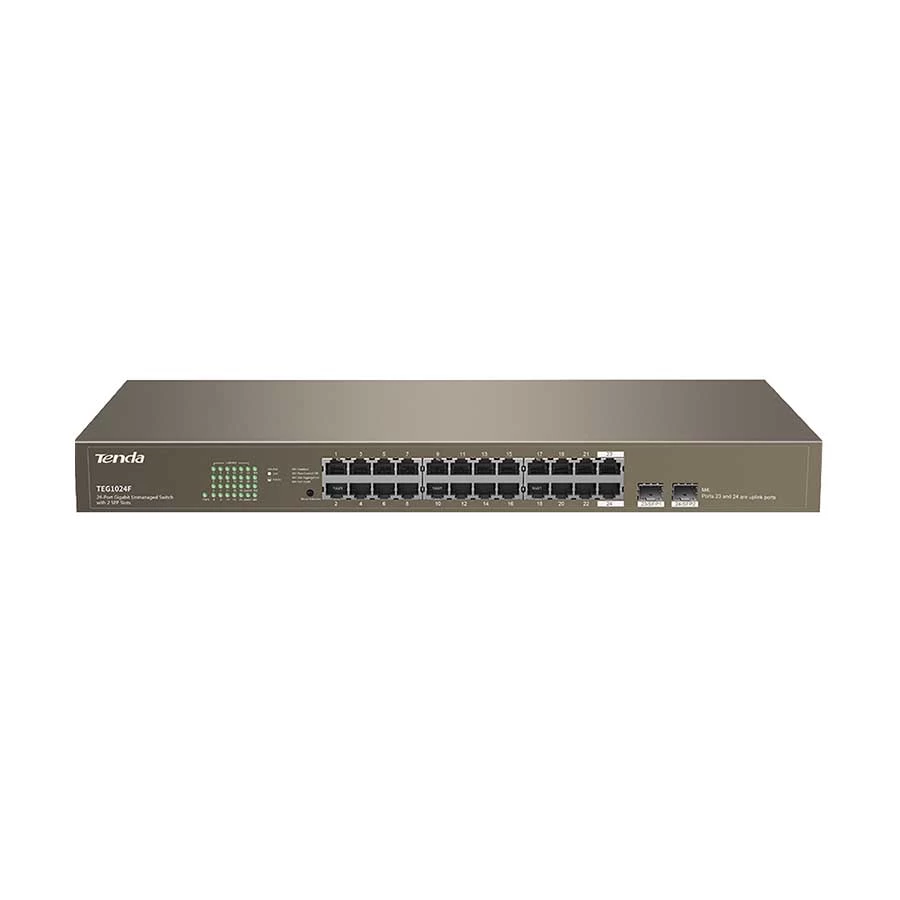

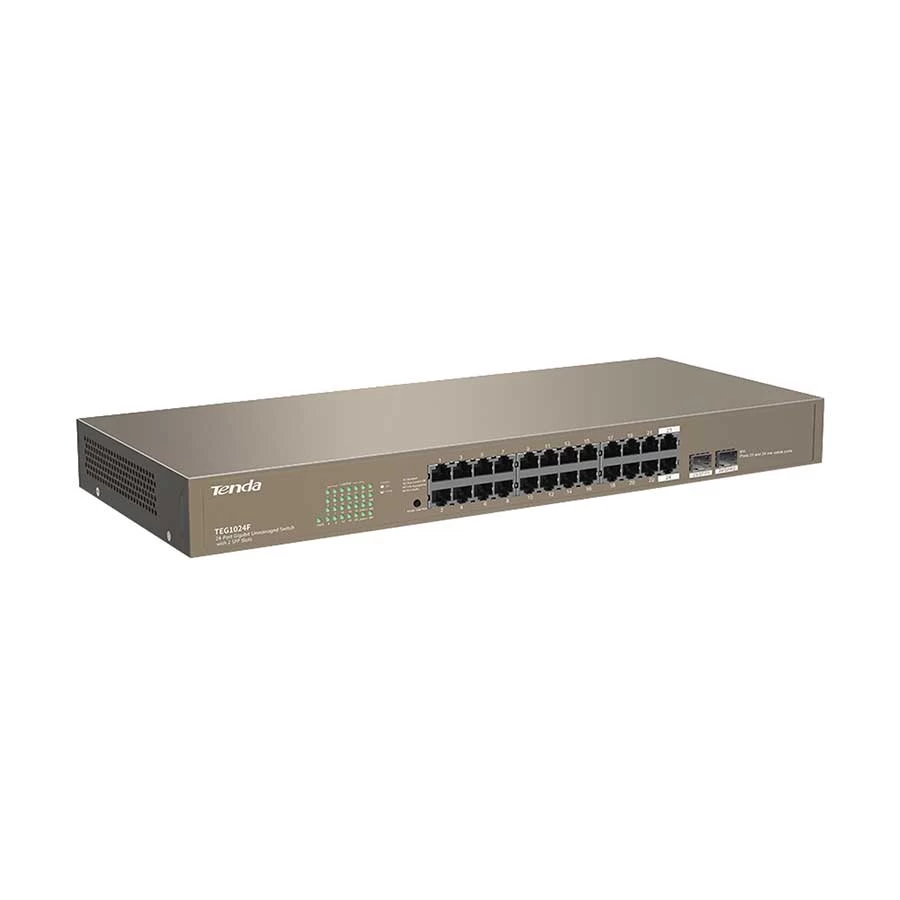

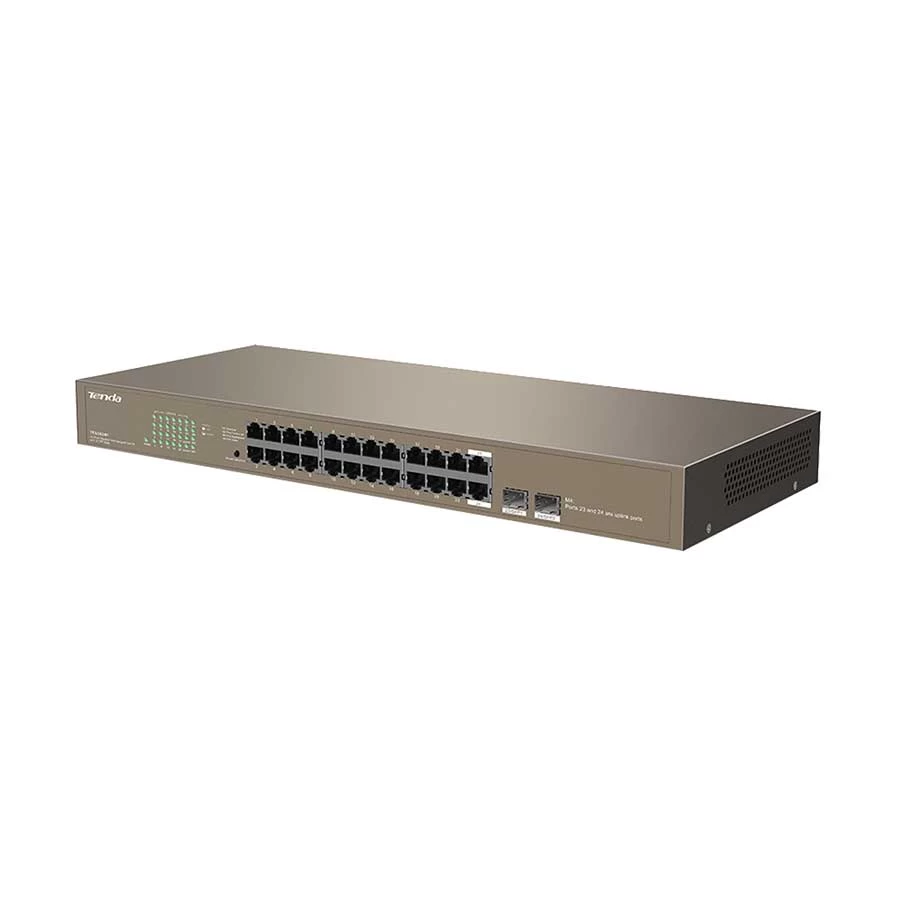

Tenda TEG1024F 26-Port Unmanaged Rackmount Switch
Product Id: 29.05.744.28
Brand
Tenda
Quick Overview
- Type - Network Switch
- Number of Total Port - 26 Port
- PoE - No
- Manageability - Unmanaged
- Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Desktop/Rackmount/Wall Mounting
General
Brand
Tenda
Model
Tenda TEG1024F
Type
Network Switch
Ports & Slots
Number of Total Port
26 Port
Gigabit Port
24
SFP Port
2
SFP+ Port
No
PoE Port
No
PoE+ Port
No
Technical Info
PoE
No
Manageability
Unmanaged
Interface(s)
24 x 10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX), 2 x 1000 Base-X SFP ports (Combo)
Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Data Transfer Rate
10/100/1000 Mbps
Transmission Method
Store-And-Forward
Access Method
CDMA/CD
Switching Capacity
48Gbps
Physical Description
Fan/Fanless
Fanless
Indicators
1 x Power, 24 x Link/Act, 4 x Mode
Body Material
Metal
Body Color
Black
Form Factor
Desktop/Rackmount/Wall Mounting
Dimension
440.0 x 178.0 x 44.0mm
Packet Contents
1 x Tenda TEG1024F, 1 x User manual
Power
Power Supply
Input: 100-240V AC 50/60Hz
Approx. Power Consumption
Max:<13W
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Transmission media: Recommended: CAT5/5e UTP or better, Level of protection: Lightning protection for uplink ports: 6KV, Lightning protection for power: 6KV, ESD: Air discharge: + - 10kV, Contact discharge: + - 8kV. Forwarding mode: Store-and-forward, Packet forwarding rate: 35.60Mpps, Buffer: 2Mb, MAC address table: 8K, Jombo frame: N/A, Certification: CE, FCC, RoHS. Software - Protocols: CDMA/CD, MAC address learning: Auto-Learning and Auto-Aging. Funtions: M1: Standard mode, the default mode of the switch. In that mode, all ports can communicate with each other. M2: Port-based priority mode, ports 1 to 8 have higher priority than other ports, and all ports can co.0mmunicate with each other. M3: Port-based VLAN mode, ports 1 to 24 can co.0mmunicate with uplink ports (ports 25 and 26) but cannot co.0mmunicate with each other.
Specialty
TEG1024F provides 24 10/100/1000 Mbps auto-negotiation RJ45 ports, 2 gigabit SFP slots and offers a data rate in full duplex of as high as 2000 Mbps. Working with Tenda SFP modules TEG311SM, the switch supports a maximum transmission distance of as high as 20 km. In addition, a large capacity cache is equipped in the switch and all ports support wire-speed forwarding, ensuring fast transmission of large files, smooth playback of videos and stable connection for 7 x 24 hours. Excellent lightning protection - With professional lightning protection circuit, all ports and power supply module feature 6 kV lightning protection, greatly protecting the switch from being damaged by thunder storm. 4 working modes - Four modes are supported on this switch: Standard, Flow Control Off, Link Aggregation and Port VLAN modes, making it adaptable to multiple scenarios such as surveillance, wireless networking, and network clone in batches.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
