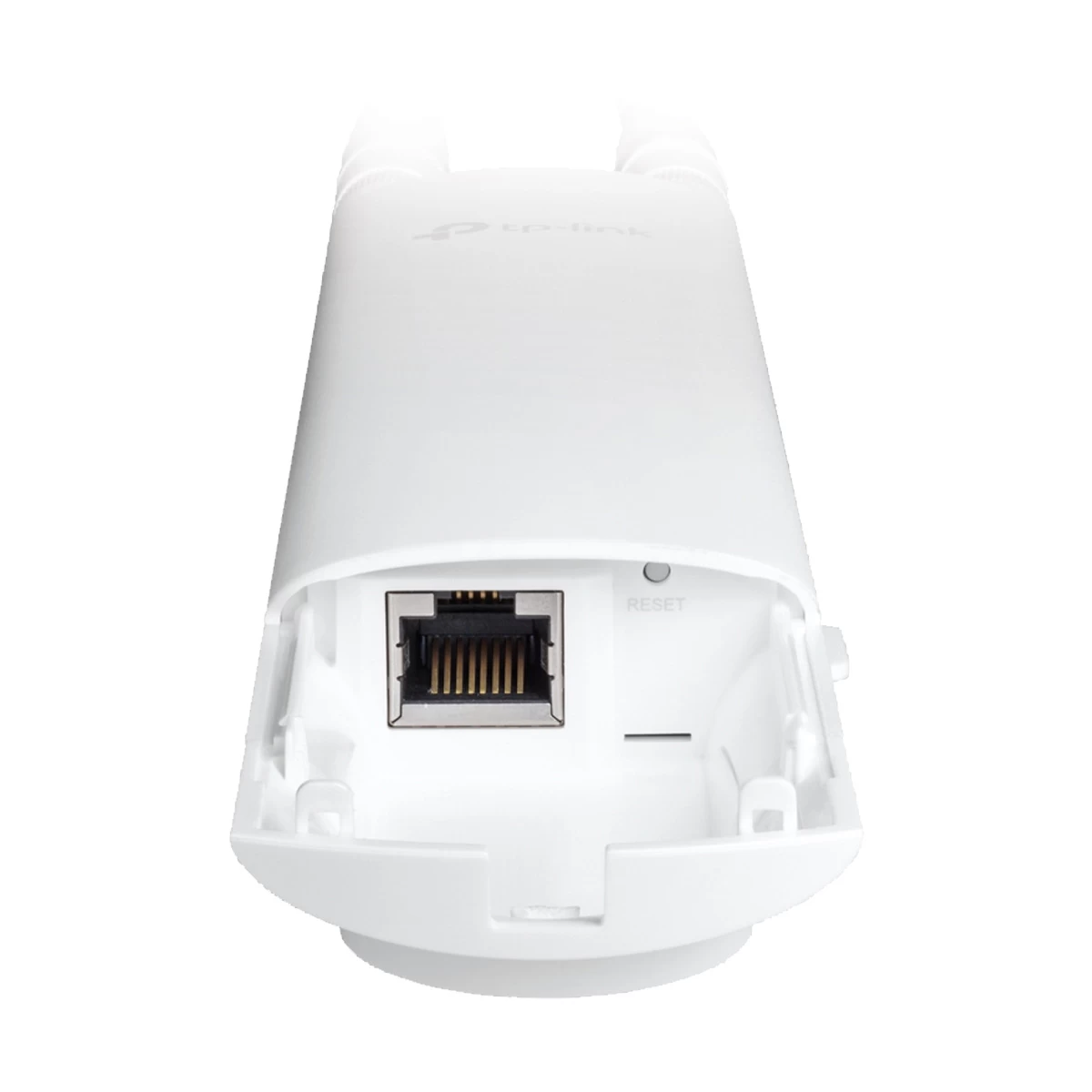

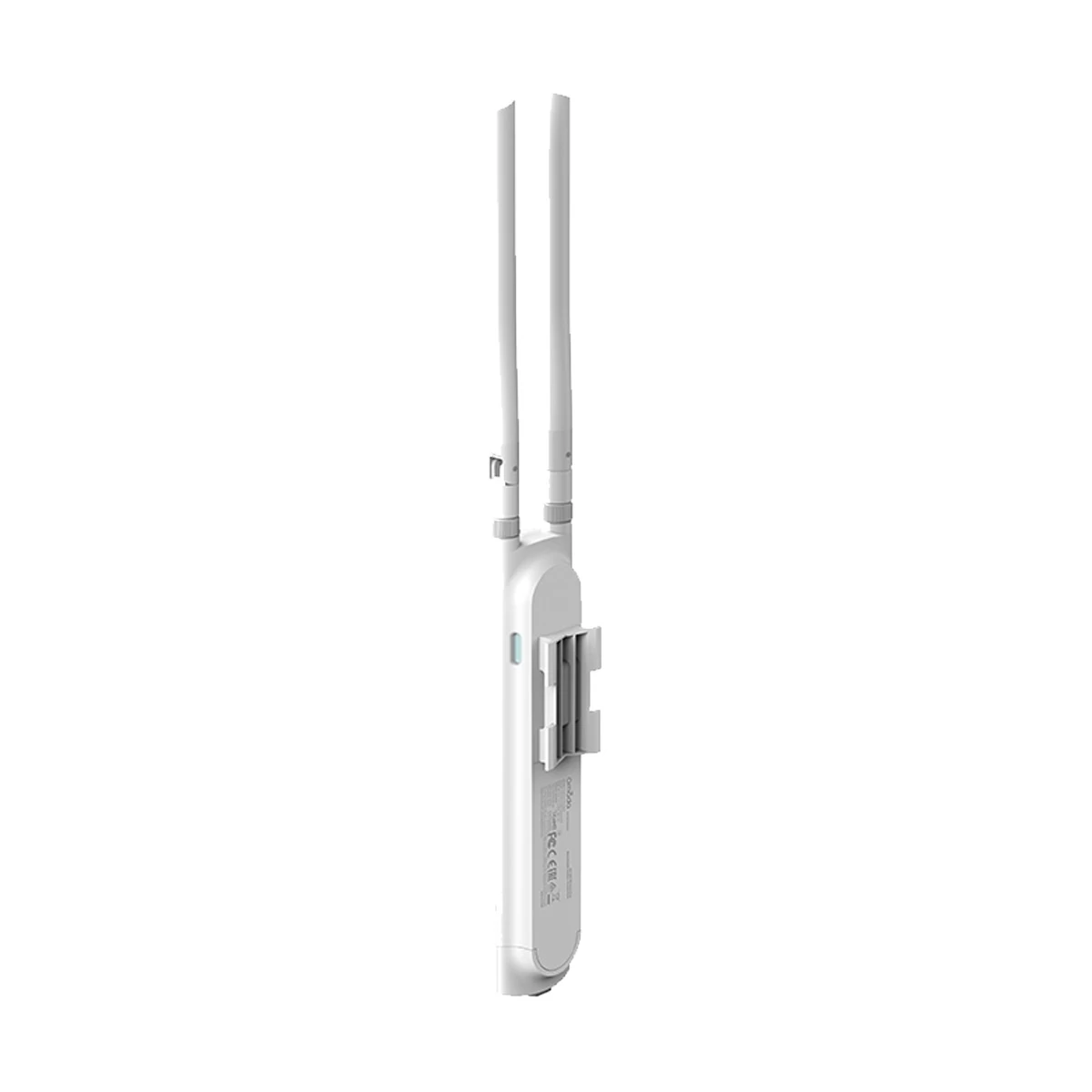

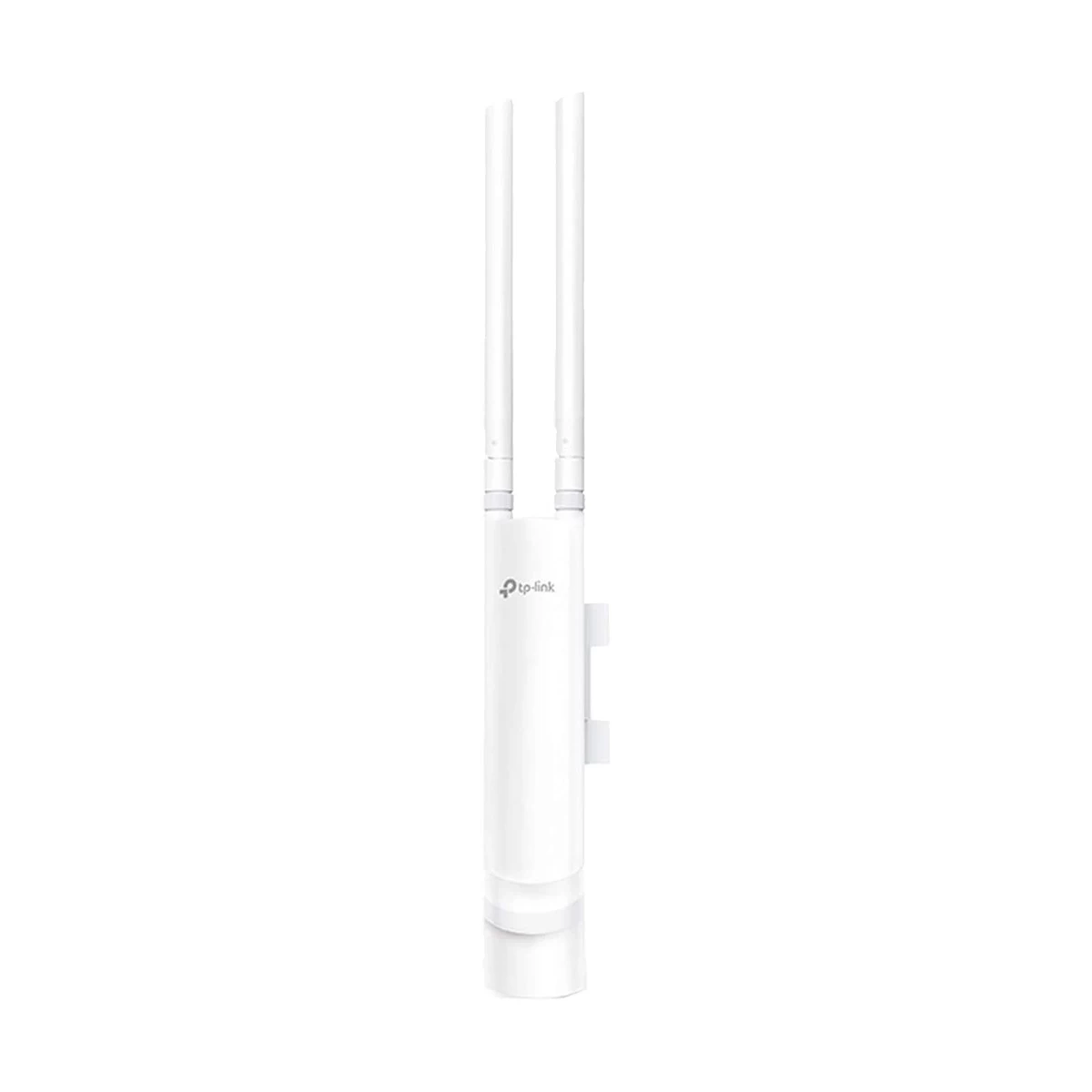

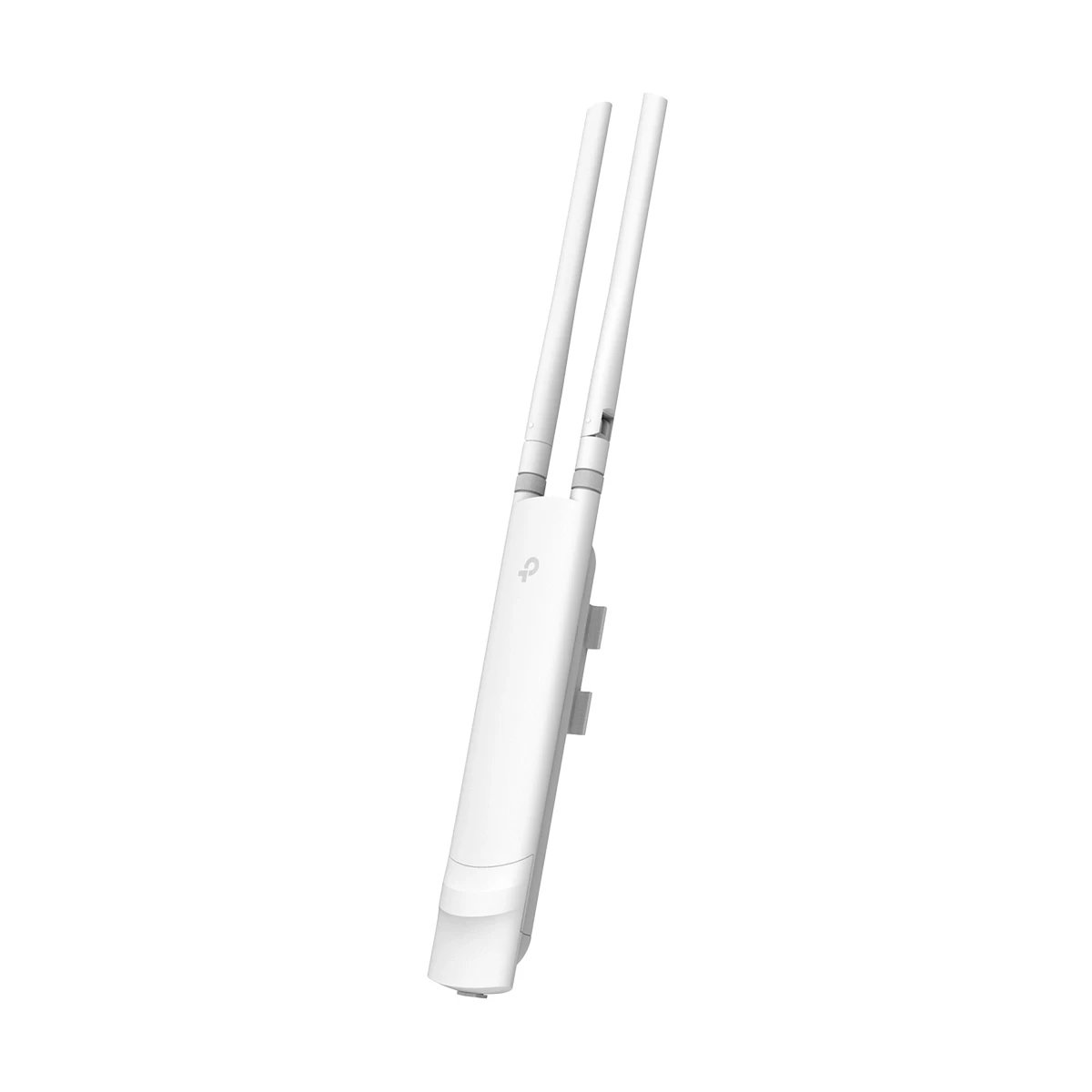

TP-Link EAP225-Outdoor AC1200 MU-MIMO Gigabit Wireless Access Point
Product Id: 29.02.091.118
Brand
Tp-link
Special Price
Tk 7,650
Regular Price
Tk 8,250
EMI TK 688
Quick Overview
- Network Standards - IEEE 802.11a, b, g, n, ac
- Data Transfer Rates - 1200 Mbps
- Band - Dual
- Interface(s) - 1 x Gigabit Ethernet (RJ-45) Port
- Antenna (Type & Qty) - 2 x External
General
Brand
TP-Link
Model
TP-Link EAP225-Outdoor
Hardware
Network Standards
IEEE 802.11a, b, g, n, ac
Data Transfer Rates
1200 Mbps
LAN Network Standard
10/100/1000
Interface
Interface(s)
1 x Gigabit Ethernet (RJ-45) Port
Number of WAN Port
No
Number of LAN Port
1
USB Sharing Support
No
Wireless
Band
Dual
Frequency
2.4GHz, 5GHz
Bluetooth
No
Antenna (Type & Qty)
2 x External
Antenna Gain
3dBi
Antenna Placement
External
MU-MIMO Support
yes
Multi-User MIMO
Yes
Transmission Power
CE: <20 dBm (2.4 GHz, EIRP), <27 dBm (5 GHz, EIRP), FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
Management
SSID Numbers
Up to 16 SSIDs, 8 for each band
Web-Based Management
Yes
Multi-Site Management
Yes
Management MAC Access Control
Yes
Performance
Waterproof Level/Grade
IP65
IP Rating
IP65
Email Alerts
Yes
Technical Info
Outdoor Use
Yes
System Requierment
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Security
Wireless Security
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support
Electrical
Power Method
802.3af PoE and 24 Passive PoE(PoE injector included)
Max. Power Consumption
10.5W
Environmental
Operating Temperature
-30 Degree C to 70 Degree C
Operating Humidity
10%~90% non-condensing
Storing/Storage Temperature
-40 Degree C to 70 Degree C
Storing/Storage Humidity
5%~90% non-condensing
Physical Description
Button
Reset
Mounting
Yes
Mount Options
Pole/Wall Mount
Dimensions
215 x 46 x 27 mm
Color
White
Packet Contents
AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point, Passive PoE Injector, Power Cord, Mounting Kits, Installation Guide, Waterproof Rubber Insert, Waterproof Antenna.
Warranty
Warranty Details
2 Year (Without Adapter)
Additional Info
Others
Power Supply: 802.3af PoE and 24 Passive PoE (PoE injector included), Operating Temperature: -30 degree C - 70 degree C, Storage Temperature: -40 degree C - 70 degree C, Operating Humidity: 10% - 90% non-condensing, Storage Humidity: 5% - 90% non-condensing, Certification: FCC, RoHS
Specialty
Durable, weatherproof enclosure for outdoor Wi-Fi applications. Up to 1200Mbps1 with 2x2 MIMO technology. Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient. Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations. High transmission power and high gain antennas provide a long-range coverage area. Cloud centralized management and Omada app for ultra convenience and easy management. Captive portal provides a convenient method for guest authentication. Facebook Wi-Fi and SMS authentication help to boost your business. 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
