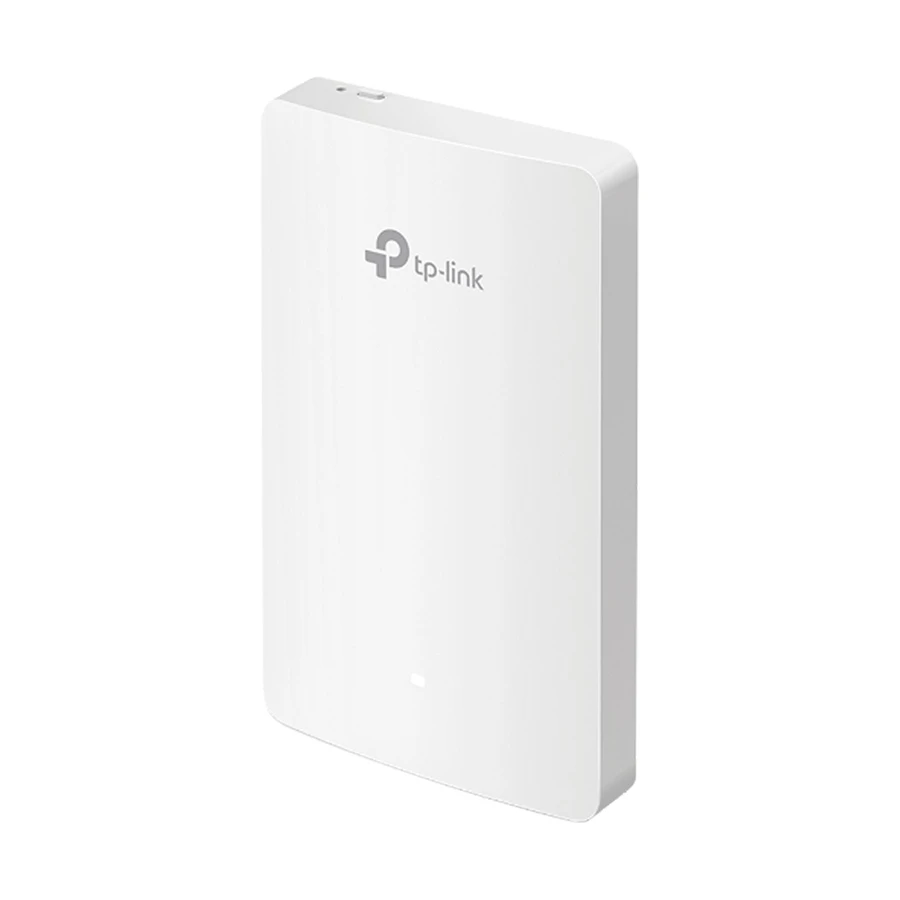

TP-Link EAP235-Wall OMADA AC1200 Wireless Gigabit Wall Plate Access Point
Product Id: 29.02.091.167
Brand
Tp-link
Quick Overview
- Network Standards - IEEE 802.11a/b/g/n/ac
- Data Transfer Rates - 1200 Mbps
- Band - Dual

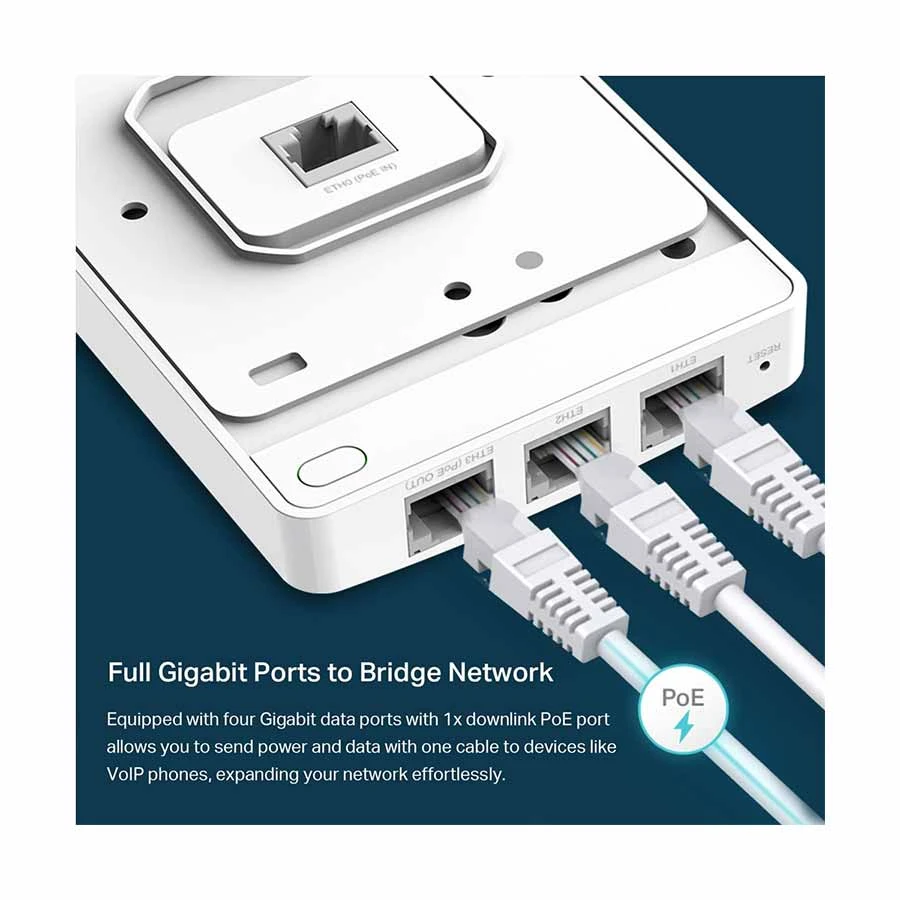

- Interface(s) - 1 x 10/100/1000 Mbps Ethernet Port accepts 802.3af or 802.3at PoE Uplink, 3 x 0/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port Access ports
- Antenna (Type & Qty) - 4 x Internal
General
Brand
Tp-link
Model
TP-Link EAP235-Wall OMADA
Hardware
Network Standards
IEEE 802.11a/b/g/n/ac
Data Transfer Rates
1200 Mbps
LAN Network Standard
10/100/1000
Interface
Interface(s)
1 x 10/100/1000 Mbps Ethernet Port accepts 802.3af or 802.3at PoE Uplink, 3 x 0/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port Access ports
Number of WAN Port
1
Number of LAN Port
3
Wireless
Security Protocols
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Band
Dual
Frequency
2.4GHz and 5GHz
Bluetooth
No
Antenna (Type & Qty)
4 x Internal
Antenna Gain
4 dBi
Antenna Placement
Internal
MU-MIMO Support
Yes
Transmission Power
<21dBm (2.4 GHz) <21 dBm (5GHz)
Wireless Modes
Access Point Mode
Management
Wireless Users Capacity
200+
SSID Numbers
16
Management
Omada App, Centralized Management, Cloud Access, Email Alerts, LED ON/OFF Control, Management MAC Access Control, SNMP v1, v2c, System Logging Local/Remote Syslog, SSH, Web-based Management, L3 Management, Multi-site Management, Management VLAN, Zero-Touch Provisioning.
Web-Based Management
HTTP/ HTTPS
Multi-Site Management
Yes
Management MAC Access Control
Yes
Remote Management
Yes
Performance
Email Alerts
Yes
Security
Wireless Security
Captive portal authentication Access control list Wireless MAC address filtering Wireless isolation between clients SSID to VLAN Mapping LAN port-based VLAN Rogue AP detection 802.1X EAP support 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Physical Security Lock
Yes
Electrical
Power Method
802.3af/802.3at PoE
Max. Power Consumption
24.4W
Passive PoE Power Supply
802.3af/802.3at PoE
Environmental
Operating Temperature
0 - 40 Degree C
Operating Humidity
10 - 90% RH non-condensing
Storing/Storage Temperature
-40 - 70 Degree C
Storing/Storage Humidity
5%- 90%RH Non-condensing
Physical Description
Button
Reset
Mounting
Yes
Mount Options
Wall Plate Mounting
Dimensions
143 x 86 x 20mm
Color
White
Packet Contents
Omada AC1200 Wireless Gigabit Wall Plate Access Point, EAP235-Wall, Installation guide, Mounting screw.
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Certification: FCC, RoHS, Wireless Functions: (16 SSIDs (Up to 8 SSIDs on each band) Enable/ disable SSID broadcast Automatic channel assignment Transmit power control (adjustable in 1 dBm step) QoS (WMM) Band steering Beamforming Load balance Rate limit Scheduled reboot Wireless scheduled on/off Wireless Statistics based on SSID, access point, or client), Centralized Management: (Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller), Package Contents: (Omada AC1200 Wireless Gigabit Wall Plate Access Point EAP235-Wall Installation guide Mounting screw).
Specialty

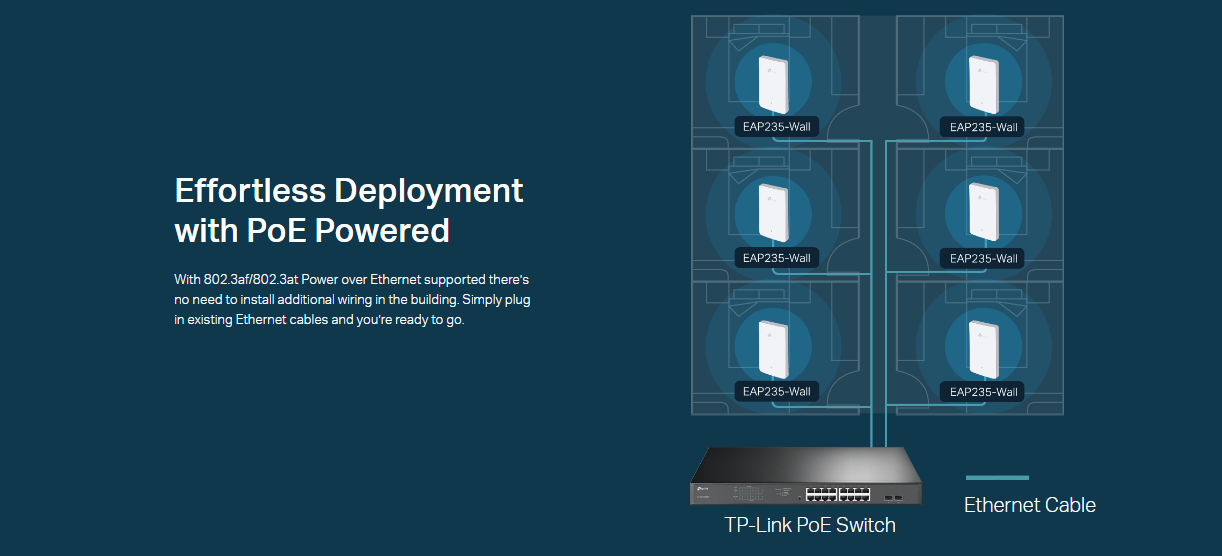

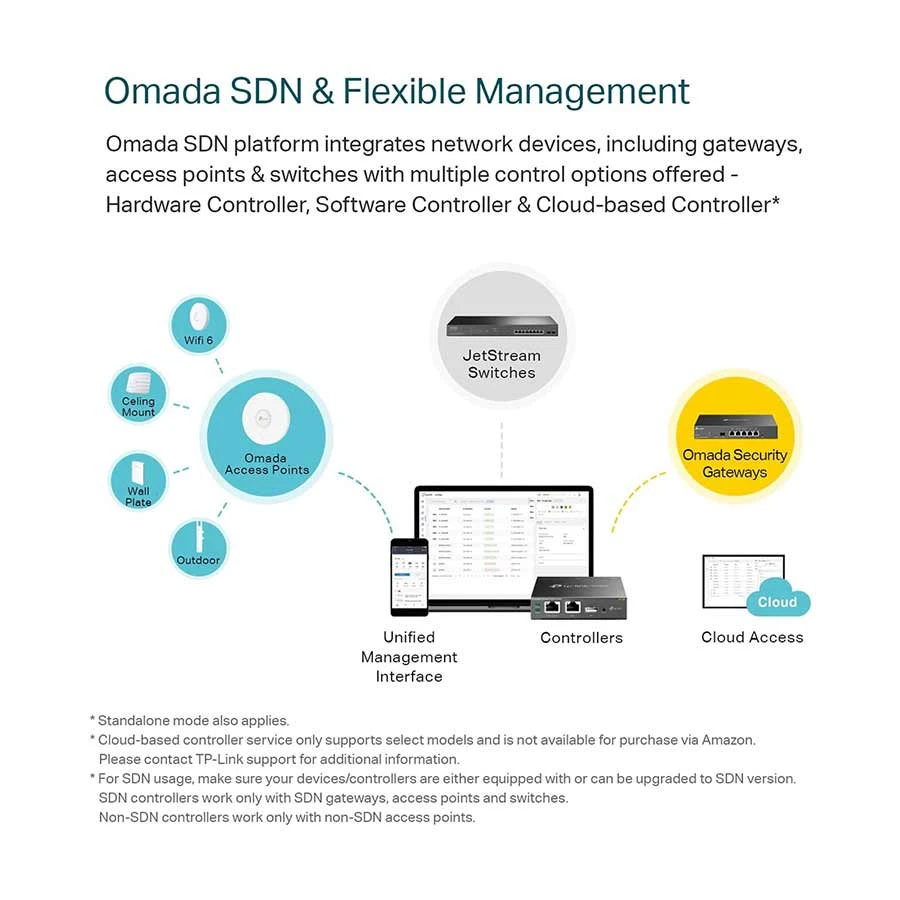

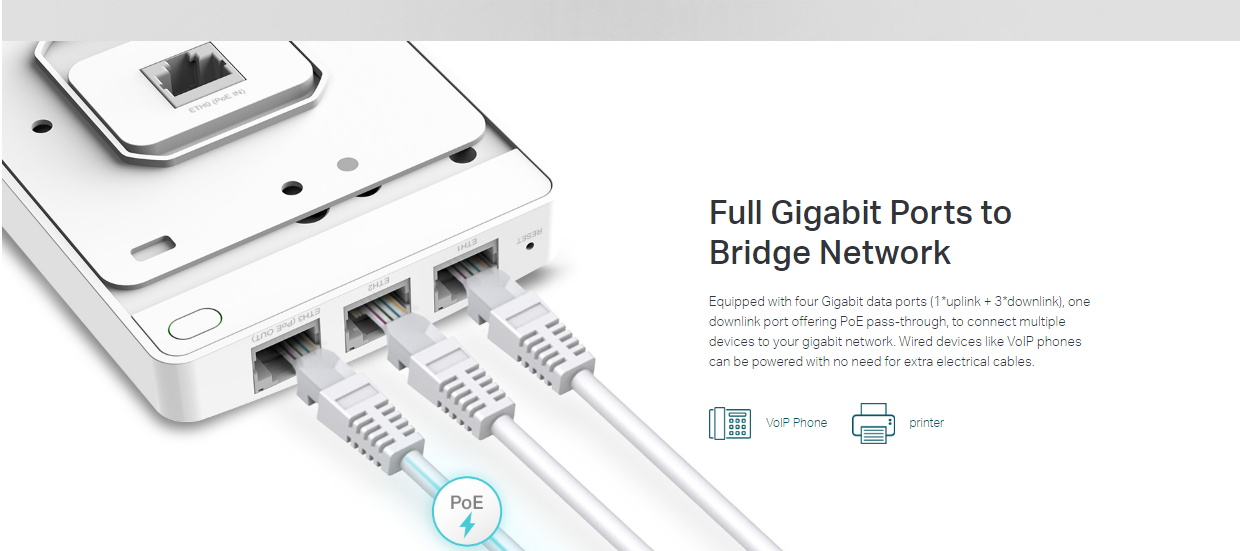

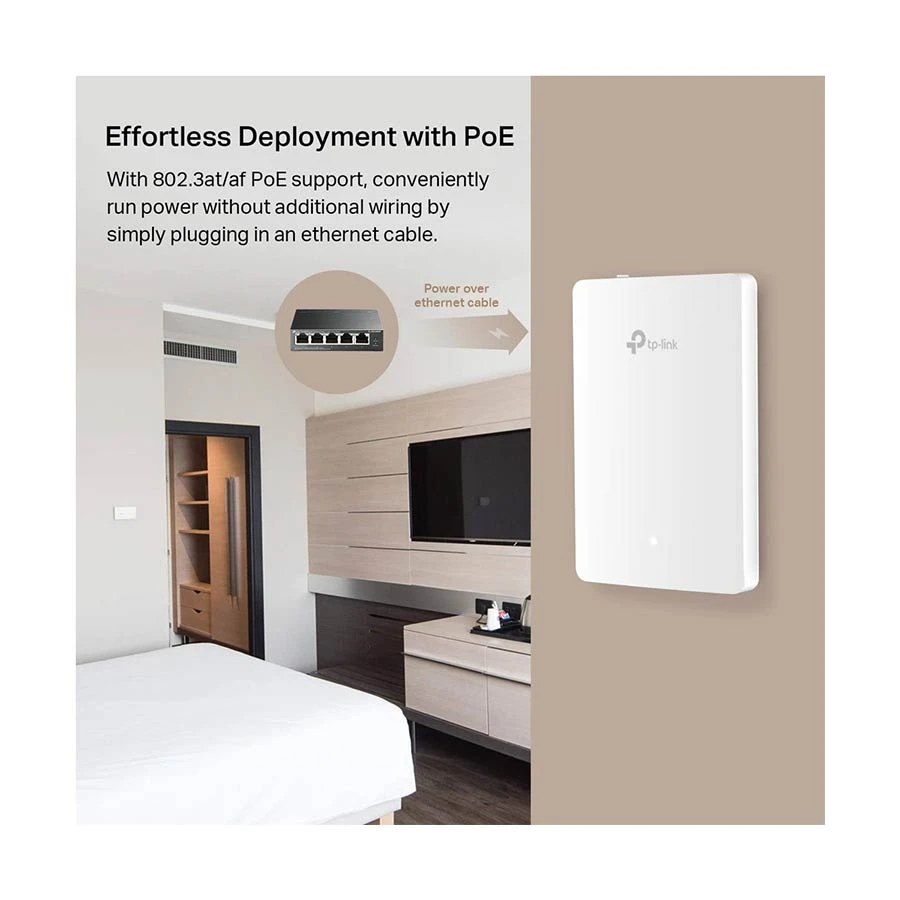

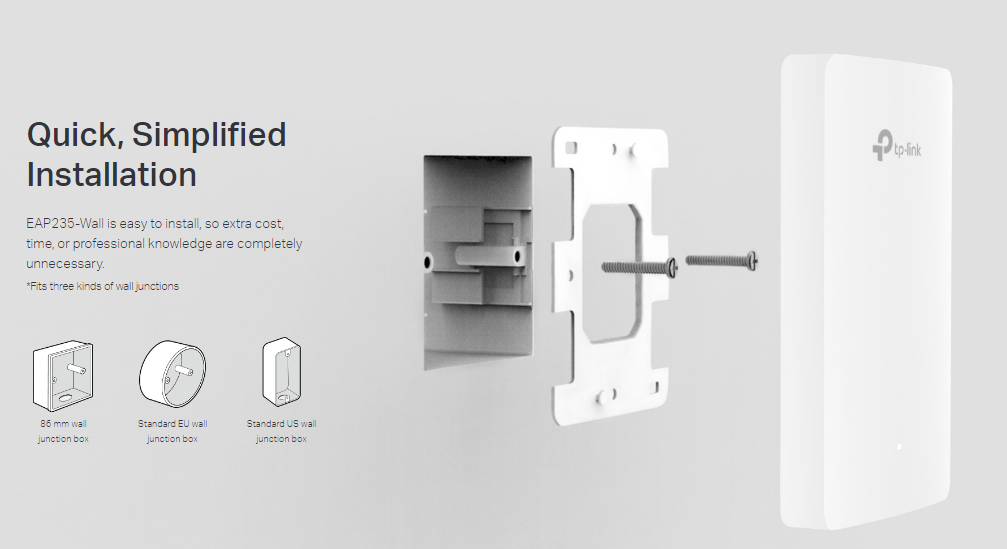

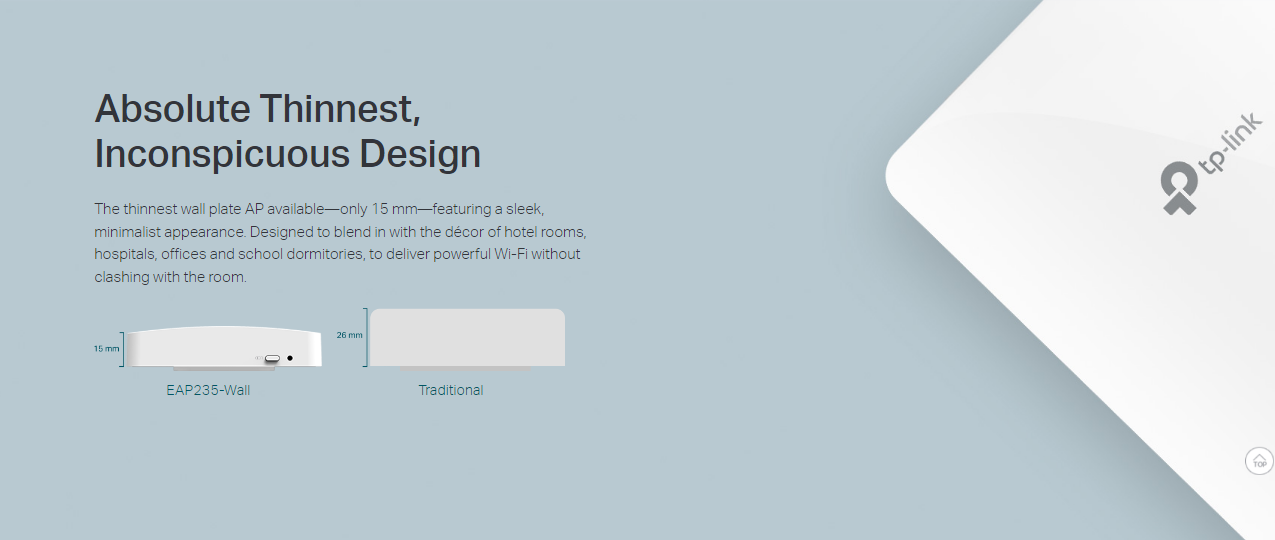

Ready for Omada SDN controller for centralized management and monitoring, Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds, 4 Gigabit Ethernet ports, one uplink and three access ports. PoE pass-through is available on one of the access port providing power for desk phones, cameras or other PoE devices, Cloud access and Omada app for mobility and easy management, Ultra slimmest and conspicuous design blends the access point into the walls of hotel rooms, hospitals, offices, and dormitories, Easy-mount construction, compatible with US, EU and 86mm junction boxes with PoE support, Along with multiple ways of login (SMS, Facebook Wi-Fi, Voucher, and customizable captive portal) allows guest access smoothly and friendly, Optimize network performance with airtime fairness, band steering, and beamforming technologies.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of TP-Link EAP235-Wall OMADA Access Point In Bangladesh
EAP235-Wall
Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
What is the price of TP-Link EAP235-Wall OMADA Access Point In Bangladesh?
The price of TP-Link EAP235-Wall OMADA Access Point not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy TP-Link EAP235-Wall OMADA Access Point from our website or visit our showrooms nearby.
Video
Omada AC1200 Gigabit Wall Plate Access Point | TP-Link EAP235-Wall
