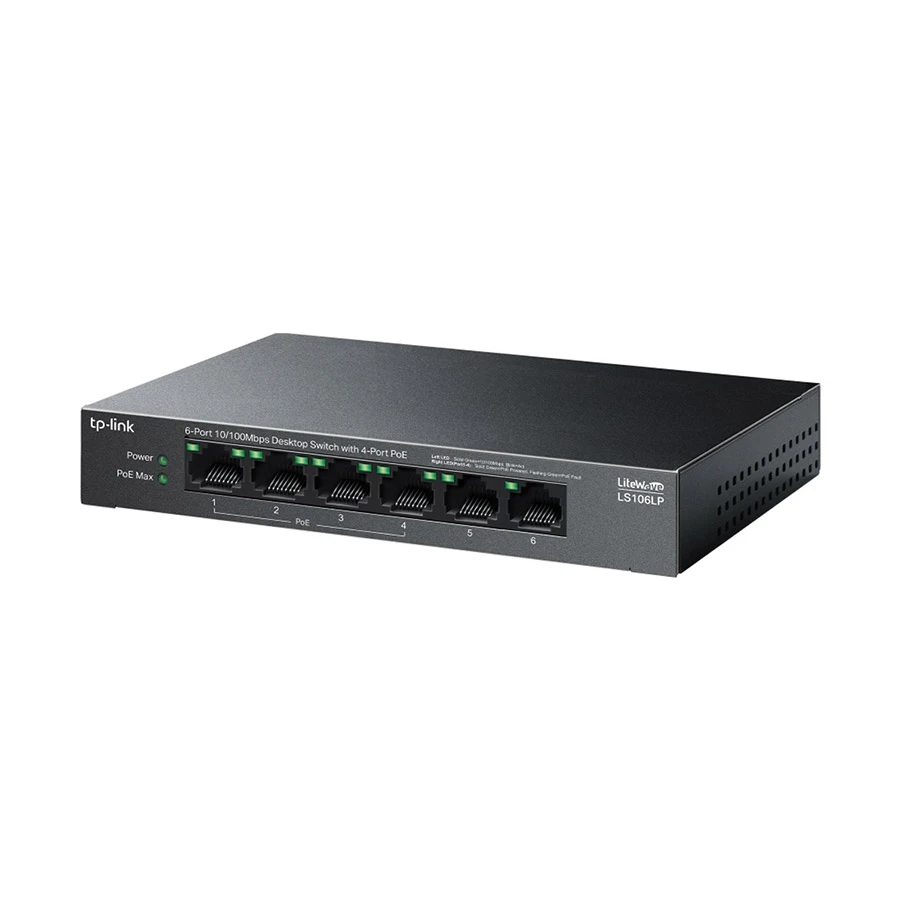

TP-Link LS106LP 6 Port Unmanaged Desktop Switch

Product Id: 29.05.091.184

Brand Tp-link

Special Price
Tk 2,650
Regular Price
Tk 2,820

Quick Overview

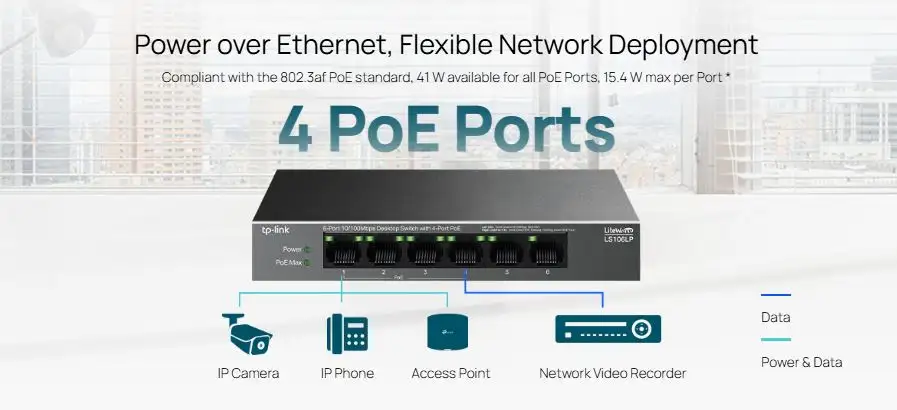

  • Type - Network Switch
  • Number of Total Port - 6 Port
  • PoE - Yes
  • Manageability - Unmanaged
  • Network Standards - 802.3 af compliant
  • Data Transfer Rate - 10/100 Mbps
  • Form Factor - Desktop/Wall Mounting
Avail EMI Offer
EMI starts from Tk 313/months
General
Brand
TP-Link

Model
TP-Link LS106LP

Type
Network Switch


Ports & Slots
Number of Total Port
6 Port

SFP Port
No

PoE Port
4


Technical Info
PoE
Yes

Manageability
Unmanaged

Interface(s)
4 x 10/100Mbps PoE & 2 x 10/100Mbps Ethernet

Network Standards
802.3 af compliant

Data Transfer Rate
10/100 Mbps

Transmission Method
Store and Forward

Connector Type
6 x 10/100 Mbps RJ45 Ports (4x 10/100 Mbps 802.3af PoE Ports)

Switching Capacity
1.2 Gbps


Physical Description
Fan/Fanless
Fanless

Indicators
Power, Link/Act, PoE Status, PoE MAX

Body Color
Gray

Form Factor
Desktop/Wall Mounting

Dimension
158 x 101 x 25mm

Packet Contents
LS106LP, Power Adapter, Installation Guide


Power
Power Supply
External Power Adapter (Output: 53.5VDC / 0.81A)

Approx. Power Consumption
2.53 W (220 V/50 Hz no PD connected), 47.76 W (220 V/50 Hz with 41 W PD connected)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
AUTO Negotiation, AUTO MDI/MDIX, Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100 ohm STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100 ohm STP (maximum 100m), PoE Ports (RJ45): Standard: 802.3 af compliant, PoE Ports: Ports 1- 4, up to 15.4 W PoE output per port, Power Supply: 41 W, Max Heat Dissipation: 8.61 BTU/h (220 V/50 Hz no PD connected), 162.38 BTU/h (220 V/50 Hz with 41 W PD connected), Packet Forwarding Rate: 0.8928 Mpps, MAC Address Table: 2K, Jumbo Frame : 2 KB, Certification : CE, FCC, RoHS, Package Contents: LS106LP, Power Adapter, Installation Guide, Environment: Operating Temperature: 0 to 40 Degree , Storage Temperature: - 40 to 70 degree C, Operating Humidity: 10 - 90% RH non-condensing, Storage Humidity: 5 - 90% RH non-condensing

Specialty
Extend Mode Button (Ports 1 - 4, Up to 250 m PoE power supply and data transmission), PoE Auto Recovery Button (Ports 1-4), Compatible With IEEE 802.3af Compliant PDs, Mac Address Auto-Learning and Auto-Aging, IEEE 802.3x Flow Control, Green Technology

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
