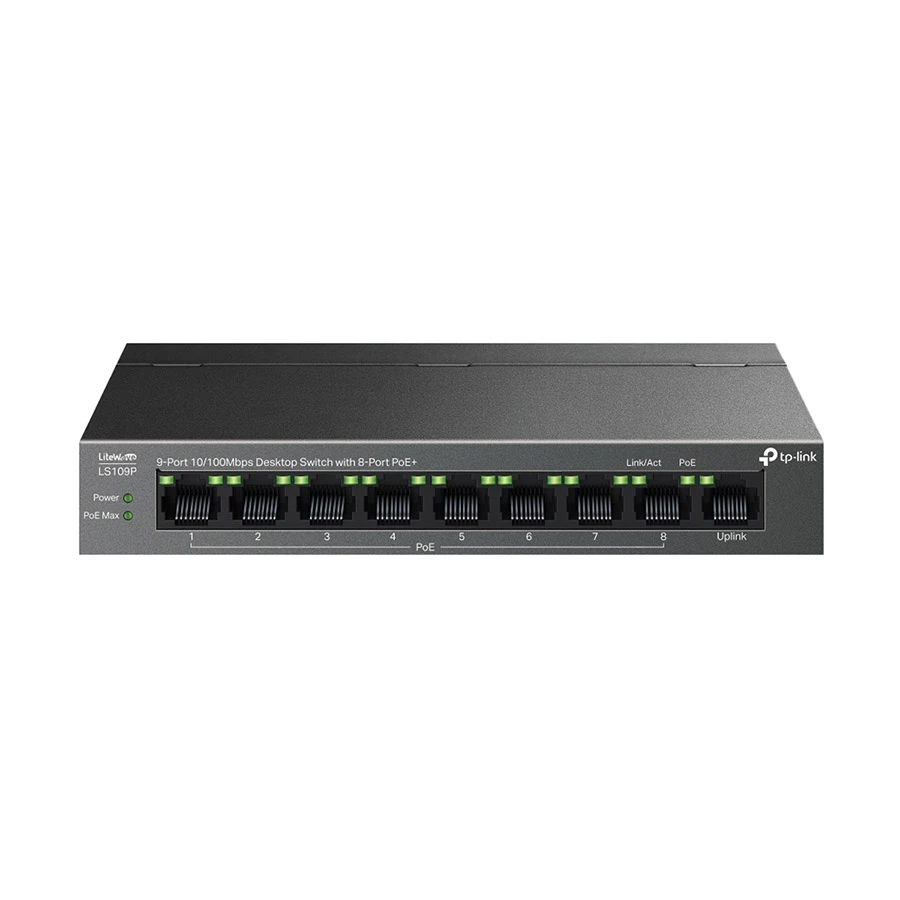

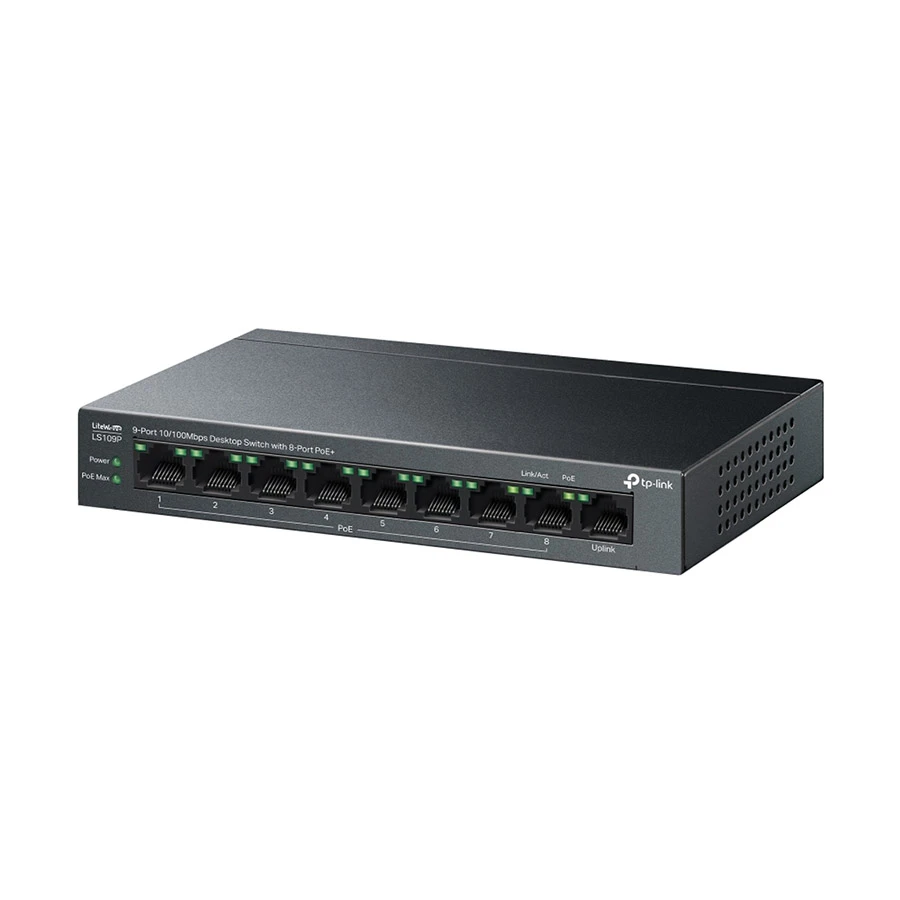

TP-Link LS109P 9-Port Desktop Switch
Product Id: 29.05.091.208
Brand
Tp-link
Special Price
Tk 2,700
Tk 2,700
Regular Price
Tk 2,880
Quick Overview
- Type - Network Switch
- Number of Total Port - 9 Port
- PoE - Yes
- Manageability - Unmentioned
- Network Standards - 802.3 af/at compliant
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop/Wall Mounting
General
Brand
TP-Link
Model
TP-Link LS109P
Type
Network Switch
Ports & Slots
Number of Total Port
9 Port
SFP Port
No
PoE+ Port
8
Technical Info
PoE
Yes
Manageability
Unmentioned
Interface(s)
8 x 10/100Mbps PoE+ & 1 x 10/100Mbps Ethernet Uplink
Network Standards
802.3 af/at compliant
Data Transfer Rate
10/100 Mbps
Transmission Method
Store and Forward
Connector Type
9 x 10/100 Mbps RJ45 Ports
Switching Capacity
1.8 Gbps
Physical Description
Fan/Fanless
Fanless
Indicators
Power, Link/Act, PoE Status, PoE MAX
Body Color
Gray
Form Factor
Desktop/Wall Mounting
Dimension
171 x 98 x 27mm
Packet Contents
LS109P, Power Adapter, Installation Guide, Rubber Feet
Power
Power Supply
External Power Adapter (Output: 53.5VDC / 1.31A)
Approx. Power Consumption
3.67 W (220 V/50 Hz no PD connected), 73.24 W (220 V/50 Hz with 63 W PD connected)
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
AUTO Negotiation, AUTO MDI/MDIX, Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100 ohm STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100 ohm STP (maximum 100m), PoE Ports (RJ45): Standard: 802.3 af/at compliant, PoE Ports: Ports 1-8, up to 30 W PoE output per port, Power Supply: 63 W, Max Heat Dissipation 12.48 BTU/h (220 V/50 Hz no PD connected), 249 BTU/h (220 V/50 Hz with 63 W PD connected), Packet Forwarding Rate 1.3392 Mpps, MAC Address Table 2K, Jumbo Frame 1.5 KB, Advanced Features : Extend Mode Button (Ports 1-4/1-8, Up to 250 m PoE power supply and data transmission), Isolation Mode Button (Ports 1 -8), PoE Auto Recovery Button (Ports 1 -8), Compatible With IEEE 802.3af/at Compliant PDs, Mac Address Auto-Learning and Auto-Aging, IEEE 802.3x Flow Control, Green Technology, Certification CE, FCC, RoHS, Environment: Operating Temperature: 0 - 40 degree C (32 -104 degree F), Storage Temperature: -40 -70 degree C (-40 -158 degree F), Operating Humidity: 10 -90% RH non-condensing, Storage Humidity: 5 -90% RH non-condensing
Specialty

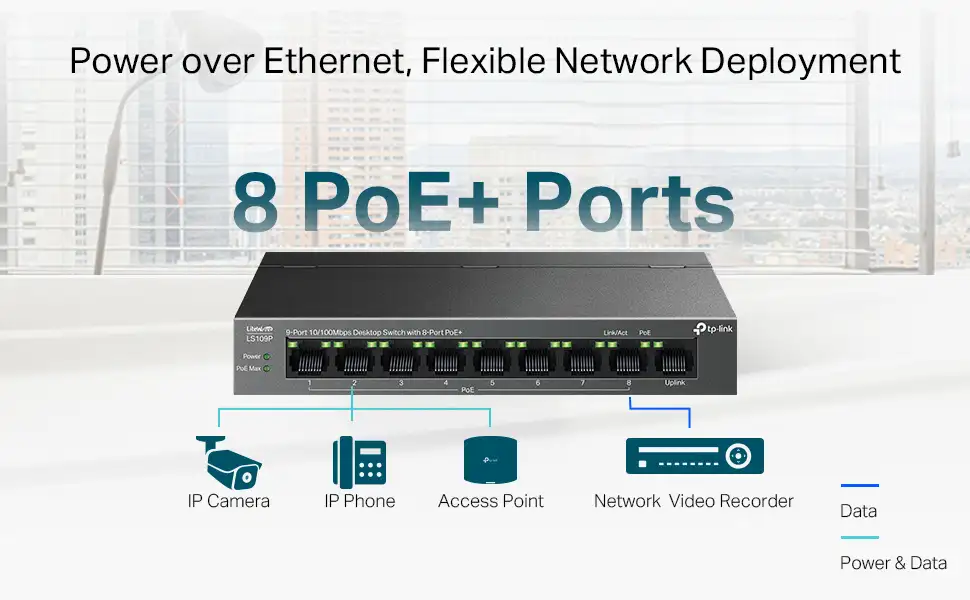

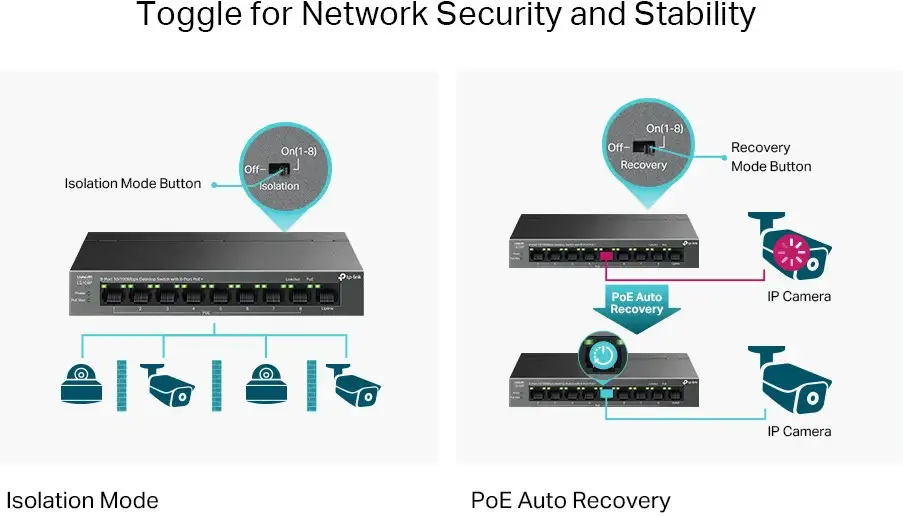

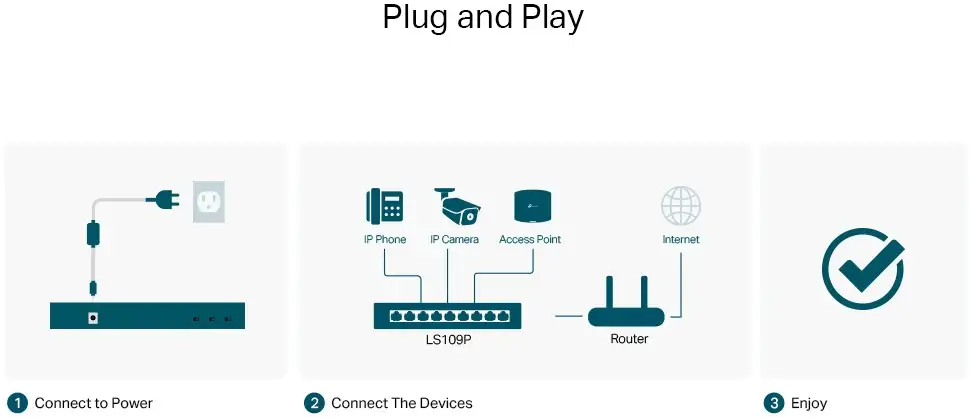

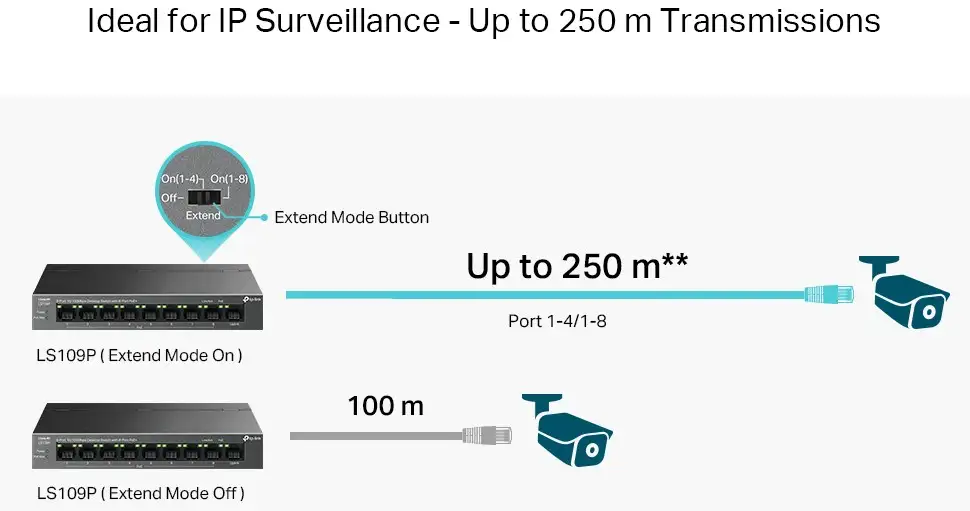

63 W PoE Budget: Eight 10/100 Mbps 802.3af/at-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port. Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas. PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices. Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storms. Plug and Play: Simply plug and play for instant connectivity with no configuration required. Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses. Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
