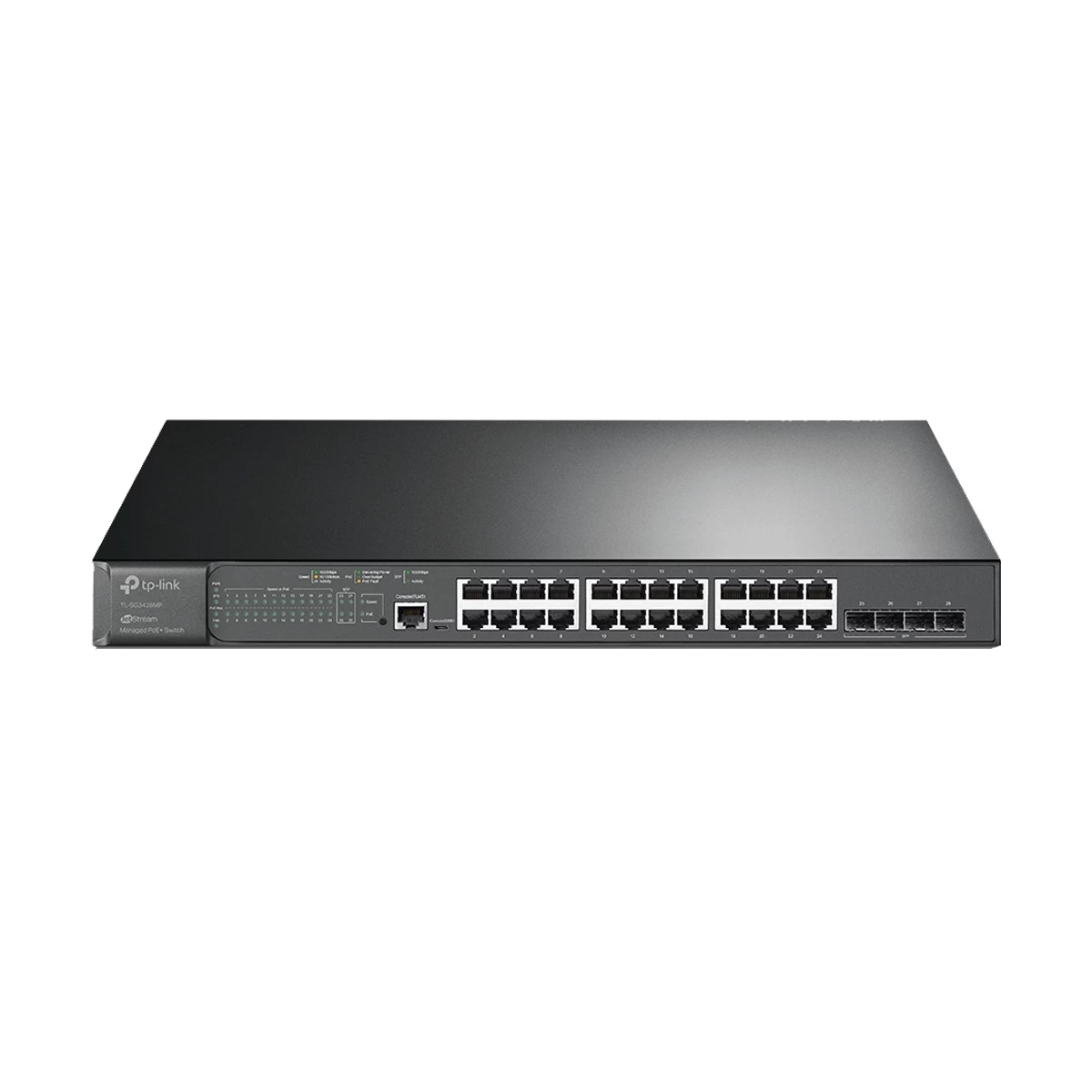

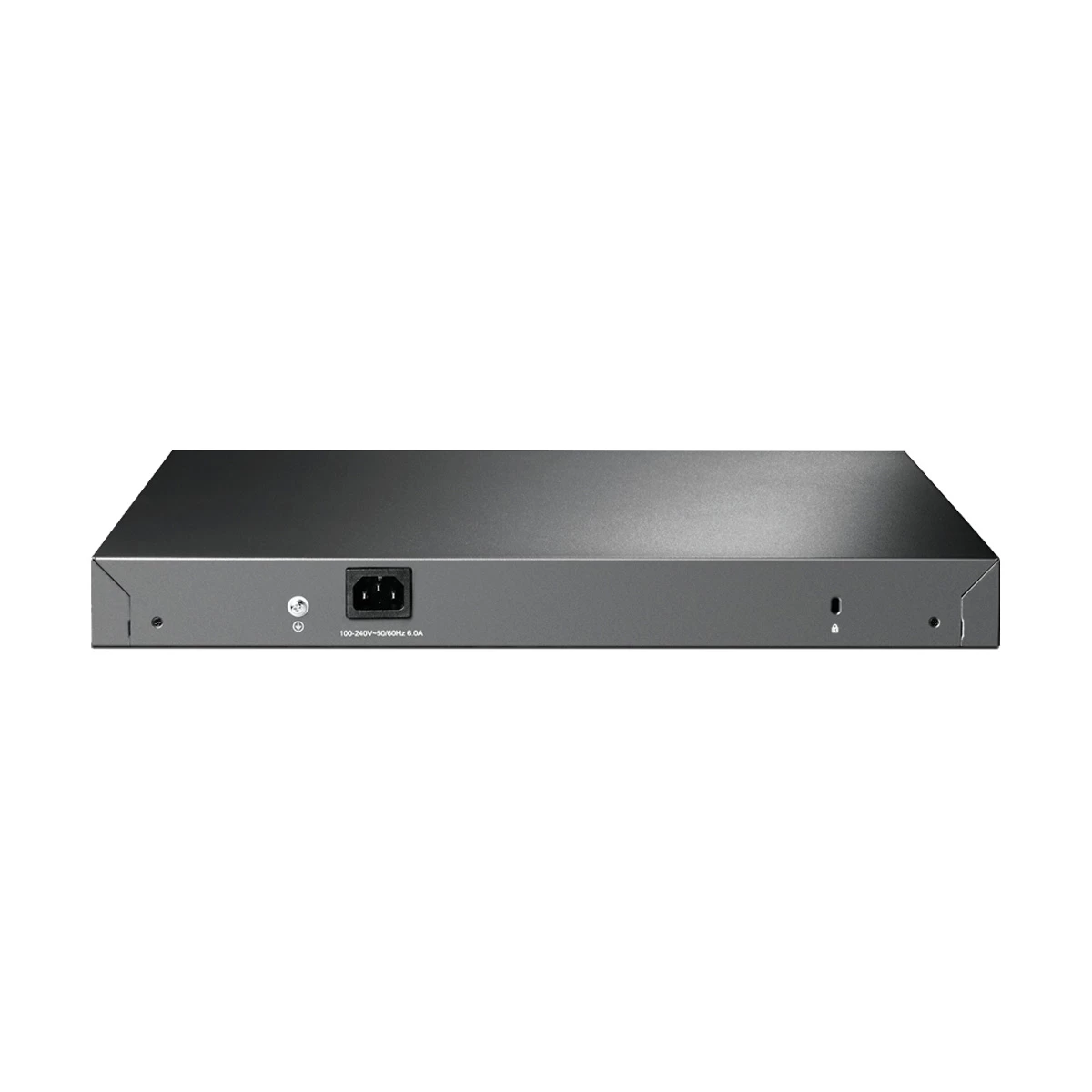

TP-Link TL-SG3428MP Jetstream 28-Port Gigabit Switch
Product Id: 29.05.091.130
Brand
Tp-link
Quick Overview
- Type - Network Switch
- Number of Total Port - 28 Port
- PoE - Yes
- Manageability - Managed
- Network Standards - IEEE 802.3at/af
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Rackmount
General
Brand
TP-Link
Model
TP-Link TL-SG3428MP Jetstream
Type
Network Switch
Ports & Slots
Number of Total Port
28 Port
SFP Port
4
PoE+ Port
24
Technical Info
PoE
Yes
Manageability
Managed
Interface(s)
24 x 10/100/1000Mbps RJ45 Ports, 4 x Gigabit SFP Slots, 1 x RJ45 Console Port, 1 x Micro-USB Console Port
Network Standards
IEEE 802.3at/af
Data Transfer Rate
10/100/1000 Mbps
Switching Capacity
56 Gbps
Physical Description
Fan/Fanless
2
Body Color
Black
Form Factor
Rackmount
Dimension
440 x 330 x 44mm
Packet Contents
TP-Link TL-SG3428MP, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet
Power
Power Supply
100-240 V AC-50/60 Hz
Warranty
Warranty Details
2 Year (Without Adapter)
Additional Info
Others
L2 and L2+ Features: (Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1d STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect, Loopback Detection, Port-based, VLAN based, Flow Control, 802.3x Flow Control, HOL Blocking Prevention, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Tx/Rx/Both), Max Power Consumption: (31.0 W (110 V/60 Hz) (no PD connected) 463.8 W (110 V/60 Hz) (with 384 W PD connected), Max Heat Dissipation: (105.78 BTU/h (110 V/60 Hz) (no PD connected), 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected), Packet Forwarding Rate: 41.66 Mpps, Packet Buffer Memory: 4.1 Mbit, Jumbo Frame: 9 KB
Specialty
Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, ZTP (Zero-Touch Provisioning)
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
