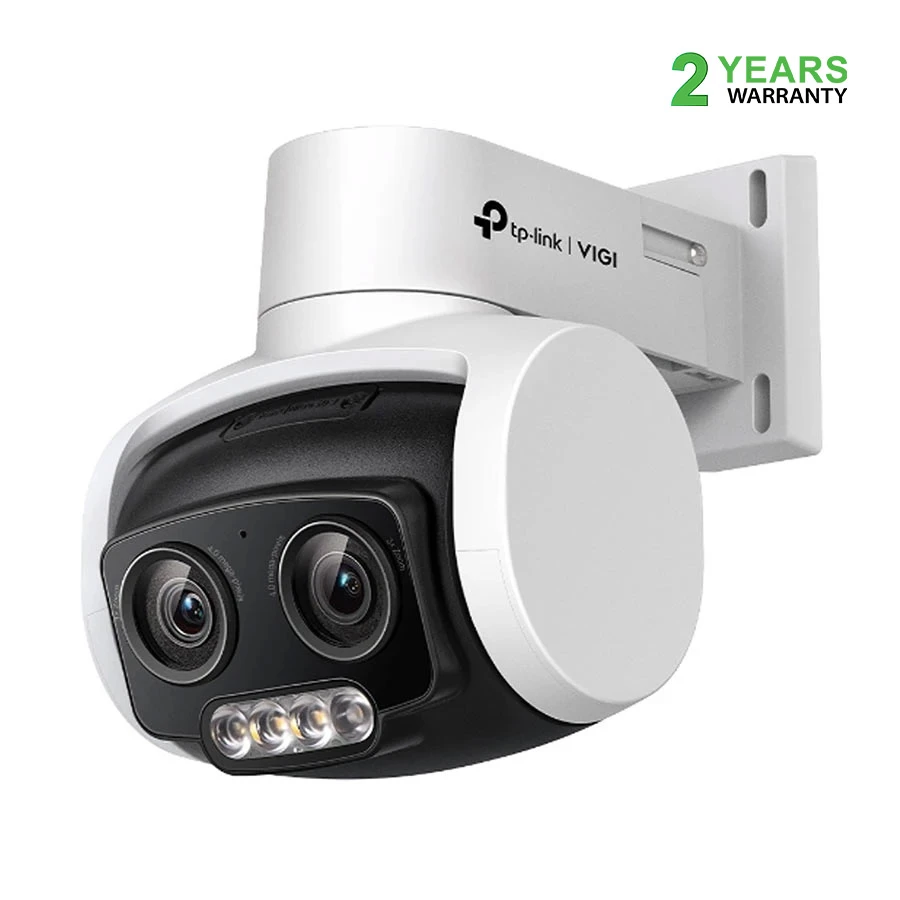

TP-Link VIGI C540V (4.0MP) Dual Lens Varifocal Pan/Tilt Outdoor Bullet IP Camera (Without Adapter & Wall Mount)
Product Id: 127.03.091.14
Brand
Tp-link
Quick Overview
- Usage - Outdoor
- Form-Factor - Bullet
- Mega Pixels (MP) - 4.0MP
- Night Vision Mode - Color
- Working Distance - 30 Meter
General
Brand
Tp-link
Model
TP-Link VIGI C540V
Usage
Outdoor
Type
Bullet IP Camera
Camera
Camera Type
Pan & Tilt
Mega Pixels (MP)
4.0MP
Max. Camera Resolution
2560 x 1440
Image Sensor
1/3 Inch Progresive Scan CMOS
Resolution
2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Day & Night
IR Cut Filter
Night Vision
Yes
Night Vision Mode
Color
S/N Ratio
52dB
Lens
Lens
4-12mm
Lens Mount
M12
Lens Adjustment Range
Pan: 0 to 332 degree, Tilt: 0 to 120 degree
Focal Length
4-12mm (Mixed Zoom)
PTZ
Yes
Zoom
3x (Mixed)
Viewing Angle.
100 degree (D), 84 degree (H), 46 degree (V)
General Function
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Motion Detection, Video Tampering Detection, Exception ( Illegal Login).
Dual-Stream
Yes
Frame Rate
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Digital Noise Reduction (DNR)
3D DNR
Wide Dynamic Range (WDR)
DWDR
Network & Connectivity
Interface(s)
RJ-45 (10/100 Base-T), PoE
Wi-Fi
No
Security
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Password Protection
Yes
Motion Detection
Yes
Human Detection
Yes
Face Detection
No
Water Protection
IP66
Weather Proof
Yes
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Technical Info
Scanning System
Progressive
Video Type
H.265+/ H.265/ H.264+/ H.264/ H.265/ H.264
Wavelength
850nm
Mic & Speaker
Both Mic and Speaker
Audio Communication
Two-way audio
Output Notification
Message Push
Working Distance
30 Meter
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Physical Description
Form-Factor
Bullet
Smart Alarm
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Card Slot
Yes
Storage Type
FTP, MicroSD, NAS
Storage Supported
Up to 256GB
Button
Yes
Body Material
Plastic
Color
White
Dimensions
107 x 136 x 139mm
Weight (gm)
0.43 Kg
Relevant Accessories (Not Included)
Without Adapter & Wall Mount
Power
Power
12V
Power Supply
12V DC +/- 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Approx. Power Consumption
14W
Operating Temperature
-30 to 60 degree C
Storing/Storage Temperature
-40 to 60 degree C
Operating Humidity
95% or Less (Non-Condensing)
Storing/Storage Humidity
95% or Less (Non-Condensing)
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Package Contents: (VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories), Image Enhancement: BLC/3D DNR/HLC/SmartIR, Illuminator On/Off Control: Auto/Scheduled/Always on/Always off, 3D Positioning: Yes, Park Action: Yes Preset Patrol Scan, Power-off Memory: Yes; Auto restore to previous PTZ and lens status after power failure, Patrol Scan: 8 patrols, up to 8 presets for each patrol, Presets: 300, Pan/tilt Speed: Pan Speed: Configurable from 1 degree to 55 degree/s; Preset Speed: 55 degree/s Tilt Speed: Configurable from 1 degree to 40 degree/s, Preset Speed 40 degree/s, Min. Illumination: 0.005 Lux, 0 Lux with IR/white light.
Specialty
Human & Vehicle Classification, Smart Detection, Instant Zoom, Sharp & Stable Image Definition, Customized Patrol, Power-Off Memory Function, Auto Tracking, Remote Monitoring & Configuration, VIGI Surveillance Solution, Flexible Installation.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of TP-Link VIGI C540V IP Camera In Bangladesh
VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera
- 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
- 24h Full-Color:: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.
- 3× Zoom: Allows for closer viewing of objects in expansive areas.
- Instant Zoom: Zooming is instant without suffering from delays and image dragging.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region.
- Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).
