Feature

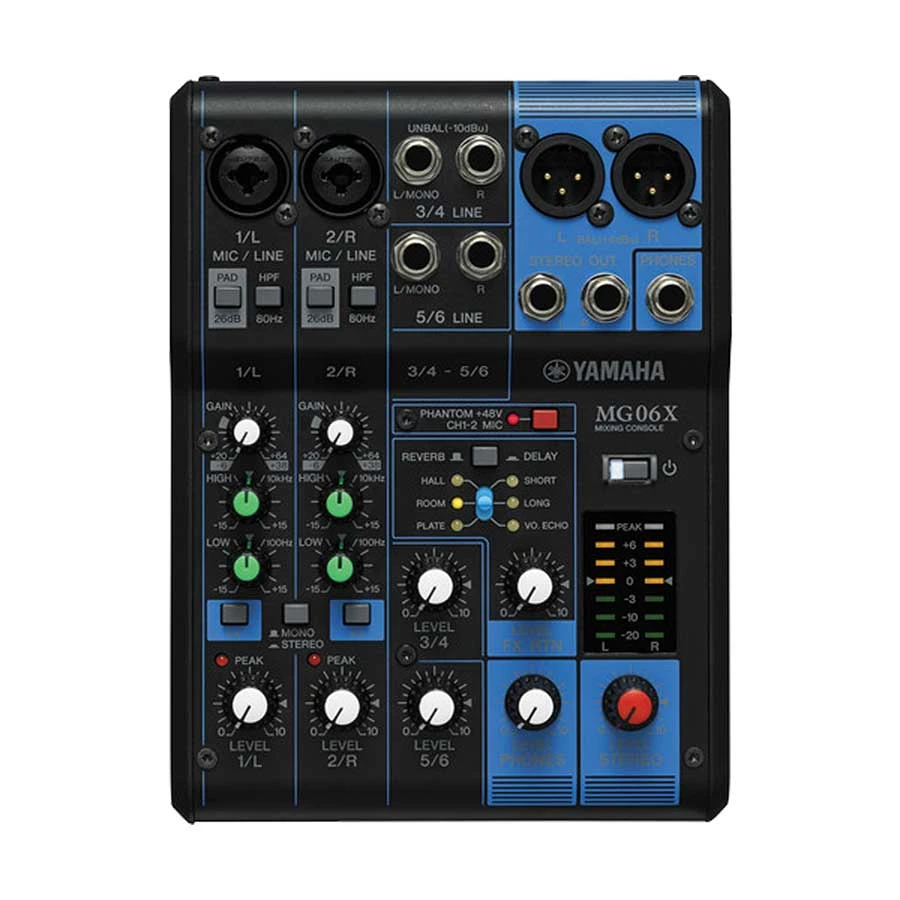

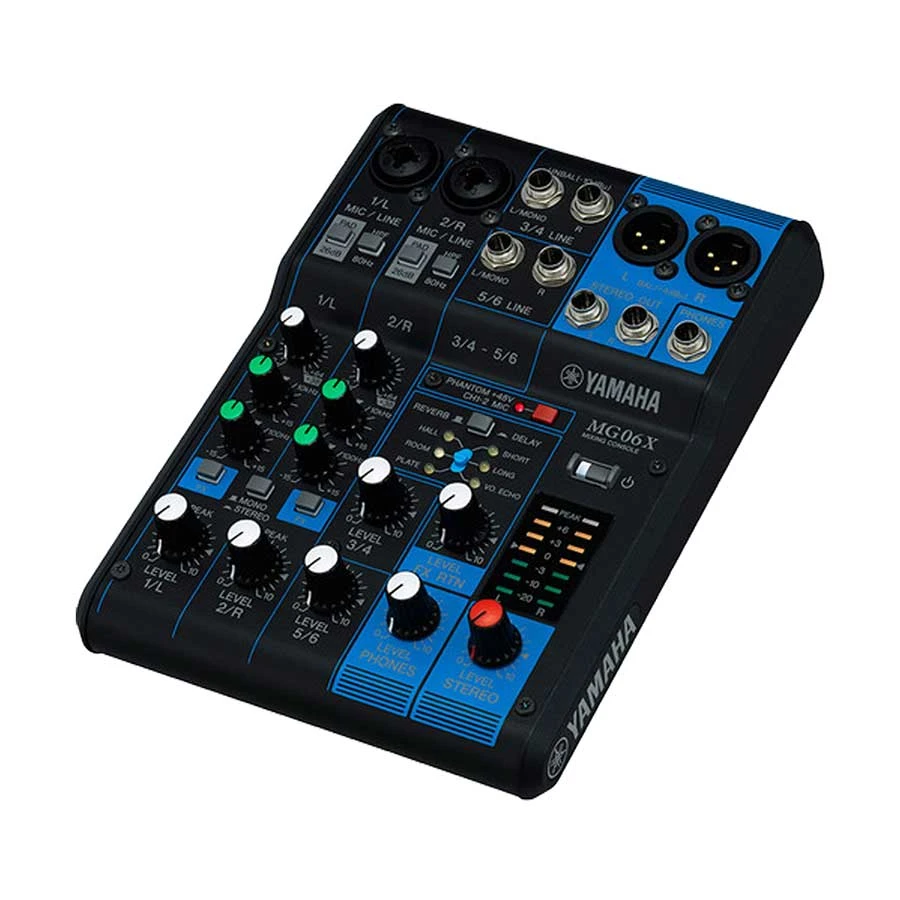

6 channel stand-alone mixer with onboard SPX digital effects (no USB); 48V phantom power, Featuring studio grade discrete class A D PRE amps with inverted Darlington circuit providing fat, natural sounding bass and smooth, soaring highs, 3 band EQ and high pass filters give you maximum control and eliminate unwanted noise, resulting in a cleaner mix, 1 Knob compressors allow easy control resulting in livelier guitars, punchier bass lines, a tighter snare and a cleaner vocal sound, MG Series mixers feature a rugged, impact resistant, powder coated metal chassis; LED level metering
Others

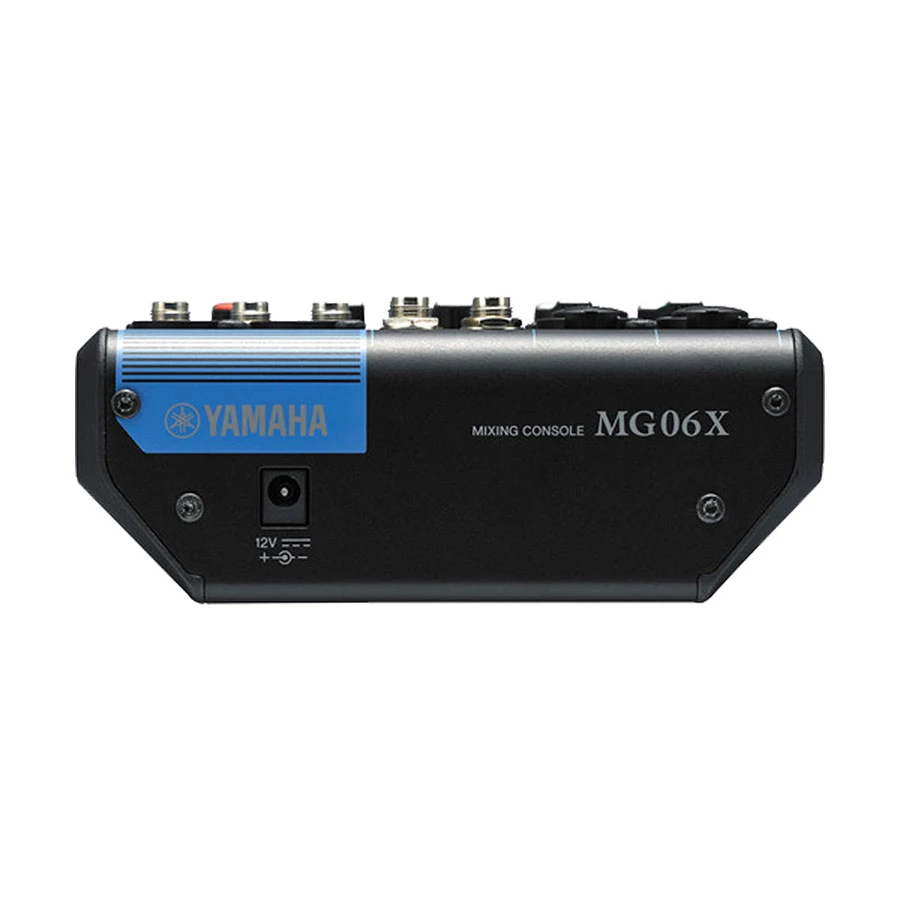

On-board processors: SPX algorithm: 6 programs, Mono[MIC/LINE] : 2, Stereo[LINE]: 2, STEREO OUT: 2, PHONES : 1, Input Channel Function: PAD - 26 dB (Mono), HPF - 80 Hz, 12 dB/oct (Mono), EQ HIGH - (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving, EQ LOW - (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving, PEAK LED - LED turns on when post EQ signal reaches 3 dB below clipping, Level Meter - 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB], Total harmonic distortion - 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min , Frequency response +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min, Hum & noise level - Equivalent input noise -128 dBu , Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min), Crosstalk : -88 dB, Power requirements :PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha, Operating Temperature: 0 to + 40 Degree C
